tlv320aic3254无声音输出

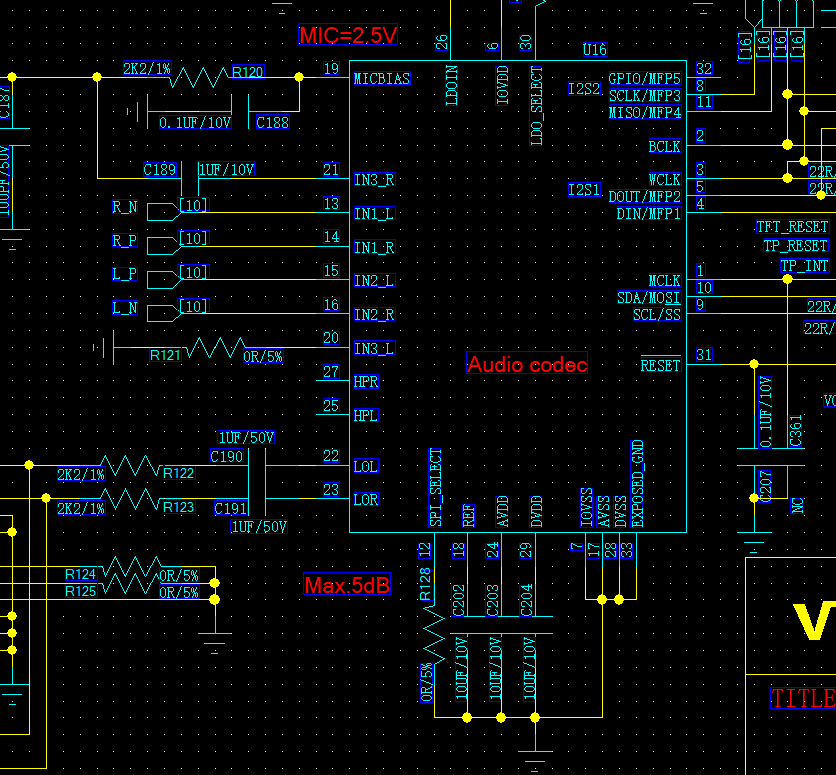

现在I2S,i2c电压正常,有人调过这款IC吗?

  • 驱动代码如下:
    /*
    * linux/sound/soc/codecs/tlv320aic32x4.c
    *
    * Copyright 2011 Vista Silicon S.L.
    *
    * Author: Javier Martin <javier.martin@vista-silicon.com>
    *
    * Based on sound/soc/codecs/wm8974 and TI driver for kernel 2.6.27.
    *
    * This program is free software; you can redistribute it and/or modify
    * it under the terms of the GNU General Public License as published by
    * the Free Software Foundation; either version 2 of the License, or
    * (at your option) any later version.
    *
    * This program is distributed in the hope that it will be useful,
    * but WITHOUT ANY WARRANTY; without even the implied warranty of
    * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
    * GNU General Public License for more details.
    *
    * You should have received a copy of the GNU General Public License
    * along with this program; if not, write to the Free Software
    * Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston,
    * MA 02110-1301, USA.
    */

    #include <linux/module.h>
    #include <linux/moduleparam.h>
    #include <linux/init.h>
    #include <linux/delay.h>
    #include <linux/pm.h>
    #include <linux/gpio.h>
    #include <linux/of_gpio.h>
    #include <linux/i2c.h>
    #include <linux/cdev.h>
    #include <linux/slab.h>
    #include <linux/clk.h>
    #include <linux/regulator/consumer.h>

    #include <sound/tlv320aic32x4.h>
    #include <sound/core.h>
    #include <sound/pcm.h>
    #include <sound/pcm_params.h>
    #include <sound/soc.h>
    #include <sound/soc-dapm.h>
    #include <sound/initval.h>
    #include <sound/tlv.h>

    #include "tlv320aic32x4.h"

    struct aic32x4_rate_divs {
        u32 mclk;
        u32 rate;
        u8 p_val;
        u8 pll_j;
        u16 pll_d;
        u16 dosr;
        u8 ndac;
        u8 mdac;
        u8 aosr;
        u8 nadc;
        u8 madc;
        u8 blck_N;
    };

    struct aic32x4_priv {
        struct regmap *regmap;
        u32 sysclk;
        u32 power_cfg;
        u32 micpga_routing;
        bool swapdacs;
        int rstn_gpio;
        struct clk *mclk;

        struct regulator *supply_ldo;
        struct regulator *supply_iov;
        struct regulator *supply_dv;
        struct regulator *supply_av;
    };

    /* 0dB min, 0.5dB steps */
    static DECLARE_TLV_DB_SCALE(tlv_step_0_5, 0, 50, 0);
    /* -63.5dB min, 0.5dB steps */
    static DECLARE_TLV_DB_SCALE(tlv_pcm, -6350, 50, 0);
    /* -6dB min, 1dB steps */
    static DECLARE_TLV_DB_SCALE(tlv_driver_gain, -600, 100, 0);
    /* -12dB min, 0.5dB steps */
    static DECLARE_TLV_DB_SCALE(tlv_adc_vol, -1200, 50, 0);

    static const struct snd_kcontrol_new aic32x4_snd_controls[] = {
        SOC_DOUBLE_R_S_TLV("PCM Playback Volume", AIC32X4_LDACVOL,
                AIC32X4_RDACVOL, 0, -0x7f, 0x30, 7, 0, tlv_pcm),
        SOC_DOUBLE_R_S_TLV("HP Driver Gain Volume", AIC32X4_HPLGAIN,
                AIC32X4_HPRGAIN, 0, -0x6, 0x1d, 5, 0,
                tlv_driver_gain),
        SOC_DOUBLE_R_S_TLV("LO Driver Gain Volume", AIC32X4_LOLGAIN,
                AIC32X4_LORGAIN, 0, -0x6, 0x1d, 5, 0,
                tlv_driver_gain),
        SOC_DOUBLE_R("HP DAC Playback Switch", AIC32X4_HPLGAIN,
                AIC32X4_HPRGAIN, 6, 0x01, 1),
        SOC_DOUBLE_R("LO DAC Playback Switch", AIC32X4_LOLGAIN,
                AIC32X4_LORGAIN, 6, 0x01, 1),
        SOC_DOUBLE_R("Mic PGA Switch", AIC32X4_LMICPGAVOL,
                AIC32X4_RMICPGAVOL, 7, 0x01, 1),

        SOC_SINGLE("ADCFGA Left Mute Switch", AIC32X4_ADCFGA, 7, 1, 0),
        SOC_SINGLE("ADCFGA Right Mute Switch", AIC32X4_ADCFGA, 3, 1, 0),

        SOC_DOUBLE_R_S_TLV("ADC Level Volume", AIC32X4_LADCVOL,
                AIC32X4_RADCVOL, 0, -0x18, 0x28, 6, 0, tlv_adc_vol),
        SOC_DOUBLE_R_TLV("PGA Level Volume", AIC32X4_LMICPGAVOL,
                AIC32X4_RMICPGAVOL, 0, 0x5f, 0, tlv_step_0_5),

        SOC_SINGLE("Auto-mute Switch", AIC32X4_DACMUTE, 4, 7, 0),

        SOC_SINGLE("AGC Left Switch", AIC32X4_LAGC1, 7, 1, 0),
        SOC_SINGLE("AGC Right Switch", AIC32X4_RAGC1, 7, 1, 0),
        SOC_DOUBLE_R("AGC Target Level", AIC32X4_LAGC1, AIC32X4_RAGC1,
                4, 0x07, 0),
        SOC_DOUBLE_R("AGC Gain Hysteresis", AIC32X4_LAGC1, AIC32X4_RAGC1,
                0, 0x03, 0),
        SOC_DOUBLE_R("AGC Hysteresis", AIC32X4_LAGC2, AIC32X4_RAGC2,
                6, 0x03, 0),
        SOC_DOUBLE_R("AGC Noise Threshold", AIC32X4_LAGC2, AIC32X4_RAGC2,
                1, 0x1F, 0),
        SOC_DOUBLE_R("AGC Max PGA", AIC32X4_LAGC3, AIC32X4_RAGC3,
                0, 0x7F, 0),
        SOC_DOUBLE_R("AGC Attack Time", AIC32X4_LAGC4, AIC32X4_RAGC4,
                3, 0x1F, 0),
        SOC_DOUBLE_R("AGC Decay Time", AIC32X4_LAGC5, AIC32X4_RAGC5,
                3, 0x1F, 0),
        SOC_DOUBLE_R("AGC Noise Debounce", AIC32X4_LAGC6, AIC32X4_RAGC6,
                0, 0x1F, 0),
        SOC_DOUBLE_R("AGC Signal Debounce", AIC32X4_LAGC7, AIC32X4_RAGC7,
                0, 0x0F, 0),
    };

    static const struct aic32x4_rate_divs aic32x4_divs[] = {
        /*mclk;rate;p_val;pll_j;pll_d;dosr;ndac;mdac;aosr;nadc;madc;blck_N;*/
        /* 8k rate */
        {AIC32X4_FREQ_12000000, 8000, 1, 7, 6800, 768, 5, 3, 128, 5, 18, 24},
        {AIC32X4_FREQ_24000000, 8000, 2, 7, 6800, 768, 15, 1, 64, 45, 4, 24},
        {AIC32X4_FREQ_25000000, 8000, 2, 7, 3728, 768, 15, 1, 64, 45, 4, 24},
        {AIC32X4_FREQ_11289600, 8000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_12288000, 8000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},

        /* 11.025k rate */
        {AIC32X4_FREQ_12000000, 11025, 1, 7, 5264, 512, 8, 2, 128, 8, 8, 16},
        {AIC32X4_FREQ_24000000, 11025, 2, 7, 5264, 512, 16, 1, 64, 32, 4, 16},
        {AIC32X4_FREQ_11289600, 11025, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_12288000, 11025, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},

        /* 16k rate */
        {AIC32X4_FREQ_12000000, 16000, 1, 7, 6800, 384, 5, 3, 128, 5, 9, 12},
        {AIC32X4_FREQ_24000000, 16000, 2, 7, 6800, 384, 15, 1, 64, 18, 5, 12},
        {AIC32X4_FREQ_25000000, 16000, 2, 7, 3728, 384, 15, 1, 64, 18, 5, 12},
        {AIC32X4_FREQ_11289600, 16000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_12288000, 16000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},

        /* 22.05k rate */
        {AIC32X4_FREQ_12000000, 22050, 1, 7, 5264, 256, 4, 4, 128, 4, 8, 8},
        {AIC32X4_FREQ_24000000, 22050, 2, 7, 5264, 256, 16, 1, 64, 16, 4, 8},
        {AIC32X4_FREQ_25000000, 22050, 2, 7, 2253, 256, 16, 1, 64, 16, 4, 8},
        {AIC32X4_FREQ_11289600, 22000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_12288000, 22000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},

        /* 32k rate */
        {AIC32X4_FREQ_12000000, 32000, 1, 7, 1680, 192, 2, 7, 64, 2, 21, 6},
        {AIC32X4_FREQ_24000000, 32000, 2, 7, 1680, 192, 7, 2, 64, 7, 6, 6},
        {AIC32X4_FREQ_11289600, 32000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_12288000, 32000, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},

        /* 44.1k rate */
        {AIC32X4_FREQ_12000000, 44100, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_24000000, 44100, 2, 7, 5264, 128, 8, 2, 64, 8, 4, 4},
        {AIC32X4_FREQ_25000000, 44100, 2, 7, 2253, 128, 8, 2, 64, 8, 4, 4},
        {AIC32X4_FREQ_11289600, 44100, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_12288000, 44100, 1, 7, 5264, 128, 2, 8, 128, 2, 8, 4},

        /* 48k rate */
        {AIC32X4_FREQ_12000000, 48000, 1, 8, 1920, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_24000000, 48000, 2, 8, 1920, 128, 8, 2, 64, 8, 4, 4},
        {AIC32X4_FREQ_25000000, 48000, 2, 7, 8643, 128, 8, 2, 64, 8, 4, 4},
        {AIC32X4_FREQ_11289600, 48000, 1, 8, 5264, 128, 2, 8, 128, 2, 8, 4},
        {AIC32X4_FREQ_12288000, 48000, 1, 8, 5264, 128, 2, 8, 128, 2, 8, 4},

    };

    static const struct snd_kcontrol_new hpl_output_mixer_controls[] = {
        SOC_DAPM_SINGLE("L_DAC Switch", AIC32X4_HPLROUTE, 3, 1, 0),
        SOC_DAPM_SINGLE("IN1_L Switch", AIC32X4_HPLROUTE, 2, 1, 0),
    };

    static const struct snd_kcontrol_new hpr_output_mixer_controls[] = {
        SOC_DAPM_SINGLE("R_DAC Switch", AIC32X4_HPRROUTE, 3, 1, 0),
        SOC_DAPM_SINGLE("IN1_R Switch", AIC32X4_HPRROUTE, 2, 1, 0),
    };

    static const struct snd_kcontrol_new lol_output_mixer_controls[] = {
        SOC_DAPM_SINGLE("L_DAC Switch", AIC32X4_LOLROUTE, 3, 1, 0),
    };

    static const struct snd_kcontrol_new lor_output_mixer_controls[] = {
        SOC_DAPM_SINGLE("R_DAC Switch", AIC32X4_LORROUTE, 3, 1, 0),
    };

    static const struct snd_kcontrol_new left_input_mixer_controls[] = {
        SOC_DAPM_SINGLE("IN1_L P Switch", AIC32X4_LMICPGAPIN, 6, 1, 0),
        SOC_DAPM_SINGLE("IN2_L P Switch", AIC32X4_LMICPGAPIN, 4, 1, 0),
        SOC_DAPM_SINGLE("IN3_L P Switch", AIC32X4_LMICPGAPIN, 2, 1, 0),
    };

    static const struct snd_kcontrol_new right_input_mixer_controls[] = {
        SOC_DAPM_SINGLE("IN1_R P Switch", AIC32X4_RMICPGAPIN, 6, 1, 0),
        SOC_DAPM_SINGLE("IN2_R P Switch", AIC32X4_RMICPGAPIN, 4, 1, 0),
        SOC_DAPM_SINGLE("IN3_R P Switch", AIC32X4_RMICPGAPIN, 2, 1, 0),
    };

    static const struct snd_soc_dapm_widget aic32x4_dapm_widgets[] = {
        SND_SOC_DAPM_DAC("Left DAC", "Left Playback", AIC32X4_DACSETUP, 7, 0),
        SND_SOC_DAPM_MIXER("HPL Output Mixer", SND_SOC_NOPM, 0, 0,
                 &hpl_output_mixer_controls[0],
                 ARRAY_SIZE(hpl_output_mixer_controls)),
        SND_SOC_DAPM_PGA("HPL Power", AIC32X4_OUTPWRCTL, 5, 0, NULL, 0),

        SND_SOC_DAPM_MIXER("LOL Output Mixer", SND_SOC_NOPM, 0, 0,
                 &lol_output_mixer_controls[0],
                 ARRAY_SIZE(lol_output_mixer_controls)),
        SND_SOC_DAPM_PGA("LOL Power", AIC32X4_OUTPWRCTL, 3, 0, NULL, 0),

        SND_SOC_DAPM_DAC("Right DAC", "Right Playback", AIC32X4_DACSETUP, 6, 0),
        SND_SOC_DAPM_MIXER("HPR Output Mixer", SND_SOC_NOPM, 0, 0,
                 &hpr_output_mixer_controls[0],
                 ARRAY_SIZE(hpr_output_mixer_controls)),
        SND_SOC_DAPM_PGA("HPR Power", AIC32X4_OUTPWRCTL, 4, 0, NULL, 0),
        SND_SOC_DAPM_MIXER("LOR Output Mixer", SND_SOC_NOPM, 0, 0,
                 &lor_output_mixer_controls[0],
                 ARRAY_SIZE(lor_output_mixer_controls)),
        SND_SOC_DAPM_PGA("LOR Power", AIC32X4_OUTPWRCTL, 2, 0, NULL, 0),
        SND_SOC_DAPM_MIXER("Left Input Mixer", SND_SOC_NOPM, 0, 0,
                 &left_input_mixer_controls[0],
                 ARRAY_SIZE(left_input_mixer_controls)),
        SND_SOC_DAPM_MIXER("Right Input Mixer", SND_SOC_NOPM, 0, 0,
                 &right_input_mixer_controls[0],
                 ARRAY_SIZE(right_input_mixer_controls)),
        SND_SOC_DAPM_ADC("Left ADC", "Left Capture", AIC32X4_ADCSETUP, 7, 0),
        SND_SOC_DAPM_ADC("Right ADC", "Right Capture", AIC32X4_ADCSETUP, 6, 0),
        SND_SOC_DAPM_MICBIAS("Mic Bias", AIC32X4_MICBIAS, 6, 0),

        SND_SOC_DAPM_OUTPUT("HPL"),
        SND_SOC_DAPM_OUTPUT("HPR"),
        SND_SOC_DAPM_OUTPUT("LOL"),
        SND_SOC_DAPM_OUTPUT("LOR"),
        SND_SOC_DAPM_INPUT("IN1_L"),
        SND_SOC_DAPM_INPUT("IN1_R"),
        SND_SOC_DAPM_INPUT("IN2_L"),
        SND_SOC_DAPM_INPUT("IN2_R"),
        SND_SOC_DAPM_INPUT("IN3_L"),
        SND_SOC_DAPM_INPUT("IN3_R"),
    };

    static const struct snd_soc_dapm_route aic32x4_dapm_routes[] = {
        /* Left Output */
        {"HPL Output Mixer", "L_DAC Switch", "Left DAC"},
        {"HPL Output Mixer", "IN1_L Switch", "IN1_L"},

        {"HPL Power", NULL, "HPL Output Mixer"},
        {"HPL", NULL, "HPL Power"},

        {"LOL Output Mixer", "L_DAC Switch", "Left DAC"},

        {"LOL Power", NULL, "LOL Output Mixer"},
        {"LOL", NULL, "LOL Power"},

        /* Right Output */
        {"HPR Output Mixer", "R_DAC Switch", "Right DAC"},
        {"HPR Output Mixer", "IN1_R Switch", "IN1_R"},

        {"HPR Power", NULL, "HPR Output Mixer"},
        {"HPR", NULL, "HPR Power"},

        {"LOR Output Mixer", "R_DAC Switch", "Right DAC"},

        {"LOR Power", NULL, "LOR Output Mixer"},
        {"LOR", NULL, "LOR Power"},

        /* Left input */
        {"Left Input Mixer", "IN1_L P Switch", "IN1_L"},
        {"Left Input Mixer", "IN2_L P Switch", "IN2_L"},
        {"Left Input Mixer", "IN3_L P Switch", "IN3_L"},

        {"Left ADC", NULL, "Left Input Mixer"},

        /* Right Input */
        {"Right Input Mixer", "IN1_R P Switch", "IN1_R"},
        {"Right Input Mixer", "IN2_R P Switch", "IN2_R"},
        {"Right Input Mixer", "IN3_R P Switch", "IN3_R"},

        {"Right ADC", NULL, "Right Input Mixer"},
    };

    static const struct regmap_range_cfg aic32x4_regmap_pages[] = {
        {
            .selector_reg = 0,
            .selector_mask = 0xff,
            .window_start = 0,
            .window_len = 128,
            .range_min = 0,
            .range_max = AIC32X4_RMICPGAVOL,
        },
    };

    static const struct regmap_config aic32x4_regmap = {
        .reg_bits = 8,
        .val_bits = 8,

        .max_register = AIC32X4_RMICPGAVOL,
        .ranges = aic32x4_regmap_pages,
        .num_ranges = ARRAY_SIZE(aic32x4_regmap_pages),
    };

    static inline int aic32x4_get_divs(int mclk, int rate)
    {
        int i;

        printk(KERN_ERR "audio mclk is %d \n",mclk);
        printk(KERN_ERR "audio rate is %d \n",rate);

        for (i = 0; i < ARRAY_SIZE(aic32x4_divs); i++) {
            if ((aic32x4_divs[i].rate == rate)
             && (aic32x4_divs[i].mclk == mclk)) {
                return i;
            }
        }
        printk(KERN_ERR "aic32x4: master clock and sample rate is not supported\n");
        return -EINVAL;
    }

    static int aic32x4_set_dai_sysclk(struct snd_soc_dai *codec_dai,
                     int clk_id, unsigned int freq, int dir)
    {
        struct snd_soc_codec *codec = codec_dai->codec;
        struct aic32x4_priv *aic32x4 = snd_soc_codec_get_drvdata(codec);

        switch (freq) {
        case AIC32X4_FREQ_12000000:
        case AIC32X4_FREQ_24000000:
        case AIC32X4_FREQ_25000000:
        case AIC32X4_FREQ_11289600:
        case AIC32X4_FREQ_12288000:

            aic32x4->sysclk = freq;
            return 0;
        }
        printk(KERN_ERR "aic32x4: invalid frequency to set DAI system clock\n");
        printk(KERN_ERR "audio freq is %d \n",freq);//11289600
        return -EINVAL;
    }

    static int aic32x4_set_dai_fmt(struct snd_soc_dai *codec_dai, unsigned int fmt)
    {
        struct snd_soc_codec *codec = codec_dai->codec;
        u8 iface_reg_1;
        u8 iface_reg_2;
        u8 iface_reg_3;

        iface_reg_1 = snd_soc_read(codec, AIC32X4_IFACE1);
        iface_reg_1 = iface_reg_1 & ~(3 << 6 | 3 << 2);
        iface_reg_2 = snd_soc_read(codec, AIC32X4_IFACE2);
        iface_reg_2 = 0;
        iface_reg_3 = snd_soc_read(codec, AIC32X4_IFACE3);
        iface_reg_3 = iface_reg_3 & ~(1 << 3);

        /* set master/slave audio interface */
        switch (fmt & SND_SOC_DAIFMT_MASTER_MASK) {
        case SND_SOC_DAIFMT_CBM_CFM:
            iface_reg_1 |= AIC32X4_BCLKMASTER | AIC32X4_WCLKMASTER;
            break;
        case SND_SOC_DAIFMT_CBS_CFS:
            break;
        default:
            printk(KERN_ERR "aic32x4: invalid DAI master/slave interface\n");
            return -EINVAL;
        }

        switch (fmt & SND_SOC_DAIFMT_FORMAT_MASK) {
        case SND_SOC_DAIFMT_I2S:
            break;
        case SND_SOC_DAIFMT_DSP_A:
            iface_reg_1 |= (AIC32X4_DSP_MODE << AIC32X4_PLLJ_SHIFT);
            iface_reg_3 |= (1 << 3); /* invert bit clock */
            iface_reg_2 = 0x01; /* add offset 1 */
            break;
        case SND_SOC_DAIFMT_DSP_B:
            iface_reg_1 |= (AIC32X4_DSP_MODE << AIC32X4_PLLJ_SHIFT);
            iface_reg_3 |= (1 << 3); /* invert bit clock */
            break;
        case SND_SOC_DAIFMT_RIGHT_J:
            iface_reg_1 |=
                (AIC32X4_RIGHT_JUSTIFIED_MODE << AIC32X4_PLLJ_SHIFT);
            break;
        case SND_SOC_DAIFMT_LEFT_J:
            iface_reg_1 |=
                (AIC32X4_LEFT_JUSTIFIED_MODE << AIC32X4_PLLJ_SHIFT);
            break;
        default:
            printk(KERN_ERR "aic32x4: invalid DAI interface format\n");
            return -EINVAL;
        }

        snd_soc_write(codec, AIC32X4_IFACE1, iface_reg_1);
        snd_soc_write(codec, AIC32X4_IFACE2, iface_reg_2);
        snd_soc_write(codec, AIC32X4_IFACE3, iface_reg_3);
        return 0;
    }

    static int aic32x4_hw_params(struct snd_pcm_substream *substream,
                 struct snd_pcm_hw_params *params,
                 struct snd_soc_dai *dai)
    {
        struct snd_soc_codec *codec = dai->codec;
        struct aic32x4_priv *aic32x4 = snd_soc_codec_get_drvdata(codec);
        u8 data;
        int i;

        i = aic32x4_get_divs(aic32x4->sysclk, params_rate(params));
        if (i < 0) {
            printk(KERN_ERR "aic32x4: sampling rate not supported\n");
            return i;
        }

        /* Use PLL as CODEC_CLKIN and DAC_MOD_CLK as BDIV_CLKIN */
        snd_soc_write(codec, AIC32X4_CLKMUX, AIC32X4_PLLCLKIN);
        snd_soc_write(codec, AIC32X4_IFACE3, AIC32X4_DACMOD2BCLK);

        /* We will fix R value to 1 and will make P & J=K.D as varialble */
        data = snd_soc_read(codec, AIC32X4_PLLPR);
        data &= ~(7 << 4);
        snd_soc_write(codec, AIC32X4_PLLPR,
             (data | (aic32x4_divs[i].p_val << 4) | 0x01));

        snd_soc_write(codec, AIC32X4_PLLJ, aic32x4_divs[i].pll_j);

        snd_soc_write(codec, AIC32X4_PLLDMSB, (aic32x4_divs[i].pll_d >> 8));
        snd_soc_write(codec, AIC32X4_PLLDLSB,
             (aic32x4_divs[i].pll_d & 0xff));

        /* NDAC divider value */
        data = snd_soc_read(codec, AIC32X4_NDAC);
        data &= ~(0x7f);
        snd_soc_write(codec, AIC32X4_NDAC, data | aic32x4_divs[i].ndac);

        /* MDAC divider value */
        data = snd_soc_read(codec, AIC32X4_MDAC);
        data &= ~(0x7f);
        snd_soc_write(codec, AIC32X4_MDAC, data | aic32x4_divs[i].mdac);

        /* DOSR MSB & LSB values */
        snd_soc_write(codec, AIC32X4_DOSRMSB, aic32x4_divs[i].dosr >> 8);
        snd_soc_write(codec, AIC32X4_DOSRLSB,
             (aic32x4_divs[i].dosr & 0xff));

        /* NADC divider value */
        data = snd_soc_read(codec, AIC32X4_NADC);
        data &= ~(0x7f);
        snd_soc_write(codec, AIC32X4_NADC, data | aic32x4_divs[i].nadc);

        /* MADC divider value */
        data = snd_soc_read(codec, AIC32X4_MADC);
        data &= ~(0x7f);
        snd_soc_write(codec, AIC32X4_MADC, data | aic32x4_divs[i].madc);

        /* AOSR value */
        snd_soc_write(codec, AIC32X4_AOSR, aic32x4_divs[i].aosr);

        /* BCLK N divider */
        data = snd_soc_read(codec, AIC32X4_BCLKN);
        data &= ~(0x7f);
        snd_soc_write(codec, AIC32X4_BCLKN, data | aic32x4_divs[i].blck_N);

        data = snd_soc_read(codec, AIC32X4_IFACE1);
        data = data & ~(3 << 4);
        switch (params_width(params)) {
        case 16:
            break;
        case 20:
            data |= (AIC32X4_WORD_LEN_20BITS << AIC32X4_DOSRMSB_SHIFT);
            break;
        case 24:
            data |= (AIC32X4_WORD_LEN_24BITS << AIC32X4_DOSRMSB_SHIFT);
            break;
        case 32:
            data |= (AIC32X4_WORD_LEN_32BITS << AIC32X4_DOSRMSB_SHIFT);
            break;
        }
        snd_soc_write(codec, AIC32X4_IFACE1, data);

        if (params_channels(params) == 1) {
            data = AIC32X4_RDAC2LCHN | AIC32X4_LDAC2LCHN;
        } else {
            if (aic32x4->swapdacs)
                data = AIC32X4_RDAC2LCHN | AIC32X4_LDAC2RCHN;
            else
                data = AIC32X4_LDAC2LCHN | AIC32X4_RDAC2RCHN;
        }
        snd_soc_update_bits(codec, AIC32X4_DACSETUP, AIC32X4_DAC_CHAN_MASK,
                data);

        return 0;
    }

    static int aic32x4_mute(struct snd_soc_dai *dai, int mute)
    {
        struct snd_soc_codec *codec = dai->codec;
        u8 dac_reg;

        dac_reg = snd_soc_read(codec, AIC32X4_DACMUTE) & ~AIC32X4_MUTEON;
        if (mute)
            snd_soc_write(codec, AIC32X4_DACMUTE, dac_reg | AIC32X4_MUTEON);
        else
            snd_soc_write(codec, AIC32X4_DACMUTE, dac_reg);
        return 0;
    }

    static int aic32x4_set_bias_level(struct snd_soc_codec *codec,
                     enum snd_soc_bias_level level)
    {
        struct aic32x4_priv *aic32x4 = snd_soc_codec_get_drvdata(codec);
        int ret;

        switch (level) {
        case SND_SOC_BIAS_ON:
            /* Switch on master clock */
            ret = clk_prepare_enable(aic32x4->mclk);
            if (ret) {
                dev_err(codec->dev, "Failed to enable master clock\n");
                return ret;
            }

            /* Switch on PLL */
            snd_soc_update_bits(codec, AIC32X4_PLLPR,
                     AIC32X4_PLLEN, AIC32X4_PLLEN);

            /* Switch on NDAC Divider */
            snd_soc_update_bits(codec, AIC32X4_NDAC,
                     AIC32X4_NDACEN, AIC32X4_NDACEN);

            /* Switch on MDAC Divider */
            snd_soc_update_bits(codec, AIC32X4_MDAC,
                     AIC32X4_MDACEN, AIC32X4_MDACEN);

            /* Switch on NADC Divider */
            snd_soc_update_bits(codec, AIC32X4_NADC,
                     AIC32X4_NADCEN, AIC32X4_NADCEN);

            /* Switch on MADC Divider */
            snd_soc_update_bits(codec, AIC32X4_MADC,
                     AIC32X4_MADCEN, AIC32X4_MADCEN);

            /* Switch on BCLK_N Divider */
            snd_soc_update_bits(codec, AIC32X4_BCLKN,
                     AIC32X4_BCLKEN, AIC32X4_BCLKEN);
            break;
        case SND_SOC_BIAS_PREPARE:
            break;
        case SND_SOC_BIAS_STANDBY:
            /* Switch off BCLK_N Divider */
            snd_soc_update_bits(codec, AIC32X4_BCLKN,
                     AIC32X4_BCLKEN, 0);

            /* Switch off MADC Divider */
            snd_soc_update_bits(codec, AIC32X4_MADC,
                     AIC32X4_MADCEN, 0);

            /* Switch off NADC Divider */
            snd_soc_update_bits(codec, AIC32X4_NADC,
                     AIC32X4_NADCEN, 0);

            /* Switch off MDAC Divider */
            snd_soc_update_bits(codec, AIC32X4_MDAC,
                     AIC32X4_MDACEN, 0);

            /* Switch off NDAC Divider */
            snd_soc_update_bits(codec, AIC32X4_NDAC,
                     AIC32X4_NDACEN, 0);

            /* Switch off PLL */
            snd_soc_update_bits(codec, AIC32X4_PLLPR,
                     AIC32X4_PLLEN, 0);

            /* Switch off master clock */
            clk_disable_unprepare(aic32x4->mclk);
            break;
        case SND_SOC_BIAS_OFF:
            break;
        }
        return 0;
    }

    #define AIC32X4_RATES   SNDRV_PCM_RATE_8000_48000
    #define AIC32X4_FORMATS (SNDRV_PCM_FMTBIT_S16_LE | SNDRV_PCM_FMTBIT_S20_3LE \
                 | SNDRV_PCM_FMTBIT_S24_3LE | SNDRV_PCM_FMTBIT_S32_LE)

    static const struct snd_soc_dai_ops aic32x4_ops = {
        .hw_params = aic32x4_hw_params,
        .digital_mute = aic32x4_mute,
        .set_fmt = aic32x4_set_dai_fmt,
        .set_sysclk = aic32x4_set_dai_sysclk,
    };

    static struct snd_soc_dai_driver aic32x4_dai = {
        .name = "tlv320aic32x4-hifi",
        .playback = {
             .stream_name = "Playback",
             .channels_min = 1,
             .channels_max = 2,
             .rates = AIC32X4_RATES,
             .formats = AIC32X4_FORMATS,},
        .capture = {
             .stream_name = "Capture",
             .channels_min = 1,
             .channels_max = 2,
             .rates = AIC32X4_RATES,
             .formats = AIC32X4_FORMATS,},
        .ops = &aic32x4_ops,
        .symmetric_rates = 1,
    };

    static int aic32x4_probe(struct snd_soc_codec *codec)
    {
        struct aic32x4_priv *aic32x4 = snd_soc_codec_get_drvdata(codec);
        u32 tmp_reg;

        if (gpio_is_valid(aic32x4->rstn_gpio)) {
            ndelay(10);
            gpio_set_value(aic32x4->rstn_gpio, 1);
        }

        snd_soc_write(codec, AIC32X4_RESET, 0x01);

        /* Power platform configuration */
        if (aic32x4->power_cfg & AIC32X4_PWR_MICBIAS_2075_LDOIN) {
            snd_soc_write(codec, AIC32X4_MICBIAS, AIC32X4_MICBIAS_LDOIN |
                             AIC32X4_MICBIAS_2075V);
        }
        if (aic32x4->power_cfg & AIC32X4_PWR_AVDD_DVDD_WEAK_DISABLE)
            snd_soc_write(codec, AIC32X4_PWRCFG, AIC32X4_AVDDWEAKDISABLE);

        tmp_reg = (aic32x4->power_cfg & AIC32X4_PWR_AIC32X4_LDO_ENABLE) ?
                AIC32X4_LDOCTLEN : 0;
        snd_soc_write(codec, AIC32X4_LDOCTL, tmp_reg);

        tmp_reg = snd_soc_read(codec, AIC32X4_CMMODE);
        if (aic32x4->power_cfg & AIC32X4_PWR_CMMODE_LDOIN_RANGE_18_36)
            tmp_reg |= AIC32X4_LDOIN_18_36;
        if (aic32x4->power_cfg & AIC32X4_PWR_CMMODE_HP_LDOIN_POWERED)
            tmp_reg |= AIC32X4_LDOIN2HP;
        snd_soc_write(codec, AIC32X4_CMMODE, tmp_reg);

        /* Mic PGA routing */
        if (aic32x4->micpga_routing & AIC32X4_MICPGA_ROUTE_LMIC_IN2R_10K)
            snd_soc_write(codec, AIC32X4_LMICPGANIN,
                    AIC32X4_LMICPGANIN_IN2R_10K);
        else
            snd_soc_write(codec, AIC32X4_LMICPGANIN,
                    AIC32X4_LMICPGANIN_CM1L_10K);
        if (aic32x4->micpga_routing & AIC32X4_MICPGA_ROUTE_RMIC_IN1L_10K)
            snd_soc_write(codec, AIC32X4_RMICPGANIN,
                    AIC32X4_RMICPGANIN_IN1L_10K);
        else
            snd_soc_write(codec, AIC32X4_RMICPGANIN,
                    AIC32X4_RMICPGANIN_CM1R_10K);

        /*
         * Workaround: for an unknown reason, the ADC needs to be powered up
         * and down for the first capture to work properly. It seems related to
         * a HW BUG or some kind of behavior not documented in the datasheet.
         */
        tmp_reg = snd_soc_read(codec, AIC32X4_ADCSETUP);
        snd_soc_write(codec, AIC32X4_ADCSETUP, tmp_reg |
                    AIC32X4_LADC_EN | AIC32X4_RADC_EN);
        snd_soc_write(codec, AIC32X4_ADCSETUP, tmp_reg);

        return 0;
    }

    static struct snd_soc_codec_driver soc_codec_dev_aic32x4 = {
        .probe = aic32x4_probe,
        .set_bias_level = aic32x4_set_bias_level,
        .suspend_bias_off = true,

        .controls = aic32x4_snd_controls,
        .num_controls = ARRAY_SIZE(aic32x4_snd_controls),
        .dapm_widgets = aic32x4_dapm_widgets,
        .num_dapm_widgets = ARRAY_SIZE(aic32x4_dapm_widgets),
        .dapm_routes = aic32x4_dapm_routes,
        .num_dapm_routes = ARRAY_SIZE(aic32x4_dapm_routes),
    };

    static int aic32x4_parse_dt(struct aic32x4_priv *aic32x4,
            struct device_node *np)
    {
        aic32x4->swapdacs = false;
        aic32x4->micpga_routing = 0;
        aic32x4->rstn_gpio = of_get_named_gpio(np, "reset-gpios", 0);

        return 0;
    }

    static void aic32x4_disable_regulators(struct aic32x4_priv *aic32x4)
    {
        regulator_disable(aic32x4->supply_iov);

        if (!IS_ERR(aic32x4->supply_ldo))
            regulator_disable(aic32x4->supply_ldo);

        if (!IS_ERR(aic32x4->supply_dv))
            regulator_disable(aic32x4->supply_dv);

        if (!IS_ERR(aic32x4->supply_av))
            regulator_disable(aic32x4->supply_av);
    }

    static int aic32x4_setup_regulators(struct device *dev,
            struct aic32x4_priv *aic32x4)
    {
        int ret = 0;

        aic32x4->supply_ldo = devm_regulator_get_optional(dev, "ldoin");
        aic32x4->supply_iov = devm_regulator_get(dev, "iov");
        aic32x4->supply_dv = devm_regulator_get_optional(dev, "dv");
        aic32x4->supply_av = devm_regulator_get_optional(dev, "av");

        /* Check if the regulator requirements are fulfilled */

        if (IS_ERR(aic32x4->supply_iov)) {
            dev_err(dev, "Missing supply 'iov'\n");
            return PTR_ERR(aic32x4->supply_iov);
        }

        if (IS_ERR(aic32x4->supply_ldo)) {
            if (PTR_ERR(aic32x4->supply_ldo) == -EPROBE_DEFER)
                return -EPROBE_DEFER;

            if (IS_ERR(aic32x4->supply_dv)) {
                dev_err(dev, "Missing supply 'dv' or 'ldoin'\n");
                return PTR_ERR(aic32x4->supply_dv);
            }
            if (IS_ERR(aic32x4->supply_av)) {
                dev_err(dev, "Missing supply 'av' or 'ldoin'\n");
                return PTR_ERR(aic32x4->supply_av);
            }
        } else {
            if (IS_ERR(aic32x4->supply_dv) &&
                    PTR_ERR(aic32x4->supply_dv) == -EPROBE_DEFER)
                return -EPROBE_DEFER;
            if (IS_ERR(aic32x4->supply_av) &&
                    PTR_ERR(aic32x4->supply_av) == -EPROBE_DEFER)
                return -EPROBE_DEFER;
        }

        ret = regulator_enable(aic32x4->supply_iov);
        if (ret) {
            dev_err(dev, "Failed to enable regulator iov\n");
            return ret;
        }

        if (!IS_ERR(aic32x4->supply_ldo)) {
            ret = regulator_enable(aic32x4->supply_ldo);
            if (ret) {
                dev_err(dev, "Failed to enable regulator ldo\n");
                goto error_ldo;
            }
        }

        if (!IS_ERR(aic32x4->supply_dv)) {
            ret = regulator_enable(aic32x4->supply_dv);
            if (ret) {
                dev_err(dev, "Failed to enable regulator dv\n");
                goto error_dv;
            }
        }

        if (!IS_ERR(aic32x4->supply_av)) {
            ret = regulator_enable(aic32x4->supply_av);
            if (ret) {
                dev_err(dev, "Failed to enable regulator av\n");
                goto error_av;
            }
        }

        if (!IS_ERR(aic32x4->supply_ldo) && IS_ERR(aic32x4->supply_av))
            aic32x4->power_cfg |= AIC32X4_PWR_AIC32X4_LDO_ENABLE;

        return 0;

    error_av:
        if (!IS_ERR(aic32x4->supply_dv))
            regulator_disable(aic32x4->supply_dv);

    error_dv:
        if (!IS_ERR(aic32x4->supply_ldo))
            regulator_disable(aic32x4->supply_ldo);

    error_ldo:
        regulator_disable(aic32x4->supply_iov);
        return ret;
    }

    static int aic32x4_i2c_probe(struct i2c_client *i2c,
                 const struct i2c_device_id *id)
    {
        struct aic32x4_pdata *pdata = i2c->dev.platform_data;
        struct aic32x4_priv *aic32x4;
        struct device_node *np = i2c->dev.of_node;
        int ret;

        aic32x4 = devm_kzalloc(&i2c->dev, sizeof(struct aic32x4_priv),
                 GFP_KERNEL);
        if (aic32x4 == NULL)
            return -ENOMEM;

        aic32x4->regmap = devm_regmap_init_i2c(i2c, &aic32x4_regmap);
        if (IS_ERR(aic32x4->regmap))
            return PTR_ERR(aic32x4->regmap);

        i2c_set_clientdata(i2c, aic32x4);

        if (pdata) {
            aic32x4->power_cfg = pdata->power_cfg;
            aic32x4->swapdacs = pdata->swapdacs;
            aic32x4->micpga_routing = pdata->micpga_routing;
            aic32x4->rstn_gpio = pdata->rstn_gpio;
        } else if (np) {
            ret = aic32x4_parse_dt(aic32x4, np);
            if (ret) {
                dev_err(&i2c->dev, "Failed to parse DT node\n");
                return ret;
            }
        } else {
            aic32x4->power_cfg = 0;
            aic32x4->swapdacs = false;
            aic32x4->micpga_routing = 0;
            aic32x4->rstn_gpio = -1;
        }

        aic32x4->mclk = devm_clk_get(&i2c->dev, "mclk");
        if (IS_ERR(aic32x4->mclk)) {
            dev_err(&i2c->dev, "Failed getting the mclk. The current implementation does not support the usage of this codec without mclk\n");
            return PTR_ERR(aic32x4->mclk);
        }

        if (gpio_is_valid(aic32x4->rstn_gpio)) {
            ret = devm_gpio_request_one(&i2c->dev, aic32x4->rstn_gpio,
                    GPIOF_OUT_INIT_LOW, "tlv320aic32x4 rstn");
            if (ret != 0)
                return ret;
        }

        ret = aic32x4_setup_regulators(&i2c->dev, aic32x4);
        if (ret) {
            dev_err(&i2c->dev, "Failed to setup regulators\n");
            return ret;
        }

        ret = snd_soc_register_codec(&i2c->dev,
                &soc_codec_dev_aic32x4, &aic32x4_dai, 1);
        if (ret) {
            dev_err(&i2c->dev, "Failed to register codec\n");
            aic32x4_disable_regulators(aic32x4);
            return ret;
        }

        i2c_set_clientdata(i2c, aic32x4);

        return 0;
    }

    static int aic32x4_i2c_remove(struct i2c_client *client)
    {
        struct aic32x4_priv *aic32x4 = i2c_get_clientdata(client);

        aic32x4_disable_regulators(aic32x4);

        snd_soc_unregister_codec(&client->dev);
        return 0;
    }

    static const struct i2c_device_id aic32x4_i2c_id[] = {
        { "tlv320aic32x4", 0 },
        { }
    };
    MODULE_DEVICE_TABLE(i2c, aic32x4_i2c_id);

    static const struct of_device_id aic32x4_of_id[] = {
        { .compatible = "ti,tlv320aic32x4", },
        { /* senitel */ }
    };
    MODULE_DEVICE_TABLE(of, aic32x4_of_id);

    static struct i2c_driver aic32x4_i2c_driver = {
        .driver = {
            .name = "tlv320aic32x4",
            .of_match_table = aic32x4_of_id,
        },
        .probe = aic32x4_i2c_probe,
        .remove = aic32x4_i2c_remove,
        .id_table = aic32x4_i2c_id,
    };

    module_i2c_driver(aic32x4_i2c_driver);

    MODULE_DESCRIPTION("ASoC tlv320aic32x4 codec driver");
    MODULE_AUTHOR("Javier Martin <javier.martin@vista-silicon.com>");
    MODULE_LICENSE("GPL");
  • 原理图设计如下:

  • 您好,

    测量一下芯片各工作电压是否正常;输入信号是否在数据手册规定的范围内呢
  • i2c和I2S是正常的,现在就是驱动问题。

    aplay wav文件时,最后会调用mute函数,能帮我看下驱动吗?


    [root@rk3288:/]# amixer scontents
    Simple mixer control 'PCM',0
    Capabilities: pvolume
    Playback channels: Front Left - Front Right
    Limits: Playback 0 - 175
    Mono:
    Front Left: Playback 127 [73%] [0.00dB]
    Front Right: Playback 127 [73%] [0.00dB]
    Simple mixer control 'Mic PGA',0
    Capabilities: pswitch
    Playback channels: Front Left - Front Right
    Mono:
    Front Left: Playback [off]
    Front Right: Playback [off]
    Simple mixer control 'ADC Level',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 64
    Front Left: 24 [38%] [0.00dB]
    Front Right: 24 [38%] [0.00dB]
    Simple mixer control 'ADCFGA Left Mute',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [on]
    Simple mixer control 'ADCFGA Right Mute',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [on]
    Simple mixer control 'AGC Attack Time',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 31
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'AGC Decay Time',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 31
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'AGC Gain Hysteresis',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 3
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'AGC Hysteresis',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 3
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'AGC Left',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'AGC Max PGA',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 127
    Front Left: 127 [100%]
    Front Right: 127 [100%]
    Simple mixer control 'AGC Noise Debounce',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 31
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'AGC Noise Threshold',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 31
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'AGC Right',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'AGC Signal Debounce',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 15
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'AGC Target Level',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 7
    Front Left: 0 [0%]
    Front Right: 0 [0%]
    Simple mixer control 'HP DAC',0
    Capabilities: pswitch
    Playback channels: Front Left - Front Right
    Mono:
    Front Left: Playback [off]
    Front Right: Playback [off]
    Simple mixer control 'HP Driver Gain',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 35
    Front Left: 6 [17%] [0.00dB]
    Front Right: 6 [17%] [0.00dB]
    Simple mixer control 'HPL Output Mixer IN1_L',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'HPL Output Mixer L_DAC',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'HPR Output Mixer IN1_R',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'HPR Output Mixer R_DAC',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'LO DAC',0
    Capabilities: pswitch
    Playback channels: Front Left - Front Right
    Mono:
    Front Left: Playback [off]
    Front Right: Playback [off]
    Simple mixer control 'LO Driver Gain',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 35
    Front Left: 6 [17%] [0.00dB]
    Front Right: 6 [17%] [0.00dB]
    Simple mixer control 'LOL Output Mixer L_DAC',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'LOR Output Mixer R_DAC',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'Left Input Mixer IN1_L P',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'Left Input Mixer IN2_L P',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'Left Input Mixer IN3_L P',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'PGA Level',0
    Capabilities: volume
    Playback channels: Front Left - Front Right
    Capture channels: Front Left - Front Right
    Limits: 0 - 95
    Front Left: 0 [0%] [0.00dB]
    Front Right: 0 [0%] [0.00dB]
    Simple mixer control 'Right Input Mixer IN1_R P',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'Right Input Mixer IN2_R P',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    Simple mixer control 'Right Input Mixer IN3_R P',0
    Capabilities: pswitch pswitch-joined
    Playback channels: Mono
    Mono: Playback [off]
    [root@rk3288:/]#
