ADC09QJ1300 测试数据

@JMODE2 Quad Channel 1Ghz

Ch1 顺序正确但是缺数，只有0~31，不是0~255；ch2~ch4部分数据位置调换了。

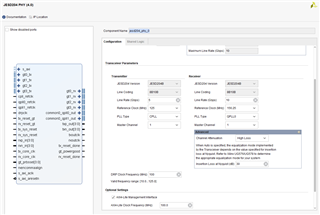

JESD204B phy配置

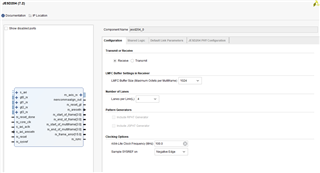

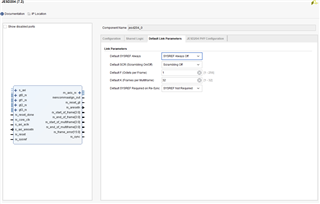

3.JESD204B 配置

FPGA工程

Top

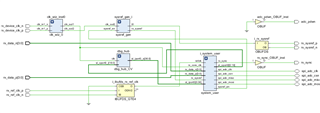

system

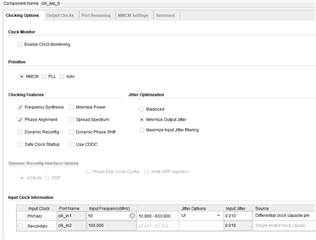

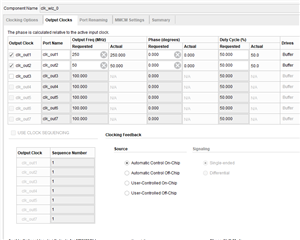

clk_wiz_inst0

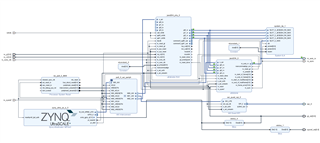

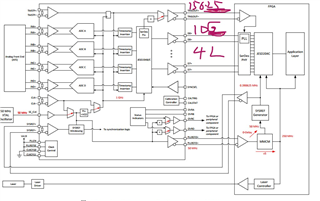

硬件拓扑图

6.ADC jesd配置代码

#include "xparameters.h"

#include "xspi.h" /* SPI device driver */

#include "xstatus.h"

#include "stdio.h"

#include "xgpiops.h"

XSpi SpiInstance;

u8 adc_reg[50][3] =

{

//0

{0x00, 0x00, 0xb0},//reset

{0x00, 0x02, 0x00},//nomal /powerdown 00 03

{0x80, 0x0c, 0x00},//VENDOR_ID 2byte

{0x82, 0x70, 0x00},//VENDOR_ID 2byte

//4

{0x00, 0x29, 0xec},//CLK_CTRL0~2

{0x00, 0x2a, 0x00},//SYSREF_INVERTED

{0x00, 0x2b, 0x15},

//7

{0x00, 0x30, 0x00},//FS_RANGE L

{0x00, 0x31, 0xa0},//FS_RANGE H

//9

{0x00, 0x3d, 0x05},//CPLL_FBDIV1

{0x00, 0x3e, 0x14},//CPLL_FBDIV2

{0x00, 0x3f, 0x4a},//CPLL_VCOCTRL1

//12

{0x00, 0x57, 0x82},//TRIGOUT_CTRL

{0x00, 0x58, 0x83},//CPLL_OVR

//14

{0x80, 0x59, 0x00},//VCO_FREQ_TRIM read

//15

{0x00, 0x5c, 0x00},//CPLL_RESET

{0x00, 0x5d, 0x41},//VCO_CAL_CTRL

{0x80, 0x5e, 0x00},//VCO_CAL_STATUS

//18

{0x00, 0x61, 0x01},//CAL_EN

{0x00, 0x62, 0x0a},//CAL_CFG0 background

{0x00, 0x65, 0x05},//CAL_CFG1 OSREF DC-coupled

//21

{0x80, 0x6a, 0x00},//CAL_STATUS

{0x00, 0x6b, 0x00},//CAL_PIN_CFG CAL_SOFT_TRIG

{0x00, 0x6c, 0x01},//CAL_SOFT_TRIG

//24

{0x02, 0x00, 0x01},//JESD_EN

{0x02, 0x01, 0x02},//JMODE

{0x02, 0x02, 0x1f},//KM1

//27

{0x02, 0x04, 0x00},//singed Scrambler

{0x82, 0x08, 0x00},//JESD_STATUS

//29

{0x82, 0x70, 0x00},//INIT_STATUS

//30

{0x02, 0x03, 0x01},//JCTRL

{0x02, 0x05, 0x00},//test 15: Clock test pattern (0x00FF)

{0x02, 0x07, 0x02},//mode k28.5

//33

{0x02, 0x08, 0x03},//single mode

{0x00, 0x48, 0x00},//SER_PE

//35

{0x00, 0x37, 0x46},//LP1

{0x02, 0x9a, 0x06},//LP1

{0x02, 0x9b, 0x00},//LP1

{0x02, 0x9c, 0x14},//LP1

//39

{0x00, 0x3c, 0x00},// PLLREFO_CTRL

};

XGpioPs Gpio; /* The driver instance for GPIO Device. */

#define GPIO_PIN_0 78

#define GPIO_PIN_1 79

u8 spi_sendbuf[8] = {0x00, 0x00, 0xb0};

u8 spi_recvbuf[8] = {0, };

void InitADC(void)

{

XSpi *SpiInstancePtr = &SpiInstance;

XSpi_Config *ConfigPtr;

int Status;

ConfigPtr = XSpi_LookupConfig(XPAR_SPI_0_DEVICE_ID);

if (ConfigPtr == NULL) {

return XST_FAILURE;

}

Status = XSpi_CfgInitialize(SpiInstancePtr, ConfigPtr,

ConfigPtr->BaseAddress);

if (Status != XST_SUCCESS) {

return XST_FAILURE;

}

Status = XSpi_SetOptions(SpiInstancePtr, XSP_MASTER_OPTION);

if (Status != XST_SUCCESS) {

return XST_FAILURE;

}

* Start the SPI driver so that the device is enabled.

XSpi_Start(SpiInstancePtr);

XSpi_IntrGlobalDisable(SpiInstancePtr);

//step1 SOFT_RESET read NIT_STATUS VENDOR_ID

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[0], spi_recvbuf, 3);

usleep(5000);

spi_recvbuf[2] = 0;

while(spi_recvbuf[2] != 0x01)

{

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[3], spi_recvbuf, 3);

}

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[2], spi_recvbuf, 4);

if ((spi_recvbuf[2] != 0x51) | (spi_recvbuf[3] != 0x04))

{

xil_printf("Read adc id error!\n\r");

return;

}

//step2 Program the C-PLL

adc_reg[15][2] = 0x01;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[15], spi_recvbuf, 3);//CPLL_RESET

usleep(5000);

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[11], spi_recvbuf, 3);// VCO_BIAS

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[9], spi_recvbuf, 3);//PLL_P_DIV, PLL_V_DIV and PLL_N_DIV

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[10], spi_recvbuf, 3);//PLL_P_DIV, PLL_V_DIV and PLL_N_DIV

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[16], spi_recvbuf, 3);// VCO_CAL_EN

usleep(5000);

adc_reg[15][2] = 0x00;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[15], spi_recvbuf, 3);//Enable CPLL

//step3 stop JESD204 Calibration

adc_reg[24][2] = 0x00;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[24], spi_recvbuf, 3);//JESD_EN = 0

adc_reg[18][2] = 0x00;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[18], spi_recvbuf, 3);////CAL_EN = 0

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[39], spi_recvbuf, 3);// PLLREFO_CTRL

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[34], spi_recvbuf, 3);// SER_PE

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[35], spi_recvbuf, 3);//LP1

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[36], spi_recvbuf, 3);//LP2

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[37], spi_recvbuf, 3);//LP3

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[38], spi_recvbuf, 3);//LP4

//setp4 JMODE KM1

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[25], spi_recvbuf, 3);//JMODE

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[31], spi_recvbuf, 3);//test

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[32], spi_recvbuf, 3);//k28.5

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[26], spi_recvbuf, 3);//KM1

//setp5 SYNC_SEL SYSREF

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[27], spi_recvbuf, 3);//SYNCSE

adc_reg[4][2] = 0xa0;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance,&adc_reg[4],spi_recvbuf,3);

//CLK_CTRL0//SYSREF_RECV_EN

usleep(1);

adc_reg[4][2] = 0xe0;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance,&adc_reg[4],spi_recvbuf,3);

//CLK_CTRL0//SYSREF_PROC_EN

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[5], spi_recvbuf, 3);//CLK_CTRL1

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[6], spi_recvbuf, 3);//CLK_CTRL2

//step6 foreground or background calibration modes and offset

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[19], spi_recvbuf, 3);// CAL_CFG0 background

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[20], spi_recvbuf, 3);// CAL_CFG1 DC-coupled

//step7 TRIGOUT_CTRL

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[12], spi_recvbuf, 3);

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[35], spi_recvbuf, 3);

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[36], spi_recvbuf, 3);

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[37], spi_recvbuf, 3);

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[38], spi_recvbuf, 3);

// MB_Sleep(5);

//step8 read VCO_CAL_DONE CPLL_LOCKED

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[17], spi_recvbuf, 3);

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[27], spi_recvbuf, 3);

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[28], spi_recvbuf, 3);

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[31], spi_recvbuf, 3);

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[32], spi_recvbuf, 3);

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[33], spi_recvbuf, 3);

//step9 CAL_EN JESD_EN

adc_reg[18][2] = 0x01;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[18], spi_recvbuf, 3);////CAL_EN = 1

// MB_Sleep(10);

adc_reg[24][2] = 0x01;

XSpi_SetSlaveSelect(&SpiInstance, 0x01);

XSpi_Transfer(&SpiInstance, &adc_reg[24], spi_recvbuf, 3);//JESD_EN = 1

//step10 Trigger a foreground calibration

// adc_reg[23][2] = 0;

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[23], spi_recvbuf, 3);

// MB_Sleep(1);

// adc_reg[23][2] = 1;

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[23], spi_recvbuf, 3);

// MB_Sleep(1);

// sleep(5);

// XSpi_SetSlaveSelect(&SpiInstance, 0x01);

// XSpi_Transfer(&SpiInstance, &adc_reg[21], spi_recvbuf, 3);

// XGpio_SetDataDirection(&Gpio1, CHANNEL1, WRITE8);

// XGpio_DiscreteWrite(&Gpio1, CHANNEL1, 0x01);

// XGpio_DiscreteWrite(&Gpio1, CHANNEL1, 0x00);

}

/*****************************************************************************/

/**

* Main function.

* @param None

* @return XST_FAILURE.

* @note Infinite loop so returning is a failure!

******************************************************************************/

//XPAR_JESD204_PHY_0_BASEADDR

//XPAR_JESD204_0_BASEADDR

int main(void)

{

int Status;

XGpioPs_Config *ConfigPtr;

/* Initialize the GPIO driver. */

ConfigPtr = XGpioPs_LookupConfig(XPAR_XGPIOPS_0_DEVICE_ID);

Status = XGpioPs_CfgInitialize(&Gpio, ConfigPtr,

ConfigPtr->BaseAddr);

if (Status != XST_SUCCESS) {

return XST_FAILURE;

}

InitADC();//star adc clk

sleep(2);

Xil_Out32(XPAR_JESD204_PHY_0_BASEADDR + 0x604, 0x0f);//RXPOLARITY

Xil_Out32(XPAR_JESD204_PHY_0_BASEADDR + 0x420, 1);//tx reset phy

Xil_Out32(XPAR_JESD204_PHY_0_BASEADDR + 0x424, 1);//reset phy

usleep(1000);

Xil_Out32(XPAR_JESD204_PHY_0_BASEADDR + 0x424, 0);//reset phy

usleep(1000);

Xil_Out32(XPAR_JESD204_0_BASEADDR + 0x004, 2);//reset

usleep(1000);

Xil_Out32(XPAR_JESD204_0_BASEADDR + 0x004, 0);//reset

usleep(100000);

//sysref_en

XGpioPs_SetOutputEnablePin(&Gpio, GPIO_PIN_1, 1);

XGpioPs_SetDirectionPin(&Gpio, GPIO_PIN_1, 1);

XGpioPs_WritePin(&Gpio, GPIO_PIN_1, 1);

usleep(40);

XGpioPs_WritePin(&Gpio, GPIO_PIN_1, 0);

usleep(10);

return 0;

}

3 年多前

0 Amy Luo 3 年多前

TI__Guru**** 185470 points

您好，

感谢您对TI产品的关注！为更加有效地解决您的问题，我将您的问题发布在了E2E英文论坛，将由资深的英文论坛工程师为您提供帮助，请等待E2E工程师的回复：

https://e2e.ti.com/support/data-converters-group/data-converters/f/data-converters-forum/1109729/adc09dj1300-adc09dj1300

0 Amy Luo 3 年多前

TI__Guru**** 185470 points

您好，

E2E工程师已回复：

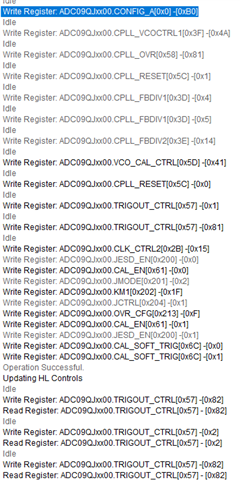

请确认以以下寄存器写入以正确设置 ADC

0 user5180271 3 年多前

这些寄存器核对过了，配置得都是对的。另外发现，

0x29 CLK_CTRL0 Clock Control 0 (default: 0x80) 节 8.6.6

这个寄存器，分别配置0xf0~0xff，输出结果还是跟截图1一样的。

0 Amy Luo 3 年多前回复 user5180271

TI__Guru**** 185470 points

好的，我已将您的回复反馈给E2E工程师，收到回复后，我会在这里反馈给您

0 Amy Luo 3 年多前回复 user5180271

TI__Guru**** 185470 points

E2E工程师 Ameet有以下回复：

我对 Xilinx JESD IP 有疑问。是否有任何错误标志？我不知道为什么 CH2-CH4的数据重新排序。 ILAS 序列在所有通道上是否正确？此外，是否需要如此高的插入损耗设置？我不确定您的硬件设置，但大多数走线较短的板子应该可以使用6-8dB 的值。

我相信ramp test 模式将在每个多帧边界上重置。在这种情况下，多帧是32字节，因此它重置为0x1F。请尝试将 K 设置为64 (或将 Km1设置为63)的测试。这可能表明ramp 将增加到0x3F。我还将与 ADC 设计团队确认这种行为。

0 Amy Luo 3 年多前回复 user5180271

TI__Guru**** 185470 points

E2E工程师 Neeraj 有以下反馈：

For the register address 0x29 you mention it produces same output as screenshot 1. Can you please let me know what is the screenshot1? Setting the register 0x29 to 0xF0 enabled the SYSREF processing, Enable the sysref receiver and also enable the sysref zoom feature. The bit 3:0 for register 0x29 should be programmed after reading the sysref window postion. Please read the following paragraph from datasheet www.ti.com/.../adc12qj1600-q1.pdf to see how to program the sysref_sel.

9.3.4.4.2 SYSREF Position Detector and Sampling Position Selection (SYSREF Windowing)

对于寄存器地址0x29，您提到它将产生与截图1相同的输出。您能告诉我截图1是什么吗？将寄存器0x29设置为0xF0可启用SYSREF处理，启用sysref接收器以及启用sysref缩放功能。读取sysref窗口位置后，应该对寄存器0x29的bit 3:0进行编程。请阅读数据表www.ti.com/.../adc12qj1600-q1.pdf中的以下段落，了解如何对sysref_sel 进行编程。

9.3.4.4.2 SYSREF Position Detector and Sampling Position Selection (SYSREF Windowing)

0 Amy Luo 3 年多前回复 user5180271

TI__Guru**** 185470 points

由于您长时间未反馈，我们认为您的问题已解决
