[参考译文] LP-MSP430FR2476：反向通道 UART 奇偶校验位不工作

我忘记提一下、我使用的是 mspdebug、在刷写程序时会报告以下情况：

MSPDebug version 0.25 - debugging tool for MSP430 MCUs
Copyright (C) 2009-2017 Daniel Beer <dlbeer@gmail.com>
This is free software; see the source for copying conditions.  There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Chip info database from MSP430.dll v3.3.1.4 Copyright (C) 2013 TI, Inc.

Using new (SLAC460L+) API
MSP430_GetNumberOfUsbIfs
MSP430_GetNameOfUsbIf
Found FET: ttyACM0
MSP430_Initialize: ttyACM0
Firmware version is 31501001
MSP430_VCC: 3000 mV
MSP430_OpenDevice
MSP430_GetFoundDevice
Device: MSP430FR2476 (id = 0x0210)
3 breakpoints available
MSP430_EEM_Init
Chip ID data:
  ver_id:         832a
  ver_sub_id:     0000
  revision:       10
  fab:            55
  self:           5555
  config:         10
  fuses:          55
warning: unknown chip
Erasing...
Programming...
Writing    2 bytes at ffe0 [section: __interrupt_vector_31]...
Writing    2 bytes at fffe [section: __reset_vector]...
Writing   87 bytes at 8000 [section: .rodata]...
Writing    2 bytes at 8058 [section: .upper.data]...
Writing 1458 bytes at 805a [section: .text]...
Done, 1551 bytes total
MSP430_Run
MSP430_Close

您如何初始化串行端口？

您如何发送和接收数据？ 发送是否在发送第三个字节之前为字符清零留出了足够的时间？

您是否使用中断和串行缓冲器？

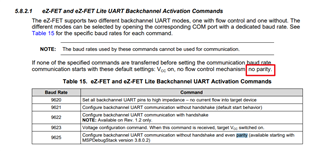

正如我所说的、如果我使用不同的串行转 USB 适配器、或者禁用 MSP430侧的奇偶校验位生成和检查、可以很好地工作。 这使得它不太可能与我的代码有任何关系。

无论如何、我已经将我的代码的相关部分复制在一起作为 MRE、您应该能够按原样对其进行编译和测试。 如果我将第45行替换为"UCA0CTLW0 |= UCSSEL__SMCLK；"并在 picocom 中禁用奇偶校验、则可以正常运行、否则行为如上所述。

#include <msp430.h>
#include <stdbool.h>
#include <stdlib.h>
#include <stddef.h>
#include <stdint.h>

#define MCLK_FREQ_MHZ 8 // MCLK = 8MHz
#define F_CPU (1000000 * MCLK_FREQ_MHZ)
#define T_MS (F_CPU / 1000)

#define UART_BAUD_RATE 115200
#define UART_TX_BUFFER_SIZE 128
#define UART_TX_BUFFER_INDEX_MASK (UART_TX_BUFFER_SIZE - 1)
#define UART_RX_BUFFER_SIZE 128
#define UART_RX_BUFFER_INDEX_MASK (UART_TX_BUFFER_SIZE - 1)

static char uart_tx_buffer[UART_TX_BUFFER_SIZE];
static size_t uart_tx_buffer_write_index = 0;
static volatile size_t uart_tx_buffer_read_index = 0;
static char uart_rx_buffer[UART_RX_BUFFER_SIZE];
static volatile size_t uart_rx_buffer_write_index = 0;
static size_t uart_rx_buffer_read_index = 0;
static volatile bool uart_tx_active = false;

/**
 * P1.4: UCA0TXD (UART to USB)
 * P1.5: UCA0RXD (UART to USB)
 */
void uart_init_io() {
    P1SEL0 |= BIT4 | BIT5;
}

void uart_enable() {
    UCA0CTLW0 = UCSWRST;
    // Character length: 8 bit, Stop bits: 1, LSB first, Parity: odd
    UCA0CTLW0 |= UCSSEL__SMCLK | UCPEN;
    UCA0CTLW1 = UCGLIT_3;
    // Configuration for 115200 bd with BRCLK = 8 MHz
    // UCOS16 = 1, UCBRx = 4, UCBRFx = 5, UCBRSx = 0x55
    UCA0BRW = 4;
    UCA0MCTLW = UCOS16 | (5 << 4) | (0x55 << 8);
    UCA0CTLW0 &= ~UCSWRST;

    uart_tx_active = false;

    UCA0IFG = 0;
    UCA0IE = UCRXIE | UCTXIE;
}

size_t uart_putc(char c) {
    size_t ret = 0;
    __dint();
    if (uart_tx_active) {
        // Transmission is in progress, character will be taken out of the buffer when the current one has been sent
        size_t read_index = uart_tx_buffer_read_index;
        size_t write_index = uart_tx_buffer_write_index;
        if (((write_index + 1) & UART_TX_BUFFER_INDEX_MASK) == read_index) {
            // Buffer full
            ret = 0;
            goto reenable_interrupts;
        }
        uart_tx_buffer[write_index] = c;
        uart_tx_buffer_write_index = (write_index + 1) & UART_TX_BUFFER_INDEX_MASK;
        ret = 1;
        goto reenable_interrupts;
    } else {
        // Transmission not in progress
        uart_tx_active = true;
        UCA0TXBUF = c;
        ret = 1;
        goto reenable_interrupts;
    }
reenable_interrupts:
    __eint();
    return ret;
}

size_t uart_puts(char *str) {
    size_t len = 0;
    while (*str != '\0') {
        size_t transmitted = uart_putc(*str);
        if (transmitted == 0) {
            break;
        }
        str++;
        len++;
    }
    return len;
}

static size_t uart_tx_buffer_getc(char *c_out) {
    size_t read_index = uart_tx_buffer_read_index;
    if (read_index == uart_tx_buffer_write_index) {
        return 0;
    }
    *c_out = uart_tx_buffer[read_index];
    uart_tx_buffer_read_index = (read_index + 1) & UART_TX_BUFFER_INDEX_MASK;
    return 1;
}

static size_t uart_rx_buffer_putc(char c) {
    size_t write_index = uart_rx_buffer_write_index;
    if (((write_index + 1) & UART_RX_BUFFER_INDEX_MASK) == uart_rx_buffer_read_index) {
        // Buffer full
        return 0;
    }
    uart_rx_buffer[write_index] = c;
    uart_rx_buffer_write_index = (write_index + 1) & UART_RX_BUFFER_INDEX_MASK;
    return 1;
}

size_t uart_getc(char *c_out) {
    // No need to __dint() since uart_rx_buffer_write_index is read in a single cycle
    __dint();
    size_t write_index = uart_rx_buffer_write_index;
    __eint();
    size_t read_index = uart_rx_buffer_read_index;
    if (read_index == write_index) {
        return 0;
    }
    *c_out = uart_rx_buffer[read_index];
    uart_rx_buffer_read_index = (read_index + 1) & UART_RX_BUFFER_INDEX_MASK;
    return 1;
}

__attribute__((interrupt(EUSCI_A0_VECTOR)))
void isr_USCI_A0(void) {
    uint16_t source = UCA0IV;
    switch (source) {
        case UCIV__UCRXIFG: {
            uint16_t stat = UCA0STATW;
            // Reading from UCAxRXBUF automatically clears any receive error flags
            uint8_t data = UCA0RXBUF;
            // Discard data if any error occurred
            if (!(stat & UCRXERR)) {
                uart_rx_buffer_putc(data);
            }

            __low_power_mode_off_on_exit();
            break;
        }
        case UCIV__UCTXIFG: {
            char next_c;
            size_t l = uart_tx_buffer_getc(&next_c);
            if (l > 0) {
                UCA0TXBUF = next_c;
            } else {
                uart_tx_active = false;
            }
            break;
        }
    }
}

static void Software_Trim()
{
    unsigned int oldDcoTap = 0xffff;
    unsigned int newDcoTap = 0xffff;
    unsigned int newDcoDelta = 0xffff;
    unsigned int bestDcoDelta = 0xffff;
    unsigned int csCtl0Copy = 0;
    unsigned int csCtl1Copy = 0;
    unsigned int csCtl0Read = 0;
    unsigned int csCtl1Read = 0;
    unsigned int dcoFreqTrim = 3;
    unsigned char endLoop = 0;

    do
    {
        CSCTL0 = 0x100;                         // DCO Tap = 256
        do
        {
            CSCTL7 &= ~DCOFFG;                  // Clear DCO fault flag
        }while (CSCTL7 & DCOFFG);               // Test DCO fault flag

        __delay_cycles((unsigned int)3000 * MCLK_FREQ_MHZ);// Wait FLL lock status (FLLUNLOCK) to be stable
                                                           // Suggest to wait 24 cycles of divided FLL reference clock
        while((CSCTL7 & (FLLUNLOCK0 | FLLUNLOCK1)) && ((CSCTL7 & DCOFFG) == 0));

        csCtl0Read = CSCTL0;                   // Read CSCTL0
        csCtl1Read = CSCTL1;                   // Read CSCTL1

        oldDcoTap = newDcoTap;                 // Record DCOTAP value of last time
        newDcoTap = csCtl0Read & 0x01ff;       // Get DCOTAP value of this time
        dcoFreqTrim = (csCtl1Read & 0x0070)>>4;// Get DCOFTRIM value

        if(newDcoTap < 256)                    // DCOTAP < 256
        {
            newDcoDelta = 256 - newDcoTap;     // Delta value between DCPTAP and 256
            if((oldDcoTap != 0xffff) && (oldDcoTap >= 256)) // DCOTAP cross 256
                endLoop = 1;                   // Stop while loop
            else
            {
                dcoFreqTrim--;
                CSCTL1 = (csCtl1Read & (~DCOFTRIM)) | (dcoFreqTrim<<4);
            }
        }
        else                                   // DCOTAP >= 256
        {
            newDcoDelta = newDcoTap - 256;     // Delta value between DCPTAP and 256
            if(oldDcoTap < 256)                // DCOTAP cross 256
                endLoop = 1;                   // Stop while loop
            else
            {
                dcoFreqTrim++;
                CSCTL1 = (csCtl1Read & (~DCOFTRIM)) | (dcoFreqTrim<<4);
            }
        }

        if(newDcoDelta < bestDcoDelta)         // Record DCOTAP closest to 256
        {
            csCtl0Copy = csCtl0Read;
            csCtl1Copy = csCtl1Read;
            bestDcoDelta = newDcoDelta;
        }

    }while(endLoop == 0);                      // Poll until endLoop == 1

    CSCTL0 = csCtl0Copy;                       // Reload locked DCOTAP
    CSCTL1 = csCtl1Copy;                       // Reload locked DCOFTRIM
    while(CSCTL7 & (FLLUNLOCK0 | FLLUNLOCK1)); // Poll until FLL is locked
}

void init_clocks() {
    __bis_SR_register(SCG0);                // disable FLL
    CSCTL3 = SELREF__REFOCLK;              // Set REFO as FLL reference source
    CSCTL1 = DCOFTRIMEN_1 | DCOFTRIM0 | DCOFTRIM1 | DCORSEL_3;// DCOFTRIM=3, DCO Range = 8MHz
    CSCTL2 = FLLD__1 | (243 & FLLN);                  // DCODIV = 8MHz
    __delay_cycles(3);
    __bic_SR_register(SCG0);                // enable FLL
    Software_Trim();                        // Software Trim to get the best DCOFTRIM value

    CSCTL4 = SELMS__DCOCLKDIV | SELA__REFOCLK; // set default REFO(~32768Hz) as ACLK source, DCODIV as MCLK and SMCLK source
}

static void set_up_io_defaults() {
    // The MSP430FR2xx family user's guide specifies:
    //   - Unused IOs should be configured as outputs and driven low to reduce power consumption
    //   - PxDIR, PxREN, PxOUT and PxIES have undefined values after power up

    P1DIR = 0xff;
    P1REN = 0x00;
    P1OUT = 0x00;
    P1IES = 0x00;

    P2DIR = 0xff;
    P2REN = 0x00;
    P2OUT = 0x00;
    P2IES = 0x00;

    P3DIR = 0xff;
    P3REN = 0x00;
    P3OUT = 0x00;
    P3IES = 0x00;

    P4DIR = 0xff;
    P4REN = 0x00;
    P4OUT = 0x00;
    P4IES = 0x00;

    P5DIR = 0xff;
    P5REN = 0x00;
    P5OUT = 0x00;
    P5IES = 0x00;
}

static void enable_port_interrupts() {
    // Clear all PxIFGs to avoid erroneous port interrupts
    P1IFG = 0x00;
    P2IFG = 0x00;
    P3IFG = 0x00;
    P4IFG = 0x00;
    P5IFG = 0x00;

    P1IE = 0x00;
    P2IE = 0x00;
    P3IE = 0x00;
    P4IE = 0x00;
    P5IE = 0x00;
}

int main(void) {
    // Disable the watchdog timer
    WDTCTL = WDTPW | WDTHOLD;

    init_clocks();

    set_up_io_defaults();

    uart_init_io();

    // Disable the GPIO power-on default high-impedance mode to activate previously configured port settings
    PM5CTL0 &= ~LOCKLPM5;

    uart_enable();

    enable_port_interrupts();

    __eint();

    __delay_cycles(10000);

    uart_puts("Initialization done\r\n");
    uart_puts("0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ\r\n");

    while (1) {
        uart_putc('~');

        char c;
        size_t len = uart_getc(&c);

        if (len > 0) {
            uart_putc(c);
        }

        __low_power_mode_0();
    }
}
