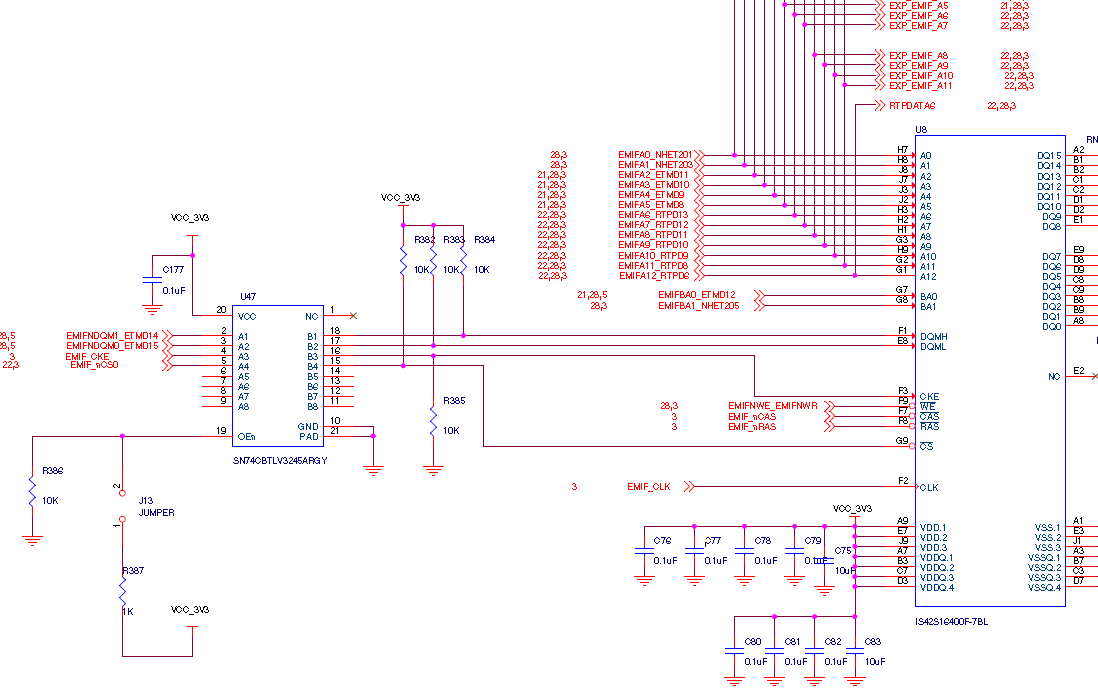

about 'DQM',‘CKE’,’WE‘ of emif in rm48L950's schematic design

Other Parts Discussed in Thread: RM48L950

please give help,my question is:

1:why use SN74CBTLV3245ARGY,and pull up 'DQM', when connect DOM of sdram chip to rm48L950?

2:why use SN74CBTLV3245ARGY,and pull down 'CKE', when connect DOM of sdram chip to rm48L950?

3:why not use SN74CBTLV3245ARGY,and pull down or pull up WE, just like 'DQM' or 'CKE',when connect 'DOM' of sdram chip to rm48L950?

RM48_HDK_Schematics_RevE_TI开发板原理图.pdf
  • Hi ron,

    SN74CBTLV3245ARGY是一个逻辑器件,主要用于信号选择。

    这个芯片上接的4个信号对后面的SDRAM有直接控制作用。如果在这几个信号无效的情况下,其他信号可忽视。

    上下拉的接法主要是由SRAM决定的,即在逻辑器件无效的情况下,EMIF不对SDRAM进行控制情况下,需要使SDRAM不被使能。

    Regards,

    Jay
