在 motorware lab10d 项目中添加 CAN 出错 #10099-D

luke lin

Other Parts Discussed in Thread: MOTORWARE

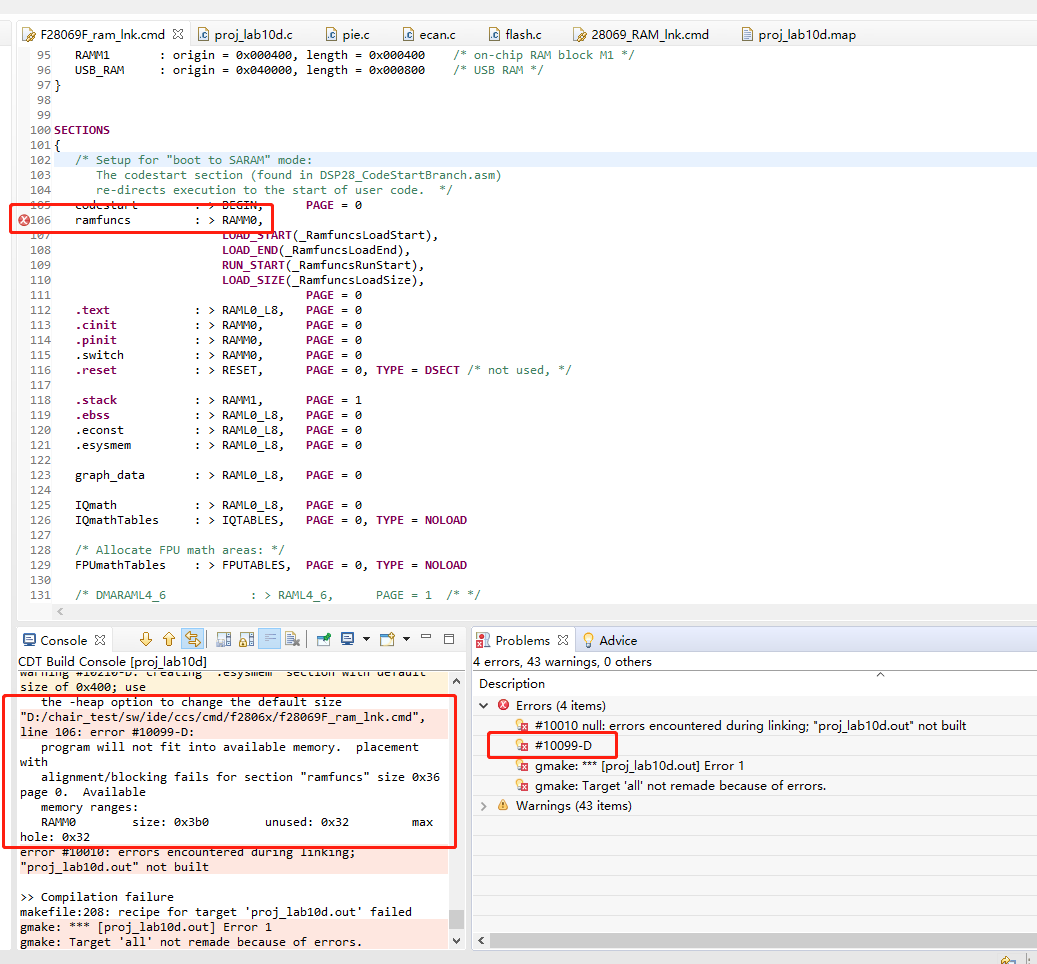

我在 motorware lab10d 基础上，添加了 can 驱动，结果显示 error #10099-D: program will not fit into available memory. placement with alignment/blocking fails for section "ramfuncs" size 0x36 page 0。如下图所示：

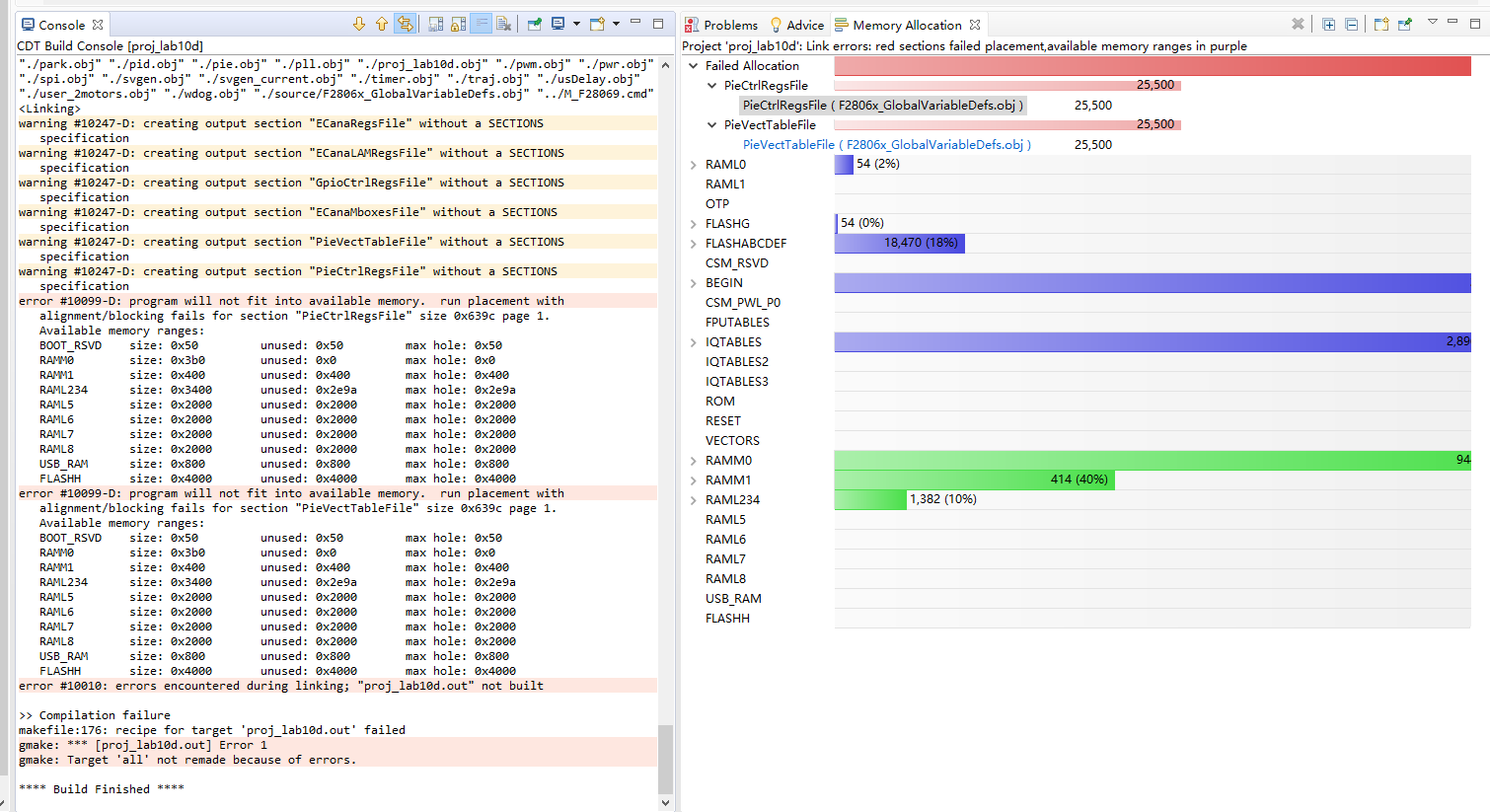

我按照链接 http://processors.wiki.ti.com/index.php/Compiler/diagnostic_messages/10099 里的方法，尝试提升编译优化等级，去掉了 printf()，结果还是不行，显示错误如下图：

PieVectTable 用在 CAN 中断上

请教一下这个问题要如何解决？

4 年多前

0 Susan Yang 4 年多前

TI__Guru**** 252096 points

请问您是如何添加的？

您需要添加can.h, header.cmd, device.h, 以及 GlobalVariableDefs.c

0 luke lin 4 年多前回复 Susan Yang

Intellectual 430 points

感谢你的回复，都添加了，目前怀疑可能要改 CMD 文件，想请教一下根据报错信息需要修改哪里呢？

0 Susan Yang 4 年多前回复 luke lin

TI__Guru**** 252096 points

请问您的cmd文件内是否为PIE_CTRL 和 PIE_VECT 分配了空间？如下所示

PIE_CTRL : origin = 0x000CE0, length = 0x000020 /* PIE Control Registers */

PIE_VECT : origin = 0x000D00, length = 0x000100 /* PIE Vector Table */

以及

PieCtrlRegsFile : > PIE_CTRL, PAGE = 1

您可以参考下下面的cmd文件进行修改

/*
//###########################################################################
//
