why PDMCK no signal out?

Hi,

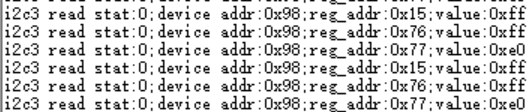

What MCLK, BCLK, and WCLK are you using? I saw you configured GPIO1 as MCLK input. Are you using the device in controller or target mode? (are you providing the BCLK and WCLK as well or just MCLK?). Also, I saw that you set all GPO1-4 as PDM clock out. You only need to set one of these as the PDM clock out. How are your PDM mics connected, can you attach a schematic? One more thing of note is that I see you have I2S mode enabled, but you have 8 channels enabled in the ASI. You should use TDM mode for this (set with register  0x07) as I2S mode is only stereo. I will attach your config with my comments.

# CHECKSUM 0
# Generated by ADCx140EVM-SW v3.0.5
# TLV320ADC3140 device configuration
# -----------------------------------------------------------------------------
# Reset
# -----------------------------------------------------------------------------
# Select Page 0
w 98 00 00
# Reset Device
w 98 01 01
# 1mS Delay
# -----------------------------------------------------------------------------
# Begin Device Memory
# -----------------------------------------------------------------------------
# Page 0 (0x00) Dump
# Select Page 0
w 98 00 00
# Wake up and enable AREG
w 98 02 81
# ASI Configuration
w 98 07 40 #i2s mode (this should be tdm mode if 8 channels are used), 16 bit
w 98 08 20
w 98 09 20 #disable bus error detection?
# Clock Error Disable/Enable
w 98 04 40 #reserved register, i think
# GPIO Configuration
w 98 21 a2 #gpio1 is mclk input
# GPO Configuration
w 98 22 40 #gpo1 is pdm clock output
w 98 23 41 #gpo2 is pdm clock output?
w 98 24 41 #gpo3 is pdm clock output?
w 98 25 41 #gpo4 is pdm clock output?
# GPI Configuration
w 98 2b 45 #gpi1 is pdm data input for ch1 and ch2, gpi2 is pdm data for ch3 and ch4
w 98 2c 67 #gpi3 is pdm data for ch5 and ch6, gpi4 is pdm data for ch7 and ch8
w 98 32 04 #only unmasked interrupts can  be read with ltch
w 98 33 3f #do not mask clock and lock interrupts
# Channel 1 configuration
w 98 3c 40 #ch1 is digital mic pdm input
# Channel 2 configuration
w 98 41 40 #ch2 is dig mic pdm input
# Channel 3 configuration
w 98 46 40 #ch3 is dig mic pdm input
# Channel 4 configuration
w 98 4b 40 #ch4 dig mic pdm input
#DSP configuration
w 98 6c 28 #2 biquads per channel, soft stepping disabled
# Channel Input/Output Configuration
w 98 73 ff #ch 1-8 enabled
w 98 74 ff #asi ch1-8 is enabled
w 98 1e 82 # ????? not sure what this register is, likely reserved
# M divider Enabled with Divider Value
w 98 1f c0 #PDMCLK is 2.8224 or 3.072MHz
