PLLATINUMSIM-SW: Check circuit design

chang chieh-yu

Part Number: PLLATINUMSIM-SW
Other Parts Discussed in Thread: LMX2594

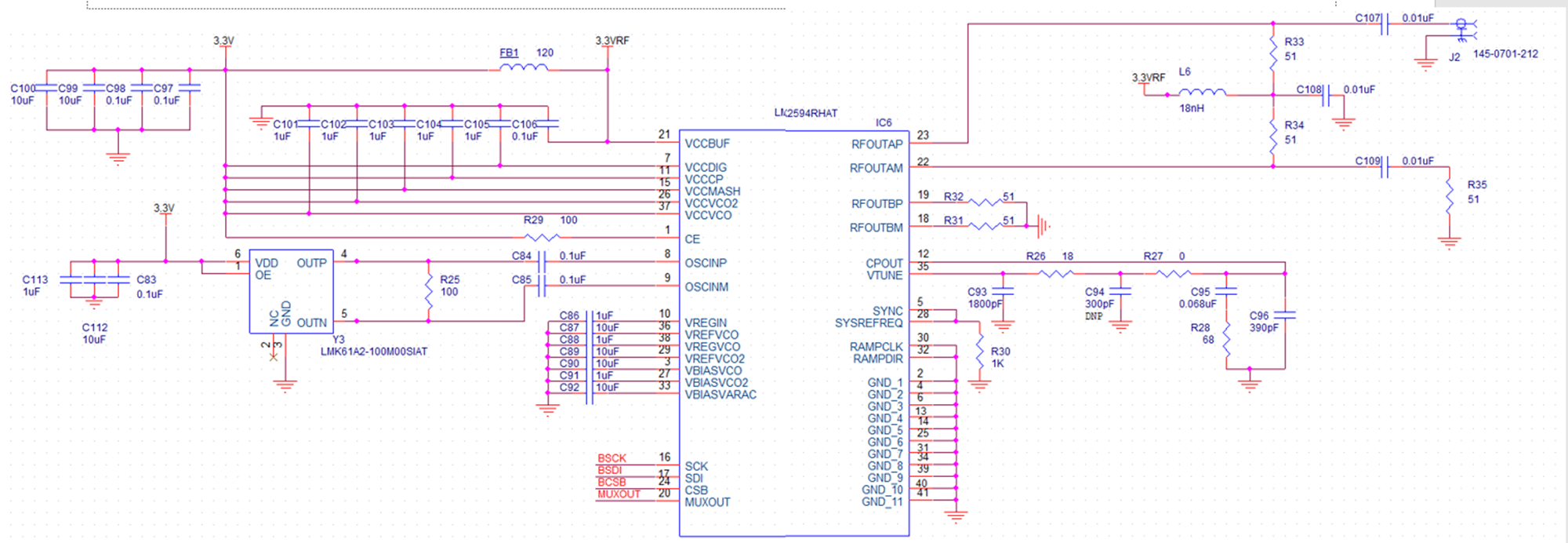

Hello, I want to use an LMX2594 to output a 13GHz single-ended signal to a mixer, and an LMK61A2-100M00SIAT to provide a 100MHz reference signal. Could you please check the circuit diagram connections to see if any modifications are needed?

3 天前

0 Taylor 3 天前

TI__Mastermind 38255 points

Hi,

We have received your post and the investigation will take some time. Thank you for your patience.

0 Taylor 1 天前回复 Taylor

TI__Mastermind 38255 points

Hi,

Schematic is fine. RFOUT is open drain output, we can just leave the pins floating if not using it.

Depending on your phase noise requirement, the LMK6 reference clock may not be good enough for LMX2594 to produce the lowest phase noise.

0 chang chieh-yu 1 天前回复 Taylor

Prodigy 30 points

Thank you for your reply.

1. pins 17 and 18 can be directly NC-connected right?

2. Regarding the reference clock, do you have a recommended model?
