ADS1292R: After the continuous reading was stopped, the MISO signal fluctuated randomly and failed to be written to the register.

simian fu
Prodigy 10 points
Part Number: ADS1292R
Other Parts Discussed in Thread: ADS1292

esp32 with the esp-idf architecture

void ads1292_init(void)
{
    ads1292_reset();
    vTaskDelay(pdMS_TO_TICKS(1000));
    ads1292_cmd(ADS1292_CMD_RESET);
    vTaskDelay(pdMS_TO_TICKS(30));
    gpio_set_level(GPIO_START, 0);
    vTaskDelay(pdMS_TO_TICKS(30));


    // ads1292_cmd(ADS1292_CMD_STOP);
    // vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_cmd(ADS1292_CMD_SDATAC);
    vTaskDelay(pdMS_TO_TICKS(30));

    ads1292_write(ADS1292_REG_CONFIG1,0x04);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_CONFIG2,0b10100000);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_LOFF,0b00010000);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_CH1SET,0b01000000);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_CH2SET,0b01100000);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_RLD_SENS,0b00101100);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_LOFF_SENS,0x00);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_RESP1,0b11110010);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_write(ADS1292_REG_RESP2,0b00000011);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_read(0x00);
    vTaskDelay(pdMS_TO_TICKS(30));
    ads1292_cmd(ADS1292_CMD_RDATAC);
    vTaskDelay(pdMS_TO_TICKS(30));
    gpio_set_level(GPIO_START, 1);
    vTaskDelay(pdMS_TO_TICKS(30));
}

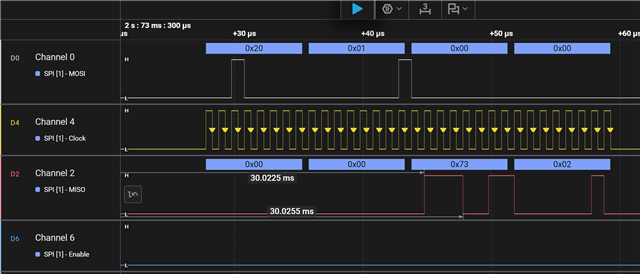

And attempt to write CONFIG1 0x04 and set 2ksps. However, the change frequency of the DRDY pin remains the default 500Hz.

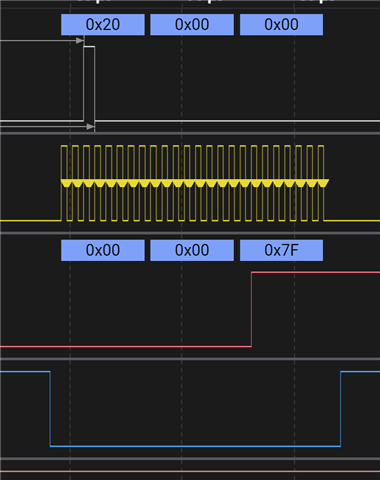

Write register error

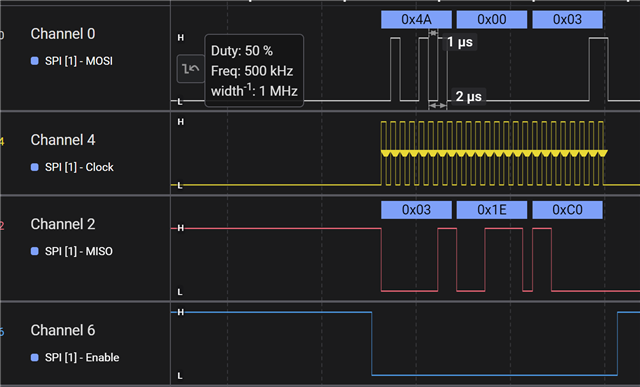

Error in reading the register (IO register)



I will be very grateful for any reply you make.
