We use SN65HVD3082EDR to convert UART to RS485But why the signal is abnormal
Please help clarify the problem

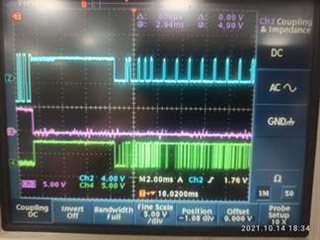

CH2 : RS-485 input (pin6 and pin7)
CH3 : Enable signal (pin2 and pin3)
CH4 : UART output signal (pin1)
Schematic as below
您好，
RS485总线上有几个节点？您是否连接了终端电阻RT？
关于失效保护偏置电路，请参考下面FAQ:
https://e2e.ti.com/support/interface-group/interface/f/interface-forum/1042936/sn65hvd3082e-faq-external-pull-up-pull-down-resistors-for-sn65hvd3082e/3857900?tisearch=e2e-sitesearch&keymatch=SN65HVD3082E%20%20Failsafe#3857900
目前線上有二個節點, 有試過加上終端電阻, 情況一樣
您拆掉R17和R21，再看信号是否正常？
