应用场景:A端ti解串器(1路iic),B端各路iic信号(11路);

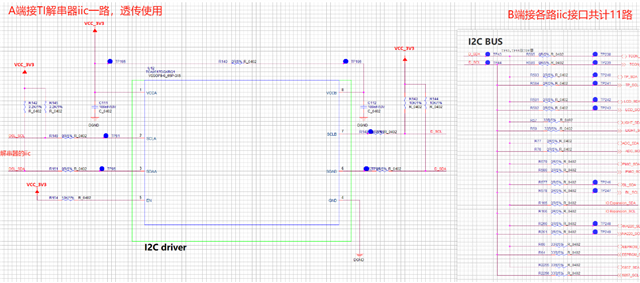

原理图:
点亮发现iic常读错,测量试剂盒:SDA
iic器件两端
This thread has been locked.
If you have a related question, please click the "Ask a related question" button in the top right corner. The newly created question will be automatically linked to this question.

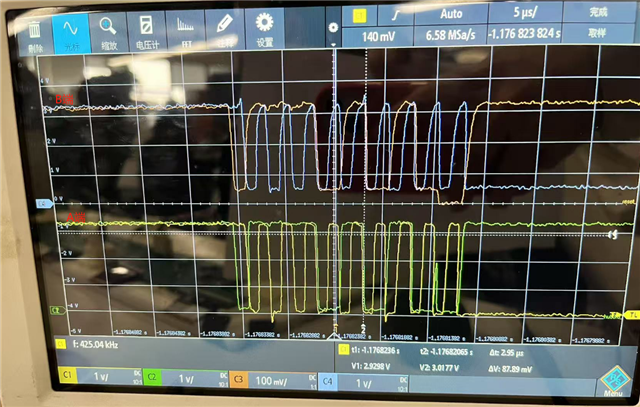

橙色波形看起来像B侧。
底部的黄色和绿色波形看起来像A侧。
您是否确定示波器探头已正确连接?

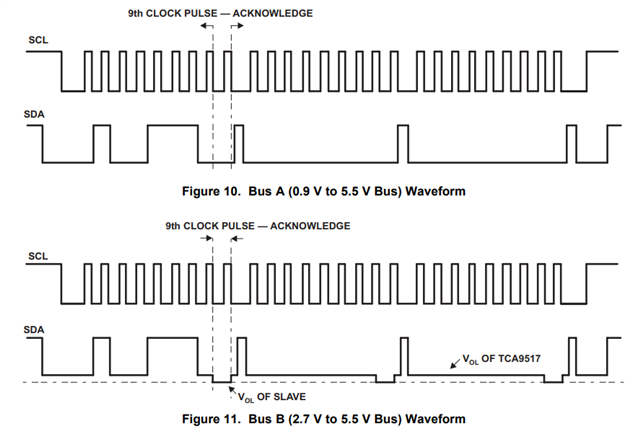

这看起来像是设备的正常行为。 请参见数据表的图10和图11,其中显示了A_Side与B侧的偏移电压差。
