你(们)好

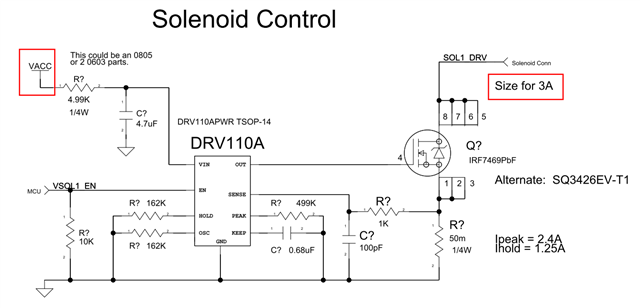

您能不能帮助检查 DRV110原理图和任何调整需求
(VACC=+24V)
嗨、Gareth、
我查看了原理图、我唯一的反馈是在 Vin 和 GND 之间添加一个100nF 电容器以进行高频噪声滤波。 除此之外、假设您按照数据表中针对所需规格(如保持时间、峰值电流、保持电流等)进行的计算进行了操作、则看起来不错
此致、
Jacob
