[参考译文] AFE7950-SP:AFE7950 ADS 中的仿真端口阻抗

Guru**** 2905440 points
请注意,本文内容源自机器翻译,可能存在语法或其它翻译错误,仅供参考。如需获取准确内容,请参阅链接中的英语原文或自行翻译。

https://e2e.ti.com/support/rf-microwave-group/rf-microwave/f/rf-microwave-forum/1647854/afe7950-sp-afe7950-simulation-port-impedance-in-ads

器件型号: AFE7950-SP

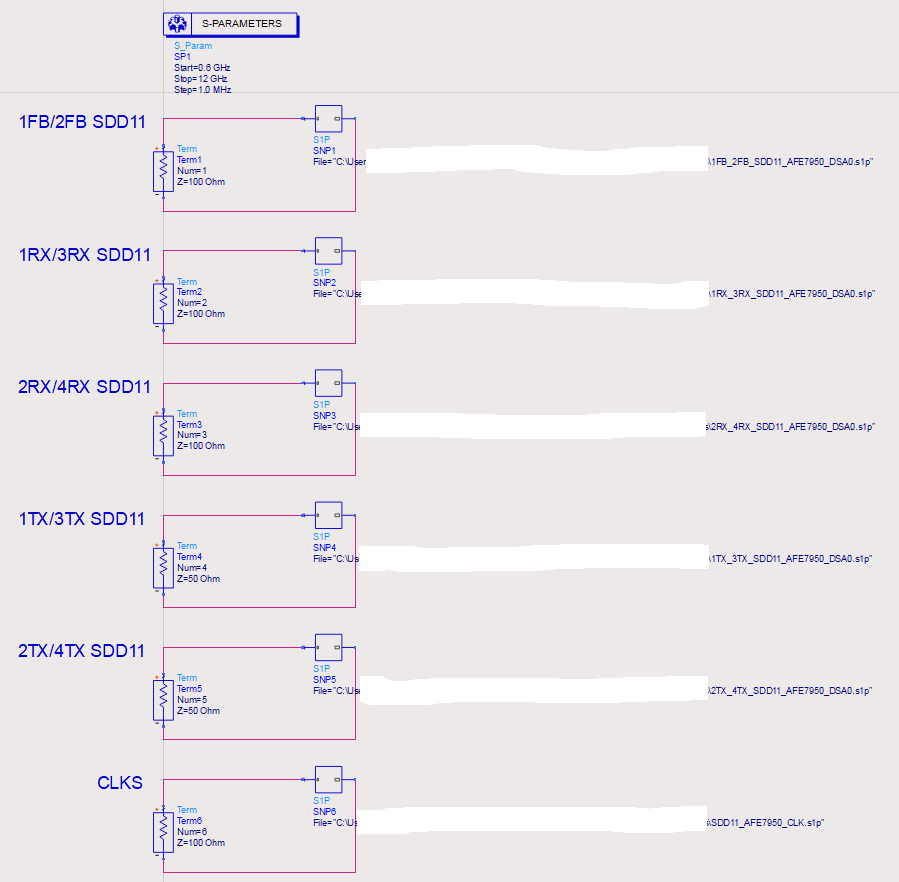

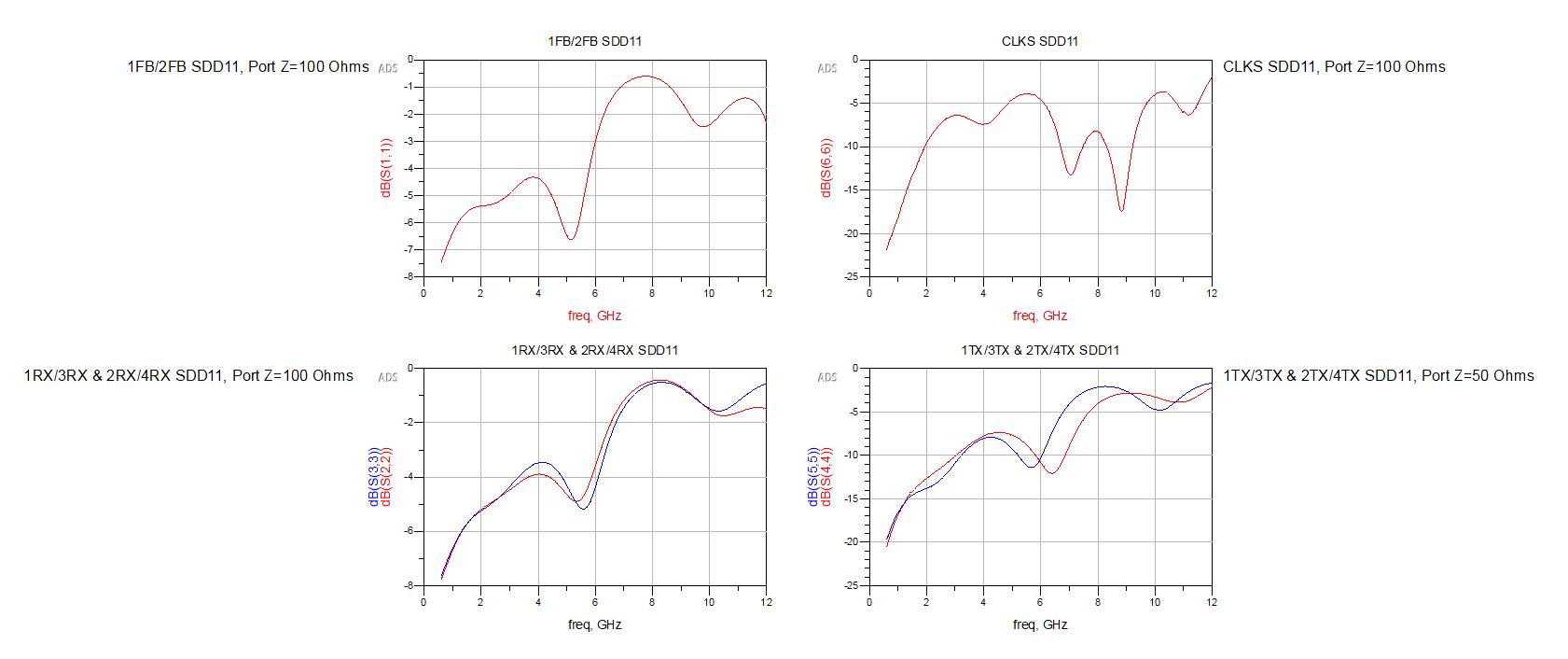

查看是否确认所提供 SDD11 S1P 文件的端口阻抗。

1Fb/2FB 端口阻抗:100 欧姆

1RX/3RX、2RX/4RX 端口阻抗:100 Ω

1Tx/3Tx、2Tx/4Tx 端口阻抗:50 欧姆

CLKS 端口阻抗:100 欧姆
