motorware中的示例中用的svpwm的svgen算法为什么是抑制共模电压的算法，而不是svgen_dq？

user4680236

Other Parts Discussed in Thread: MOTORWARE

如题，motorware中的示例中的控制算法如下：

static inline void SVGEN_run(SVGEN_Handle handle,const MATH_vec2 *pVab,MATH_vec3 *pT)
{

_iq Vmax,Vmin,Vcom;
_iq Va,Vb,Vc;
_iq Va_tmp = -(pVab->value[0]>>1);
_iq Vb_tmp = _IQmpy(SVGEN_SQRT3_OVER_2,pVab->value[1]);

Va = pVab->value[0]; //alpha
Vb = Va_tmp + Vb_tmp; //-0.5*alpha + sqrt(3)/2 * beta;
Vc = Va_tmp - Vb_tmp; //-0.5*alpha - sqrt(3)/2 * beta;

Vmax=0;
Vmin=0;

// find order Vmin,Vmid,Vmax
if (Va > Vb)
{
Vmax = Va;
Vmin = Vb;
}
else
{
Vmax = Vb;
Vmin = Va;
}

if (Vc > Vmax)
{
Vmax = Vc;
}
else if (Vc < Vmin)
{
Vmin = Vc;
}

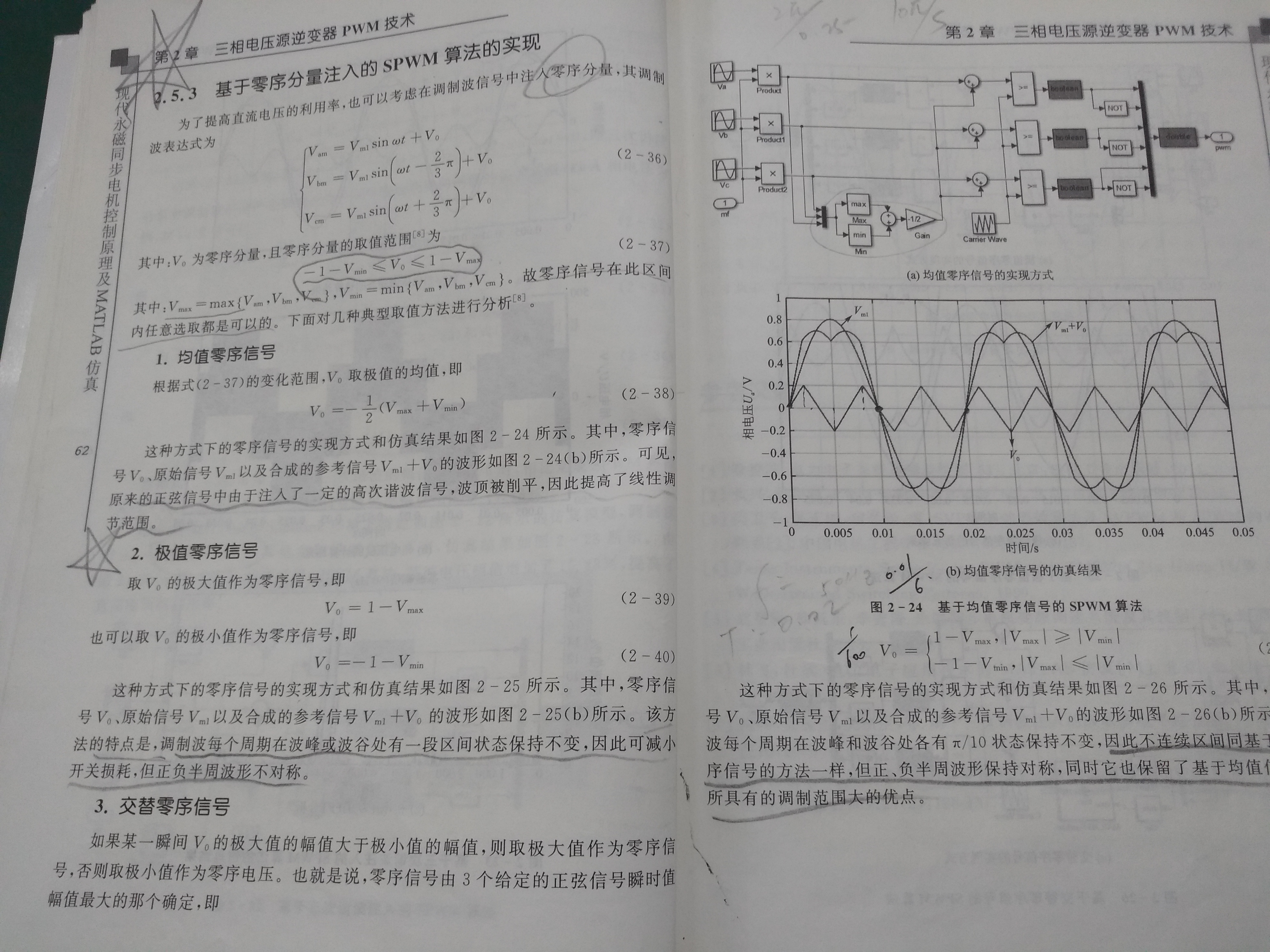

Vcom = _IQmpy(Vmax+Vmin, _IQ(0.5));

// Subtract common-mode term to achieve SV modulation
pT->value[0] = (Va - Vcom);
pT->value[1] = (Vb - Vcom);
pT->value[2] = (Vc - Vcom);

return;
}

传统svgen_dq算法如下：

#define SVGEN_MACRO(v) \
\
Sector = 0; \
temp_sv1=_IQdiv2(v.Ubeta); /*divide by 2*/ \
temp_sv2=_IQmpy(_IQ(0.8660254),v.Ualpha); /* 0.8660254 = sqrt(3)/2*/ \
\
/* Inverse clarke transformation */ \
Va = v.Ubeta; \
Vb = -temp_sv1 + temp_sv2; \
Vc = -temp_sv1 - temp_sv2; \
/* 60 degree Sector determination */ \
if (Va>_IQ(0)) Sector = 1; \
if (Vb>_IQ(0)) Sector = Sector+2; \
if (Vc>_IQ(0)) Sector = Sector+4; \
/* X,Y,Z (Va,Vb,Vc) calculations X = Va, Y = Vb, Z = Vc */ \
Va = v.Ubeta; \
Vb = temp_sv1 + temp_sv2; \
Vc = temp_sv1 - temp_sv2; \
/* Sector 0: this is special case for (Ualpha,Ubeta) = (0,0)*/ \
\
switch(Sector) \
{ \
case 0: \
v.Ta = _IQ(0.5); \
v.Tb = _IQ(0.5); \
v.Tc = _IQ(0.5); \
break; \
case 1: /*Sector 1: t1=Z and t2=Y (abc ---> Tb,Ta,Tc)*/ \
t1 = Vc; \
t2 = Vb; \
v.Tb=_IQdiv2((_IQ(1)-t1-t2)); \
v.Ta = v.Tb+t1; /* taon = tbon+t1 */ \
v.Tc = v.Ta+t2; /* tcon = taon+t2 */ \
break; \
case 2: /* Sector 2: t1=Y and t2=-X (abc ---> Ta,Tc,Tb)*/ \
t1 = Vb; \
t2 = -Va; \
v.Ta=_IQdiv2((_IQ(1)-t1-t2)); \
v.Tc = v.Ta+t1; /* tcon = taon+t1 */ \
v.Tb = v.Tc+t2; /* tbon = tcon+t2 */ \
break; \
case 3: /* Sector 3: t1=-Z and t2=X (abc ---> Ta,Tb,Tc)*/ \
t1 = -Vc; \
t2 = Va; \
v.Ta=_IQdiv2((_IQ(1)-t1-t2)); \
v.Tb = v.Ta+t1; /* tbon = taon+t1 */ \
v.Tc = v.Tb+t2; /* tcon = tbon+t2 */ \
break; \
case 4: /* Sector 4: t1=-X and t2=Z (abc ---> Tc,Tb,Ta)*/ \
t1 = -Va; \
t2 = Vc; \
v.Tc=_IQdiv2((_IQ(1)-t1-t2)); \
v.Tb = v.Tc+t1; /* tbon = tcon+t1 */ \
v.Ta = v.Tb+t2; /* taon = tbon+t2 */ \
break; \
case 5: /* Sector 5: t1=X and t2=-Y (abc ---> Tb,Tc,Ta)*/ \
t1 = Va; \
t2 = -Vb; /* tbon = (1-t1-t2)/2 */ \
v.Tb=_IQdiv2((_IQ(1)-t1-t2)); \
v.Tc = v.Tb+t1; /* taon = tcon+t2 */ \
v.Ta = v.Tc+t2; \
break; \
case 6: /* Sector 6: t1=-Y and t2=-Z (abc ---> Tc,Ta,Tb)*/ \
t1 = -Vb; \
t2 = -Vc; \
v.Tc=_IQdiv2((_IQ(1)-t1-t2)); \
v.Ta = v.Tc+t1; /* taon = tcon+t1 */ \
v.Tb = v.Ta+t2; /* tbon = taon+t2 */ \
break; \
} \
/* Convert the unsigned GLOBAL_Q format (ranged (0,1)) ->.. */ \
/* ..signed GLOBAL_Q format (ranged (-1,1))*/ \
v.Ta = _IQmpy2(v.Ta-_IQ(0.5)); \
v.Tb = _IQmpy2(v.Tb-_IQ(0.5)); \
v.Tc = _IQmpy2(v.Tc-_IQ(0.5)); \

没明白为什么这里要用前者，求解，谢谢！

9 年多前

0 Eric Ma 9 年多前

TI__Guru 60308 points

参考下面的回答：

The SVM technique used with InstaSPIN is discussed in the following reference:

Advanced Electric Drives, Analysis, Control and Modeling using Simulink, by Ned Mohan, MNPERE Press, Minneapolis, MN 55414, 2001, ISBN# 0-9715292-0-5

This technique was selected because it seamlessly transitions into the overmodulation region of operation by simply increasing the amplitude of the voltage variables from the Inverse Park Transform. A natural clipping effect occurs which causes the waveforms to change from sinusoidal to trapezoidal.

You can replace the SVM module with a more conventional technique if you desire. But you must then manage the overmodulation yourself.

ERIC
