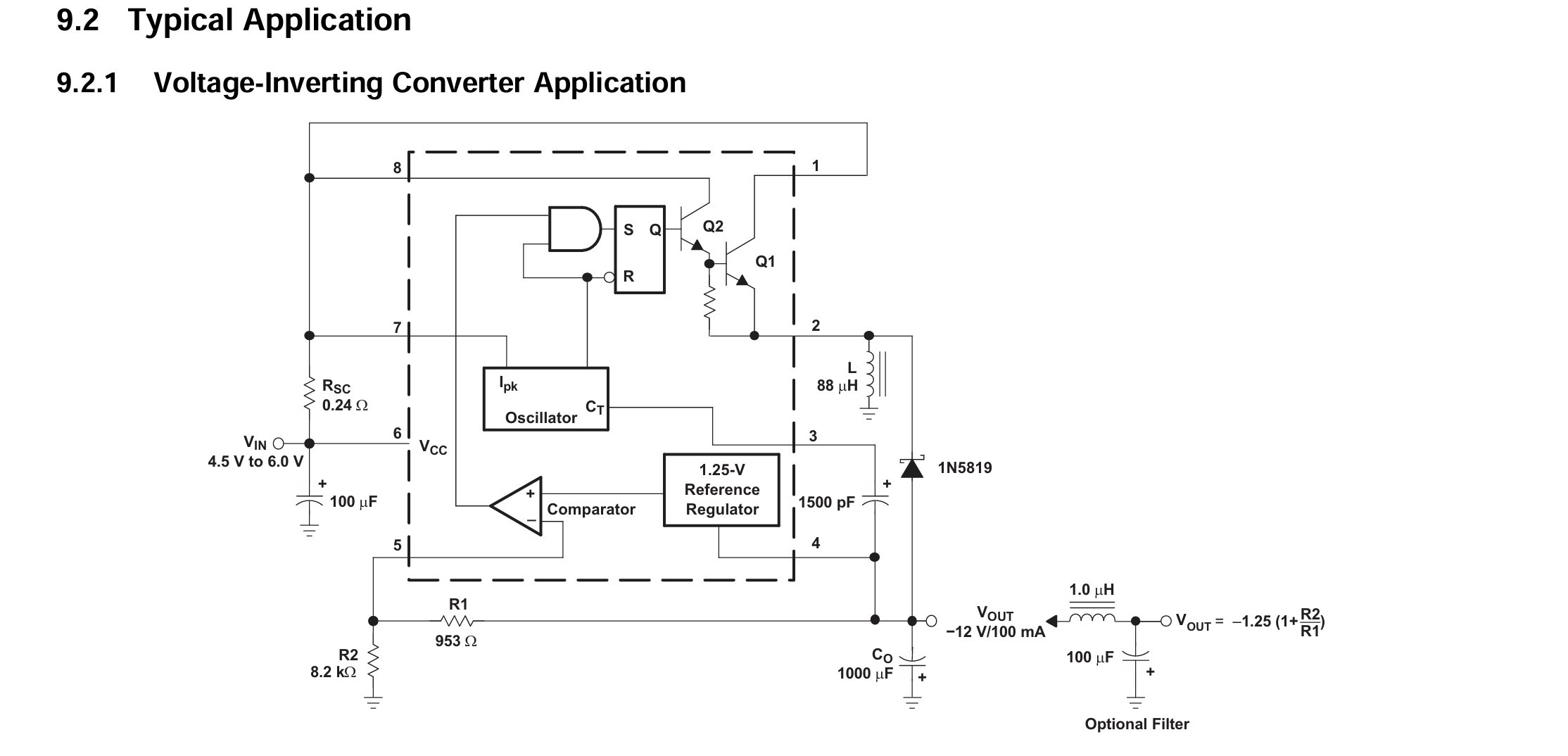

MC34063A: There is a problem with the 5V to -10V conversion output

?? ?

Part Number: MC34063A

dear expert：

I followed the instructions in the user manual, but the power supply I converted stays around 4.6V. Could you please advise what the problem might be?I also looked at the forum, but didn’t get any useful information. I hope to receive a response from an expert soon. I hope you can respond as soon as possible. Thank you very much.

your sincerely
huang

2 个月前

0 Eirwen 2 个月前

TI__Mastermind 35945 points

Hello, we have received your case and the investigation will take some time. Thank you for your patience.

0 ?? ? 2 个月前

Prodigy 10 points

dear expert：

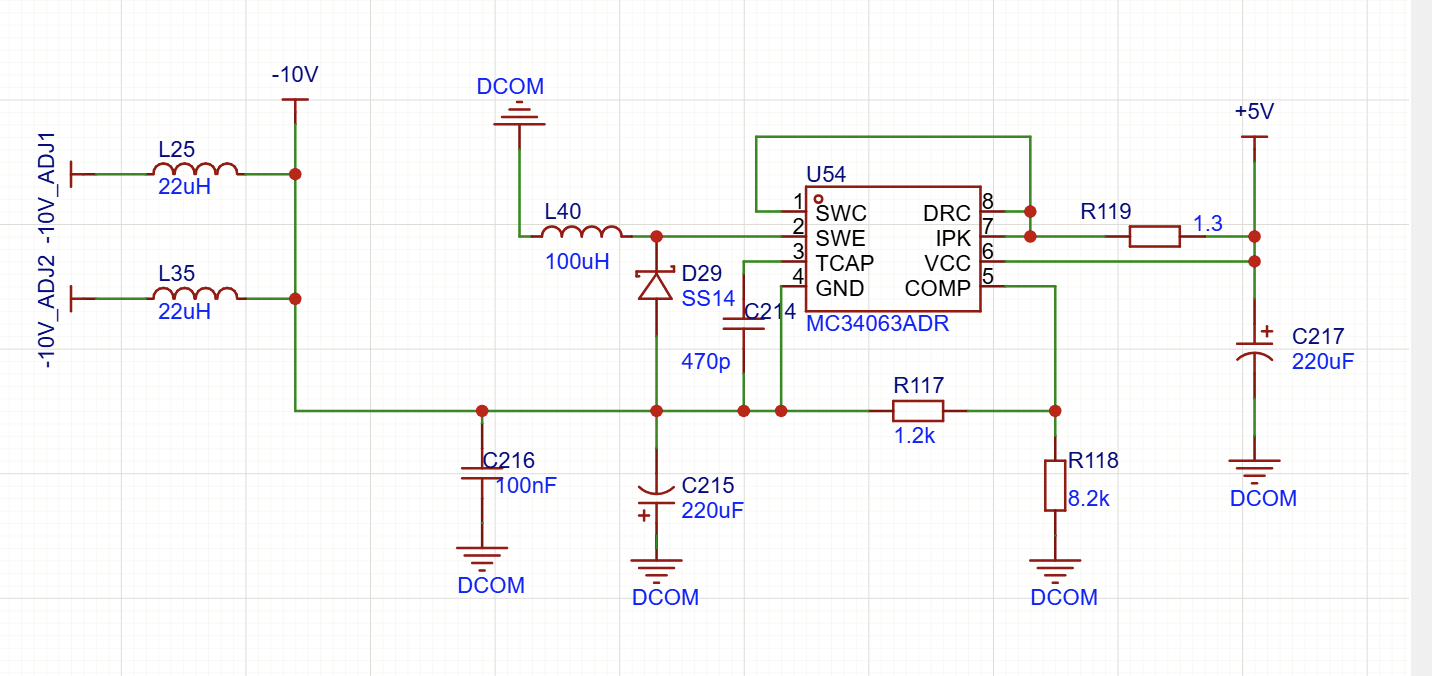

I built a circuit using a breadboard, and it can achieve around -9.2V, but the output on my PCB is only around -4.6V. What could be the possible reason? I hope to get some guidance, thank you.

0 ?? ? 2 个月前回复 Eirwen

Prodigy 10 points

I built a circuit on a breadboard using 20kΩ and 2.4kΩ resistors, and it can achieve around -9.2V. However, the output on my PCB is only about -4.6V. Do the 1.2kΩ and 8.2kΩ resistors on the PCB have a big impact? What could be the possible reason? I hope to get some guidance. Thank you.

0 Eirwen 2 个月前回复 ?? ?

TI__Mastermind 35945 points

What happens if you remove L25 and L35?
