CC2640R2F PWM

user6359397
Expert 1790 points

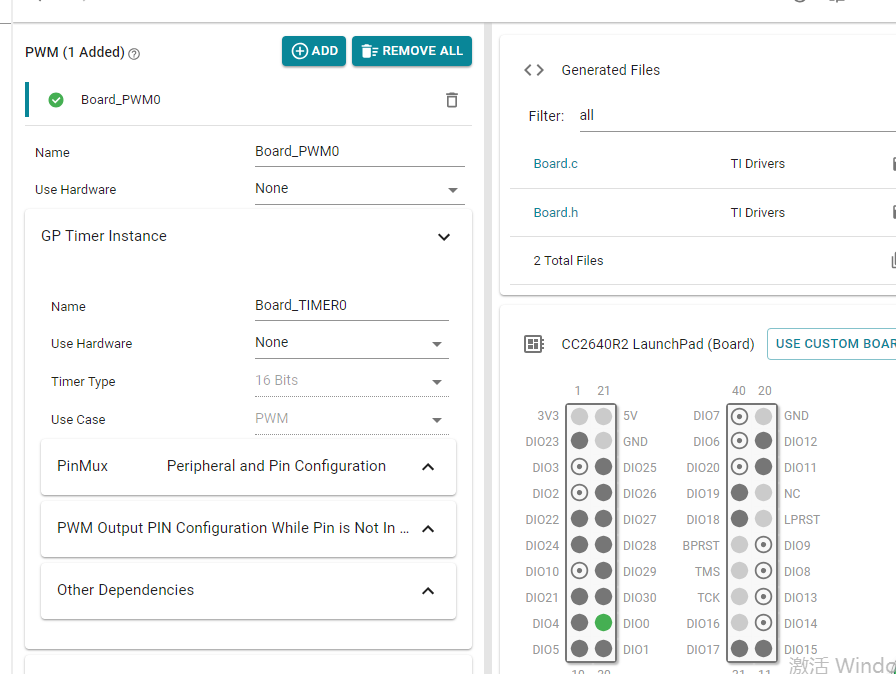

Other Parts Discussed in Thread: CC2640R2F, SYSCONFIG

/* PWM Outputs */
#define CC2640R2_LAUNCHXL_PWMPIN0               CC2640R2_LAUNCHXL_PIN_RLED
#define CC2640R2_LAUNCHXL_PWMPIN1               CC2640R2_LAUNCHXL_PIN_GLED
#define CC2640R2_LAUNCHXL_PWMPIN2               PIN_UNASSIGNED
#define CC2640R2_LAUNCHXL_PWMPIN3               PIN_UNASSIGNED
#define CC2640R2_LAUNCHXL_PWMPIN4               PIN_UNASSIGNED
#define CC2640R2_LAUNCHXL_PWMPIN5               PIN_UNASSIGNED
#define CC2640R2_LAUNCHXL_PWMPIN6               PIN_UNASSIGNED
#define CC2640R2_LAUNCHXL_PWMPIN7               PIN_UNASSIGNED

在PWM的官方的范例代码中只配置了RLED和GLED也就是DIO6 和DIO7配置了PWM输出，如果我想拓展更多的PWM接口呢？其他的引脚可以改成PWM输出吗？GPIO和TIMER的关系表在哪呢？我在文档里面没能找着

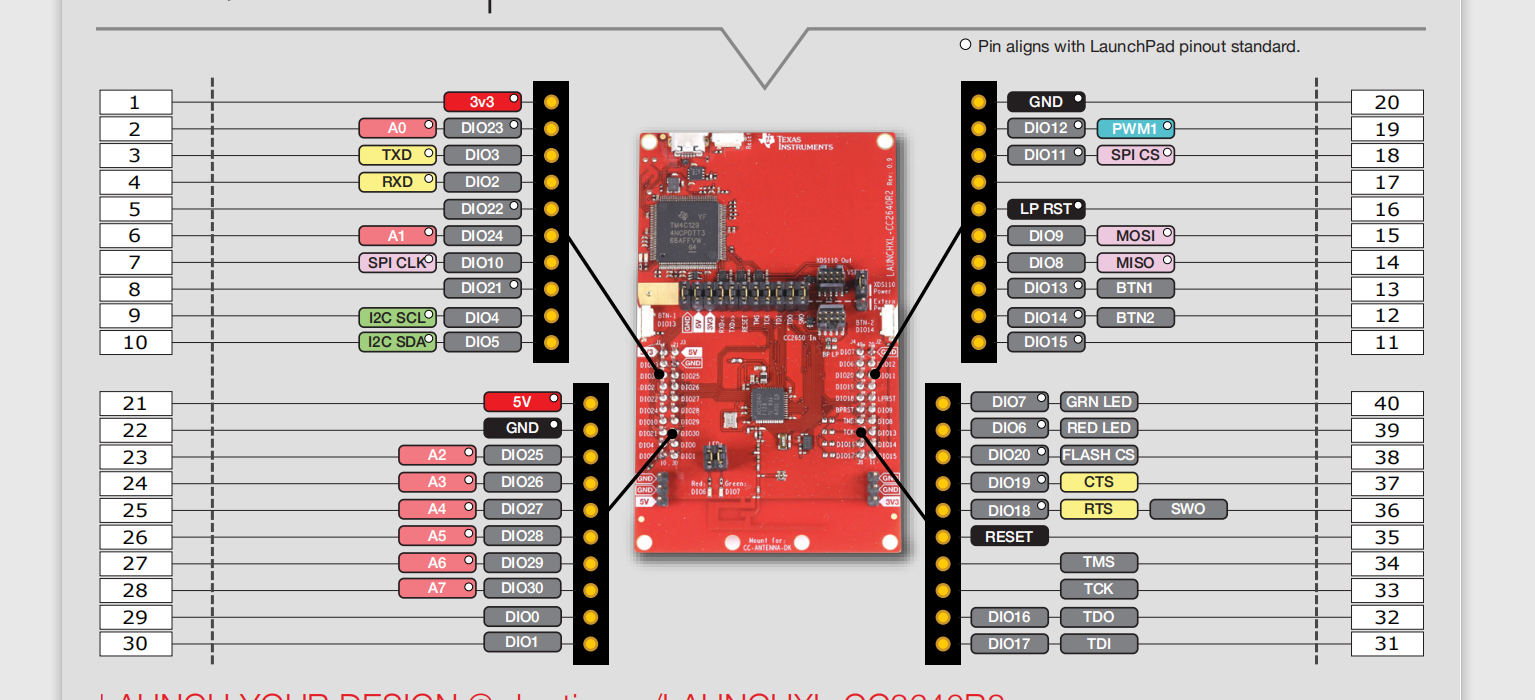

我看到了CC2640R2F的launchpad的引脚图上展示了DIO12脚是PWM输出接口，我是否能在DIO12口像DIO6和DIO7一样用TIMER输出PWM？如果可以，我该如何修改？
