LM3S9B96图形库使用问题

bob shu

你好！

我在使用LM3S9B96完成一个手持式的检测设备，现在在做一个LCD屏开机画面的功能，我从TI官网上面下载LM3S9B96的例程和库文件。我发现关于图片显示的例程只有从外部SDRAM读取数据显示的那个，而且很复杂。我没有外置存储器，想把图片数据放在片内，但是找不到相关的库文件。另外，我发现库文件中这个函数GrImageDraw（）可以完成图片显示的功能，但是它的图片数据需要固定的格式，而库文件中没有详细说明。下面是例程中GrImageDraw（）显示图片的一个图片数据

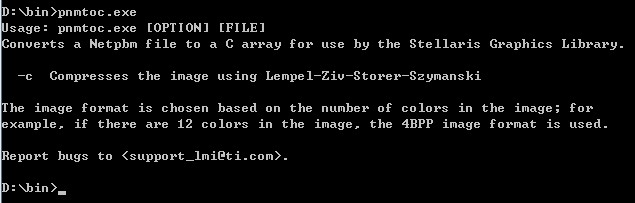

const unsigned char g_pucLogo[] =
{
IMAGE_FMT_4BPP_COMP,
50, 0,
50, 0,

15,
0x00, 0x00, 0x00,
0x03, 0x02, 0x13,
0x07, 0x05, 0x2a,
0x0a, 0x08, 0x41,
0x0d, 0x0a, 0x55,
0x10, 0x0c, 0x68,
0x12, 0x0e, 0x74,
0x15, 0x10, 0x88,
0x17, 0x12, 0x97,
0x19, 0x14, 0xa7,
0x1c, 0x16, 0xb8,
0x1e, 0x18, 0xc8,
0x20, 0x19, 0xd6,
0x22, 0x1b, 0xe1,
0x24, 0x1c, 0xe9,
0x24, 0x1c, 0xed,

0xf0, 0x07, 0x07, 0x07, 0x02, 0x04, 0xba, 0xaa, 0xaa, 0x18, 0xaa, 0xac,
0x30, 0x07, 0x07, 0x05, 0xff, 0xff, 0x0f, 0xff, 0xff, 0xff, 0x40, 0x3f,
0x3f, 0x3f, 0x3f, 0xc7, 0x3f, 0x3d, 0x48, 0x78, 0x50, 0x3f, 0x3f, 0x3a,
0x1c, 0xbf, 0xff, 0x70, 0x3f, 0x3f, 0x39, 0x01, 0xdf, 0xe0, 0x12, 0x3f,
0x3f, 0x00, 0x04, 0xff, 0xff, 0x20, 0xe1, 0x3f, 0x3f, 0x39, 0x03, 0x97,
0x87, 0x10, 0x3f, 0xf8, 0x3f, 0x39, 0x5f, 0x3f, 0x3b, 0x96, 0x82, 0x06,
0x00, 0x87, 0x84, 0x04, 0x87, 0x77, 0x77, 0x78, 0x30, 0xc0, 0x3f, 0x3b,
0xff, 0xd1, 0x0d, 0xff, 0xf5, 0x09, 0xb0, 0xaa, 0x60, 0x3f, 0x3c, 0xa0,
0x2f, 0xff, 0xf2, 0x60, 0x0c, 0x3f, 0x3f, 0xff, 0xff, 0x80, 0x4f, 0xff,
0x30, 0xc0, 0x1e, 0x3f, 0x3f, 0xff, 0xff, 0x50, 0x7f, 0x18, 0xff, 0x90,
0x4f, 0x3f, 0x3f, 0xfd, 0xef, 0x20, 0x06, 0xaf, 0xff, 0x70, 0x7f, 0xdd,
0x3f, 0x3e, 0xb2, 0x01, 0x12, 0x01, 0xcf, 0xff, 0x50, 0x12, 0x07, 0x3f,
0x80, 0x3e, 0x80, 0x00, 0x03, 0xff, 0xff, 0x30, 0x00, 0x5a, 0x08, 0x39,
0x70, 0x3f, 0x3a, 0x60, 0x01, 0xfc, 0x10, 0x10, 0x00, 0x1b, 0x39, 0xb0,
0x00, 0x00, 0x8c, 0x02, 0xaa, 0xaa, 0xaa, 0xaa, 0xaa, 0xab, 0x3a, 0x40,
0x01, 0x00, 0x07, 0xff, 0xfa, 0x00, 0x00, 0x2f, 0x39, 0x0c, 0xf6, 0x00,
0x00, 0x7f, 0x6a, 0x4a, 0xff, 0xfd, 0x00, 0x20, 0x00, 0x0a, 0xff, 0xf7,
0x00, 0x00, 0x4f, 0x84, 0x39, 0xfe, 0x40, 0x00, 0x29, 0x3f, 0xfe, 0xab,
0x01, 0xa0, 0x1c, 0xff, 0xf4, 0x08, 0xca, 0xcf, 0x72, 0x08, 0xf7, 0x00,
0x02, 0xdf, 0x37, 0xff, 0xb0, 0x2f, 0x10, 0xff, 0xf2, 0x0c, 0x8c, 0xf7,
0x00, 0x00, 0x3f, 0x81, 0x3f, 0xff, 0x80, 0x4f, 0xff, 0xc0, 0x2e, 0x3f,
0x20, 0x02, 0xcf, 0x37, 0x50, 0x8f, 0xff, 0xa0, 0x4f, 0x90, 0x3f, 0x00,
0x2c, 0x3f, 0x30, 0xaf, 0xff, 0x70, 0x48, 0x7f, 0x3f, 0x00, 0x02, 0x3e,
0xfd, 0x10, 0xcf, 0x11, 0xff, 0x40, 0x9f, 0x3f, 0x00, 0x00, 0x8f, 0x35,
0x02, 0xfa, 0x02, 0xff, 0xfe, 0x20, 0xcf, 0x3f, 0x00, 0x20, 0x00, 0x2f,
0x3d, 0xf8, 0x05, 0xff, 0xfd, 0x00, 0xd0, 0x3f, 0x31, 0x09, 0x3d, 0xf5,
0x03, 0x54, 0x53, 0x12, 0x00, 0x34, 0x6e, 0x3f, 0x00, 0x04, 0x39, 0xfa,
0x09, 0x9c, 0xff, 0xff, 0xf3, 0x9a, 0x00, 0x3f, 0x3a, 0x20, 0xa6, 0x31,
0xa3, 0xaf, 0xff, 0xfe, 0x30, 0x01, 0x10, 0xbf, 0xff, 0xd1, 0x3b, 0x7f,
0xff, 0xff, 0xfd, 0x40, 0x72, 0x4b, 0x00, 0x00, 0x2c, 0xff, 0xe3, 0x00,
0x08, 0x00, 0x2d, 0xff, 0xe1, 0x3b, 0x9f, 0xff, 0xfe, 0x40, 0x71, 0x45,
0x00, 0x01, 0x68, 0x20, 0x00, 0x00, 0x11, 0x06, 0xff, 0xf6, 0xa3, 0xbf,
0xff, 0xb2, 0x46, 0x80, 0x15, 0xbf, 0xff, 0x94, 0x33, 0x22, 0x22, 0x23,
0x30, 0xef, 0xf8, 0x47, 0x05, 0x6f, 0xff, 0xff, 0xfe, 0x06, 0xee, 0xee,
0xee, 0xff, 0x70, 0x3f, 0x05, 0x1c, 0x16, 0xff, 0xff, 0xff, 0xe9, 0xf9,
0x47, 0x06, 0x07, 0xb2, 0x3c, 0xc1, 0x3f, 0x06, 0x02, 0xdf, 0x33, 0x50,
0xd3, 0x3f, 0x07, 0x7f, 0x3a, 0xfc, 0x10, 0x3f, 0x07, 0x59, 0x2d, 0x3a,
0xf9, 0x47, 0x07, 0x00, 0x05, 0x3a, 0x62, 0xf7, 0x3f, 0x07, 0x00, 0x00,
0x9f, 0x31, 0xf8, 0xc5, 0x3f, 0x07, 0x00, 0x00, 0x0a, 0x39, 0xf9, 0x3f,
0xc1, 0x07, 0x01, 0x9f, 0xff, 0xff, 0xfc, 0x10, 0x37, 0x80, 0x07, 0x00,
0x00, 0x06, 0xdf, 0xff, 0xff, 0x50, 0xe1, 0x3f, 0x07, 0x01, 0x15, 0x78,
0x86, 0x20, 0x3f, 0xff, 0x07, 0x77, 0x2f, 0x07, 0x07, 0x07, 0x07, 0x07,
0x00, 0x00,
};
