我使用 ADS1256已经有一段时间了、到目前为止、我 已经在发送到 ADS1256或从 ADS1256接收到的每个字节之间插入了 T6延迟、只是为了安全起见、并简化逻辑。 现在、我将考虑提高逻辑效率、并在适用的情况下使用 T11延迟。 但是、我很难理解数据表图1表中的 T11数字。
4 T_CLKIN 对于 RDATA 而言意味着什么？ 是其它命令与 RDATA 之间的延迟还是 RDATA 与其它任何命令之间的延迟？ 在任何情况 下、在驱动 SCLK 读取采样数据之前、我需要等待 T6 = 50 T_CLKIN、这样我就看不到4 T_CLKIN 的含义。
WREG 呢？ T11是构成命令的两个字节之间的时间吗？ 还是写入 ADS1256寄存器的字节之间？
唤醒呢？ 该命令甚至未在表中列出。
顺便说一下、最好为转换器提供一个仿真模型。 最好在 VHDL 或 Verilog 中。
/F
您好 Fredda、
ADS1256具有内部逻辑、需要在命令之间进行某些延迟
T6用于数据/寄存器回读以获取有效信息的时间。 时间 T11是相邻命令之间的延迟。
例如、如果发出 RDATA 命令、则需要等待至少4个 tCLK 才能发出任何其他命令。 如果在4个 tCLK (但在50个 tCLK 之前)之后发出另一条命令、RDATA 命令将被中断、并且您将无法在每次 T6上获取 DOUT 上的有效数据。 相反、假设所有其他时序要求都得到满足、新命令将产生影响。 如果您需要此时的数据、则必须重新发出 RDATA 命令并等待时间 T6。
您无需在多字节命令(例如 RREG、WREG 等)的字节之间等待时间 T11
WAKEUP 命令后发出另一条命令不需要延迟。
请告诉我这是否能解答您的问题
布莱恩
谢谢。 这使它更清晰。 因此、我已经尝试尽可能积极地实施逻辑。 下面是数据表中图19的示例。
WREG_1和 MUX 寄存器="01010001"
WREG_2 &写入一个寄存器="00000000"
到 MUX 寄存器的数据="01011000"
T11 = 4 TCLKIN 在 SYNC 命令之前暂停。 不确定是否需要？？
SYNC 命令="11111100"
T11 = 24 TCLKIN 在 WAKEUP 命令之前暂停。
唤醒命令="00000000"
RDATA 命令="00000001"
T6 = 50 TCLKIN 在驱动 SCLK 以检索样本数据之前暂停在此
多路复用 器58h 的数据字节3
多路复用 器58h 的数据字节2
多路复用 器58h 的数据字节1

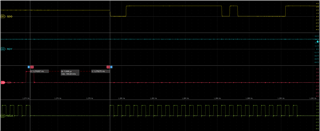

这似乎是好的。 对此有任何意见吗？
/F
您好 Fredda、
我很高兴现在一切都运转良好。 您是否能够验证转换数据以确保 ADC 正确转换？
我在您的图中也没有看到 CS 信号(我假设 RDY 信号为 DRDY 信号)。 最好确保正确驱动这是信号。
我要指出、最大 SCLK 速度为 fCLK/4。 当 fCLK = 7.68MHz (标称值)时、SCLK (最大值)= 1.92MHz。 您的图显示1.99MHz、当然假设您的 fCLK = 7.68MHz、这可能无法正常工作。
布莱恩
如果有任何人感兴趣、这里是对采用 VHDL 的 ADS1256 ADC 行为进行建模的尝试。 显然、这是数据表的解释、它远非准确、完美、无故障等 小心使用！
-----------------------------------------------
-- Description:
-- The ads1256_tb module emulates an ADS1256 ADC. Note that the emulation is
-- an interpretation of the information given in the ADS1256 data sheet and that
-- far from all features are modeled.
--
----------------------------------------------------------------------------------
library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;
use ieee.math_real.all; -- for UNIFORM, TRUNC functions
entity ads1256_tb is
generic(
G_ADC_CLOCK_FREQUENCY : real := 7.68; -- Unit is MHz
-- Frequency of externally provided ADC clock
G_MUX_SET_0 : std_logic_vector(7 downto 0) := x"01";
G_MUX_SET_1 : std_logic_vector(7 downto 0) := x"23";
G_MUX_SET_2 : std_logic_vector(7 downto 0) := x"45";
G_MUX_SET_3 : std_logic_vector(7 downto 0) := x"46";
G_MUX_SET_4 : std_logic_vector(7 downto 0) := x"78";
G_MUX_SET_5 : std_logic_vector(7 downto 0) := x"01";
G_MUX_SET_6 : std_logic_vector(7 downto 0) := x"01";
G_MUX_SET_7 : std_logic_vector(7 downto 0) := x"01"
-- The MUX generics define the ADC input configuration in the HW.
);
port(
reset : in std_logic;
adc_sck : in std_logic;
adc_sdi : in std_logic;
adc_cs_n : in std_logic;
adc_rdy_n : out std_logic;
adc_sdo : out std_logic
);
end ads1256_tb;
architecture rtl of ads1256_tb is
---------------------------------------------------------------------------
-- ADS1256 Address mappings constants
---------------------------------------------------------------------------
-- The operation of the ADS1256 is controlled through a set of registers. Collectively, the registers
-- contain all the information needed to configure the part, such as data rate, multiplexer settings,
-- PGA setting, calibration, etc., and are listed in Table 23 in the datasheet.
constant C_STATUS_ADDR : std_logic_vector (3 downto 0) := x"0";
-- Status register address
constant C_MUX_ADDR : std_logic_vector (3 downto 0) := x"1";
-- MUX register address
constant C_ADCON_ADDR : std_logic_vector (3 downto 0) := x"2";
-- ADC control register address
constant C_DRATE_ADDR : std_logic_vector (3 downto 0) := x"3";
-- Data rate register address
constant C_IO_ADDR : std_logic_vector (3 downto 0) := x"4";
-- IO register address
constant C_OFC0_ADDR : std_logic_vector (3 downto 0) := x"5";
-- Offset calibration register 0 address
constant C_OFC1_ADDR : std_logic_vector (3 downto 0) := x"6";
-- Offset calibration register 1 address
constant C_OFC2_ADDR : std_logic_vector (3 downto 0) := x"7";
-- Offset calibration register 2 address
constant C_FSC0_ADDR : std_logic_vector (3 downto 0) := x"8";
-- Full-scale calibration register 0 address
constant C_FSC1_ADDR : std_logic_vector (3 downto 0) := x"9";
-- Full-scale calibration register 1 address
constant C_FSC2_ADDR : std_logic_vector (3 downto 0) := x"A";
-- Full-scale calibration register 2 address
constant C_NUM_OF_REG : integer := 11;
-- Total number of registers in the ADS1256 ADC.
---------------------------------------------------------------------------
-- ADS1256 Command constants
---------------------------------------------------------------------------
constant C_WAKEUP_CMD : std_logic_vector (7 downto 0) := x"00";
-- Completes SYNC and Exits Standby Mode. Also x"FF".
constant C_RDATA_CMD : std_logic_vector (7 downto 0) := x"01";
-- Read Data.
constant C_RDATAC_CMD : std_logic_vector (7 downto 0) := x"03";
-- Read Data Continuously.
constant C_SDATAC_CMD : std_logic_vector (7 downto 0) := x"0F";
-- Stop Read Data Continuously.
constant C_RREG_B1_CMD : std_logic_vector (3 downto 0) := x"1";
-- The constant is the upper nibble of byte 1 of the ADC register
-- read command. It constitute the actual command. The lower
-- nibble of Byte 1 of the ADC register read command sets the
-- address of the register to read and is set in the FPGA logic.
constant C_RREG_B2_CMD : std_logic_vector (3 downto 0) := x"0";
-- The constant is the upper nibble of byte 2 of the ADC register
-- read command. It constitute the actual command. The lower
-- nibble of Byte 2 of the ADC register read command sets the
-- number of registers to read and is set in the FPGA logic.
-- If multiple registers are read, the lower nibble of
-- byte 1 of the ADC register read command sets the address
-- of the starting register.
constant C_RREG_CMD_NOB : integer := 2;
-- Number of bytes in the read register command.
constant C_WREG_B1_CMD : std_logic_vector (3 downto 0) := x"5";
-- The constant is the upper nibble of byte 1 of the ADC register
-- write command. It constitute the actual command. The lower
-- nibble of Byte 1 of the ADC register write command sets the
-- address of the register to write and is set in the FPGA logic.
constant C_WREG_B2_CMD : std_logic_vector (3 downto 0) := x"0";
-- The constant is the upper nibble of byte 2 of the ADC register
-- write command. It constitute the actual command. The lower
-- nibble of Byte 2 of the ADC register write command sets the
-- number of registers to write and is set in the FPGA logic.
-- If multiple registers are written, the lower nibble of
-- byte 1 of the ADC register write command sets the address
-- of the starting register.
constant C_WREG_CMD_NOB : integer := 2;
-- Number of bytes in the write register command.
constant C_SELFCAL_CMD : std_logic_vector (7 downto 0) := x"F0";
-- Offset and Gain Self-Calibration.
constant C_SELFOCAL_CMD : std_logic_vector (7 downto 0) := x"F1";
-- Offset Self-Calibration.
constant C_SELFGCAL_CMD : std_logic_vector (7 downto 0) := x"F2";
-- Gain Self-Calibration.
constant C_SYSOCAL_CMD : std_logic_vector (7 downto 0) := x"F3";
-- System Offset Calibration.
constant C_SYSGCAL_CMD : std_logic_vector (7 downto 0) := x"F4";
-- System Gain Calibration.
constant C_SYNC_CMD : std_logic_vector (7 downto 0) := x"FC";
-- Synchronize the A/D Conversion
constant C_STANDBY_CMD : std_logic_vector (7 downto 0) := x"FD";
-- Begin Standby Mode
constant C_RESET_CMD : std_logic_vector (7 downto 0) := x"FE";
-- Reset to Power-Up Values
constant C_RDATA_NOB : integer := 3;
-- Number of bytes returned by the ADC after a C_RDATA_CMD command.
---------------------------------------------------------------------------
-- ADS1256 Timing constants
---------------------------------------------------------------------------
constant C_INT_ADC_CLOCK_FREQ : real := G_ADC_CLOCK_FREQUENCY*10.0; -- Unit is MHz.
-- Run the "internal" ADC clock 10 times faster than the external ADC
-- clock driving the real ADC.
constant C_ADS1256_T6_50 : real := 50.0/G_ADC_CLOCK_FREQUENCY; -- Unit is us.
-- Delay from last SCLK edge for DIN to first SCLK rising edge for
-- DOUT: RDATA, RDATAC, RREG Commands.
constant C_ADS1256_T11_4 : real := 4.0/G_ADC_CLOCK_FREQUENCY; -- Unit is us.
-- Final SCLK falling edge of command to first rising edge of next command.
-- For RREG, WREG and RDATA commands.
constant C_ADS1256_T11_24 : real := 24.0/G_ADC_CLOCK_FREQUENCY; -- Unit is us.
-- Final SCLK falling edge of command to first rising edge of next command.
-- For RDATAC and SYNC commands.
---------------------------------------------------------------------------
-- Types
---------------------------------------------------------------------------
type t_arr0_10_slv7_0 is array (0 to 10) of std_logic_vector(7 downto 0);
type adc_state_type is (ST_IDLE, ST_PROCESS_DATA, ST_WREG_B2_CMD, ST_RREG_B2_CMD,
ST_WREG, ST_RREG, ST_SEND_ADC_DATA, ST_SELFCAL, ST_SYNC, ST_WAKEUP, ST_RESET);
type spi_if_state_type is (ST_IDLE, ST_RECEIVING_DATA, ST_SENDING_DATA, ST_SPI_IF_BUSY);
---------------------------------------------------------------------------
-- Other constants
---------------------------------------------------------------------------
constant C_ADC_REG_BANK_RESET_VALUE : t_arr0_10_slv7_0 := ("XXXX0001", -- 0
"00000001", -- 1
"00100000", -- 2
"11110000", -- 3
"11100000", -- 4
"XXXXXXXX", -- 5
"XXXXXXXX", -- 6
"XXXXXXXX", -- 7
"XXXXXXXX", -- 8
"XXXXXXXX", -- 9
"XXXXXXXX"); -- 10
-- Reset array for the ADC registers. Values according to ADS1256 datasheet.
---------------------------------------------------------------------------
-- Signals
---------------------------------------------------------------------------
-- FSM signals
signal adc_state : adc_state_type := ST_IDLE;
signal spi_if_state : spi_if_state_type := ST_IDLE;
-- Clock signals
signal clk : std_logic := '0';
-- Edge finding signals
signal adc_sck_r1 : std_logic := '0';
signal adc_sck_r2 : std_logic := '0';
signal adc_sck_r3 : std_logic := '0';
signal adc_sdi_r1 : std_logic := '0';
signal adc_sdi_r2 : std_logic := '0';
signal adc_cs_n_r1 : std_logic := '0';
signal adc_cs_n_r2 : std_logic := '0';
signal adc_sck_pos_edg : std_logic := '0';
signal adc_sck_neg_edg : std_logic := '0';
-- ADC control process (adc_control_proc) signals
signal send_byte : std_logic := '0';
signal deassert_adc_rdy_n : std_logic := '0';
signal adc_reg_addr : integer range 0 to 15 := 0;
signal num_of_reg : integer range 0 to 15 := 0;
signal adc_reg_bank : t_arr0_10_slv7_0 := C_ADC_REG_BANK_RESET_VALUE;
signal reg_cnt : integer range 0 to 15 := 0;
signal data_to_fpga : std_logic_vector(7 downto 0) := (others => '0');
signal calibration_active : std_logic := '0';
signal t11_4 : std_logic := '0';
signal t11_24 : std_logic := '0';
signal t6 : std_logic := '0';
-- ADC data and sample control
signal data_o_reg : std_logic_vector(23 downto 0) := (others => '0');
signal adc_data_00 : unsigned(23 downto 0) := x"000000";
signal adc_data_01 : unsigned(23 downto 0) := x"111111";
signal adc_data_02 : unsigned(23 downto 0) := x"222222";
signal adc_data_03 : unsigned(23 downto 0) := x"333333";
signal adc_data_04 : unsigned(23 downto 0) := x"444444";
signal adc_data_05 : unsigned(23 downto 0) := x"555555";
signal adc_data_06 : unsigned(23 downto 0) := x"666666";
signal adc_data_07 : unsigned(23 downto 0) := x"777777";
signal updating_sample : std_logic := '0';
signal sample_ready : std_logic := '0';
-- ADC timing signals
signal calib_cnt : integer range 0 to positive(500.0*C_INT_ADC_CLOCK_FREQ) - 1 := 0;
signal calib_done : std_logic := '0';
signal sample_period_cnt : integer range 0 to positive(50000.0*C_INT_ADC_CLOCK_FREQ) := 0;
signal sample_period : integer range 0 to positive(2.0*50000.0*C_INT_ADC_CLOCK_FREQ) := 0;
-- SPI interface process (spi_interface_proc) signals
signal fpga_data_received : std_logic := '0';
signal sending_data : std_logic := '0';
signal spi_if_busy : std_logic := '0';
signal data_from_fpga : std_logic_vector(7 downto 0) := (others => '0');
signal bit_cnt : integer range 0 to 7 := 7;
signal t_busy_cnt : integer range 0 to 511 := 0;
signal t_value : integer range 0 to 511 := 0;
signal t_busy : std_logic := '0';
begin
clk <= not clk after integer((1000000.0/C_INT_ADC_CLOCK_FREQ)/2.0) * 1 ps;
-- Antimeta
antimeta_proc : process(clk)
begin
if rising_edge(clk) then
adc_sck_r1 <= adc_sck;
adc_sck_r2 <= adc_sck_r1;
adc_sdi_r1 <= adc_sdi;
adc_sdi_r2 <= adc_sdi_r1;
adc_cs_n_r1 <= adc_cs_n;
adc_cs_n_r2 <= adc_cs_n_r1;
end if;
end process;
-- Find positive and negative edges of adc_sck_r2.
adc_sck_edge_proc : process(clk)
begin
if rising_edge(clk) then
adc_sck_pos_edg <= '0';
adc_sck_neg_edg <= '0';
adc_sck_r3 <= adc_sck_r2;
if adc_sck_r2 = '1' and adc_sck_r3 = '0' then
adc_sck_pos_edg <= '1';
end if;
if adc_sck_r2 = '0' and adc_sck_r3 = '1' then
adc_sck_neg_edg <= '1';
end if;
end if;
end process;
-- The adc_control_proc process models the ADC command execution.
adc_control_proc : process(clk)
variable seed1 : positive; -- Seed values for random generator
variable seed2 : positive; -- Seed values for random generator
variable rand1 : real; -- Random real number value in range 0 to 1.0
begin
if rising_edge(clk) then
if reset = '1' then
send_byte <= '0';
deassert_adc_rdy_n <= '0';
adc_state <= ST_IDLE;
adc_reg_addr <= 0;
num_of_reg <= 0;
adc_reg_bank <= C_ADC_REG_BANK_RESET_VALUE;
reg_cnt <= 0;
data_to_fpga <= (others => '0');
calibration_active <= '0';
t11_4 <= '0';
t11_24 <= '0';
t6 <= '0';
else
send_byte <= '0';
deassert_adc_rdy_n <= '0';
t11_4 <= '0';
t11_24 <= '0';
t6 <= '0';
if adc_cs_n_r2 = '1' then -- A logic high on Chip Select resets the ADC SPI interface.
send_byte <= '0';
deassert_adc_rdy_n <= '0';
adc_state <= ST_IDLE;
adc_reg_addr <= 0;
num_of_reg <= 0;
reg_cnt <= 0;
data_to_fpga <= (others => '0');
calibration_active <= '0';
else
case adc_state is
when ST_IDLE =>
if fpga_data_received = '1' then
adc_state <= ST_PROCESS_DATA;
end if;
when ST_PROCESS_DATA =>
if data_from_fpga(7 downto 4) = C_WREG_B1_CMD then
adc_reg_addr <= to_integer(unsigned(data_from_fpga(3 downto 0)));
adc_state <= ST_WREG_B2_CMD;
elsif data_from_fpga(7 downto 4) = C_RREG_B1_CMD then
adc_reg_addr <= to_integer(unsigned(data_from_fpga(3 downto 0)));
adc_state <= ST_RREG_B2_CMD;
else
case data_from_fpga is
when C_WAKEUP_CMD =>
adc_state <= ST_WAKEUP;
when C_RDATA_CMD =>
t6 <= '1';
adc_state <= ST_SEND_ADC_DATA;
when C_RDATAC_CMD =>
t6 <= '1';
adc_state <= ST_IDLE;
when C_SDATAC_CMD =>
t11_24 <= '1'; --???
adc_state <= ST_IDLE;
when C_SELFCAL_CMD =>
adc_state <= ST_SELFCAL;
when C_SYNC_CMD =>
t11_24 <= '1';
adc_state <= ST_SYNC;
when C_STANDBY_CMD =>
adc_state <= ST_IDLE;
when C_RESET_CMD =>
adc_state <= ST_RESET;
when others =>
adc_state <= ST_IDLE;
end case;
end if;
when ST_WREG_B2_CMD =>
if fpga_data_received = '1' then
num_of_reg <= to_integer(unsigned(data_from_fpga(3 downto 0)));
adc_state <= ST_WREG;
end if;
when ST_RREG_B2_CMD =>
if fpga_data_received = '1' then
t6 <= '1';
num_of_reg <= to_integer(unsigned(data_from_fpga(3 downto 0)));
adc_state <= ST_RREG;
end if;
when ST_WREG =>
if fpga_data_received = '1' then
adc_reg_bank(adc_reg_addr + reg_cnt) <= data_from_fpga;
if reg_cnt < num_of_reg then
reg_cnt <= reg_cnt + 1;
else
reg_cnt <= 0;
t11_4 <= '1';
adc_state <= ST_IDLE;
end if;
end if;
when ST_RREG =>
if spi_if_busy = '0' then
send_byte <= '1';
data_to_fpga <= adc_reg_bank(adc_reg_addr + reg_cnt);
if reg_cnt < num_of_reg then
reg_cnt <= reg_cnt + 1;
else
reg_cnt <= 0;
adc_state <= ST_IDLE;
end if;
end if;
when ST_SEND_ADC_DATA =>
if spi_if_busy = '0' then
send_byte <= '1';
data_to_fpga <= data_o_reg(23 - 8*reg_cnt downto 16 - 8*reg_cnt);
if reg_cnt < 2 then
reg_cnt <= reg_cnt + 1;
else
deassert_adc_rdy_n <= '1';
reg_cnt <= 0;
adc_state <= ST_IDLE;
end if;
end if;
when ST_SELFCAL =>
calibration_active <= '1';
if calib_done = '1' then
uniform(seed1, seed2, rand1);
adc_reg_bank(to_integer(unsigned(C_OFC0_ADDR))) <= std_logic_vector(to_unsigned(integer(rand1*255.0*0.2), 8));
adc_reg_bank(to_integer(unsigned(C_OFC1_ADDR))) <= std_logic_vector(to_unsigned(integer(rand1*255.0*0.4), 8));
adc_reg_bank(to_integer(unsigned(C_OFC2_ADDR))) <= std_logic_vector(to_unsigned(integer(rand1*255.0*0.6), 8));
adc_reg_bank(to_integer(unsigned(C_FSC0_ADDR))) <= std_logic_vector(to_unsigned(integer(rand1*255.0*0.8), 8));
adc_reg_bank(to_integer(unsigned(C_FSC1_ADDR))) <= std_logic_vector(to_unsigned(integer(rand1*255.0*0.9), 8));
adc_reg_bank(to_integer(unsigned(C_FSC2_ADDR))) <= std_logic_vector(to_unsigned(integer(rand1*255.0*1.0), 8));
calibration_active <= '0';
adc_state <= ST_IDLE;
end if;
when ST_SYNC =>
adc_state <= ST_IDLE;
when ST_WAKEUP =>
adc_state <= ST_IDLE;
when ST_RESET => -- After releasing from RESET, self-calibration is performed, regardless of the reset method or the state of the ACAL bit before RESET.
adc_reg_bank <= C_ADC_REG_BANK_RESET_VALUE;
adc_state <= ST_SELFCAL;
when others =>
adc_state <= ST_IDLE;
end case;
end if;
end if;
end if;
end process;
-- The calibration_proc process models the self-calibration time. The calibration time
-- actually depends on the PGA and the data rate setting, but that dependency is not modeled here.
calibration_proc : process(clk)
begin
if rising_edge(clk) then
if reset = '1' then
calib_cnt <= 0;
calib_done <= '0';
else
calib_done <= '0';
if calibration_active = '1' then
if calib_cnt < positive(500.0*C_INT_ADC_CLOCK_FREQ) - 1 then
calib_cnt <= calib_cnt + 1;
else
calib_cnt <= 0;
calib_done <= '1';
end if;
else
calib_cnt <= 0;
calib_done <= '0';
end if;
end if;
end if;
end process;
-- Assign data to adc_data_xx. Depends on the MUX setting (register C_MUX_ADDR).
-- Only assign static data for making the test bench less complex.
-- Also, it makes it is easier to see if the MUX setting is effective.
-- The data_o_reg represents the ADC sample data output register, which isn't updated until
-- the sample_ready signal is asserted. Otherwise the output data would change as soon
-- as the MUX setting changes, which wouldn't model the ADC correctly.
adc_data_proc : process(clk)
begin
if rising_edge(clk) then
if reset = '1' then
adc_data_00 <= x"000000";
adc_data_01 <= x"111111";
adc_data_02 <= x"222222";
adc_data_03 <= x"333333";
adc_data_04 <= x"444444";
adc_data_05 <= x"555555";
adc_data_06 <= x"666666";
adc_data_07 <= x"777777";
data_o_reg <= (others => '0');
else
if sample_ready = '1' then
if adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_0 then
adc_data_00 <= adc_data_00 + 1;
data_o_reg <= std_logic_vector(adc_data_00);
elsif adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_1 then
adc_data_01 <= adc_data_01 + 1;
data_o_reg <= std_logic_vector(adc_data_01);
elsif adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_2 then
adc_data_02 <= adc_data_02 + 1;
data_o_reg <= std_logic_vector(adc_data_02);
elsif adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_3 then
adc_data_03 <= adc_data_03 + 1;
data_o_reg <= std_logic_vector(adc_data_03);
elsif adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_4 then
adc_data_04 <= adc_data_04 + 1;
data_o_reg <= std_logic_vector(adc_data_04);
elsif adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_5 then
adc_data_05 <= adc_data_05 + 1;
data_o_reg <= std_logic_vector(adc_data_05);
elsif adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_6 then
adc_data_06 <= adc_data_06 + 1;
data_o_reg <= std_logic_vector(adc_data_06);
elsif adc_reg_bank(to_integer(unsigned(C_MUX_ADDR))) = G_MUX_SET_7 then
adc_data_07 <= adc_data_07 + 1;
data_o_reg <= std_logic_vector(adc_data_07);
end if;
end if;
end if;
end if;
end process;
-- The data_rate_proc process sets the ADC sampling period, which depends on the data rate setting
-- given by register C_DRATE_ADDR.
-- The periods are not the actual values since the simulation would take too long with real values.
-- Also, the period depends on the ADS1256 master clock. The period values below are 1/10, 1/100 or 1/1000.
-- of the real values for a ADS1256 master clock = 7.68 MHz.
data_rate_proc : process(clk)
begin
if rising_edge(clk) then
if reset = '1' then
sample_period <= positive(100.0*C_INT_ADC_CLOCK_FREQ);
else
case adc_reg_bank(to_integer(unsigned(C_DRATE_ADDR))) is
when "11110000" => -- 30 000
sample_period <= positive(2.0*3.3*C_INT_ADC_CLOCK_FREQ);
when "11100000" => -- 15 000
sample_period <= positive(2.0*6.7*C_INT_ADC_CLOCK_FREQ);
when "11010000" => -- 7 500
sample_period <= positive(2.0*13.3*C_INT_ADC_CLOCK_FREQ);
when "11000000" => -- 3 750
sample_period <= positive(2.0*26.6*C_INT_ADC_CLOCK_FREQ);
when "10110000" => -- 2 000
sample_period <= positive(2.0*5.0*C_INT_ADC_CLOCK_FREQ);
when "10100001" => -- 1 000
sample_period <= positive(2.0*10.0*C_INT_ADC_CLOCK_FREQ);
when "10010010" => -- 500
sample_period <= positive(2.0*20.0*C_INT_ADC_CLOCK_FREQ);
when "10000010" => -- 100
sample_period <= positive(2.0*100.0*C_INT_ADC_CLOCK_FREQ);
when "01110010" => -- 60
sample_period <= positive(2.0*166.6*C_INT_ADC_CLOCK_FREQ);
when "01100011" => -- 50
sample_period <= positive(2.0*200.0*C_INT_ADC_CLOCK_FREQ);
when "01010011" => -- 30
sample_period <= positive(2.0*333.3*C_INT_ADC_CLOCK_FREQ);
when "01000011" => -- 25
sample_period <= positive(2.0*400.0*C_INT_ADC_CLOCK_FREQ);
when "00110011" => -- 15
sample_period <= positive(2.0*666.6*C_INT_ADC_CLOCK_FREQ);
when "00100011" => -- 10
sample_period <= positive(2.0*111.0*C_INT_ADC_CLOCK_FREQ);
when "00010011" => -- 5
sample_period <= positive(2.0*222.0*C_INT_ADC_CLOCK_FREQ);
when "00000011" => -- 2.5
sample_period <= positive(2.0*500.0*C_INT_ADC_CLOCK_FREQ);
when others =>
sample_period <= positive(100.0*C_INT_ADC_CLOCK_FREQ);
end case;
end if;
end if;
end process;
-- The sample_proc process counts the sampling period and controls, together with the adc_rdy_proc process, the assertion of adc_rdy_n.
-- adc_rdy_n goes low to indicate that a sample is ready. After all 24 bits have been shifted out on adc_sdo,
-- adc_rdy_n goes high. It is not necessary to read back all 24 bits, but adc_rdy_n will then not return high until new
-- data is being updated. This is modeled by the updating_sample signal. It takes 16 ADC master clock cycles to update
-- the ADC data. t17 in the ADS1256 datasheet.
-- adc_rdy_n = /DRDY, adc_sdo = DOUT
sample_proc : process(clk)
begin
if rising_edge(clk) then
if reset = '1' then
sample_period_cnt <= 0;
sample_ready <= '0';
updating_sample <= '0';
else
sample_ready <= '0';
if sample_period_cnt = sample_period - 16 then
updating_sample <= '1';
else
updating_sample <= '0';
end if;
if calibration_active = '1' then
sample_period_cnt <= 0;
elsif sample_period_cnt < sample_period - 1 then
sample_period_cnt <= sample_period_cnt + 1;
else
sample_period_cnt <= 0;
sample_ready <= '1';
end if;
end if;
end if;
end process;
-- The adc_rdy_proc process controls the assertion of adc_rdy_n.
adc_rdy_proc : process(clk)
begin
if rising_edge(clk) then
if reset = '1' then
adc_rdy_n <= '1';
else
if calibration_active = '1' then
adc_rdy_n <= '1';
elsif updating_sample = '1' then
adc_rdy_n <= '1';
elsif sample_ready = '1' then
adc_rdy_n <= '0';
elsif deassert_adc_rdy_n = '1' then
adc_rdy_n <= '1';
end if;
end if;
end if;
end process;
spi_if_busy <= sending_data or send_byte or t6 or t11_4 or t11_24 or t_busy;
-- The spi_interface_proc process controls the adc_sdi and adc_sdo data interface.
-- Not modeled:
-- - If SCLK is held low for 32 DRDY periods, the serial interface will reset and the
-- next SCLK pulse will start a new communication cycle.
-- - A special pattern on SCLK will reset the chip.
--
-- The ST_SPI_IF_BUSY state models the t6 and t11 ADC SPI serial interface timings.
spi_interface_proc : process(clk)
begin
if rising_edge(clk) then
if reset = '1' then
fpga_data_received <= '0';
sending_data <= '0';
spi_if_state <= ST_IDLE;
data_from_fpga <= (others => '0');
bit_cnt <= 7;
adc_sdo <= 'Z';
t_value <= 0;
t_busy_cnt <= 0;
t_busy <= '0';
else
fpga_data_received <= '0';
if adc_cs_n_r2 = '1' then -- A logic high on Chip Select resets the ADC SPI interface.
fpga_data_received <= '0';
sending_data <= '0';
spi_if_state <= ST_IDLE;
data_from_fpga <= (others => '0');
bit_cnt <= 7;
adc_sdo <= 'Z'; -- When CS is taken high, the serial interface is reset and DOUT enters a high impedance state.
t_value <= 0;
t_busy_cnt <= 0;
t_busy <= '0';
else
case spi_if_state is
when ST_IDLE =>
if t6 = '1' then
spi_if_state <= ST_SPI_IF_BUSY;
t_value <= positive(C_ADS1256_T6_50*C_INT_ADC_CLOCK_FREQ) - 6; -- Compensate for inter process communications.
t_busy <= '1';
elsif t11_4 = '1' then
spi_if_state <= ST_SPI_IF_BUSY;
t_value <= positive(C_ADS1256_T11_4*C_INT_ADC_CLOCK_FREQ) - 5;
t_busy <= '1';
elsif t11_24 = '1' then
spi_if_state <= ST_SPI_IF_BUSY;
t_value <= positive(C_ADS1256_T11_24*C_INT_ADC_CLOCK_FREQ) - 5;
t_busy <= '1';
elsif send_byte = '1' then
sending_data <= '1';
spi_if_state <= ST_SENDING_DATA;
elsif adc_sck_pos_edg = '1' then
spi_if_state <= ST_RECEIVING_DATA;
end if;
when ST_RECEIVING_DATA =>
if adc_sck_neg_edg = '1' then
data_from_fpga(bit_cnt) <= adc_sdi_r2;
if bit_cnt > 0 then
bit_cnt <= bit_cnt - 1;
else
fpga_data_received <= '1';
bit_cnt <= 7;
spi_if_state <= ST_IDLE ;
end if;
end if;
when ST_SENDING_DATA =>
if adc_sck_pos_edg = '1' then
adc_sdo <= data_to_fpga(bit_cnt);
if bit_cnt > 0 then
bit_cnt <= bit_cnt - 1;
else
sending_data <= '0';
bit_cnt <= 7;
spi_if_state <= ST_IDLE ;
end if;
end if;
when ST_SPI_IF_BUSY =>
if t_busy_cnt < t_value - 1 then
t_busy_cnt <= t_busy_cnt + 1;
else
t_busy_cnt <= 0;
t_busy <= '0';
spi_if_state <= ST_IDLE;
end if;
when others =>
spi_if_state <= ST_IDLE;
end case;
end if;
end if;
end if;
end process;
end rtl;
