关于技术文档原理图和PCB图不对应问题

2337.0284.tidubq6-EtherCAT Interface for High Performance C2000 MCU Design Guide.pdf

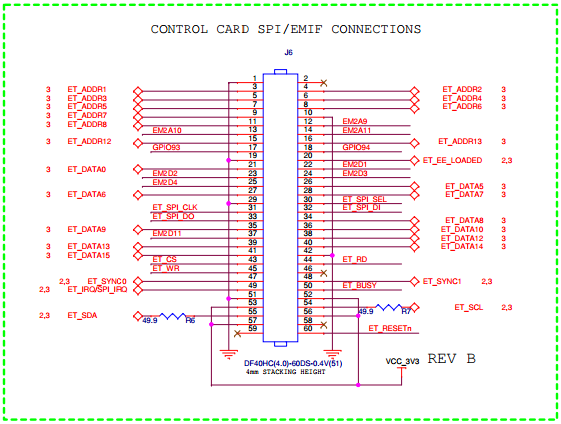

文档中的接口的原理图,如下图:

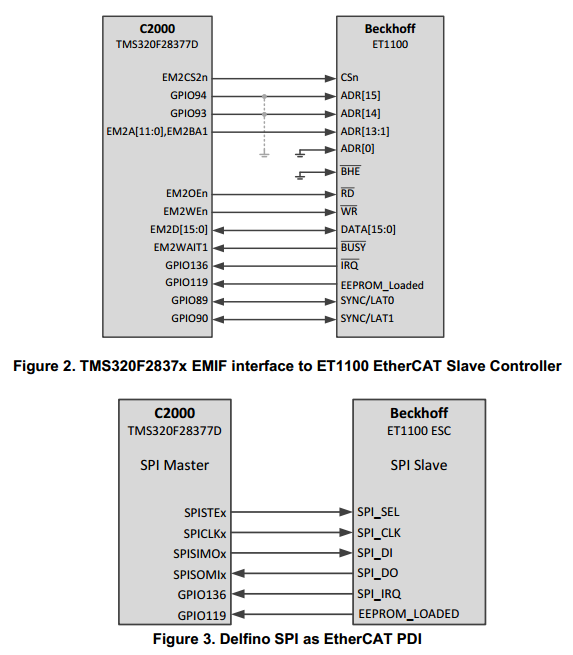

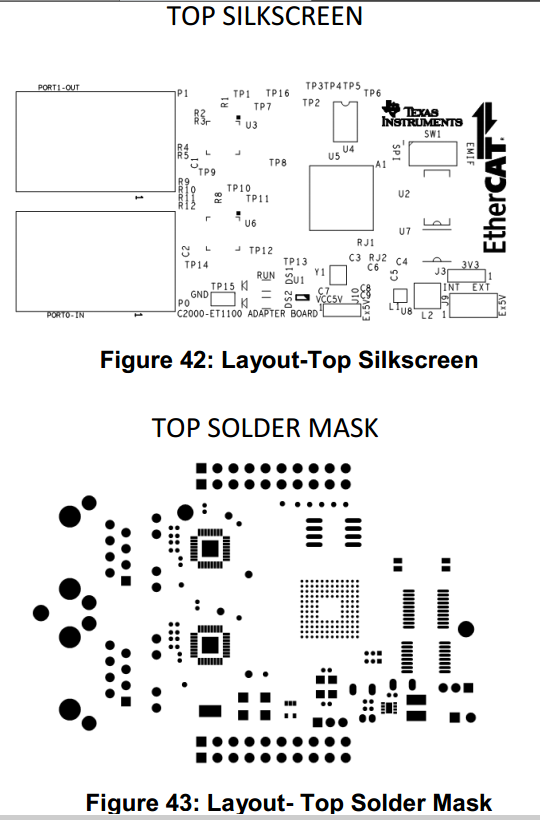

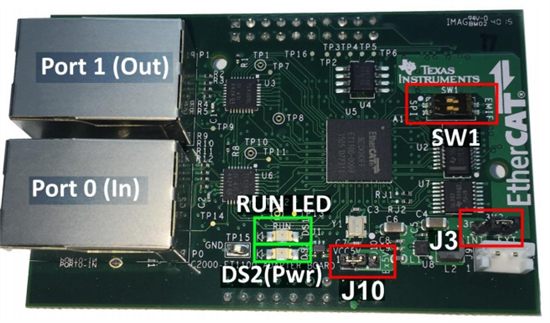

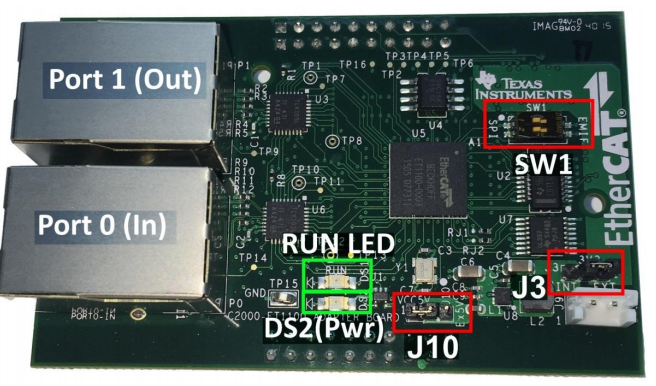

原理图的接口模式和PCB图,以及实物图的接口是不一样的,不知道是什么问题

tidubq6-EtherCAT Interface for High Performance C2000 MCU Design Guide.pdf
