在测试自己DIY制作的电路板的过程中
发现232串口一直没有数据显示
1、自己思考可能出现的问题：
有可能是设计电路板的时候，232没有将RXD、TXD交叉连接
2、自己思考的解决方案：
从CCS C2000ware中的例程中，找到定义多路复用引脚的文件，将100多个引脚中的SCIA的功能定义，改成我们自己想要的功能。
3、操作如下：
例程初始定义的是
SCIA RXD是GPIO8
SCIA TXD是GPIO9
我想修改成：
SCIA TXD是GPIO8
SCIA RXD是GPIO9
4、相请教的问题
之前配置的时候，见过GPIOmap之类的文件，里面有何28388D的所有引脚的功能定义。
但是，现在单独去找，找了好久，没找到这个文件所在的位置
特来请教
谢谢
您指的是下面的文件？
//########################################################################### // // FILE: f2838x_gpio.h // // TITLE: Definitions for the GPIO registers. // //########################################################################### // $TI Release: F2838x Support Library v3.03.00.00 $ // $Release Date: Sun Oct 4 16:00:36 IST 2020 $ // $Copyright: // Copyright (C) 2020 Texas Instruments Incorporated - http://www.ti.com/ // // Redistribution and use in source and binary forms, with or without // modification, are permitted provided that the following conditions // are met: // // Redistributions of source code must retain the above copyright // notice, this list of conditions and the following disclaimer. // // Redistributions in binary form must reproduce the above copyright // notice, this list of conditions and the following disclaimer in the // documentation and/or other materials provided with the // distribution. // // Neither the name of Texas Instruments Incorporated nor the names of // its contributors may be used to endorse or promote products derived // from this software without specific prior written permission. // // THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS // "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT // LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR // A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT // OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, // SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT // LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, // DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY // THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT // (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE // OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. // $ //########################################################################### #ifndef F2838X_GPIO_H #define F2838X_GPIO_H #ifdef __cplusplus extern "C" { #endif //--------------------------------------------------------------------------- // GPIO Individual Register Bit Definitions: struct GPACTRL_BITS { // bits description Uint16 QUALPRD0:8; // 7:0 Qualification sampling period for GPIO0 to GPIO7 Uint16 QUALPRD1:8; // 15:8 Qualification sampling period for GPIO8 to GPIO15 Uint16 QUALPRD2:8; // 23:16 Qualification sampling period for GPIO16 to GPIO23 Uint16 QUALPRD3:8; // 31:24 Qualification sampling period for GPIO24 to GPIO31 }; union GPACTRL_REG { Uint32 all; struct GPACTRL_BITS bit; }; struct GPAQSEL1_BITS { // bits description Uint16 GPIO0:2; // 1:0 Select input qualification type for GPIO0 Uint16 GPIO1:2; // 3:2 Select input qualification type for GPIO1 Uint16 GPIO2:2; // 5:4 Select input qualification type for GPIO2 Uint16 GPIO3:2; // 7:6 Select input qualification type for GPIO3 Uint16 GPIO4:2; // 9:8 Select input qualification type for GPIO4 Uint16 GPIO5:2; // 11:10 Select input qualification type for GPIO5 Uint16 GPIO6:2; // 13:12 Select input qualification type for GPIO6 Uint16 GPIO7:2; // 15:14 Select input qualification type for GPIO7 Uint16 GPIO8:2; // 17:16 Select input qualification type for GPIO8 Uint16 GPIO9:2; // 19:18 Select input qualification type for GPIO9 Uint16 GPIO10:2; // 21:20 Select input qualification type for GPIO10 Uint16 GPIO11:2; // 23:22 Select input qualification type for GPIO11 Uint16 GPIO12:2; // 25:24 Select input qualification type for GPIO12 Uint16 GPIO13:2; // 27:26 Select input qualification type for GPIO13 Uint16 GPIO14:2; // 29:28 Select input qualification type for GPIO14 Uint16 GPIO15:2; // 31:30 Select input qualification type for GPIO15 }; union GPAQSEL1_REG { Uint32 all; struct GPAQSEL1_BITS bit; }; struct GPAQSEL2_BITS { // bits description Uint16 GPIO16:2; // 1:0 Select input qualification type for GPIO16 Uint16 GPIO17:2; // 3:2 Select input qualification type for GPIO17 Uint16 GPIO18:2; // 5:4 Select input qualification type for GPIO18 Uint16 GPIO19:2; // 7:6 Select input qualification type for GPIO19 Uint16 GPIO20:2; // 9:8 Select input qualification type for GPIO20 Uint16 GPIO21:2; // 11:10 Select input qualification type for GPIO21 Uint16 GPIO22:2; // 13:12 Select input qualification type for GPIO22 Uint16 GPIO23:2; // 15:14 Select input qualification type for GPIO23 Uint16 GPIO24:2; // 17:16 Select input qualification type for GPIO24 Uint16 GPIO25:2; // 19:18 Select input qualification type for GPIO25 Uint16 GPIO26:2; // 21:20 Select input qualification type for GPIO26 Uint16 GPIO27:2; // 23:22 Select input qualification type for GPIO27 Uint16 GPIO28:2; // 25:24 Select input qualification type for GPIO28 Uint16 GPIO29:2; // 27:26 Select input qualification type for GPIO29 Uint16 GPIO30:2; // 29:28 Select input qualification type for GPIO30 Uint16 GPIO31:2; // 31:30 Select input qualification type for GPIO31 }; union GPAQSEL2_REG { Uint32 all; struct GPAQSEL2_BITS bit; }; struct GPAMUX1_BITS { // bits description Uint16 GPIO0:2; // 1:0 Defines pin-muxing selection for GPIO0 Uint16 GPIO1:2; // 3:2 Defines pin-muxing selection for GPIO1 Uint16 GPIO2:2; // 5:4 Defines pin-muxing selection for GPIO2 Uint16 GPIO3:2; // 7:6 Defines pin-muxing selection for GPIO3 Uint16 GPIO4:2; // 9:8 Defines pin-muxing selection for GPIO4 Uint16 GPIO5:2; // 11:10 Defines pin-muxing selection for GPIO5 Uint16 GPIO6:2; // 13:12 Defines pin-muxing selection for GPIO6 Uint16 GPIO7:2; // 15:14 Defines pin-muxing selection for GPIO7 Uint16 GPIO8:2; // 17:16 Defines pin-muxing selection for GPIO8 Uint16 GPIO9:2; // 19:18 Defines pin-muxing selection for GPIO9 Uint16 GPIO10:2; // 21:20 Defines pin-muxing selection for GPIO10 Uint16 GPIO11:2; // 23:22 Defines pin-muxing selection for GPIO11 Uint16 GPIO12:2; // 25:24 Defines pin-muxing selection for GPIO12 Uint16 GPIO13:2; // 27:26 Defines pin-muxing selection for GPIO13 Uint16 GPIO14:2; // 29:28 Defines pin-muxing selection for GPIO14 Uint16 GPIO15:2; // 31:30 Defines pin-muxing selection for GPIO15 }; union GPAMUX1_REG { Uint32 all; struct GPAMUX1_BITS bit; }; struct GPAMUX2_BITS { // bits description Uint16 GPIO16:2; // 1:0 Defines pin-muxing selection for GPIO16 Uint16 GPIO17:2; // 3:2 Defines pin-muxing selection for GPIO17 Uint16 GPIO18:2; // 5:4 Defines pin-muxing selection for GPIO18 Uint16 GPIO19:2; // 7:6 Defines pin-muxing selection for GPIO19 Uint16 GPIO20:2; // 9:8 Defines pin-muxing selection for GPIO20 Uint16 GPIO21:2; // 11:10 Defines pin-muxing selection for GPIO21 Uint16 GPIO22:2; // 13:12 Defines pin-muxing selection for GPIO22 Uint16 GPIO23:2; // 15:14 Defines pin-muxing selection for GPIO23 Uint16 GPIO24:2; // 17:16 Defines pin-muxing selection for GPIO24 Uint16 GPIO25:2; // 19:18 Defines pin-muxing selection for GPIO25 Uint16 GPIO26:2; // 21:20 Defines pin-muxing selection for GPIO26 Uint16 GPIO27:2; // 23:22 Defines pin-muxing selection for GPIO27 Uint16 GPIO28:2; // 25:24 Defines pin-muxing selection for GPIO28 Uint16 GPIO29:2; // 27:26 Defines pin-muxing selection for GPIO29 Uint16 GPIO30:2; // 29:28 Defines pin-muxing selection for GPIO30 Uint16 GPIO31:2; // 31:30 Defines pin-muxing selection for GPIO31 }; union GPAMUX2_REG { Uint32 all; struct GPAMUX2_BITS bit; }; struct GPADIR_BITS { // bits description Uint16 GPIO0:1; // 0 Defines direction for this pin in GPIO mode Uint16 GPIO1:1; // 1 Defines direction for this pin in GPIO mode Uint16 GPIO2:1; // 2 Defines direction for this pin in GPIO mode Uint16 GPIO3:1; // 3 Defines direction for this pin in GPIO mode Uint16 GPIO4:1; // 4 Defines direction for this pin in GPIO mode Uint16 GPIO5:1; // 5 Defines direction for this pin in GPIO mode Uint16 GPIO6:1; // 6 Defines direction for this pin in GPIO mode Uint16 GPIO7:1; // 7 Defines direction for this pin in GPIO mode Uint16 GPIO8:1; // 8 Defines direction for this pin in GPIO mode Uint16 GPIO9:1; // 9 Defines direction for this pin in GPIO mode Uint16 GPIO10:1; // 10 Defines direction for this pin in GPIO mode Uint16 GPIO11:1; // 11 Defines direction for this pin in GPIO mode Uint16 GPIO12:1; // 12 Defines direction for this pin in GPIO mode Uint16 GPIO13:1; // 13 Defines direction for this pin in GPIO mode Uint16 GPIO14:1; // 14 Defines direction for this pin in GPIO mode Uint16 GPIO15:1; // 15 Defines direction for this pin in GPIO mode Uint16 GPIO16:1; // 16 Defines direction for this pin in GPIO mode Uint16 GPIO17:1; // 17 Defines direction for this pin in GPIO mode Uint16 GPIO18:1; // 18 Defines direction for this pin in GPIO mode Uint16 GPIO19:1; // 19 Defines direction for this pin in GPIO mode Uint16 GPIO20:1; // 20 Defines direction for this pin in GPIO mode Uint16 GPIO21:1; // 21 Defines direction for this pin in GPIO mode Uint16 GPIO22:1; // 22 Defines direction for this pin in GPIO mode Uint16 GPIO23:1; // 23 Defines direction for this pin in GPIO mode Uint16 GPIO24:1; // 24 Defines direction for this pin in GPIO mode Uint16 GPIO25:1; // 25 Defines direction for this pin in GPIO mode Uint16 GPIO26:1; // 26 Defines direction for this pin in GPIO mode Uint16 GPIO27:1; // 27 Defines direction for this pin in GPIO mode Uint16 GPIO28:1; // 28 Defines direction for this pin in GPIO mode Uint16 GPIO29:1; // 29 Defines direction for this pin in GPIO mode Uint16 GPIO30:1; // 30 Defines direction for this pin in GPIO mode Uint16 GPIO31:1; // 31 Defines direction for this pin in GPIO mode }; union GPADIR_REG { Uint32 all; struct GPADIR_BITS bit; }; struct GPAPUD_BITS { // bits description Uint16 GPIO0:1; // 0 Pull-Up Disable control for this pin Uint16 GPIO1:1; // 1 Pull-Up Disable control for this pin Uint16 GPIO2:1; // 2 Pull-Up Disable control for this pin Uint16 GPIO3:1; // 3 Pull-Up Disable control for this pin Uint16 GPIO4:1; // 4 Pull-Up Disable control for this pin Uint16 GPIO5:1; // 5 Pull-Up Disable control for this pin Uint16 GPIO6:1; // 6 Pull-Up Disable control for this pin Uint16 GPIO7:1; // 7 Pull-Up Disable control for this pin Uint16 GPIO8:1; // 8 Pull-Up Disable control for this pin Uint16 GPIO9:1; // 9 Pull-Up Disable control for this pin Uint16 GPIO10:1; // 10 Pull-Up Disable control for this pin Uint16 GPIO11:1; // 11 Pull-Up Disable control for this pin Uint16 GPIO12:1; // 12 Pull-Up Disable control for this pin Uint16 GPIO13:1; // 13 Pull-Up Disable control for this pin Uint16 GPIO14:1; // 14 Pull-Up Disable control for this pin Uint16 GPIO15:1; // 15 Pull-Up Disable control for this pin Uint16 GPIO16:1; // 16 Pull-Up Disable control for this pin Uint16 GPIO17:1; // 17 Pull-Up Disable control for this pin Uint16 GPIO18:1; // 18 Pull-Up Disable control for this pin Uint16 GPIO19:1; // 19 Pull-Up Disable control for this pin Uint16 GPIO20:1; // 20 Pull-Up Disable control for this pin Uint16 GPIO21:1; // 21 Pull-Up Disable control for this pin Uint16 GPIO22:1; // 22 Pull-Up Disable control for this pin Uint16 GPIO23:1; // 23 Pull-Up Disable control for this pin Uint16 GPIO24:1; // 24 Pull-Up Disable control for this pin Uint16 GPIO25:1; // 25 Pull-Up Disable control for this pin Uint16 GPIO26:1; // 26 Pull-Up Disable control for this pin Uint16 GPIO27:1; // 27 Pull-Up Disable control for this pin Uint16 GPIO28:1; // 28 Pull-Up Disable control for this pin Uint16 GPIO29:1; // 29 Pull-Up Disable control for this pin Uint16 GPIO30:1; // 30 Pull-Up Disable control for this pin Uint16 GPIO31:1; // 31 Pull-Up Disable control for this pin }; union GPAPUD_REG { Uint32 all; struct GPAPUD_BITS bit; }; struct GPAINV_BITS { // bits description Uint16 GPIO0:1; // 0 Input inversion control for this pin Uint16 GPIO1:1; // 1 Input inversion control for this pin Uint16 GPIO2:1; // 2 Input inversion control for this pin Uint16 GPIO3:1; // 3 Input inversion control for this pin Uint16 GPIO4:1; // 4 Input inversion control for this pin Uint16 GPIO5:1; // 5 Input inversion control for this pin Uint16 GPIO6:1; // 6 Input inversion control for this pin Uint16 GPIO7:1; // 7 Input inversion control for this pin Uint16 GPIO8:1; // 8 Input inversion control for this pin Uint16 GPIO9:1; // 9 Input inversion control for this pin Uint16 GPIO10:1; // 10 Input inversion control for this pin Uint16 GPIO11:1; // 11 Input inversion control for this pin Uint16 GPIO12:1; // 12 Input inversion control for this pin Uint16 GPIO13:1; // 13 Input inversion control for this pin Uint16 GPIO14:1; // 14 Input inversion control for this pin Uint16 GPIO15:1; // 15 Input inversion control for this pin Uint16 GPIO16:1; // 16 Input inversion control for this pin Uint16 GPIO17:1; // 17 Input inversion control for this pin Uint16 GPIO18:1; // 18 Input inversion control for this pin Uint16 GPIO19:1; // 19 Input inversion control for this pin Uint16 GPIO20:1; // 20 Input inversion control for this pin Uint16 GPIO21:1; // 21 Input inversion control for this pin Uint16 GPIO22:1; // 22 Input inversion control for this pin Uint16 GPIO23:1; // 23 Input inversion control for this pin Uint16 GPIO24:1; // 24 Input inversion control for this pin Uint16 GPIO25:1; // 25 Input inversion control for this pin Uint16 GPIO26:1; // 26 Input inversion control for this pin Uint16 GPIO27:1; // 27 Input inversion control for this pin Uint16 GPIO28:1; // 28 Input inversion control for this pin Uint16 GPIO29:1; // 29 Input inversion control for this pin Uint16 GPIO30:1; // 30 Input inversion control for this pin Uint16 GPIO31:1; // 31 Input inversion control for this pin }; union GPAINV_REG { Uint32 all; struct GPAINV_BITS bit; }; struct GPAODR_BITS { // bits description Uint16 GPIO0:1; // 0 Outpout Open-Drain control for this pin Uint16 GPIO1:1; // 1 Outpout Open-Drain control for this pin Uint16 GPIO2:1; // 2 Outpout Open-Drain control for this pin Uint16 GPIO3:1; // 3 Outpout Open-Drain control for this pin Uint16 GPIO4:1; // 4 Outpout Open-Drain control for this pin Uint16 GPIO5:1; // 5 Outpout Open-Drain control for this pin Uint16 GPIO6:1; // 6 Outpout Open-Drain control for this pin Uint16 GPIO7:1; // 7 Outpout Open-Drain control for this pin Uint16 GPIO8:1; // 8 Outpout Open-Drain control for this pin Uint16 GPIO9:1; // 9 Outpout Open-Drain control for this pin Uint16 GPIO10:1; // 10 Outpout Open-Drain control for this pin Uint16 GPIO11:1; // 11 Outpout Open-Drain control for this pin Uint16 GPIO12:1; // 12 Outpout Open-Drain control for this pin Uint16 GPIO13:1; // 13 Outpout Open-Drain control for this pin Uint16 GPIO14:1; // 14 Outpout Open-Drain control for this pin Uint16 GPIO15:1; // 15 Outpout Open-Drain control for this pin Uint16 GPIO16:1; // 16 Outpout Open-Drain control for this pin Uint16 GPIO17:1; // 17 Outpout Open-Drain control for this pin Uint16 GPIO18:1; // 18 Outpout Open-Drain control for this pin Uint16 GPIO19:1; // 19 Outpout Open-Drain control for this pin Uint16 GPIO20:1; // 20 Outpout Open-Drain control for this pin Uint16 GPIO21:1; // 21 Outpout Open-Drain control for this pin Uint16 GPIO22:1; // 22 Outpout Open-Drain control for this pin Uint16 GPIO23:1; // 23 Outpout Open-Drain control for this pin Uint16 GPIO24:1; // 24 Outpout Open-Drain control for this pin Uint16 GPIO25:1; // 25 Outpout Open-Drain control for this pin Uint16 GPIO26:1; // 26 Outpout Open-Drain control for this pin Uint16 GPIO27:1; // 27 Outpout Open-Drain control for this pin Uint16 GPIO28:1; // 28 Outpout Open-Drain control for this pin Uint16 GPIO29:1; // 29 Outpout Open-Drain control for this pin Uint16 GPIO30:1; // 30 Outpout Open-Drain control for this pin Uint16 GPIO31:1; // 31 Outpout Open-Drain control for this pin }; union GPAODR_REG { Uint32 all; struct GPAODR_BITS bit; }; struct GPAGMUX1_BITS { // bits description Uint16 GPIO0:2; // 1:0 Defines pin-muxing selection for GPIO0 Uint16 GPIO1:2; // 3:2 Defines pin-muxing selection for GPIO1 Uint16 GPIO2:2; // 5:4 Defines pin-muxing selection for GPIO2 Uint16 GPIO3:2; // 7:6 Defines pin-muxing selection for GPIO3 Uint16 GPIO4:2; // 9:8 Defines pin-muxing selection for GPIO4 Uint16 GPIO5:2; // 11:10 Defines pin-muxing selection for GPIO5 Uint16 GPIO6:2; // 13:12 Defines pin-muxing selection for GPIO6 Uint16 GPIO7:2; // 15:14 Defines pin-muxing selection for GPIO7 Uint16 GPIO8:2; // 17:16 Defines pin-muxing selection for GPIO8 Uint16 GPIO9:2; // 19:18 Defines pin-muxing selection for GPIO9 Uint16 GPIO10:2; // 21:20 Defines pin-muxing selection for GPIO10 Uint16 GPIO11:2; // 23:22 Defines pin-muxing selection for GPIO11 Uint16 GPIO12:2; // 25:24 Defines pin-muxing selection for GPIO12 Uint16 GPIO13:2; // 27:26 Defines pin-muxing selection for GPIO13 Uint16 GPIO14:2; // 29:28 Defines pin-muxing selection for GPIO14 Uint16 GPIO15:2; // 31:30 Defines pin-muxing selection for GPIO15 }; union GPAGMUX1_REG { Uint32 all; struct GPAGMUX1_BITS bit; }; struct GPAGMUX2_BITS { // bits description Uint16 GPIO16:2; // 1:0 Defines pin-muxing selection for GPIO16 Uint16 GPIO17:2; // 3:2 Defines pin-muxing selection for GPIO17 Uint16 GPIO18:2; // 5:4 Defines pin-muxing selection for GPIO18 Uint16 GPIO19:2; // 7:6 Defines pin-muxing selection for GPIO19 Uint16 GPIO20:2; // 9:8 Defines pin-muxing selection for GPIO20 Uint16 GPIO21:2; // 11:10 Defines pin-muxing selection for GPIO21 Uint16 GPIO22:2; // 13:12 Defines pin-muxing selection for GPIO22 Uint16 GPIO23:2; // 15:14 Defines pin-muxing selection for GPIO23 Uint16 GPIO24:2; // 17:16 Defines pin-muxing selection for GPIO24 Uint16 GPIO25:2; // 19:18 Defines pin-muxing selection for GPIO25 Uint16 GPIO26:2; // 21:20 Defines pin-muxing selection for GPIO26 Uint16 GPIO27:2; // 23:22 Defines pin-muxing selection for GPIO27 Uint16 GPIO28:2; // 25:24 Defines pin-muxing selection for GPIO28 Uint16 GPIO29:2; // 27:26 Defines pin-muxing selection for GPIO29 Uint16 GPIO30:2; // 29:28 Defines pin-muxing selection for GPIO30 Uint16 GPIO31:2; // 31:30 Defines pin-muxing selection for GPIO31 }; union GPAGMUX2_REG { Uint32 all; struct GPAGMUX2_BITS bit; }; struct GPACSEL1_BITS { // bits description Uint16 GPIO0:4; // 3:0 GPIO0 Master CPU Select Uint16 GPIO1:4; // 7:4 GPIO1 Master CPU Select Uint16 GPIO2:4; // 11:8 GPIO2 Master CPU Select Uint16 GPIO3:4; // 15:12 GPIO3 Master CPU Select Uint16 GPIO4:4; // 19:16 GPIO4 Master CPU Select Uint16 GPIO5:4; // 23:20 GPIO5 Master CPU Select Uint16 GPIO6:4; // 27:24 GPIO6 Master CPU Select Uint16 GPIO7:4; // 31:28 GPIO7 Master CPU Select }; union GPACSEL1_REG { Uint32 all; struct GPACSEL1_BITS bit; }; struct GPACSEL2_BITS { // bits description Uint16 GPIO8:4; // 3:0 GPIO8 Master CPU Select Uint16 GPIO9:4; // 7:4 GPIO9 Master CPU Select Uint16 GPIO10:4; // 11:8 GPIO10 Master CPU Select Uint16 GPIO11:4; // 15:12 GPIO11 Master CPU Select Uint16 GPIO12:4; // 19:16 GPIO12 Master CPU Select Uint16 GPIO13:4; // 23:20 GPIO13 Master CPU Select Uint16 GPIO14:4; // 27:24 GPIO14 Master CPU Select Uint16 GPIO15:4; // 31:28 GPIO15 Master CPU Select }; union GPACSEL2_REG { Uint32 all; struct GPACSEL2_BITS bit; }; struct GPACSEL3_BITS { // bits description Uint16 GPIO16:4; // 3:0 GPIO16 Master CPU Select Uint16 GPIO17:4; // 7:4 GPIO17 Master CPU Select Uint16 GPIO18:4; // 11:8 GPIO18 Master CPU Select Uint16 GPIO19:4; // 15:12 GPIO19 Master CPU Select Uint16 GPIO20:4; // 19:16 GPIO20 Master CPU Select Uint16 GPIO21:4; // 23:20 GPIO21 Master CPU Select Uint16 GPIO22:4; // 27:24 GPIO22 Master CPU Select Uint16 GPIO23:4; // 31:28 GPIO23 Master CPU Select }; union GPACSEL3_REG { Uint32 all; struct GPACSEL3_BITS bit; }; struct GPACSEL4_BITS { // bits description Uint16 GPIO24:4; // 3:0 GPIO24 Master CPU Select Uint16 GPIO25:4; // 7:4 GPIO25 Master CPU Select Uint16 GPIO26:4; // 11:8 GPIO26 Master CPU Select Uint16 GPIO27:4; // 15:12 GPIO27 Master CPU Select Uint16 GPIO28:4; // 19:16 GPIO28 Master CPU Select Uint16 GPIO29:4; // 23:20 GPIO29 Master CPU Select Uint16 GPIO30:4; // 27:24 GPIO30 Master CPU Select Uint16 GPIO31:4; // 31:28 GPIO31 Master CPU Select }; union GPACSEL4_REG { Uint32 all; struct GPACSEL4_BITS bit; }; struct GPALOCK_BITS { // bits description Uint16 GPIO0:1; // 0 Configuration Lock bit for this pin Uint16 GPIO1:1; // 1 Configuration Lock bit for this pin Uint16 GPIO2:1; // 2 Configuration Lock bit for this pin Uint16 GPIO3:1; // 3 Configuration Lock bit for this pin Uint16 GPIO4:1; // 4 Configuration Lock bit for this pin Uint16 GPIO5:1; // 5 Configuration Lock bit for this pin Uint16 GPIO6:1; // 6 Configuration Lock bit for this pin Uint16 GPIO7:1; // 7 Configuration Lock bit for this pin Uint16 GPIO8:1; // 8 Configuration Lock bit for this pin Uint16 GPIO9:1; // 9 Configuration Lock bit for this pin Uint16 GPIO10:1; // 10 Configuration Lock bit for this pin Uint16 GPIO11:1; // 11 Configuration Lock bit for this pin Uint16 GPIO12:1; // 12 Configuration Lock bit for this pin Uint16 GPIO13:1; // 13 Configuration Lock bit for this pin Uint16 GPIO14:1; // 14 Configuration Lock bit for this pin Uint16 GPIO15:1; // 15 Configuration Lock bit for this pin Uint16 GPIO16:1; // 16 Configuration Lock bit for this pin Uint16 GPIO17:1; // 17 Configuration Lock bit for this pin Uint16 GPIO18:1; // 18 Configuration Lock bit for this pin Uint16 GPIO19:1; // 19 Configuration Lock bit for this pin Uint16 GPIO20:1; // 20 Configuration Lock bit for this pin Uint16 GPIO21:1; // 21 Configuration Lock bit for this pin Uint16 GPIO22:1; // 22 Configuration Lock bit for this pin Uint16 GPIO23:1; // 23 Configuration Lock bit for this pin Uint16 GPIO24:1; // 24 Configuration Lock bit for this pin Uint16 GPIO25:1; // 25 Configuration Lock bit for this pin Uint16 GPIO26:1; // 26 Configuration Lock bit for this pin Uint16 GPIO27:1; // 27 Configuration Lock bit for this pin Uint16 GPIO28:1; // 28 Configuration Lock bit for this pin Uint16 GPIO29:1; // 29 Configuration Lock bit for this pin Uint16 GPIO30:1; // 30 Configuration Lock bit for this pin Uint16 GPIO31:1; // 31 Configuration Lock bit for this pin }; union GPALOCK_REG { Uint32 all; struct GPALOCK_BITS bit; }; struct GPACR_BITS { // bits description Uint16 GPIO0:1; // 0 Configuration lock commit bit for this pin Uint16 GPIO1:1; // 1 Configuration lock commit bit for this pin Uint16 GPIO2:1; // 2 Configuration lock commit bit for this pin Uint16 GPIO3:1; // 3 Configuration lock commit bit for this pin Uint16 GPIO4:1; // 4 Configuration lock commit bit for this pin Uint16 GPIO5:1; // 5 Configuration lock commit bit for this pin Uint16 GPIO6:1; // 6 Configuration lock commit bit for this pin Uint16 GPIO7:1; // 7 Configuration lock commit bit for this pin Uint16 GPIO8:1; // 8 Configuration lock commit bit for this pin Uint16 GPIO9:1; // 9 Configuration lock commit bit for this pin Uint16 GPIO10:1; // 10 Configuration lock commit bit for this pin Uint16 GPIO11:1; // 11 Configuration lock commit bit for this pin Uint16 GPIO12:1; // 12 Configuration lock commit bit for this pin Uint16 GPIO13:1; // 13 Configuration lock commit bit for this pin Uint16 GPIO14:1; // 14 Configuration lock commit bit for this pin Uint16 GPIO15:1; // 15 Configuration lock commit bit for this pin Uint16 GPIO16:1; // 16 Configuration lock commit bit for this pin Uint16 GPIO17:1; // 17 Configuration lock commit bit for this pin Uint16 GPIO18:1; // 18 Configuration lock commit bit for this pin Uint16 GPIO19:1; // 19 Configuration lock commit bit for this pin Uint16 GPIO20:1; // 20 Configuration lock commit bit for this pin Uint16 GPIO21:1; // 21 Configuration lock commit bit for this pin Uint16 GPIO22:1; // 22 Configuration lock commit bit for this pin Uint16 GPIO23:1; // 23 Configuration lock commit bit for this pin Uint16 GPIO24:1; // 24 Configuration lock commit bit for this pin Uint16 GPIO25:1; // 25 Configuration lock commit bit for this pin Uint16 GPIO26:1; // 26 Configuration lock commit bit for this pin Uint16 GPIO27:1; // 27 Configuration lock commit bit for this pin Uint16 GPIO28:1; // 28 Configuration lock commit bit for this pin Uint16 GPIO29:1; // 29 Configuration lock commit bit for this pin Uint16 GPIO30:1; // 30 Configuration lock commit bit for this pin Uint16 GPIO31:1; // 31 Configuration lock commit bit for this pin }; union GPACR_REG { Uint32 all; struct GPACR_BITS bit; }; struct GPBCTRL_BITS { // bits description Uint16 QUALPRD0:8; // 7:0 Qualification sampling period for GPIO32 to GPIO39 Uint16 QUALPRD1:8; // 15:8 Qualification sampling period for GPIO40 to GPIO47 Uint16 QUALPRD2:8; // 23:16 Qualification sampling period for GPIO48 to GPIO55 Uint16 QUALPRD3:8; // 31:24 Qualification sampling period for GPIO56 to GPIO63 }; union GPBCTRL_REG { Uint32 all; struct GPBCTRL_BITS bit; }; struct GPBQSEL1_BITS { // bits description Uint16 GPIO32:2; // 1:0 Select input qualification type for GPIO32 Uint16 GPIO33:2; // 3:2 Select input qualification type for GPIO33 Uint16 GPIO34:2; // 5:4 Select input qualification type for GPIO34 Uint16 GPIO35:2; // 7:6 Select input qualification type for GPIO35 Uint16 GPIO36:2; // 9:8 Select input qualification type for GPIO36 Uint16 GPIO37:2; // 11:10 Select input qualification type for GPIO37 Uint16 GPIO38:2; // 13:12 Select input qualification type for GPIO38 Uint16 GPIO39:2; // 15:14 Select input qualification type for GPIO39 Uint16 GPIO40:2; // 17:16 Select input qualification type for GPIO40 Uint16 GPIO41:2; // 19:18 Select input qualification type for GPIO41 Uint16 GPIO42:2; // 21:20 Select input qualification type for GPIO42 Uint16 GPIO43:2; // 23:22 Select input qualification type for GPIO43 Uint16 GPIO44:2; // 25:24 Select input qualification type for GPIO44 Uint16 GPIO45:2; // 27:26 Select input qualification type for GPIO45 Uint16 GPIO46:2; // 29:28 Select input qualification type for GPIO46 Uint16 GPIO47:2; // 31:30 Select input qualification type for GPIO47 }; union GPBQSEL1_REG { Uint32 all; struct GPBQSEL1_BITS bit; }; struct GPBQSEL2_BITS { // bits description Uint16 GPIO48:2; // 1:0 Select input qualification type for GPIO48 Uint16 GPIO49:2; // 3:2 Select input qualification type for GPIO49 Uint16 GPIO50:2; // 5:4 Select input qualification type for GPIO50 Uint16 GPIO51:2; // 7:6 Select input qualification type for GPIO51 Uint16 GPIO52:2; // 9:8 Select input qualification type for GPIO52 Uint16 GPIO53:2; // 11:10 Select input qualification type for GPIO53 Uint16 GPIO54:2; // 13:12 Select input qualification type for GPIO54 Uint16 GPIO55:2; // 15:14 Select input qualification type for GPIO55 Uint16 GPIO56:2; // 17:16 Select input qualification type for GPIO56 Uint16 GPIO57:2; // 19:18 Select input qualification type for GPIO57 Uint16 GPIO58:2; // 21:20 Select input qualification type for GPIO58 Uint16 GPIO59:2; // 23:22 Select input qualification type for GPIO59 Uint16 GPIO60:2; // 25:24 Select input qualification type for GPIO60 Uint16 GPIO61:2; // 27:26 Select input qualification type for GPIO61 Uint16 GPIO62:2; // 29:28 Select input qualification type for GPIO62 Uint16 GPIO63:2; // 31:30 Select input qualification type for GPIO63 }; union GPBQSEL2_REG { Uint32 all; struct GPBQSEL2_BITS bit; }; struct GPBMUX1_BITS { // bits description Uint16 GPIO32:2; // 1:0 Defines pin-muxing selection for GPIO32 Uint16 GPIO33:2; // 3:2 Defines pin-muxing selection for GPIO33 Uint16 GPIO34:2; // 5:4 Defines pin-muxing selection for GPIO34 Uint16 GPIO35:2; // 7:6 Defines pin-muxing selection for GPIO35 Uint16 GPIO36:2; // 9:8 Defines pin-muxing selection for GPIO36 Uint16 GPIO37:2; // 11:10 Defines pin-muxing selection for GPIO37 Uint16 GPIO38:2; // 13:12 Defines pin-muxing selection for GPIO38 Uint16 GPIO39:2; // 15:14 Defines pin-muxing selection for GPIO39 Uint16 GPIO40:2; // 17:16 Defines pin-muxing selection for GPIO40 Uint16 GPIO41:2; // 19:18 Defines pin-muxing selection for GPIO41 Uint16 GPIO42:2; // 21:20 Defines pin-muxing selection for GPIO42 Uint16 GPIO43:2; // 23:22 Defines pin-muxing selection for GPIO43 Uint16 GPIO44:2; // 25:24 Defines pin-muxing selection for GPIO44 Uint16 GPIO45:2; // 27:26 Defines pin-muxing selection for GPIO45 Uint16 GPIO46:2; // 29:28 Defines pin-muxing selection for GPIO46 Uint16 GPIO47:2; // 31:30 Defines pin-muxing selection for GPIO47 }; union GPBMUX1_REG { Uint32 all; struct GPBMUX1_BITS bit; }; struct GPBMUX2_BITS { // bits description Uint16 GPIO48:2; // 1:0 Defines pin-muxing selection for GPIO48 Uint16 GPIO49:2; // 3:2 Defines pin-muxing selection for GPIO49 Uint16 GPIO50:2; // 5:4 Defines pin-muxing selection for GPIO50 Uint16 GPIO51:2; // 7:6 Defines pin-muxing selection for GPIO51 Uint16 GPIO52:2; // 9:8 Defines pin-muxing selection for GPIO52 Uint16 GPIO53:2; // 11:10 Defines pin-muxing selection for GPIO53 Uint16 GPIO54:2; // 13:12 Defines pin-muxing selection for GPIO54 Uint16 GPIO55:2; // 15:14 Defines pin-muxing selection for GPIO55 Uint16 GPIO56:2; // 17:16 Defines pin-muxing selection for GPIO56 Uint16 GPIO57:2; // 19:18 Defines pin-muxing selection for GPIO57 Uint16 GPIO58:2; // 21:20 Defines pin-muxing selection for GPIO58 Uint16 GPIO59:2; // 23:22 Defines pin-muxing selection for GPIO59 Uint16 GPIO60:2; // 25:24 Defines pin-muxing selection for GPIO60 Uint16 GPIO61:2; // 27:26 Defines pin-muxing selection for GPIO61 Uint16 GPIO62:2; // 29:28 Defines pin-muxing selection for GPIO62 Uint16 GPIO63:2; // 31:30 Defines pin-muxing selection for GPIO63 }; union GPBMUX2_REG { Uint32 all; struct GPBMUX2_BITS bit; }; struct GPBDIR_BITS { // bits description Uint16 GPIO32:1; // 0 Defines direction for this pin in GPIO mode Uint16 GPIO33:1; // 1 Defines direction for this pin in GPIO mode Uint16 GPIO34:1; // 2 Defines direction for this pin in GPIO mode Uint16 GPIO35:1; // 3 Defines direction for this pin in GPIO mode Uint16 GPIO36:1; // 4 Defines direction for this pin in GPIO mode Uint16 GPIO37:1; // 5 Defines direction for this pin in GPIO mode Uint16 GPIO38:1; // 6 Defines direction for this pin in GPIO mode Uint16 GPIO39:1; // 7 Defines direction for this pin in GPIO mode Uint16 GPIO40:1; // 8 Defines direction for this pin in GPIO mode Uint16 GPIO41:1; // 9 Defines direction for this pin in GPIO mode Uint16 GPIO42:1; // 10 Defines direction for this pin in GPIO mode Uint16 GPIO43:1; // 11 Defines direction for this pin in GPIO mode Uint16 GPIO44:1; // 12 Defines direction for this pin in GPIO mode Uint16 GPIO45:1; // 13 Defines direction for this pin in GPIO mode Uint16 GPIO46:1; // 14 Defines direction for this pin in GPIO mode Uint16 GPIO47:1; // 15 Defines direction for this pin in GPIO mode Uint16 GPIO48:1; // 16 Defines direction for this pin in GPIO mode Uint16 GPIO49:1; // 17 Defines direction for this pin in GPIO mode Uint16 GPIO50:1; // 18 Defines direction for this pin in GPIO mode Uint16 GPIO51:1; // 19 Defines direction for this pin in GPIO mode Uint16 GPIO52:1; // 20 Defines direction for this pin in GPIO mode Uint16 GPIO53:1; // 21 Defines direction for this pin in GPIO mode Uint16 GPIO54:1; // 22 Defines direction for this pin in GPIO mode Uint16 GPIO55:1; // 23 Defines direction for this pin in GPIO mode Uint16 GPIO56:1; // 24 Defines direction for this pin in GPIO mode Uint16 GPIO57:1; // 25 Defines direction for this pin in GPIO mode Uint16 GPIO58:1; // 26 Defines direction for this pin in GPIO mode Uint16 GPIO59:1; // 27 Defines direction for this pin in GPIO mode Uint16 GPIO60:1; // 28 Defines direction for this pin in GPIO mode Uint16 GPIO61:1; // 29 Defines direction for this pin in GPIO mode Uint16 GPIO62:1; // 30 Defines direction for this pin in GPIO mode Uint16 GPIO63:1; // 31 Defines direction for this pin in GPIO mode }; union GPBDIR_REG { Uint32 all; struct GPBDIR_BITS bit; }; struct GPBPUD_BITS { // bits description Uint16 GPIO32:1; // 0 Pull-Up Disable control for this pin Uint16 GPIO33:1; // 1 Pull-Up Disable control for this pin Uint16 GPIO34:1; // 2 Pull-Up Disable control for this pin Uint16 GPIO35:1; // 3 Pull-Up Disable control for this pin Uint16 GPIO36:1; // 4 Pull-Up Disable control for this pin Uint16 GPIO37:1; // 5 Pull-Up Disable control for this pin Uint16 GPIO38:1; // 6 Pull-Up Disable control for this pin Uint16 GPIO39:1; // 7 Pull-Up Disable control for this pin Uint16 GPIO40:1; // 8 Pull-Up Disable control for this pin Uint16 GPIO41:1; // 9 Pull-Up Disable control for this pin Uint16 GPIO42:1; // 10 Pull-Up Disable control for this pin Uint16 GPIO43:1; // 11 Pull-Up Disable control for this pin Uint16 GPIO44:1; // 12 Pull-Up Disable control for this pin Uint16 GPIO45:1; // 13 Pull-Up Disable control for this pin Uint16 GPIO46:1; // 14 Pull-Up Disable control for this pin Uint16 GPIO47:1; // 15 Pull-Up Disable control for this pin Uint16 GPIO48:1; // 16 Pull-Up Disable control for this pin Uint16 GPIO49:1; // 17 Pull-Up Disable control for this pin Uint16 GPIO50:1; // 18 Pull-Up Disable control for this pin Uint16 GPIO51:1; // 19 Pull-Up Disable control for this pin Uint16 GPIO52:1; // 20 Pull-Up Disable control for this pin Uint16 GPIO53:1; // 21 Pull-Up Disable control for this pin Uint16 GPIO54:1; // 22 Pull-Up Disable control for this pin Uint16 GPIO55:1; // 23 Pull-Up Disable control for this pin Uint16 GPIO56:1; // 24 Pull-Up Disable control for this pin Uint16 GPIO57:1; // 25 Pull-Up Disable control for this pin Uint16 GPIO58:1; // 26 Pull-Up Disable control for this pin Uint16 GPIO59:1; // 27 Pull-Up Disable control for this pin Uint16 GPIO60:1; // 28 Pull-Up Disable control for this pin Uint16 GPIO61:1; // 29 Pull-Up Disable control for this pin Uint16 GPIO62:1; // 30 Pull-Up Disable control for this pin Uint16 GPIO63:1; // 31 Pull-Up Disable control for this pin }; union GPBPUD_REG { Uint32 all; struct GPBPUD_BITS bit; }; struct GPBINV_BITS { // bits description Uint16 GPIO32:1; // 0 Input inversion control for this pin Uint16 GPIO33:1; // 1 Input inversion control for this pin Uint16 GPIO34:1; // 2 Input inversion control for this pin Uint16 GPIO35:1; // 3 Input inversion control for this pin Uint16 GPIO36:1; // 4 Input inversion control for this pin Uint16 GPIO37:1; // 5 Input inversion control for this pin Uint16 GPIO38:1; // 6 Input inversion control for this pin Uint16 GPIO39:1; // 7 Input inversion control for this pin Uint16 GPIO40:1; // 8 Input inversion control for this pin Uint16 GPIO41:1; // 9 Input inversion control for this pin Uint16 GPIO42:1; // 10 Input inversion control for this pin Uint16 GPIO43:1; // 11 Input inversion control for this pin Uint16 GPIO44:1; // 12 Input inversion control for this pin Uint16 GPIO45:1; // 13 Input inversion control for this pin Uint16 GPIO46:1; // 14 Input inversion control for this pin Uint16 GPIO47:1; // 15 Input inversion control for this pin Uint16 GPIO48:1; // 16 Input inversion control for this pin Uint16 GPIO49:1; // 17 Input inversion control for this pin Uint16 GPIO50:1; // 18 Input inversion control for this pin Uint16 GPIO51:1; // 19 Input inversion control for this pin Uint16 GPIO52:1; // 20 Input inversion control for this pin Uint16 GPIO53:1; // 21 Input inversion control for this pin Uint16 GPIO54:1; // 22 Input inversion control for this pin Uint16 GPIO55:1; // 23 Input inversion control for this pin Uint16 GPIO56:1; // 24 Input inversion control for this pin Uint16 GPIO57:1; // 25 Input inversion control for this pin Uint16 GPIO58:1; // 26 Input inversion control for this pin Uint16 GPIO59:1; // 27 Input inversion control for this pin Uint16 GPIO60:1; // 28 Input inversion control for this pin Uint16 GPIO61:1; // 29 Input inversion control for this pin Uint16 GPIO62:1; // 30 Input inversion control for this pin Uint16 GPIO63:1; // 31 Input inversion control for this pin }; union GPBINV_REG { Uint32 all; struct GPBINV_BITS bit; }; struct GPBODR_BITS { // bits description Uint16 GPIO32:1; // 0 Outpout Open-Drain control for this pin Uint16 GPIO33:1; // 1 Outpout Open-Drain control for this pin Uint16 GPIO34:1; // 2 Outpout Open-Drain control for this pin Uint16 GPIO35:1; // 3 Outpout Open-Drain control for this pin Uint16 GPIO36:1; // 4 Outpout Open-Drain control for this pin Uint16 GPIO37:1; // 5 Outpout Open-Drain control for this pin Uint16 GPIO38:1; // 6 Outpout Open-Drain control for this pin Uint16 GPIO39:1; // 7 Outpout Open-Drain control for this pin Uint16 GPIO40:1; // 8 Outpout Open-Drain control for this pin Uint16 GPIO41:1; // 9 Outpout Open-Drain control for this pin Uint16 GPIO42:1; // 10 Outpout Open-Drain control for this pin Uint16 GPIO43:1; // 11 Outpout Open-Drain control for this pin Uint16 GPIO44:1; // 12 Outpout Open-Drain control for this pin Uint16 GPIO45:1; // 13 Outpout Open-Drain control for this pin Uint16 GPIO46:1; // 14 Outpout Open-Drain control for this pin Uint16 GPIO47:1; // 15 Outpout Open-Drain control for this pin Uint16 GPIO48:1; // 16 Outpout Open-Drain control for this pin Uint16 GPIO49:1; // 17 Outpout Open-Drain control for this pin Uint16 GPIO50:1; // 18 Outpout Open-Drain control for this pin Uint16 GPIO51:1; // 19 Outpout Open-Drain control for this pin Uint16 GPIO52:1; // 20 Outpout Open-Drain control for this pin Uint16 GPIO53:1; // 21 Outpout Open-Drain control for this pin Uint16 GPIO54:1; // 22 Outpout Open-Drain control for this pin Uint16 GPIO55:1; // 23 Outpout Open-Drain control for this pin Uint16 GPIO56:1; // 24 Outpout Open-Drain control for this pin Uint16 GPIO57:1; // 25 Outpout Open-Drain control for this pin Uint16 GPIO58:1; // 26 Outpout Open-Drain control for this pin Uint16 GPIO59:1; // 27 Outpout Open-Drain control for this pin Uint16 GPIO60:1; // 28 Outpout Open-Drain control for this pin Uint16 GPIO61:1; // 29 Outpout Open-Drain control for this pin Uint16 GPIO62:1; // 30 Outpout Open-Drain control for this pin Uint16 GPIO63:1; // 31 Outpout Open-Drain control for this pin }; union GPBODR_REG { Uint32 all; struct GPBODR_BITS bit; }; struct GPBAMSEL_BITS { // bits description Uint16 rsvd1:1; // 0 Reserved Uint16 rsvd2:1; // 1 Reserved Uint16 rsvd3:1; // 2 Reserved Uint16 rsvd4:1; // 3 Reserved Uint16 rsvd5:1; // 4 Reserved Uint16 rsvd6:1; // 5 Reserved Uint16 rsvd7:1; // 6 Reserved Uint16 rsvd8:1; // 7 Reserved Uint16 rsvd9:1; // 8 Reserved Uint16 rsvd10:1; // 9 Reserved Uint16 GPIO42:1; // 10 Analog Mode select for this pin Uint16 GPIO43:1; // 11 Analog Mode select for this pin Uint16 rsvd11:1; // 12 Reserved Uint16 rsvd12:1; // 13 Reserved Uint16 rsvd13:1; // 14 Reserved Uint16 rsvd14:1; // 15 Reserved Uint16 rsvd15:1; // 16 Reserved Uint16 rsvd16:1; // 17 Reserved Uint16 rsvd17:1; // 18 Reserved Uint16 rsvd18:1; // 19 Reserved Uint16 rsvd19:1; // 20 Reserved Uint16 rsvd20:1; // 21 Reserved Uint16 rsvd21:1; // 22 Reserved Uint16 rsvd22:1; // 23 Reserved Uint16 rsvd23:1; // 24 Reserved Uint16 rsvd24:1; // 25 Reserved Uint16 rsvd25:1; // 26 Reserved Uint16 rsvd26:1; // 27 Reserved Uint16 rsvd27:1; // 28 Reserved Uint16 rsvd28:1; // 29 Reserved Uint16 rsvd29:1; // 30 Reserved Uint16 rsvd30:1; // 31 Reserved }; union GPBAMSEL_REG { Uint32 all; struct GPBAMSEL_BITS bit; }; struct GPBGMUX1_BITS { // bits description Uint16 GPIO32:2; // 1:0 Defines pin-muxing selection for GPIO32 Uint16 GPIO33:2; // 3:2 Defines pin-muxing selection for GPIO33 Uint16 GPIO34:2; // 5:4 Defines pin-muxing selection for GPIO34 Uint16 GPIO35:2; // 7:6 Defines pin-muxing selection for GPIO35 Uint16 GPIO36:2; // 9:8 Defines pin-muxing selection for GPIO36 Uint16 GPIO37:2; // 11:10 Defines pin-muxing selection for GPIO37 Uint16 GPIO38:2; // 13:12 Defines pin-muxing selection for GPIO38 Uint16 GPIO39:2; // 15:14 Defines pin-muxing selection for GPIO39 Uint16 GPIO40:2; // 17:16 Defines pin-muxing selection for GPIO40 Uint16 GPIO41:2; // 19:18 Defines pin-muxing selection for GPIO41 Uint16 GPIO42:2; // 21:20 Defines pin-muxing selection for GPIO42 Uint16 GPIO43:2; // 23:22 Defines pin-muxing selection for GPIO43 Uint16 GPIO44:2; // 25:24 Defines pin-muxing selection for GPIO44 Uint16 GPIO45:2; // 27:26 Defines pin-muxing selection for GPIO45 Uint16 GPIO46:2; // 29:28 Defines pin-muxing selection for GPIO46 Uint16 GPIO47:2; // 31:30 Defines pin-muxing selection for GPIO47 }; union GPBGMUX1_REG { Uint32 all; struct GPBGMUX1_BITS bit; }; struct GPBGMUX2_BITS { // bits description Uint16 GPIO48:2; // 1:0 Defines pin-muxing selection for GPIO48 Uint16 GPIO49:2; // 3:2 Defines pin-muxing selection for GPIO49 Uint16 GPIO50:2; // 5:4 Defines pin-muxing selection for GPIO50 Uint16 GPIO51:2; // 7:6 Defines pin-muxing selection for GPIO51 Uint16 GPIO52:2; // 9:8 Defines pin-muxing selection for GPIO52 Uint16 GPIO53:2; // 11:10 Defines pin-muxing selection for GPIO53 Uint16 GPIO54:2; // 13:12 Defines pin-muxing selection for GPIO54 Uint16 GPIO55:2; // 15:14 Defines pin-muxing selection for GPIO55 Uint16 GPIO56:2; // 17:16 Defines pin-muxing selection for GPIO56 Uint16 GPIO57:2; // 19:18 Defines pin-muxing selection for GPIO57 Uint16 GPIO58:2; // 21:20 Defines pin-muxing selection for GPIO58 Uint16 GPIO59:2; // 23:22 Defines pin-muxing selection for GPIO59 Uint16 GPIO60:2; // 25:24 Defines pin-muxing selection for GPIO60 Uint16 GPIO61:2; // 27:26 Defines pin-muxing selection for GPIO61 Uint16 GPIO62:2; // 29:28 Defines pin-muxing selection for GPIO62 Uint16 GPIO63:2; // 31:30 Defines pin-muxing selection for GPIO63 }; union GPBGMUX2_REG { Uint32 all; struct GPBGMUX2_BITS bit; }; struct GPBCSEL1_BITS { // bits description Uint16 GPIO32:4; // 3:0 GPIO32 Master CPU Select Uint16 GPIO33:4; // 7:4 GPIO33 Master CPU Select Uint16 GPIO34:4; // 11:8 GPIO34 Master CPU Select Uint16 GPIO35:4; // 15:12 GPIO35 Master CPU Select Uint16 GPIO36:4; // 19:16 GPIO36 Master CPU Select Uint16 GPIO37:4; // 23:20 GPIO37 Master CPU Select Uint16 GPIO38:4; // 27:24 GPIO38 Master CPU Select Uint16 GPIO39:4; // 31:28 GPIO39 Master CPU Select }; union GPBCSEL1_REG { Uint32 all; struct GPBCSEL1_BITS bit; }; struct GPBCSEL2_BITS { // bits description Uint16 GPIO40:4; // 3:0 GPIO40 Master CPU Select Uint16 GPIO41:4; // 7:4 GPIO41 Master CPU Select Uint16 GPIO42:4; // 11:8 GPIO42 Master CPU Select Uint16 GPIO43:4; // 15:12 GPIO43 Master CPU Select Uint16 GPIO44:4; // 19:16 GPIO44 Master CPU Select Uint16 GPIO45:4; // 23:20 GPIO45 Master CPU Select Uint16 GPIO46:4; // 27:24 GPIO46 Master CPU Select Uint16 GPIO47:4; // 31:28 GPIO47 Master CPU Select }; union GPBCSEL2_REG { Uint32 all; struct GPBCSEL2_BITS bit; }; struct GPBCSEL3_BITS { // bits description Uint16 GPIO48:4; // 3:0 GPIO48 Master CPU Select Uint16 GPIO49:4; // 7:4 GPIO49 Master CPU Select Uint16 GPIO50:4; // 11:8 GPIO50 Master CPU Select Uint16 GPIO51:4; // 15:12 GPIO51 Master CPU Select Uint16 GPIO52:4; // 19:16 GPIO52 Master CPU Select Uint16 GPIO53:4; // 23:20 GPIO53 Master CPU Select Uint16 GPIO54:4; // 27:24 GPIO54 Master CPU Select Uint16 GPIO55:4; // 31:28 GPIO55 Master CPU Select }; union GPBCSEL3_REG { Uint32 all; struct GPBCSEL3_BITS bit; }; struct GPBCSEL4_BITS { // bits description Uint16 GPIO56:4; // 3:0 GPIO56 Master CPU Select Uint16 GPIO57:4; // 7:4 GPIO57 Master CPU Select Uint16 GPIO58:4; // 11:8 GPIO58 Master CPU Select Uint16 GPIO59:4; // 15:12 GPIO59 Master CPU Select Uint16 GPIO60:4; // 19:16 GPIO60 Master CPU Select Uint16 GPIO61:4; // 23:20 GPIO61 Master CPU Select Uint16 GPIO62:4; // 27:24 GPIO62 Master CPU Select Uint16 GPIO63:4; // 31:28 GPIO63 Master CPU Select }; union GPBCSEL4_REG { Uint32 all; struct GPBCSEL4_BITS bit; }; struct GPBLOCK_BITS { // bits description Uint16 GPIO32:1; // 0 Configuration Lock bit for this pin Uint16 GPIO33:1; // 1 Configuration Lock bit for this pin Uint16 GPIO34:1; // 2 Configuration Lock bit for this pin Uint16 GPIO35:1; // 3 Configuration Lock bit for this pin Uint16 GPIO36:1; // 4 Configuration Lock bit for this pin Uint16 GPIO37:1; // 5 Configuration Lock bit for this pin Uint16 GPIO38:1; // 6 Configuration Lock bit for this pin Uint16 GPIO39:1; // 7 Configuration Lock bit for this pin Uint16 GPIO40:1; // 8 Configuration Lock bit for this pin Uint16 GPIO41:1; // 9 Configuration Lock bit for this pin Uint16 GPIO42:1; // 10 Configuration Lock bit for this pin Uint16 GPIO43:1; // 11 Configuration Lock bit for this pin Uint16 GPIO44:1; // 12 Configuration Lock bit for this pin Uint16 GPIO45:1; // 13 Configuration Lock bit for this pin Uint16 GPIO46:1; // 14 Configuration Lock bit for this pin Uint16 GPIO47:1; // 15 Configuration Lock bit for this pin Uint16 GPIO48:1; // 16 Configuration Lock bit for this pin Uint16 GPIO49:1; // 17 Configuration Lock bit for this pin Uint16 GPIO50:1; // 18 Configuration Lock bit for this pin Uint16 GPIO51:1; // 19 Configuration Lock bit for this pin Uint16 GPIO52:1; // 20 Configuration Lock bit for this pin Uint16 GPIO53:1; // 21 Configuration Lock bit for this pin Uint16 GPIO54:1; // 22 Configuration Lock bit for this pin Uint16 GPIO55:1; // 23 Configuration Lock bit for this pin Uint16 GPIO56:1; // 24 Configuration Lock bit for this pin Uint16 GPIO57:1; // 25 Configuration Lock bit for this pin Uint16 GPIO58:1; // 26 Configuration Lock bit for this pin Uint16 GPIO59:1; // 27 Configuration Lock bit for this pin Uint16 GPIO60:1; // 28 Configuration Lock bit for this pin Uint16 GPIO61:1; // 29 Configuration Lock bit for this pin Uint16 GPIO62:1; // 30 Configuration Lock bit for this pin Uint16 GPIO63:1; // 31 Configuration Lock bit for this pin }; union GPBLOCK_REG { Uint32 all; struct GPBLOCK_BITS bit; }; struct GPBCR_BITS { // bits description Uint16 GPIO32:1; // 0 Configuration lock commit bit for this pin Uint16 GPIO33:1; // 1 Configuration lock commit bit for this pin Uint16 GPIO34:1; // 2 Configuration lock commit bit for this pin Uint16 GPIO35:1; // 3 Configuration lock commit bit for this pin Uint16 GPIO36:1; // 4 Configuration lock commit bit for this pin Uint16 GPIO37:1; // 5 Configuration lock commit bit for this pin Uint16 GPIO38:1; // 6 Configuration lock commit bit for this pin Uint16 GPIO39:1; // 7 Configuration lock commit bit for this pin Uint16 GPIO40:1; // 8 Configuration lock commit bit for this pin Uint16 GPIO41:1; // 9 Configuration lock commit bit for this pin Uint16 GPIO42:1; // 10 Configuration lock commit bit for this pin Uint16 GPIO43:1; // 11 Configuration lock commit bit for this pin Uint16 GPIO44:1; // 12 Configuration lock commit bit for this pin Uint16 GPIO45:1; // 13 Configuration lock commit bit for this pin Uint16 GPIO46:1; // 14 Configuration lock commit bit for this pin Uint16 GPIO47:1; // 15 Configuration lock commit bit for this pin Uint16 GPIO48:1; // 16 Configuration lock commit bit for this pin Uint16 GPIO49:1; // 17 Configuration lock commit bit for this pin Uint16 GPIO50:1; // 18 Configuration lock commit bit for this pin Uint16 GPIO51:1; // 19 Configuration lock commit bit for this pin Uint16 GPIO52:1; // 20 Configuration lock commit bit for this pin Uint16 GPIO53:1; // 21 Configuration lock commit bit for this pin Uint16 GPIO54:1; // 22 Configuration lock commit bit for this pin Uint16 GPIO55:1; // 23 Configuration lock commit bit for this pin Uint16 GPIO56:1; // 24 Configuration lock commit bit for this pin Uint16 GPIO57:1; // 25 Configuration lock commit bit for this pin Uint16 GPIO58:1; // 26 Configuration lock commit bit for this pin Uint16 GPIO59:1; // 27 Configuration lock commit bit for this pin Uint16 GPIO60:1; // 28 Configuration lock commit bit for this pin Uint16 GPIO61:1; // 29 Configuration lock commit bit for this pin Uint16 GPIO62:1; // 30 Configuration lock commit bit for this pin Uint16 GPIO63:1; // 31 Configuration lock commit bit for this pin }; union GPBCR_REG { Uint32 all; struct GPBCR_BITS bit; }; struct GPCCTRL_BITS { // bits description Uint16 QUALPRD0:8; // 7:0 Qualification sampling period for GPIO64 to GPIO71 Uint16 QUALPRD1:8; // 15:8 Qualification sampling period for GPIO72 to GPIO79 Uint16 QUALPRD2:8; // 23:16 Qualification sampling period for GPIO80 to GPIO87 Uint16 QUALPRD3:8; // 31:24 Qualification sampling period for GPIO88 to GPIO95 }; union GPCCTRL_REG { Uint32 all; struct GPCCTRL_BITS bit; }; struct GPCQSEL1_BITS { // bits description Uint16 GPIO64:2; // 1:0 Select input qualification type for GPIO64 Uint16 GPIO65:2; // 3:2 Select input qualification type for GPIO65 Uint16 GPIO66:2; // 5:4 Select input qualification type for GPIO66 Uint16 GPIO67:2; // 7:6 Select input qualification type for GPIO67 Uint16 GPIO68:2; // 9:8 Select input qualification type for GPIO68 Uint16 GPIO69:2; // 11:10 Select input qualification type for GPIO69 Uint16 GPIO70:2; // 13:12 Select input qualification type for GPIO70 Uint16 GPIO71:2; // 15:14 Select input qualification type for GPIO71 Uint16 GPIO72:2; // 17:16 Select input qualification type for GPIO72 Uint16 GPIO73:2; // 19:18 Select input qualification type for GPIO73 Uint16 GPIO74:2; // 21:20 Select input qualification type for GPIO74 Uint16 GPIO75:2; // 23:22 Select input qualification type for GPIO75 Uint16 GPIO76:2; // 25:24 Select input qualification type for GPIO76 Uint16 GPIO77:2; // 27:26 Select input qualification type for GPIO77 Uint16 GPIO78:2; // 29:28 Select input qualification type for GPIO78 Uint16 GPIO79:2; // 31:30 Select input qualification type for GPIO79 }; union GPCQSEL1_REG { Uint32 all; struct GPCQSEL1_BITS bit; }; struct GPCQSEL2_BITS { // bits description Uint16 GPIO80:2; // 1:0 Select input qualification type for GPIO80 Uint16 GPIO81:2; // 3:2 Select input qualification type for GPIO81 Uint16 GPIO82:2; // 5:4 Select input qualification type for GPIO82 Uint16 GPIO83:2; // 7:6 Select input qualification type for GPIO83 Uint16 GPIO84:2; // 9:8 Select input qualification type for GPIO84 Uint16 GPIO85:2; // 11:10 Select input qualification type for GPIO85 Uint16 GPIO86:2; // 13:12 Select input qualification type for GPIO86 Uint16 GPIO87:2; // 15:14 Select input qualification type for GPIO87 Uint16 GPIO88:2; // 17:16 Select input qualification type for GPIO88 Uint16 GPIO89:2; // 19:18 Select input qualification type for GPIO89 Uint16 GPIO90:2; // 21:20 Select input qualification type for GPIO90 Uint16 GPIO91:2; // 23:22 Select input qualification type for GPIO91 Uint16 GPIO92:2; // 25:24 Select input qualification type for GPIO92 Uint16 GPIO93:2; // 27:26 Select input qualification type for GPIO93 Uint16 GPIO94:2; // 29:28 Select input qualification type for GPIO94 Uint16 GPIO95:2; // 31:30 Select input qualification type for GPIO95 }; union GPCQSEL2_REG { Uint32 all; struct GPCQSEL2_BITS bit; }; struct GPCMUX1_BITS { // bits description Uint16 GPIO64:2; // 1:0 Defines pin-muxing selection for GPIO64 Uint16 GPIO65:2; // 3:2 Defines pin-muxing selection for GPIO65 Uint16 GPIO66:2; // 5:4 Defines pin-muxing selection for GPIO66 Uint16 GPIO67:2; // 7:6 Defines pin-muxing selection for GPIO67 Uint16 GPIO68:2; // 9:8 Defines pin-muxing selection for GPIO68 Uint16 GPIO69:2; // 11:10 Defines pin-muxing selection for GPIO69 Uint16 GPIO70:2; // 13:12 Defines pin-muxing selection for GPIO70 Uint16 GPIO71:2; // 15:14 Defines pin-muxing selection for GPIO71 Uint16 GPIO72:2; // 17:16 Defines pin-muxing selection for GPIO72 Uint16 GPIO73:2; // 19:18 Defines pin-muxing selection for GPIO73 Uint16 GPIO74:2; // 21:20 Defines pin-muxing selection for GPIO74 Uint16 GPIO75:2; // 23:22 Defines pin-muxing selection for GPIO75 Uint16 GPIO76:2; // 25:24 Defines pin-muxing selection for GPIO76 Uint16 GPIO77:2; // 27:26 Defines pin-muxing selection for GPIO77 Uint16 GPIO78:2; // 29:28 Defines pin-muxing selection for GPIO78 Uint16 GPIO79:2; // 31:30 Defines pin-muxing selection for GPIO79 }; union GPCMUX1_REG { Uint32 all; struct GPCMUX1_BITS bit; }; struct GPCMUX2_BITS { // bits description Uint16 GPIO80:2; // 1:0 Defines pin-muxing selection for GPIO80 Uint16 GPIO81:2; // 3:2 Defines pin-muxing selection for GPIO81 Uint16 GPIO82:2; // 5:4 Defines pin-muxing selection for GPIO82 Uint16 GPIO83:2; // 7:6 Defines pin-muxing selection for GPIO83 Uint16 GPIO84:2; // 9:8 Defines pin-muxing selection for GPIO84 Uint16 GPIO85:2; // 11:10 Defines pin-muxing selection for GPIO85 Uint16 GPIO86:2; // 13:12 Defines pin-muxing selection for GPIO86 Uint16 GPIO87:2; // 15:14 Defines pin-muxing selection for GPIO87 Uint16 GPIO88:2; // 17:16 Defines pin-muxing selection for GPIO88 Uint16 GPIO89:2; // 19:18 Defines pin-muxing selection for GPIO89 Uint16 GPIO90:2; // 21:20 Defines pin-muxing selection for GPIO90 Uint16 GPIO91:2; // 23:22 Defines pin-muxing selection for GPIO91 Uint16 GPIO92:2; // 25:24 Defines pin-muxing selection for GPIO92 Uint16 GPIO93:2; // 27:26 Defines pin-muxing selection for GPIO93 Uint16 GPIO94:2; // 29:28 Defines pin-muxing selection for GPIO94 Uint16 GPIO95:2; // 31:30 Defines pin-muxing selection for GPIO95 }; union GPCMUX2_REG { Uint32 all; struct GPCMUX2_BITS bit; }; struct GPCDIR_BITS { // bits description Uint16 GPIO64:1; // 0 Defines direction for this pin in GPIO mode Uint16 GPIO65:1; // 1 Defines direction for this pin in GPIO mode Uint16 GPIO66:1; // 2 Defines direction for this pin in GPIO mode Uint16 GPIO67:1; // 3 Defines direction for this pin in GPIO mode Uint16 GPIO68:1; // 4 Defines direction for this pin in GPIO mode Uint16 GPIO69:1; // 5 Defines direction for this pin in GPIO mode Uint16 GPIO70:1; // 6 Defines direction for this pin in GPIO mode Uint16 GPIO71:1; // 7 Defines direction for this pin in GPIO mode Uint16 GPIO72:1; // 8 Defines direction for this pin in GPIO mode Uint16 GPIO73:1; // 9 Defines direction for this pin in GPIO mode Uint16 GPIO74:1; // 10 Defines direction for this pin in GPIO mode Uint16 GPIO75:1; // 11 Defines direction for this pin in GPIO mode Uint16 GPIO76:1; // 12 Defines direction for this pin in GPIO mode Uint16 GPIO77:1; // 13 Defines direction for this pin in GPIO mode Uint16 GPIO78:1; // 14 Defines direction for this pin in GPIO mode Uint16 GPIO79:1; // 15 Defines direction for this pin in GPIO mode Uint16 GPIO80:1; // 16 Defines direction for this pin in GPIO mode Uint16 GPIO81:1; // 17 Defines direction for this pin in GPIO mode Uint16 GPIO82:1; // 18 Defines direction for this pin in GPIO mode Uint16 GPIO83:1; // 19 Defines direction for this pin in GPIO mode Uint16 GPIO84:1; // 20 Defines direction for this pin in GPIO mode Uint16 GPIO85:1; // 21 Defines direction for this pin in GPIO mode Uint16 GPIO86:1; // 22 Defines direction for this pin in GPIO mode Uint16 GPIO87:1; // 23 Defines direction for this pin in GPIO mode Uint16 GPIO88:1; // 24 Defines direction for this pin in GPIO mode Uint16 GPIO89:1; // 25 Defines direction for this pin in GPIO mode Uint16 GPIO90:1; // 26 Defines direction for this pin in GPIO mode Uint16 GPIO91:1; // 27 Defines direction for this pin in GPIO mode Uint16 GPIO92:1; // 28 Defines direction for this pin in GPIO mode Uint16 GPIO93:1; // 29 Defines direction for this pin in GPIO mode Uint16 GPIO94:1; // 30 Defines direction for this pin in GPIO mode Uint16 GPIO95:1; // 31 Defines direction for this pin in GPIO mode }; union GPCDIR_REG { Uint32 all; struct GPCDIR_BITS bit; }; struct GPCPUD_BITS { // bits description Uint16 GPIO64:1; // 0 Pull-Up Disable control for this pin Uint16 GPIO65:1; // 1 Pull-Up Disable control for this pin Uint16 GPIO66:1; // 2 Pull-Up Disable control for this pin Uint16 GPIO67:1; // 3 Pull-Up Disable control for this pin Uint16 GPIO68:1; // 4 Pull-Up Disable control for this pin Uint16 GPIO69:1; // 5 Pull-Up Disable control for this pin Uint16 GPIO70:1; // 6 Pull-Up Disable control for this pin Uint16 GPIO71:1; // 7 Pull-Up Disable control for this pin Uint16 GPIO72:1; // 8 Pull-Up Disable control for this pin Uint16 GPIO73:1; // 9 Pull-Up Disable control for this pin Uint16 GPIO74:1; // 10 Pull-Up Disable control for this pin Uint16 GPIO75:1; // 11 Pull-Up Disable control for this pin Uint16 GPIO76:1; // 12 Pull-Up Disable control for this pin Uint16 GPIO77:1; // 13 Pull-Up Disable control for this pin Uint16 GPIO78:1; // 14 Pull-Up Disable control for this pin Uint16 GPIO79:1; // 15 Pull-Up Disable control for this pin Uint16 GPIO80:1; // 16 Pull-Up Disable control for this pin Uint16 GPIO81:1; // 17 Pull-Up Disable control for this pin Uint16 GPIO82:1; // 18 Pull-Up Disable control for this pin Uint16 GPIO83:1; // 19 Pull-Up Disable control for this pin Uint16 GPIO84:1; // 20 Pull-Up Disable control for this pin Uint16 GPIO85:1; // 21 Pull-Up Disable control for this pin Uint16 GPIO86:1; // 22 Pull-Up Disable control for this pin Uint16 GPIO87:1; // 23 Pull-Up Disable control for this pin Uint16 GPIO88:1; // 24 Pull-Up Disable control for this pin Uint16 GPIO89:1; // 25 Pull-Up Disable control for this pin Uint16 GPIO90:1; // 26 Pull-Up Disable control for this pin Uint16 GPIO91:1; // 27 Pull-Up Disable control for this pin Uint16 GPIO92:1; // 28 Pull-Up Disable control for this pin Uint16 GPIO93:1; // 29 Pull-Up Disable control for this pin Uint16 GPIO94:1; // 30 Pull-Up Disable control for this pin Uint16 GPIO95:1; // 31 Pull-Up Disable control for this pin }; union GPCPUD_REG { Uint32 all; struct GPCPUD_BITS bit; }; struct GPCINV_BITS { // bits description Uint16 GPIO64:1; // 0 Input inversion control for this pin Uint16 GPIO65:1; // 1 Input inversion control for this pin Uint16 GPIO66:1; // 2 Input inversion control for this pin Uint16 GPIO67:1; // 3 Input inversion control for this pin Uint16 GPIO68:1; // 4 Input inversion control for this pin Uint16 GPIO69:1; // 5 Input inversion control for this pin Uint16 GPIO70:1; // 6 Input inversion control for this pin Uint16 GPIO71:1; // 7 Input inversion control for this pin Uint16 GPIO72:1; // 8 Input inversion control for this pin Uint16 GPIO73:1; // 9 Input inversion control for this pin Uint16 GPIO74:1; // 10 Input inversion control for this pin Uint16 GPIO75:1; // 11 Input inversion control for this pin Uint16 GPIO76:1; // 12 Input inversion control for this pin Uint16 GPIO77:1; // 13 Input inversion control for this pin Uint16 GPIO78:1; // 14 Input inversion control for this pin Uint16 GPIO79:1; // 15 Input inversion control for this pin Uint16 GPIO80:1; // 16 Input inversion control for this pin Uint16 GPIO81:1; // 17 Input inversion control for this pin Uint16 GPIO82:1; // 18 Input inversion control for this pin Uint16 GPIO83:1; // 19 Input inversion control for this pin Uint16 GPIO84:1; // 20 Input inversion control for this pin Uint16 GPIO85:1; // 21 Input inversion control for this pin Uint16 GPIO86:1; // 22 Input inversion control for this pin Uint16 GPIO87:1; // 23 Input inversion control for this pin Uint16 GPIO88:1; // 24 Input inversion control for this pin Uint16 GPIO89:1; // 25 Input inversion control for this pin Uint16 GPIO90:1; // 26 Input inversion control for this pin Uint16 GPIO91:1; // 27 Input inversion control for this pin Uint16 GPIO92:1; // 28 Input inversion control for this pin Uint16 GPIO93:1; // 29 Input inversion control for this pin Uint16 GPIO94:1; // 30 Input inversion control for this pin Uint16 GPIO95:1; // 31 Input inversion control for this pin }; union GPCINV_REG { Uint32 all; struct GPCINV_BITS bit; }; struct GPCODR_BITS { // bits description Uint16 GPIO64:1; // 0 Outpout Open-Drain control for this pin Uint16 GPIO65:1; // 1 Outpout Open-Drain control for this pin Uint16 GPIO66:1; // 2 Outpout Open-Drain control for this pin Uint16 GPIO67:1; // 3 Outpout Open-Drain control for this pin Uint16 GPIO68:1; // 4 Outpout Open-Drain control for this pin Uint16 GPIO69:1; // 5 Outpout Open-Drain control for this pin Uint16 GPIO70:1; // 6 Outpout Open-Drain control for this pin Uint16 GPIO71:1; // 7 Outpout Open-Drain control for this pin Uint16 GPIO72:1; // 8 Outpout Open-Drain control for this pin Uint16 GPIO73:1; // 9 Outpout Open-Drain control for this pin Uint16 GPIO74:1; // 10 Outpout Open-Drain control for this pin Uint16 GPIO75:1; // 11 Outpout Open-Drain control for this pin Uint16 GPIO76:1; // 12 Outpout Open-Drain control for this pin Uint16 GPIO77:1; // 13 Outpout Open-Drain control for this pin Uint16 GPIO78:1; // 14 Outpout Open-Drain control for this pin Uint16 GPIO79:1; // 15 Outpout Open-Drain control for this pin Uint16 GPIO80:1; // 16 Outpout Open-Drain control for this pin Uint16 GPIO81:1; // 17 Outpout Open-Drain control for this pin Uint16 GPIO82:1; // 18 Outpout Open-Drain control for this pin Uint16 GPIO83:1; // 19 Outpout Open-Drain control for this pin Uint16 GPIO84:1; // 20 Outpout Open-Drain control for this pin Uint16 GPIO85:1; // 21 Outpout Open-Drain control for this pin Uint16 GPIO86:1; // 22 Outpout Open-Drain control for this pin Uint16 GPIO87:1; // 23 Outpout Open-Drain control for this pin Uint16 GPIO88:1; // 24 Outpout Open-Drain control for this pin Uint16 GPIO89:1; // 25 Outpout Open-Drain control for this pin Uint16 GPIO90:1; // 26 Outpout Open-Drain control for this pin Uint16 GPIO91:1; // 27 Outpout Open-Drain control for this pin Uint16 GPIO92:1; // 28 Outpout Open-Drain control for this pin Uint16 GPIO93:1; // 29 Outpout Open-Drain control for this pin Uint16 GPIO94:1; // 30 Outpout Open-Drain control for this pin Uint16 GPIO95:1; // 31 Outpout Open-Drain control for this pin }; union GPCODR_REG { Uint32 all; struct GPCODR_BITS bit; }; struct GPCGMUX1_BITS { // bits description Uint16 GPIO64:2; // 1:0 Defines pin-muxing selection for GPIO64 Uint16 GPIO65:2; // 3:2 Defines pin-muxing selection for GPIO65 Uint16 GPIO66:2; // 5:4 Defines pin-muxing selection for GPIO66 Uint16 GPIO67:2; // 7:6 Defines pin-muxing selection for GPIO67 Uint16 GPIO68:2; // 9:8 Defines pin-muxing selection for GPIO68 Uint16 GPIO69:2; // 11:10 Defines pin-muxing selection for GPIO69 Uint16 GPIO70:2; // 13:12 Defines pin-muxing selection for GPIO70 Uint16 GPIO71:2; // 15:14 Defines pin-muxing selection for GPIO71 Uint16 GPIO72:2; // 17:16 Defines pin-muxing selection for GPIO72 Uint16 GPIO73:2; // 19:18 Defines pin-muxing selection for GPIO73 Uint16 GPIO74:2; // 21:20 Defines pin-muxing selection for GPIO74 Uint16 GPIO75:2; // 23:22 Defines pin-muxing selection for GPIO75 Uint16 GPIO76:2; // 25:24 Defines pin-muxing selection for GPIO76 Uint16 GPIO77:2; // 27:26 Defines pin-muxing selection for GPIO77 Uint16 GPIO78:2; // 29:28 Defines pin-muxing selection for GPIO78 Uint16 GPIO79:2; // 31:30 Defines pin-muxing selection for GPIO79 }; union GPCGMUX1_REG { Uint32 all; struct GPCGMUX1_BITS bit; }; struct GPCGMUX2_BITS { // bits description Uint16 GPIO80:2; // 1:0 Defines pin-muxing selection for GPIO80 Uint16 GPIO81:2; // 3:2 Defines pin-muxing selection for GPIO81 Uint16 GPIO82:2; // 5:4 Defines pin-muxing selection for GPIO82 Uint16 GPIO83:2; // 7:6 Defines pin-muxing selection for GPIO83 Uint16 GPIO84:2; // 9:8 Defines pin-muxing selection for GPIO84 Uint16 GPIO85:2; // 11:10 Defines pin-muxing selection for GPIO85 Uint16 GPIO86:2; // 13:12 Defines pin-muxing selection for GPIO86 Uint16 GPIO87:2; // 15:14 Defines pin-muxing selection for GPIO87 Uint16 GPIO88:2; // 17:16 Defines pin-muxing selection for GPIO88 Uint16 GPIO89:2; // 19:18 Defines pin-muxing selection for GPIO89 Uint16 GPIO90:2; // 21:20 Defines pin-muxing selection for GPIO90 Uint16 GPIO91:2; // 23:22 Defines pin-muxing selection for GPIO91 Uint16 GPIO92:2; // 25:24 Defines pin-muxing selection for GPIO92 Uint16 GPIO93:2; // 27:26 Defines pin-muxing selection for GPIO93 Uint16 GPIO94:2; // 29:28 Defines pin-muxing selection for GPIO94 Uint16 GPIO95:2; // 31:30 Defines pin-muxing selection for GPIO95 }; union GPCGMUX2_REG { Uint32 all; struct GPCGMUX2_BITS bit; }; struct GPCCSEL1_BITS { // bits description Uint16 GPIO64:4; // 3:0 GPIO64 Master CPU Select Uint16 GPIO65:4; // 7:4 GPIO65 Master CPU Select Uint16 GPIO66:4; // 11:8 GPIO66 Master CPU Select Uint16 GPIO67:4; // 15:12 GPIO67 Master CPU Select Uint16 GPIO68:4; // 19:16 GPIO68 Master CPU Select Uint16 GPIO69:4; // 23:20 GPIO69 Master CPU Select Uint16 GPIO70:4; // 27:24 GPIO70 Master CPU Select Uint16 GPIO71:4; // 31:28 GPIO71 Master CPU Select }; union GPCCSEL1_REG { Uint32 all; struct GPCCSEL1_BITS bit; }; struct GPCCSEL2_BITS { // bits description Uint16 GPIO72:4; // 3:0 GPIO72 Master CPU Select Uint16 GPIO73:4; // 7:4 GPIO73 Master CPU Select Uint16 GPIO74:4; // 11:8 GPIO74 Master CPU Select Uint16 GPIO75:4; // 15:12 GPIO75 Master CPU Select Uint16 GPIO76:4; // 19:16 GPIO76 Master CPU Select Uint16 GPIO77:4; // 23:20 GPIO77 Master CPU Select Uint16 GPIO78:4; // 27:24 GPIO78 Master CPU Select Uint16 GPIO79:4; // 31:28 GPIO79 Master CPU Select }; union GPCCSEL2_REG { Uint32 all; struct GPCCSEL2_BITS bit; }; struct GPCCSEL3_BITS { // bits description Uint16 GPIO80:4; // 3:0 GPIO80 Master CPU Select Uint16 GPIO81:4; // 7:4 GPIO81 Master CPU Select Uint16 GPIO82:4; // 11:8 GPIO82 Master CPU Select Uint16 GPIO83:4; // 15:12 GPIO83 Master CPU Select Uint16 GPIO84:4; // 19:16 GPIO84 Master CPU Select Uint16 GPIO85:4; // 23:20 GPIO85 Master CPU Select Uint16 GPIO86:4; // 27:24 GPIO86 Master CPU Select Uint16 GPIO87:4; // 31:28 GPIO87 Master CPU Select }; union GPCCSEL3_REG { Uint32 all; struct GPCCSEL3_BITS bit; }; struct GPCCSEL4_BITS { // bits description Uint16 GPIO88:4; // 3:0 GPIO88 Master CPU Select Uint16 GPIO89:4; // 7:4 GPIO89 Master CPU Select Uint16 GPIO90:4; // 11:8 GPIO90 Master CPU Select Uint16 GPIO91:4; // 15:12 GPIO91 Master CPU Select Uint16 GPIO92:4; // 19:16 GPIO92 Master CPU Select Uint16 GPIO93:4; // 23:20 GPIO93 Master CPU Select Uint16 GPIO94:4; // 27:24 GPIO94 Master CPU Select Uint16 GPIO95:4; // 31:28 GPIO95 Master CPU Select }; union GPCCSEL4_REG { Uint32 all; struct GPCCSEL4_BITS bit; }; struct GPCLOCK_BITS { // bits description Uint16 GPIO64:1; // 0 Configuration Lock bit for this pin Uint16 GPIO65:1; // 1 Configuration Lock bit for this pin Uint16 GPIO66:1; // 2 Configuration Lock bit for this pin Uint16 GPIO67:1; // 3 Configuration Lock bit for this pin Uint16 GPIO68:1; // 4 Configuration Lock bit for this pin Uint16 GPIO69:1; // 5 Configuration Lock bit for this pin Uint16 GPIO70:1; // 6 Configuration Lock bit for this pin Uint16 GPIO71:1; // 7 Configuration Lock bit for this pin Uint16 GPIO72:1; // 8 Configuration Lock bit for this pin Uint16 GPIO73:1; // 9 Configuration Lock bit for this pin Uint16 GPIO74:1; // 10 Configuration Lock bit for this pin Uint16 GPIO75:1; // 11 Configuration Lock bit for this pin Uint16 GPIO76:1; // 12 Configuration Lock bit for this pin Uint16 GPIO77:1; // 13 Configuration Lock bit for this pin Uint16 GPIO78:1; // 14 Configuration Lock bit for this pin Uint16 GPIO79:1; // 15 Configuration Lock bit for this pin Uint16 GPIO80:1; // 16 Configuration Lock bit for this pin Uint16 GPIO81:1; // 17 Configuration Lock bit for this pin Uint16 GPIO82:1; // 18 Configuration Lock bit for this pin Uint16 GPIO83:1; // 19 Configuration Lock bit for this pin Uint16 GPIO84:1; // 20 Configuration Lock bit for this pin Uint16 GPIO85:1; // 21 Configuration Lock bit for this pin Uint16 GPIO86:1; // 22 Configuration Lock bit for this pin Uint16 GPIO87:1; // 23 Configuration Lock bit for this pin Uint16 GPIO88:1; // 24 Configuration Lock bit for this pin Uint16 GPIO89:1; // 25 Configuration Lock bit for this pin Uint16 GPIO90:1; // 26 Configuration Lock bit for this pin Uint16 GPIO91:1; // 27 Configuration Lock bit for this pin Uint16 GPIO92:1; // 28 Configuration Lock bit for this pin Uint16 GPIO93:1; // 29 Configuration Lock bit for this pin Uint16 GPIO94:1; // 30 Configuration Lock bit for this pin Uint16 GPIO95:1; // 31 Configuration Lock bit for this pin }; union GPCLOCK_REG { Uint32 all; struct GPCLOCK_BITS bit; }; struct GPCCR_BITS { // bits description Uint16 GPIO64:1; // 0 Configuration lock commit bit for this pin Uint16 GPIO65:1; // 1 Configuration lock commit bit for this pin Uint16 GPIO66:1; // 2 Configuration lock commit bit for this pin Uint16 GPIO67:1; // 3 Configuration lock commit bit for this pin Uint16 GPIO68:1; // 4 Configuration lock commit bit for this pin Uint16 GPIO69:1; // 5 Configuration lock commit bit for this pin Uint16 GPIO70:1; // 6 Configuration lock commit bit for this pin Uint16 GPIO71:1; // 7 Configuration lock commit bit for this pin Uint16 GPIO72:1; // 8 Configuration lock commit bit for this pin Uint16 GPIO73:1; // 9 Configuration lock commit bit for this pin Uint16 GPIO74:1; // 10 Configuration lock commit bit for this pin Uint16 GPIO75:1; // 11 Configuration lock commit bit for this pin Uint16 GPIO76:1; // 12 Configuration lock commit bit for this pin Uint16 GPIO77:1; // 13 Configuration lock commit bit for this pin Uint16 GPIO78:1; // 14 Configuration lock commit bit for this pin Uint16 GPIO79:1; // 15 Configuration lock commit bit for this pin Uint16 GPIO80:1; // 16 Configuration lock commit bit for this pin Uint16 GPIO81:1; // 17 Configuration lock commit bit for this pin Uint16 GPIO82:1; // 18 Configuration lock commit bit for this pin Uint16 GPIO83:1; // 19 Configuration lock commit bit for this pin Uint16 GPIO84:1; // 20 Configuration lock commit bit for this pin Uint16 GPIO85:1; // 21 Configuration lock commit bit for this pin Uint16 GPIO86:1; // 22 Configuration lock commit bit for this pin Uint16 GPIO87:1; // 23 Configuration lock commit bit for this pin Uint16 GPIO88:1; // 24 Configuration lock commit bit for this pin Uint16 GPIO89:1; // 25 Configuration lock commit bit for this pin Uint16 GPIO90:1; // 26 Configuration lock commit bit for this pin Uint16 GPIO91:1; // 27 Configuration lock commit bit for this pin Uint16 GPIO92:1; // 28 Configuration lock commit bit for this pin Uint16 GPIO93:1; // 29 Configuration lock commit bit for this pin Uint16 GPIO94:1; // 30 Configuration lock commit bit for this pin Uint16 GPIO95:1; // 31 Configuration lock commit bit for this pin }; union GPCCR_REG { Uint32 all; struct GPCCR_BITS bit; }; struct GPDCTRL_BITS { // bits description Uint16 QUALPRD0:8; // 7:0 Qualification sampling period for GPIO96 to GPIO103 Uint16 QUALPRD1:8; // 15:8 Qualification sampling period for GPIO104 to GPIO111 Uint16 QUALPRD2:8; // 23:16 Qualification sampling period for GPIO112 to GPIO119 Uint16 QUALPRD3:8; // 31:24 Qualification sampling period for GPIO120 to GPIO127 }; union GPDCTRL_REG { Uint32 all; struct GPDCTRL_BITS bit; }; struct GPDQSEL1_BITS { // bits description Uint16 GPIO96:2; // 1:0 Select input qualification type for GPIO96 Uint16 GPIO97:2; // 3:2 Select input qualification type for GPIO97 Uint16 GPIO98:2; // 5:4 Select input qualification type for GPIO98 Uint16 GPIO99:2; // 7:6 Select input qualification type for GPIO99 Uint16 GPIO100:2; // 9:8 Select input qualification type for GPIO100 Uint16 GPIO101:2; // 11:10 Select input qualification type for GPIO101 Uint16 GPIO102:2; // 13:12 Select input qualification type for GPIO102 Uint16 GPIO103:2; // 15:14 Select input qualification type for GPIO103 Uint16 GPIO104:2; // 17:16 Select input qualification type for GPIO104 Uint16 GPIO105:2; // 19:18 Select input qualification type for GPIO105 Uint16 GPIO106:2; // 21:20 Select input qualification type for GPIO106 Uint16 GPIO107:2; // 23:22 Select input qualification type for GPIO107 Uint16 GPIO108:2; // 25:24 Select input qualification type for GPIO108 Uint16 GPIO109:2; // 27:26 Select input qualification type for GPIO109 Uint16 GPIO110:2; // 29:28 Select input qualification type for GPIO110 Uint16 GPIO111:2; // 31:30 Select input qualification type for GPIO111 }; union GPDQSEL1_REG { Uint32 all; struct GPDQSEL1_BITS bit; }; struct GPDQSEL2_BITS { // bits description Uint16 GPIO112:2; // 1:0 Select input qualification type for GPIO112 Uint16 GPIO113:2; // 3:2 Select input qualification type for GPIO113 Uint16 GPIO114:2; // 5:4 Select input qualification type for GPIO114 Uint16 GPIO115:2; // 7:6 Select input qualification type for GPIO115 Uint16 GPIO116:2; // 9:8 Select input qualification type for GPIO116 Uint16 GPIO117:2; // 11:10 Select input qualification type for GPIO117 Uint16 GPIO118:2; // 13:12 Select input qualification type for GPIO118 Uint16 GPIO119:2; // 15:14 Select input qualification type for GPIO119 Uint16 GPIO120:2; // 17:16 Select input qualification type for GPIO120 Uint16 GPIO121:2; // 19:18 Select input qualification type for GPIO121 Uint16 GPIO122:2; // 21:20 Select input qualification type for GPIO122 Uint16 GPIO123:2; // 23:22 Select input qualification type for GPIO123 Uint16 GPIO124:2; // 25:24 Select input qualification type for GPIO124 Uint16 GPIO125:2; // 27:26 Select input qualification type for GPIO125 Uint16 GPIO126:2; // 29:28 Select input qualification type for GPIO126 Uint16 GPIO127:2; // 31:30 Select input qualification type for GPIO127 }; union GPDQSEL2_REG { Uint32 all; struct GPDQSEL2_BITS bit; }; struct GPDMUX1_BITS { // bits description Uint16 GPIO96:2; // 1:0 Defines pin-muxing selection for GPIO96 Uint16 GPIO97:2; // 3:2 Defines pin-muxing selection for GPIO97 Uint16 GPIO98:2; // 5:4 Defines pin-muxing selection for GPIO98 Uint16 GPIO99:2; // 7:6 Defines pin-muxing selection for GPIO99 Uint16 GPIO100:2; // 9:8 Defines pin-muxing selection for GPIO100 Uint16 GPIO101:2; // 11:10 Defines pin-muxing selection for GPIO101 Uint16 GPIO102:2; // 13:12 Defines pin-muxing selection for GPIO102 Uint16 GPIO103:2; // 15:14 Defines pin-muxing selection for GPIO103 Uint16 GPIO104:2; // 17:16 Defines pin-muxing selection for GPIO104 Uint16 GPIO105:2; // 19:18 Defines pin-muxing selection for GPIO105 Uint16 GPIO106:2; // 21:20 Defines pin-muxing selection for GPIO106 Uint16 GPIO107:2; // 23:22 Defines pin-muxing selection for GPIO107 Uint16 GPIO108:2; // 25:24 Defines pin-muxing selection for GPIO108 Uint16 GPIO109:2; // 27:26 Defines pin-muxing selection for GPIO109 Uint16 GPIO110:2; // 29:28 Defines pin-muxing selection for GPIO110 Uint16 GPIO111:2; // 31:30 Defines pin-muxing selection for GPIO111 }; union GPDMUX1_REG { Uint32 all; struct GPDMUX1_BITS bit; }; struct GPDMUX2_BITS { // bits description Uint16 GPIO112:2; // 1:0 Defines pin-muxing selection for GPIO112 Uint16 GPIO113:2; // 3:2 Defines pin-muxing selection for GPIO113 Uint16 GPIO114:2; // 5:4 Defines pin-muxing selection for GPIO114 Uint16 GPIO115:2; // 7:6 Defines pin-muxing selection for GPIO115 Uint16 GPIO116:2; // 9:8 Defines pin-muxing selection for GPIO116 Uint16 GPIO117:2; // 11:10 Defines pin-muxing selection for GPIO117 Uint16 GPIO118:2; // 13:12 Defines pin-muxing selection for GPIO118 Uint16 GPIO119:2; // 15:14 Defines pin-muxing selection for GPIO119 Uint16 GPIO120:2; // 17:16 Defines pin-muxing selection for GPIO120 Uint16 GPIO121:2; // 19:18 Defines pin-muxing selection for GPIO121 Uint16 GPIO122:2; // 21:20 Defines pin-muxing selection for GPIO122 Uint16 GPIO123:2; // 23:22 Defines pin-muxing selection for GPIO123 Uint16 GPIO124:2; // 25:24 Defines pin-muxing selection for GPIO124 Uint16 GPIO125:2; // 27:26 Defines pin-muxing selection for GPIO125 Uint16 GPIO126:2; // 29:28 Defines pin-muxing selection for GPIO126 Uint16 GPIO127:2; // 31:30 Defines pin-muxing selection for GPIO127 }; union GPDMUX2_REG { Uint32 all; struct GPDMUX2_BITS bit; }; struct GPDDIR_BITS { // bits description Uint16 GPIO96:1; // 0 Defines direction for this pin in GPIO mode Uint16 GPIO97:1; // 1 Defines direction for this pin in GPIO mode Uint16 GPIO98:1; // 2 Defines direction for this pin in GPIO mode Uint16 GPIO99:1; // 3 Defines direction for this pin in GPIO mode Uint16 GPIO100:1; // 4 Defines direction for this pin in GPIO mode Uint16 GPIO101:1; // 5 Defines direction for this pin in GPIO mode Uint16 GPIO102:1; // 6 Defines direction for this pin in GPIO mode Uint16 GPIO103:1; // 7 Defines direction for this pin in GPIO mode Uint16 GPIO104:1; // 8 Defines direction for this pin in GPIO mode Uint16 GPIO105:1; // 9 Defines direction for this pin in GPIO mode Uint16 GPIO106:1; // 10 Defines direction for this pin in GPIO mode Uint16 GPIO107:1; // 11 Defines direction for this pin in GPIO mode Uint16 GPIO108:1; // 12 Defines direction for this pin in GPIO mode Uint16 GPIO109:1; // 13 Defines direction for this pin in GPIO mode Uint16 GPIO110:1; // 14 Defines direction for this pin in GPIO mode Uint16 GPIO111:1; // 15 Defines direction for this pin in GPIO mode Uint16 GPIO112:1; // 16 Defines direction for this pin in GPIO mode Uint16 GPIO113:1; // 17 Defines direction for this pin in GPIO mode Uint16 GPIO114:1; // 18 Defines direction for this pin in GPIO mode Uint16 GPIO115:1; // 19 Defines direction for this pin in GPIO mode Uint16 GPIO116:1; // 20 Defines direction for this pin in GPIO mode Uint16 GPIO117:1; // 21 Defines direction for this pin in GPIO mode Uint16 GPIO118:1; // 22 Defines direction for this pin in GPIO mode Uint16 GPIO119:1; // 23 Defines direction for this pin in GPIO mode Uint16 GPIO120:1; // 24 Defines direction for this pin in GPIO mode Uint16 GPIO121:1; // 25 Defines direction for this pin in GPIO mode Uint16 GPIO122:1; // 26 Defines direction for this pin in GPIO mode Uint16 GPIO123:1; // 27 Defines direction for this pin in GPIO mode Uint16 GPIO124:1; // 28 Defines direction for this pin in GPIO mode Uint16 GPIO125:1; // 29 Defines direction for this pin in GPIO mode Uint16 GPIO126:1; // 30 Defines direction for this pin in GPIO mode Uint16 GPIO127:1; // 31 Defines direction for this pin in GPIO mode }; union GPDDIR_REG { Uint32 all; struct GPDDIR_BITS bit; }; struct GPDPUD_BITS { // bits description Uint16 GPIO96:1; // 0 Pull-Up Disable control for this pin Uint16 GPIO97:1; // 1 Pull-Up Disable control for this pin Uint16 GPIO98:1; // 2 Pull-Up Disable control for this pin Uint16 GPIO99:1; // 3 Pull-Up Disable control for this pin Uint16 GPIO100:1; // 4 Pull-Up Disable control for this pin Uint16 GPIO101:1; // 5 Pull-Up Disable control for this pin Uint16 GPIO102:1; // 6 Pull-Up Disable control for this pin Uint16 GPIO103:1; // 7 Pull-Up Disable control for this pin Uint16 GPIO104:1; // 8 Pull-Up Disable control for this pin Uint16 GPIO105:1; // 9 Pull-Up Disable control for this pin Uint16 GPIO106:1; // 10 Pull-Up Disable control for this pin Uint16 GPIO107:1; // 11 Pull-Up Disable control for this pin Uint16 GPIO108:1; // 12 Pull-Up Disable control for this pin Uint16 GPIO109:1; // 13 Pull-Up Disable control for this pin Uint16 GPIO110:1; // 14 Pull-Up Disable control for this pin Uint16 GPIO111:1; // 15 Pull-Up Disable control for this pin Uint16 GPIO112:1; // 16 Pull-Up Disable control for this pin Uint16 GPIO113:1; // 17 Pull-Up Disable control for this pin Uint16 GPIO114:1; // 18 Pull-Up Disable control for this pin Uint16 GPIO115:1; // 19 Pull-Up Disable control for this pin Uint16 GPIO116:1; // 20 Pull-Up Disable control for this pin Uint16 GPIO117:1; // 21 Pull-Up Disable control for this pin Uint16 GPIO118:1; // 22 Pull-Up Disable control for this pin Uint16 GPIO119:1; // 23 Pull-Up Disable control for this pin Uint16 GPIO120:1; // 24 Pull-Up Disable control for this pin Uint16 GPIO121:1; // 25 Pull-Up Disable control for this pin Uint16 GPIO122:1; // 26 Pull-Up Disable control for this pin Uint16 GPIO123:1; // 27 Pull-Up Disable control for this pin Uint16 GPIO124:1; // 28 Pull-Up Disable control for this pin Uint16 GPIO125:1; // 29 Pull-Up Disable control for this pin Uint16 GPIO126:1; // 30 Pull-Up Disable control for this pin Uint16 GPIO127:1; // 31 Pull-Up Disable control for this pin }; union GPDPUD_REG { Uint32 all; struct GPDPUD_BITS bit; }; struct GPDINV_BITS { // bits description Uint16 GPIO96:1; // 0 Input inversion control for this pin Uint16 GPIO97:1; // 1 Input inversion control for this pin Uint16 GPIO98:1; // 2 Input inversion control for this pin Uint16 GPIO99:1; // 3 Input inversion control for this pin Uint16 GPIO100:1; // 4 Input inversion control for this pin Uint16 GPIO101:1; // 5 Input inversion control for this pin Uint16 GPIO102:1; // 6 Input inversion control for this pin Uint16 GPIO103:1; // 7 Input inversion control for this pin Uint16 GPIO104:1; // 8 Input inversion control for this pin Uint16 GPIO105:1; // 9 Input inversion control for this pin Uint16 GPIO106:1; // 10 Input inversion control for this pin Uint16 GPIO107:1; // 11 Input inversion control for this pin Uint16 GPIO108:1; // 12 Input inversion control for this pin Uint16 GPIO109:1; // 13 Input inversion control for this pin Uint16 GPIO110:1; // 14 Input inversion control for this pin Uint16 GPIO111:1; // 15 Input inversion control for this pin Uint16 GPIO112:1; // 16 Input inversion control for this pin Uint16 GPIO113:1; // 17 Input inversion control for this pin Uint16 GPIO114:1; // 18 Input inversion control for this pin Uint16 GPIO115:1; // 19 Input inversion control for this pin Uint16 GPIO116:1; // 20 Input inversion control for this pin Uint16 GPIO117:1; // 21 Input inversion control for this pin Uint16 GPIO118:1; // 22 Input inversion control for this pin Uint16 GPIO119:1; // 23 Input inversion control for this pin Uint16 GPIO120:1; // 24 Input inversion control for this pin Uint16 GPIO121:1; // 25 Input inversion control for this pin Uint16 GPIO122:1; // 26 Input inversion control for this pin Uint16 GPIO123:1; // 27 Input inversion control for this pin Uint16 GPIO124:1; // 28 Input inversion control for this pin Uint16 GPIO125:1; // 29 Input inversion control for this pin Uint16 GPIO126:1; // 30 Input inversion control for this pin Uint16 GPIO127:1; // 31 Input inversion control for this pin }; union GPDINV_REG { Uint32 all; struct GPDINV_BITS bit; }; struct GPDODR_BITS { // bits description Uint16 GPIO96:1; // 0 Outpout Open-Drain control for this pin Uint16 GPIO97:1; // 1 Outpout Open-Drain control for this pin Uint16 GPIO98:1; // 2 Outpout Open-Drain control for this pin Uint16 GPIO99:1; // 3 Outpout Open-Drain control for this pin Uint16 GPIO100:1; // 4 Outpout Open-Drain control for this pin Uint16 GPIO101:1; // 5 Outpout Open-Drain control for this pin Uint16 GPIO102:1; // 6 Outpout Open-Drain control for this pin Uint16 GPIO103:1; // 7 Outpout Open-Drain control for this pin Uint16 GPIO104:1; // 8 Outpout Open-Drain control for this pin Uint16 GPIO105:1; // 9 Outpout Open-Drain control for this pin Uint16 GPIO106:1; // 10 Outpout Open-Drain control for this pin Uint16 GPIO107:1; // 11 Outpout Open-Drain control for this pin Uint16 GPIO108:1; // 12 Outpout Open-Drain control for this pin Uint16 GPIO109:1; // 13 Outpout Open-Drain control for this pin Uint16 GPIO110:1; // 14 Outpout Open-Drain control for this pin Uint16 GPIO111:1; // 15 Outpout Open-Drain control for this pin Uint16 GPIO112:1; // 16 Outpout Open-Drain control for this pin Uint16 GPIO113:1; // 17 Outpout Open-Drain control for this pin Uint16 GPIO114:1; // 18 Outpout Open-Drain control for this pin Uint16 GPIO115:1; // 19 Outpout Open-Drain control for this pin Uint16 GPIO116:1; // 20 Outpout Open-Drain control for this pin Uint16 GPIO117:1; // 21 Outpout Open-Drain control for this pin Uint16 GPIO118:1; // 22 Outpout Open-Drain control for this pin Uint16 GPIO119:1; // 23 Outpout Open-Drain control for this pin Uint16 GPIO120:1; // 24 Outpout Open-Drain control for this pin Uint16 GPIO121:1; // 25 Outpout Open-Drain control for this pin Uint16 GPIO122:1; // 26 Outpout Open-Drain control for this pin Uint16 GPIO123:1; // 27 Outpout Open-Drain control for this pin Uint16 GPIO124:1; // 28 Outpout Open-Drain control for this pin Uint16 GPIO125:1; // 29 Outpout Open-Drain control for this pin Uint16 GPIO126:1; // 30 Outpout Open-Drain control for this pin Uint16 GPIO127:1; // 31 Outpout Open-Drain control for this pin }; union GPDODR_REG { Uint32 all; struct GPDODR_BITS bit; }; struct GPDGMUX1_BITS { // bits description Uint16 GPIO96:2; // 1:0 Defines pin-muxing selection for GPIO96 Uint16 GPIO97:2; // 3:2 Defines pin-muxing selection for GPIO97 Uint16 GPIO98:2; // 5:4 Defines pin-muxing selection for GPIO98 Uint16 GPIO99:2; // 7:6 Defines pin-muxing selection for GPIO99 Uint16 GPIO100:2; // 9:8 Defines pin-muxing selection for GPIO100 Uint16 GPIO101:2; // 11:10 Defines pin-muxing selection for GPIO101 Uint16 GPIO102:2; // 13:12 Defines pin-muxing selection for GPIO102 Uint16 GPIO103:2; // 15:14 Defines pin-muxing selection for GPIO103 Uint16 GPIO104:2; // 17:16 Defines pin-muxing selection for GPIO104 Uint16 GPIO105:2; // 19:18 Defines pin-muxing selection for GPIO105 Uint16 GPIO106:2; // 21:20 Defines pin-muxing selection for GPIO106 Uint16 GPIO107:2; // 23:22 Defines pin-muxing selection for GPIO107 Uint16 GPIO108:2; // 25:24 Defines pin-muxing selection for GPIO108 Uint16 GPIO109:2; // 27:26 Defines pin-muxing selection for GPIO109 Uint16 GPIO110:2; // 29:28 Defines pin-muxing selection for GPIO110 Uint16 GPIO111:2; // 31:30 Defines pin-muxing selection for GPIO111 }; union GPDGMUX1_REG { Uint32 all; struct GPDGMUX1_BITS bit; }; struct GPDGMUX2_BITS { // bits description Uint16 GPIO112:2; // 1:0 Defines pin-muxing selection for GPIO112 Uint16 GPIO113:2; // 3:2 Defines pin-muxing selection for GPIO113 Uint16 GPIO114:2; // 5:4 Defines pin-muxing selection for GPIO114 Uint16 GPIO115:2; // 7:6 Defines pin-muxing selection for GPIO115 Uint16 GPIO116:2; // 9:8 Defines pin-muxing selection for GPIO116 Uint16 GPIO117:2; // 11:10 Defines pin-muxing selection for GPIO117 Uint16 GPIO118:2; // 13:12 Defines pin-muxing selection for GPIO118 Uint16 GPIO119:2; // 15:14 Defines pin-muxing selection for GPIO119 Uint16 GPIO120:2; // 17:16 Defines pin-muxing selection for GPIO120 Uint16 GPIO121:2; // 19:18 Defines pin-muxing selection for GPIO121 Uint16 GPIO122:2; // 21:20 Defines pin-muxing selection for GPIO122 Uint16 GPIO123:2; // 23:22 Defines pin-muxing selection for GPIO123 Uint16 GPIO124:2; // 25:24 Defines pin-muxing selection for GPIO124 Uint16 GPIO125:2; // 27:26 Defines pin-muxing selection for GPIO125 Uint16 GPIO126:2; // 29:28 Defines pin-muxing selection for GPIO126 Uint16 GPIO127:2; // 31:30 Defines pin-muxing selection for GPIO127 }; union GPDGMUX2_REG { Uint32 all; struct GPDGMUX2_BITS bit; }; struct GPDCSEL1_BITS { // bits description Uint16 GPIO96:4; // 3:0 GPIO96 Master CPU Select Uint16 GPIO97:4; // 7:4 GPIO97 Master CPU Select Uint16 GPIO98:4; // 11:8 GPIO98 Master CPU Select Uint16 GPIO99:4; // 15:12 GPIO99 Master CPU Select Uint16 GPIO100:4; // 19:16 GPIO100 Master CPU Select Uint16 GPIO101:4; // 23:20 GPIO101 Master CPU Select Uint16 GPIO102:4; // 27:24 GPIO102 Master CPU Select Uint16 GPIO103:4; // 31:28 GPIO103 Master CPU Select }; union GPDCSEL1_REG { Uint32 all; struct GPDCSEL1_BITS bit; }; struct GPDCSEL2_BITS { // bits description Uint16 GPIO104:4; // 3:0 GPIO104 Master CPU Select Uint16 GPIO105:4; // 7:4 GPIO105 Master CPU Select Uint16 GPIO106:4; // 11:8 GPIO106 Master CPU Select Uint16 GPIO107:4; // 15:12 GPIO107 Master CPU Select Uint16 GPIO108:4; // 19:16 GPIO108 Master CPU Select Uint16 GPIO109:4; // 23:20 GPIO109 Master CPU Select Uint16 GPIO110:4; // 27:24 GPIO110 Master CPU Select Uint16 GPIO111:4; // 31:28 GPIO111 Master CPU Select }; union GPDCSEL2_REG { Uint32 all; struct GPDCSEL2_BITS bit; }; struct GPDCSEL3_BITS { // bits description Uint16 GPIO112:4; // 3:0 GPIO112 Master CPU Select Uint16 GPIO113:4; // 7:4 GPIO113 Master CPU Select Uint16 GPIO114:4; // 11:8 GPIO114 Master CPU Select Uint16 GPIO115:4; // 15:12 GPIO115 Master CPU Select Uint16 GPIO116:4; // 19:16 GPIO116 Master CPU Select Uint16 GPIO117:4; // 23:20 GPIO117 Master CPU Select Uint16 GPIO118:4; // 27:24 GPIO118 Master CPU Select Uint16 GPIO119:4; // 31:28 GPIO119 Master CPU Select }; union GPDCSEL3_REG { Uint32 all; struct GPDCSEL3_BITS bit; }; struct GPDCSEL4_BITS { // bits description Uint16 GPIO120:4; // 3:0 GPIO120 Master CPU Select Uint16 GPIO121:4; // 7:4 GPIO121 Master CPU Select Uint16 GPIO122:4; // 11:8 GPIO122 Master CPU Select Uint16 GPIO123:4; // 15:12 GPIO123 Master CPU Select Uint16 GPIO124:4; // 19:16 GPIO124 Master CPU Select Uint16 GPIO125:4; // 23:20 GPIO125 Master CPU Select Uint16 GPIO126:4; // 27:24 GPIO126 Master CPU Select Uint16 GPIO127:4; // 31:28 GPIO127 Master CPU Select }; union GPDCSEL4_REG { Uint32 all; struct GPDCSEL4_BITS bit; }; struct GPDLOCK_BITS { // bits description Uint16 GPIO96:1; // 0 Configuration Lock bit for this pin Uint16 GPIO97:1; // 1 Configuration Lock bit for this pin Uint16 GPIO98:1; // 2 Configuration Lock bit for this pin Uint16 GPIO99:1; // 3 Configuration Lock bit for this pin Uint16 GPIO100:1; // 4 Configuration Lock bit for this pin Uint16 GPIO101:1; // 5 Configuration Lock bit for this pin Uint16 GPIO102:1; // 6 Configuration Lock bit for this pin Uint16 GPIO103:1; // 7 Configuration Lock bit for this pin Uint16 GPIO104:1; // 8 Configuration Lock bit for this pin Uint16 GPIO105:1; // 9 Configuration Lock bit for this pin Uint16 GPIO106:1; // 10 Configuration Lock bit for this pin Uint16 GPIO107:1; // 11 Configuration Lock bit for this pin Uint16 GPIO108:1; // 12 Configuration Lock bit for this pin Uint16 GPIO109:1; // 13 Configuration Lock bit for this pin Uint16 GPIO110:1; // 14 Configuration Lock bit for this pin Uint16 GPIO111:1; // 15 Configuration Lock bit for this pin Uint16 GPIO112:1; // 16 Configuration Lock bit for this pin Uint16 GPIO113:1; // 17 Configuration Lock bit for this pin Uint16 GPIO114:1; // 18 Configuration Lock bit for this pin Uint16 GPIO115:1; // 19 Configuration Lock bit for this pin Uint16 GPIO116:1; // 20 Configuration Lock bit for this pin Uint16 GPIO117:1; // 21 Configuration Lock bit for this pin Uint16 GPIO118:1; // 22 Configuration Lock bit for this pin Uint16 GPIO119:1; // 23 Configuration Lock bit for this pin Uint16 GPIO120:1; // 24 Configuration Lock bit for this pin Uint16 GPIO121:1; // 25 Configuration Lock bit for this pin Uint16 GPIO122:1; // 26 Configuration Lock bit for this pin Uint16 GPIO123:1; // 27 Configuration Lock bit for this pin Uint16 GPIO124:1; // 28 Configuration Lock bit for this pin Uint16 GPIO125:1; // 29 Configuration Lock bit for this pin Uint16 GPIO126:1; // 30 Configuration Lock bit for this pin Uint16 GPIO127:1; // 31 Configuration Lock bit for this pin }; union GPDLOCK_REG { Uint32 all; struct GPDLOCK_BITS bit; }; struct GPDCR_BITS { // bits description Uint16 GPIO96:1; // 0 Configuration lock commit bit for this pin Uint16 GPIO97:1; // 1 Configuration lock commit bit for this pin Uint16 GPIO98:1; // 2 Configuration lock commit bit for this pin Uint16 GPIO99:1; // 3 Configuration lock commit bit for this pin Uint16 GPIO100:1; // 4 Configuration lock commit bit for this pin Uint16 GPIO101:1; // 5 Configuration lock commit bit for this pin Uint16 GPIO102:1; // 6 Configuration lock commit bit for this pin Uint16 GPIO103:1; // 7 Configuration lock commit bit for this pin Uint16 GPIO104:1; // 8 Configuration lock commit bit for this pin Uint16 GPIO105:1; // 9 Configuration lock commit bit for this pin Uint16 GPIO106:1; // 10 Configuration lock commit bit for this pin Uint16 GPIO107:1; // 11 Configuration lock commit bit for this pin Uint16 GPIO108:1; // 12 Configuration lock commit bit for this pin Uint16 GPIO109:1; // 13 Configuration lock commit bit for this pin Uint16 GPIO110:1; // 14 Configuration lock commit bit for this pin Uint16 GPIO111:1; // 15 Configuration lock commit bit for this pin Uint16 GPIO112:1; // 16 Configuration lock commit bit for this pin Uint16 GPIO113:1; // 17 Configuration lock commit bit for this pin Uint16 GPIO114:1; // 18 Configuration lock commit bit for this pin Uint16 GPIO115:1; // 19 Configuration lock commit bit for this pin Uint16 GPIO116:1; // 20 Configuration lock commit bit for this pin Uint16 GPIO117:1; // 21 Configuration lock commit bit for this pin Uint16 GPIO118:1; // 22 Configuration lock commit bit for this pin Uint16 GPIO119:1; // 23 Configuration lock commit bit for this pin Uint16 GPIO120:1; // 24 Configuration lock commit bit for this pin Uint16 GPIO121:1; // 25 Configuration lock commit bit for this pin Uint16 GPIO122:1; // 26 Configuration lock commit bit for this pin Uint16 GPIO123:1; // 27 Configuration lock commit bit for this pin Uint16 GPIO124:1; // 28 Configuration lock commit bit for this pin Uint16 GPIO125:1; // 29 Configuration lock commit bit for this pin Uint16 GPIO126:1; // 30 Configuration lock commit bit for this pin Uint16 GPIO127:1; // 31 Configuration lock commit bit for this pin }; union GPDCR_REG { Uint32 all; struct GPDCR_BITS bit; }; struct GPECTRL_BITS { // bits description Uint16 QUALPRD0:8; // 7:0 Qualification sampling period for GPIO128 to GPIO135 Uint16 QUALPRD1:8; // 15:8 Qualification sampling period for GPIO136 to GPIO143 Uint16 QUALPRD2:8; // 23:16 Qualification sampling period for GPIO144 to GPIO151 Uint16 QUALPRD3:8; // 31:24 Qualification sampling period for GPIO152 to GPIO159 }; union GPECTRL_REG { Uint32 all; struct GPECTRL_BITS bit; }; struct GPEQSEL1_BITS { // bits description Uint16 GPIO128:2; // 1:0 Select input qualification type for GPIO128 Uint16 GPIO129:2; // 3:2 Select input qualification type for GPIO129 Uint16 GPIO130:2; // 5:4 Select input qualification type for GPIO130 Uint16 GPIO131:2; // 7:6 Select input qualification type for GPIO131 Uint16 GPIO132:2; // 9:8 Select input qualification type for GPIO132 Uint16 GPIO133:2; // 11:10 Select input qualification type for GPIO133 Uint16 GPIO134:2; // 13:12 Select input qualification type for GPIO134 Uint16 GPIO135:2; // 15:14 Select input qualification type for GPIO135 Uint16 GPIO136:2; // 17:16 Select input qualification type for GPIO136 Uint16 GPIO137:2; // 19:18 Select input qualification type for GPIO137 Uint16 GPIO138:2; // 21:20 Select input qualification type for GPIO138 Uint16 GPIO139:2; // 23:22 Select input qualification type for GPIO139 Uint16 GPIO140:2; // 25:24 Select input qualification type for GPIO140 Uint16 GPIO141:2; // 27:26 Select input qualification type for GPIO141 Uint16 GPIO142:2; // 29:28 Select input qualification type for GPIO142 Uint16 GPIO143:2; // 31:30 Select input qualification type for GPIO143 }; union GPEQSEL1_REG { Uint32 all; struct GPEQSEL1_BITS bit; }; struct GPEQSEL2_BITS { // bits description Uint16 GPIO144:2; // 1:0 Select input qualification type for GPIO144 Uint16 GPIO145:2; // 3:2 Select input qualification type for GPIO145 Uint16 GPIO146:2; // 5:4 Select input qualification type for GPIO146 Uint16 GPIO147:2; // 7:6 Select input qualification type for GPIO147 Uint16 GPIO148:2; // 9:8 Select input qualification type for GPIO148 Uint16 GPIO149:2; // 11:10 Select input qualification type for GPIO149 Uint16 GPIO150:2; // 13:12 Select input qualification type for GPIO150 Uint16 GPIO151:2; // 15:14 Select input qualification type for GPIO151 Uint16 GPIO152:2; // 17:16 Select input qualification type for GPIO152 Uint16 GPIO153:2; // 19:18 Select input qualification type for GPIO153 Uint16 GPIO154:2; // 21:20 Select input qualification type for GPIO154 Uint16 GPIO155:2; // 23:22 Select input qualification type for GPIO155 Uint16 GPIO156:2; // 25:24 Select input qualification type for GPIO156 Uint16 GPIO157:2; // 27:26 Select input qualification type for GPIO157 Uint16 GPIO158:2; // 29:28 Select input qualification type for GPIO158 Uint16 GPIO159:2; // 31:30 Select input qualification type for GPIO159 }; union GPEQSEL2_REG { Uint32 all; struct GPEQSEL2_BITS bit; }; struct GPEMUX1_BITS { // bits description Uint16 GPIO128:2; // 1:0 Defines pin-muxing selection for GPIO128 Uint16 GPIO129:2; // 3:2 Defines pin-muxing selection for GPIO129 Uint16 GPIO130:2; // 5:4 Defines pin-muxing selection for GPIO130 Uint16 GPIO131:2; // 7:6 Defines pin-muxing selection for GPIO131 Uint16 GPIO132:2; // 9:8 Defines pin-muxing selection for GPIO132 Uint16 GPIO133:2; // 11:10 Defines pin-muxing selection for GPIO133 Uint16 GPIO134:2; // 13:12 Defines pin-muxing selection for GPIO134 Uint16 GPIO135:2; // 15:14 Defines pin-muxing selection for GPIO135 Uint16 GPIO136:2; // 17:16 Defines pin-muxing selection for GPIO136 Uint16 GPIO137:2; // 19:18 Defines pin-muxing selection for GPIO137 Uint16 GPIO138:2; // 21:20 Defines pin-muxing selection for GPIO138 Uint16 GPIO139:2; // 23:22 Defines pin-muxing selection for GPIO139 Uint16 GPIO140:2; // 25:24 Defines pin-muxing selection for GPIO140 Uint16 GPIO141:2; // 27:26 Defines pin-muxing selection for GPIO141 Uint16 GPIO142:2; // 29:28 Defines pin-muxing selection for GPIO142 Uint16 GPIO143:2; // 31:30 Defines pin-muxing selection for GPIO143 }; union GPEMUX1_REG { Uint32 all; struct GPEMUX1_BITS bit; }; struct GPEMUX2_BITS { // bits description Uint16 GPIO144:2; // 1:0 Defines pin-muxing selection for GPIO144 Uint16 GPIO145:2; // 3:2 Defines pin-muxing selection for GPIO145 Uint16 GPIO146:2; // 5:4 Defines pin-muxing selection for GPIO146 Uint16 GPIO147:2; // 7:6 Defines pin-muxing selection for GPIO147 Uint16 GPIO148:2; // 9:8 Defines pin-muxing selection for GPIO148 Uint16 GPIO149:2; // 11:10 Defines pin-muxing selection for GPIO149 Uint16 GPIO150:2; // 13:12 Defines pin-muxing selection for GPIO150 Uint16 GPIO151:2; // 15:14 Defines pin-muxing selection for GPIO151 Uint16 GPIO152:2; // 17:16 Defines pin-muxing selection for GPIO152 Uint16 GPIO153:2; // 19:18 Defines pin-muxing selection for GPIO153 Uint16 GPIO154:2; // 21:20 Defines pin-muxing selection for GPIO154 Uint16 GPIO155:2; // 23:22 Defines pin-muxing selection for GPIO155 Uint16 GPIO156:2; // 25:24 Defines pin-muxing selection for GPIO156 Uint16 GPIO157:2; // 27:26 Defines pin-muxing selection for GPIO157 Uint16 GPIO158:2; // 29:28 Defines pin-muxing selection for GPIO158 Uint16 GPIO159:2; // 31:30 Defines pin-muxing selection for GPIO159 }; union GPEMUX2_REG { Uint32 all; struct GPEMUX2_BITS bit; }; struct GPEDIR_BITS { // bits description Uint16 GPIO128:1; // 0 Defines direction for this pin in GPIO mode Uint16 GPIO129:1; // 1 Defines direction for this pin in GPIO mode Uint16 GPIO130:1; // 2 Defines direction for this pin in GPIO mode Uint16 GPIO131:1; // 3 Defines direction for this pin in GPIO mode Uint16 GPIO132:1; // 4 Defines direction for this pin in GPIO mode Uint16 GPIO133:1; // 5 Defines direction for this pin in GPIO mode Uint16 GPIO134:1; // 6 Defines direction for this pin in GPIO mode Uint16 GPIO135:1; // 7 Defines direction for this pin in GPIO mode Uint16 GPIO136:1; // 8 Defines direction for this pin in GPIO mode Uint16 GPIO137:1; // 9 Defines direction for this pin in GPIO mode Uint16 GPIO138:1; // 10 Defines direction for this pin in GPIO mode Uint16 GPIO139:1; // 11 Defines direction for this pin in GPIO mode Uint16 GPIO140:1; // 12 Defines direction for this pin in GPIO mode Uint16 GPIO141:1; // 13 Defines direction for this pin in GPIO mode Uint16 GPIO142:1; // 14 Defines direction for this pin in GPIO mode Uint16 GPIO143:1; // 15 Defines direction for this pin in GPIO mode Uint16 GPIO144:1; // 16 Defines direction for this pin in GPIO mode Uint16 GPIO145:1; // 17 Defines direction for this pin in GPIO mode Uint16 GPIO146:1; // 18 Defines direction for this pin in GPIO mode Uint16 GPIO147:1; // 19 Defines direction for this pin in GPIO mode Uint16 GPIO148:1; // 20 Defines direction for this pin in GPIO mode Uint16 GPIO149:1; // 21 Defines direction for this pin in GPIO mode Uint16 GPIO150:1; // 22 Defines direction for this pin in GPIO mode Uint16 GPIO151:1; // 23 Defines direction for this pin in GPIO mode Uint16 GPIO152:1; // 24 Defines direction for this pin in GPIO mode Uint16 GPIO153:1; // 25 Defines direction for this pin in GPIO mode Uint16 GPIO154:1; // 26 Defines direction for this pin in GPIO mode Uint16 GPIO155:1; // 27 Defines direction for this pin in GPIO mode Uint16 GPIO156:1; // 28 Defines direction for this pin in GPIO mode Uint16 GPIO157:1; // 29 Defines direction for this pin in GPIO mode Uint16 GPIO158:1; // 30 Defines direction for this pin in GPIO mode Uint16 GPIO159:1; // 31 Defines direction for this pin in GPIO mode }; union GPEDIR_REG { Uint32 all; struct GPEDIR_BITS bit; }; struct GPEPUD_BITS { // bits description Uint16 GPIO128:1; // 0 Pull-Up Disable control for this pin Uint16 GPIO129:1; // 1 Pull-Up Disable control for this pin Uint16 GPIO130:1; // 2 Pull-Up Disable control for this pin Uint16 GPIO131:1; // 3 Pull-Up Disable control for this pin Uint16 GPIO132:1; // 4 Pull-Up Disable control for this pin Uint16 GPIO133:1; // 5 Pull-Up Disable control for this pin Uint16 GPIO134:1; // 6 Pull-Up Disable control for this pin Uint16 GPIO135:1; // 7 Pull-Up Disable control for this pin Uint16 GPIO136:1; // 8 Pull-Up Disable control for this pin Uint16 GPIO137:1; // 9 Pull-Up Disable control for this pin Uint16 GPIO138:1; // 10 Pull-Up Disable control for this pin Uint16 GPIO139:1; // 11 Pull-Up Disable control for this pin Uint16 GPIO140:1; // 12 Pull-Up Disable control for this pin Uint16 GPIO141:1; // 13 Pull-Up Disable control for this pin Uint16 GPIO142:1; // 14 Pull-Up Disable control for this pin Uint16 GPIO143:1; // 15 Pull-Up Disable control for this pin Uint16 GPIO144:1; // 16 Pull-Up Disable control for this pin Uint16 GPIO145:1; // 17 Pull-Up Disable control for this pin Uint16 GPIO146:1; // 18 Pull-Up Disable control for this pin Uint16 GPIO147:1; // 19 Pull-Up Disable control for this pin Uint16 GPIO148:1; // 20 Pull-Up Disable control for this pin Uint16 GPIO149:1; // 21 Pull-Up Disable control for this pin Uint16 GPIO150:1; // 22 Pull-Up Disable control for this pin Uint16 GPIO151:1; // 23 Pull-Up Disable control for this pin Uint16 GPIO152:1; // 24 Pull-Up Disable control for this pin Uint16 GPIO153:1; // 25 Pull-Up Disable control for this pin Uint16 GPIO154:1; // 26 Pull-Up Disable control for this pin Uint16 GPIO155:1; // 27 Pull-Up Disable control for this pin Uint16 GPIO156:1; // 28 Pull-Up Disable control for this pin Uint16 GPIO157:1; // 29 Pull-Up Disable control for this pin Uint16 GPIO158:1; // 30 Pull-Up Disable control for this pin Uint16 GPIO159:1; // 31 Pull-Up Disable control for this pin }; union GPEPUD_REG { Uint32 all; struct GPEPUD_BITS bit; }; struct GPEINV_BITS { // bits description Uint16 GPIO128:1; // 0 Input inversion control for this pin Uint16 GPIO129:1; // 1 Input inversion control for this pin Uint16 GPIO130:1; // 2 Input inversion control for this pin Uint16 GPIO131:1; // 3 Input inversion control for this pin Uint16 GPIO132:1; // 4 Input inversion control for this pin Uint16 GPIO133:1; // 5 Input inversion control for this pin Uint16 GPIO134:1; // 6 Input inversion control for this pin Uint16 GPIO135:1; // 7 Input inversion control for this pin Uint16 GPIO136:1; // 8 Input inversion control for this pin Uint16 GPIO137:1; // 9 Input inversion control for this pin Uint16 GPIO138:1; // 10 Input inversion control for this pin Uint16 GPIO139:1; // 11 Input inversion control for this pin Uint16 GPIO140:1; // 12 Input inversion control for this pin Uint16 GPIO141:1; // 13 Input inversion control for this pin Uint16 GPIO142:1; // 14 Input inversion control for this pin Uint16 GPIO143:1; // 15 Input inversion control for this pin Uint16 GPIO144:1; // 16 Input inversion control for this pin Uint16 GPIO145:1; // 17 Input inversion control for this pin Uint16 GPIO146:1; // 18 Input inversion control for this pin Uint16 GPIO147:1; // 19 Input inversion control for this pin Uint16 GPIO148:1; // 20 Input inversion control for this pin Uint16 GPIO149:1; // 21 Input inversion control for this pin Uint16 GPIO150:1; // 22 Input inversion control for this pin Uint16 GPIO151:1; // 23 Input inversion control for this pin Uint16 GPIO152:1; // 24 Input inversion control for this pin Uint16 GPIO153:1; // 25 Input inversion control for this pin Uint16 GPIO154:1; // 26 Input inversion control for this pin Uint16 GPIO155:1; // 27 Input inversion control for this pin Uint16 GPIO156:1; // 28 Input inversion control for this pin Uint16 GPIO157:1; // 29 Input inversion control for this pin Uint16 GPIO158:1; // 30 Input inversion control for this pin Uint16 GPIO159:1; // 31 Input inversion control for this pin }; union GPEINV_REG { Uint32 all; struct GPEINV_BITS bit; }; struct GPEODR_BITS { // bits description Uint16 GPIO128:1; // 0 Outpout Open-Drain control for this pin Uint16 GPIO129:1; // 1 Outpout Open-Drain control for this pin Uint16 GPIO130:1; // 2 Outpout Open-Drain control for this pin Uint16 GPIO131:1; // 3 Outpout Open-Drain control for this pin Uint16 GPIO132:1; // 4 Outpout Open-Drain control for this pin Uint16 GPIO133:1; // 5 Outpout Open-Drain control for this pin Uint16 GPIO134:1; // 6 Outpout Open-Drain control for this pin Uint16 GPIO135:1; // 7 Outpout Open-Drain control for this pin Uint16 GPIO136:1; // 8 Outpout Open-Drain control for this pin Uint16 GPIO137:1; // 9 Outpout Open-Drain control for this pin Uint16 GPIO138:1; // 10 Outpout Open-Drain control for this pin Uint16 GPIO139:1; // 11 Outpout Open-Drain control for this pin Uint16 GPIO140:1; // 12 Outpout Open-Drain control for this pin Uint16 GPIO141:1; // 13 Outpout Open-Drain control for this pin Uint16 GPIO142:1; // 14 Outpout Open-Drain control for this pin Uint16 GPIO143:1; // 15 Outpout Open-Drain control for this pin Uint16 GPIO144:1; // 16 Outpout Open-Drain control for this pin Uint16 GPIO145:1; // 17 Outpout Open-Drain control for this pin Uint16 GPIO146:1; // 18 Outpout Open-Drain control for this pin Uint16 GPIO147:1; // 19 Outpout Open-Drain control for this pin Uint16 GPIO148:1; // 20 Outpout Open-Drain control for this pin Uint16 GPIO149:1; // 21 Outpout Open-Drain control for this pin Uint16 GPIO150:1; // 22 Outpout Open-Drain control for this pin Uint16 GPIO151:1; // 23 Outpout Open-Drain control for this pin Uint16 GPIO152:1; // 24 Outpout Open-Drain control for this pin Uint16 GPIO153:1; // 25 Outpout Open-Drain control for this pin Uint16 GPIO154:1; // 26 Outpout Open-Drain control for this pin Uint16 GPIO155:1; // 27 Outpout Open-Drain control for this pin Uint16 GPIO156:1; // 28 Outpout Open-Drain control for this pin Uint16 GPIO157:1; // 29 Outpout Open-Drain control for this pin Uint16 GPIO158:1; // 30 Outpout Open-Drain control for this pin Uint16 GPIO159:1; // 31 Outpout Open-Drain control for this pin }; union GPEODR_REG { Uint32 all; struct GPEODR_BITS bit; }; struct GPEGMUX1_BITS { // bits description Uint16 GPIO128:2; // 1:0 Defines pin-muxing selection for GPIO128 Uint16 GPIO129:2; // 3:2 Defines pin-muxing selection for GPIO129 Uint16 GPIO130:2; // 5:4 Defines pin-muxing selection for GPIO130 Uint16 GPIO131:2; // 7:6 Defines pin-muxing selection for GPIO131 Uint16 GPIO132:2; // 9:8 Defines pin-muxing selection for GPIO132 Uint16 GPIO133:2; // 11:10 Defines pin-muxing selection for GPIO133 Uint16 GPIO134:2; // 13:12 Defines pin-muxing selection for GPIO134 Uint16 GPIO135:2; // 15:14 Defines pin-muxing selection for GPIO135 Uint16 GPIO136:2; // 17:16 Defines pin-muxing selection for GPIO136 Uint16 GPIO137:2; // 19:18 Defines pin-muxing selection for GPIO137 Uint16 GPIO138:2; // 21:20 Defines pin-muxing selection for GPIO138 Uint16 GPIO139:2; // 23:22 Defines pin-muxing selection for GPIO139 Uint16 GPIO140:2; // 25:24 Defines pin-muxing selection for GPIO140 Uint16 GPIO141:2; // 27:26 Defines pin-muxing selection for GPIO141 Uint16 GPIO142:2; // 29:28 Defines pin-muxing selection for GPIO142 Uint16 GPIO143:2; // 31:30 Defines pin-muxing selection for GPIO143 }; union GPEGMUX1_REG { Uint32 all; struct GPEGMUX1_BITS bit; }; struct GPEGMUX2_BITS { // bits description Uint16 GPIO144:2; // 1:0 Defines pin-muxing selection for GPIO144 Uint16 GPIO145:2; // 3:2 Defines pin-muxing selection for GPIO145 Uint16 GPIO146:2; // 5:4 Defines pin-muxing selection for GPIO146 Uint16 GPIO147:2; // 7:6 Defines pin-muxing selection for GPIO147 Uint16 GPIO148:2; // 9:8 Defines pin-muxing selection for GPIO148 Uint16 GPIO149:2; // 11:10 Defines pin-muxing selection for GPIO149 Uint16 GPIO150:2; // 13:12 Defines pin-muxing selection for GPIO150 Uint16 GPIO151:2; // 15:14 Defines pin-muxing selection for GPIO151 Uint16 GPIO152:2; // 17:16 Defines pin-muxing selection for GPIO152 Uint16 GPIO153:2; // 19:18 Defines pin-muxing selection for GPIO153 Uint16 GPIO154:2; // 21:20 Defines pin-muxing selection for GPIO154 Uint16 GPIO155:2; // 23:22 Defines pin-muxing selection for GPIO155 Uint16 GPIO156:2; // 25:24 Defines pin-muxing selection for GPIO156 Uint16 GPIO157:2; // 27:26 Defines pin-muxing selection for GPIO157 Uint16 GPIO158:2; // 29:28 Defines pin-muxing selection for GPIO158 Uint16 GPIO159:2; // 31:30 Defines pin-muxing selection for GPIO159 }; union GPEGMUX2_REG { Uint32 all; struct GPEGMUX2_BITS bit; }; struct GPECSEL1_BITS { // bits description Uint16 GPIO128:4; // 3:0 GPIO128 Master CPU Select Uint16 GPIO129:4; // 7:4 GPIO129 Master CPU Select Uint16 GPIO130:4; // 11:8 GPIO130 Master CPU Select Uint16 GPIO131:4; // 15:12 GPIO131 Master CPU Select Uint16 GPIO132:4; // 19:16 GPIO132 Master CPU Select Uint16 GPIO133:4; // 23:20 GPIO133 Master CPU Select Uint16 GPIO134:4; // 27:24 GPIO134 Master CPU Select Uint16 GPIO135:4; // 31:28 GPIO135 Master CPU Select }; union GPECSEL1_REG { Uint32 all; struct GPECSEL1_BITS bit; }; struct GPECSEL2_BITS { // bits description Uint16 GPIO136:4; // 3:0 GPIO136 Master CPU Select Uint16 GPIO137:4; // 7:4 GPIO137 Master CPU Select Uint16 GPIO138:4; // 11:8 GPIO138 Master CPU Select Uint16 GPIO139:4; // 15:12 GPIO139 Master CPU Select Uint16 GPIO140:4; // 19:16 GPIO140 Master CPU Select Uint16 GPIO141:4; // 23:20 GPIO141 Master CPU Select Uint16 GPIO142:4; // 27:24 GPIO142 Master CPU Select Uint16 GPIO143:4; // 31:28 GPIO143 Master CPU Select }; union GPECSEL2_REG { Uint32 all; struct GPECSEL2_BITS bit; }; struct GPECSEL3_BITS { // bits description Uint16 GPIO144:4; // 3:0 GPIO144 Master CPU Select Uint16 GPIO145:4; // 7:4 GPIO145 Master CPU Select Uint16 GPIO146:4; // 11:8 GPIO146 Master CPU Select Uint16 GPIO147:4; // 15:12 GPIO147 Master CPU Select Uint16 GPIO148:4; // 19:16 GPIO148 Master CPU Select Uint16 GPIO149:4; // 23:20 GPIO149 Master CPU Select Uint16 GPIO150:4; // 27:24 GPIO150 Master CPU Select Uint16 GPIO151:4; // 31:28 GPIO151 Master CPU Select }; union GPECSEL3_REG { Uint32 all; struct GPECSEL3_BITS bit; }; struct GPECSEL4_BITS { // bits description Uint16 GPIO152:4; // 3:0 GPIO152 Master CPU Select Uint16 GPIO153:4; // 7:4 GPIO153 Master CPU Select Uint16 GPIO154:4; // 11:8 GPIO154 Master CPU Select Uint16 GPIO155:4; // 15:12 GPIO155 Master CPU Select Uint16 GPIO156:4; // 19:16 GPIO156 Master CPU Select Uint16 GPIO157:4; // 23:20 GPIO157 Master CPU Select Uint16 GPIO158:4; // 27:24 GPIO158 Master CPU Select Uint16 GPIO159:4; // 31:28 GPIO159 Master CPU Select }; union GPECSEL4_REG { Uint32 all; struct GPECSEL4_BITS bit; }; struct GPELOCK_BITS { // bits description Uint16 GPIO128:1; // 0 Configuration Lock bit for this pin Uint16 GPIO129:1; // 1 Configuration Lock bit for this pin Uint16 GPIO130:1; // 2 Configuration Lock bit for this pin Uint16 GPIO131:1; // 3 Configuration Lock bit for this pin Uint16 GPIO132:1; // 4 Configuration Lock bit for this pin Uint16 GPIO133:1; // 5 Configuration Lock bit for this pin Uint16 GPIO134:1; // 6 Configuration Lock bit for this pin Uint16 GPIO135:1; // 7 Configuration Lock bit for this pin Uint16 GPIO136:1; // 8 Configuration Lock bit for this pin Uint16 GPIO137:1; // 9 Configuration Lock bit for this pin Uint16 GPIO138:1; // 10 Configuration Lock bit for this pin Uint16 GPIO139:1; // 11 Configuration Lock bit for this pin Uint16 GPIO140:1; // 12 Configuration Lock bit for this pin Uint16 GPIO141:1; // 13 Configuration Lock bit for this pin Uint16 GPIO142:1; // 14 Configuration Lock bit for this pin Uint16 GPIO143:1; // 15 Configuration Lock bit for this pin Uint16 GPIO144:1; // 16 Configuration Lock bit for this pin Uint16 GPIO145:1; // 17 Configuration Lock bit for this pin Uint16 GPIO146:1; // 18 Configuration Lock bit for this pin Uint16 GPIO147:1; // 19 Configuration Lock bit for this pin Uint16 GPIO148:1; // 20 Configuration Lock bit for this pin Uint16 GPIO149:1; // 21 Configuration Lock bit for this pin Uint16 GPIO150:1; // 22 Configuration Lock bit for this pin Uint16 GPIO151:1; // 23 Configuration Lock bit for this pin Uint16 GPIO152:1; // 24 Configuration Lock bit for this pin Uint16 GPIO153:1; // 25 Configuration Lock bit for this pin Uint16 GPIO154:1; // 26 Configuration Lock bit for this pin Uint16 GPIO155:1; // 27 Configuration Lock bit for this pin Uint16 GPIO156:1; // 28 Configuration Lock bit for this pin Uint16 GPIO157:1; // 29 Configuration Lock bit for this pin Uint16 GPIO158:1; // 30 Configuration Lock bit for this pin Uint16 GPIO159:1; // 31 Configuration Lock bit for this pin }; union GPELOCK_REG { Uint32 all; struct GPELOCK_BITS bit; }; struct GPECR_BITS { // bits description Uint16 GPIO128:1; // 0 Configuration lock commit bit for this pin Uint16 GPIO129:1; // 1 Configuration lock commit bit for this pin Uint16 GPIO130:1; // 2 Configuration lock commit bit for this pin Uint16 GPIO131:1; // 3 Configuration lock commit bit for this pin Uint16 GPIO132:1; // 4 Configuration lock commit bit for this pin Uint16 GPIO133:1; // 5 Configuration lock commit bit for this pin Uint16 GPIO134:1; // 6 Configuration lock commit bit for this pin Uint16 GPIO135:1; // 7 Configuration lock commit bit for this pin Uint16 GPIO136:1; // 8 Configuration lock commit bit for this pin Uint16 GPIO137:1; // 9 Configuration lock commit bit for this pin Uint16 GPIO138:1; // 10 Configuration lock commit bit for this pin Uint16 GPIO139:1; // 11 Configuration lock commit bit for this pin Uint16 GPIO140:1; // 12 Configuration lock commit bit for this pin Uint16 GPIO141:1; // 13 Configuration lock commit bit for this pin Uint16 GPIO142:1; // 14 Configuration lock commit bit for this pin Uint16 GPIO143:1; // 15 Configuration lock commit bit for this pin Uint16 GPIO144:1; // 16 Configuration lock commit bit for this pin Uint16 GPIO145:1; // 17 Configuration lock commit bit for this pin Uint16 GPIO146:1; // 18 Configuration lock commit bit for this pin Uint16 GPIO147:1; // 19 Configuration lock commit bit for this pin Uint16 GPIO148:1; // 20 Configuration lock commit bit for this pin Uint16 GPIO149:1; // 21 Configuration lock commit bit for this pin Uint16 GPIO150:1; // 22 Configuration lock commit bit for this pin Uint16 GPIO151:1; // 23 Configuration lock commit bit for this pin Uint16 GPIO152:1; // 24 Configuration lock commit bit for this pin Uint16 GPIO153:1; // 25 Configuration lock commit bit for this pin Uint16 GPIO154:1; // 26 Configuration lock commit bit for this pin Uint16 GPIO155:1; // 27 Configuration lock commit bit for this pin Uint16 GPIO156:1; // 28 Configuration lock commit bit for this pin Uint16 GPIO157:1; // 29 Configuration lock commit bit for this pin Uint16 GPIO158:1; // 30 Configuration lock commit bit for this pin Uint16 GPIO159:1; // 31 Configuration lock commit bit for this pin }; union GPECR_REG { Uint32 all; struct GPECR_BITS bit; }; struct GPFCTRL_BITS { // bits description Uint16 QUALPRD0:8; // 7:0 Qualification sampling period for GPIO160 to GPIO167 Uint16 QUALPRD1:8; // 15:8 Qualification sampling period for GPIO168 Uint16 rsvd1:8; // 23:16 Reserved Uint16 rsvd2:8; // 31:24 Reserved }; union GPFCTRL_REG { Uint32 all; struct GPFCTRL_BITS bit; }; struct GPFQSEL1_BITS { // bits description Uint16 GPIO160:2; // 1:0 Select input qualification type for GPIO160 Uint16 GPIO161:2; // 3:2 Select input qualification type for GPIO161 Uint16 GPIO162:2; // 5:4 Select input qualification type for GPIO162 Uint16 GPIO163:2; // 7:6 Select input qualification type for GPIO163 Uint16 GPIO164:2; // 9:8 Select input qualification type for GPIO164 Uint16 GPIO165:2; // 11:10 Select input qualification type for GPIO165 Uint16 GPIO166:2; // 13:12 Select input qualification type for GPIO166 Uint16 GPIO167:2; // 15:14 Select input qualification type for GPIO167 Uint16 GPIO168:2; // 17:16 Select input qualification type for GPIO168 Uint16 rsvd1:2; // 19:18 Reserved Uint16 rsvd2:2; // 21:20 Reserved Uint16 rsvd3:2; // 23:22 Reserved Uint16 rsvd4:2; // 25:24 Reserved Uint16 rsvd5:2; // 27:26 Reserved Uint16 rsvd6:2; // 29:28 Reserved Uint16 rsvd7:2; // 31:30 Reserved }; union GPFQSEL1_REG { Uint32 all; struct GPFQSEL1_BITS bit; }; struct GPFMUX1_BITS { // bits description Uint16 GPIO160:2; // 1:0 Defines pin-muxing selection for GPIO160 Uint16 GPIO161:2; // 3:2 Defines pin-muxing selection for GPIO161 Uint16 GPIO162:2; // 5:4 Defines pin-muxing selection for GPIO162 Uint16 GPIO163:2; // 7:6 Defines pin-muxing selection for GPIO163 Uint16 GPIO164:2; // 9:8 Defines pin-muxing selection for GPIO164 Uint16 GPIO165:2; // 11:10 Defines pin-muxing selection for GPIO165 Uint16 GPIO166:2; // 13:12 Defines pin-muxing selection for GPIO166 Uint16 GPIO167:2; // 15:14 Defines pin-muxing selection for GPIO167 Uint16 GPIO168:2; // 17:16 Defines pin-muxing selection for GPIO168 Uint16 rsvd1:2; // 19:18 Reserved Uint16 rsvd2:2; // 21:20 Reserved Uint16 rsvd3:2; // 23:22 Reserved Uint16 rsvd4:2; // 25:24 Reserved Uint16 rsvd5:2; // 27:26 Reserved Uint16 rsvd6:2; // 29:28 Reserved Uint16 rsvd7:2; // 31:30 Reserved }; union GPFMUX1_REG { Uint32 all; struct GPFMUX1_BITS bit; }; struct GPFDIR_BITS { // bits description Uint16 GPIO160:1; // 0 Defines direction for this pin in GPIO mode Uint16 GPIO161:1; // 1 Defines direction for this pin in GPIO mode Uint16 GPIO162:1; // 2 Defines direction for this pin in GPIO mode Uint16 GPIO163:1; // 3 Defines direction for this pin in GPIO mode Uint16 GPIO164:1; // 4 Defines direction for this pin in GPIO mode Uint16 GPIO165:1; // 5 Defines direction for this pin in GPIO mode Uint16 GPIO166:1; // 6 Defines direction for this pin in GPIO mode Uint16 GPIO167:1; // 7 Defines direction for this pin in GPIO mode Uint16 GPIO168:1; // 8 Defines direction for this pin in GPIO mode Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFDIR_REG { Uint32 all; struct GPFDIR_BITS bit; }; struct GPFPUD_BITS { // bits description Uint16 GPIO160:1; // 0 Pull-Up Disable control for this pin Uint16 GPIO161:1; // 1 Pull-Up Disable control for this pin Uint16 GPIO162:1; // 2 Pull-Up Disable control for this pin Uint16 GPIO163:1; // 3 Pull-Up Disable control for this pin Uint16 GPIO164:1; // 4 Pull-Up Disable control for this pin Uint16 GPIO165:1; // 5 Pull-Up Disable control for this pin Uint16 GPIO166:1; // 6 Pull-Up Disable control for this pin Uint16 GPIO167:1; // 7 Pull-Up Disable control for this pin Uint16 GPIO168:1; // 8 Pull-Up Disable control for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFPUD_REG { Uint32 all; struct GPFPUD_BITS bit; }; struct GPFINV_BITS { // bits description Uint16 GPIO160:1; // 0 Input inversion control for this pin Uint16 GPIO161:1; // 1 Input inversion control for this pin Uint16 GPIO162:1; // 2 Input inversion control for this pin Uint16 GPIO163:1; // 3 Input inversion control for this pin Uint16 GPIO164:1; // 4 Input inversion control for this pin Uint16 GPIO165:1; // 5 Input inversion control for this pin Uint16 GPIO166:1; // 6 Input inversion control for this pin Uint16 GPIO167:1; // 7 Input inversion control for this pin Uint16 GPIO168:1; // 8 Input inversion control for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFINV_REG { Uint32 all; struct GPFINV_BITS bit; }; struct GPFODR_BITS { // bits description Uint16 GPIO160:1; // 0 Outpout Open-Drain control for this pin Uint16 GPIO161:1; // 1 Outpout Open-Drain control for this pin Uint16 GPIO162:1; // 2 Outpout Open-Drain control for this pin Uint16 GPIO163:1; // 3 Outpout Open-Drain control for this pin Uint16 GPIO164:1; // 4 Outpout Open-Drain control for this pin Uint16 GPIO165:1; // 5 Outpout Open-Drain control for this pin Uint16 GPIO166:1; // 6 Outpout Open-Drain control for this pin Uint16 GPIO167:1; // 7 Outpout Open-Drain control for this pin Uint16 GPIO168:1; // 8 Outpout Open-Drain control for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFODR_REG { Uint32 all; struct GPFODR_BITS bit; }; struct GPFGMUX1_BITS { // bits description Uint16 GPIO160:2; // 1:0 Defines pin-muxing selection for GPIO160 Uint16 GPIO161:2; // 3:2 Defines pin-muxing selection for GPIO161 Uint16 GPIO162:2; // 5:4 Defines pin-muxing selection for GPIO162 Uint16 GPIO163:2; // 7:6 Defines pin-muxing selection for GPIO163 Uint16 GPIO164:2; // 9:8 Defines pin-muxing selection for GPIO164 Uint16 GPIO165:2; // 11:10 Defines pin-muxing selection for GPIO165 Uint16 GPIO166:2; // 13:12 Defines pin-muxing selection for GPIO166 Uint16 GPIO167:2; // 15:14 Defines pin-muxing selection for GPIO167 Uint16 GPIO168:2; // 17:16 Defines pin-muxing selection for GPIO168 Uint16 rsvd1:2; // 19:18 Reserved Uint16 rsvd2:2; // 21:20 Reserved Uint16 rsvd3:2; // 23:22 Reserved Uint16 rsvd4:2; // 25:24 Reserved Uint16 rsvd5:2; // 27:26 Reserved Uint16 rsvd6:2; // 29:28 Reserved Uint16 rsvd7:2; // 31:30 Reserved }; union GPFGMUX1_REG { Uint32 all; struct GPFGMUX1_BITS bit; }; struct GPFCSEL1_BITS { // bits description Uint16 GPIO160:4; // 3:0 GPIO160 Master CPU Select Uint16 GPIO161:4; // 7:4 GPIO161 Master CPU Select Uint16 GPIO162:4; // 11:8 GPIO162 Master CPU Select Uint16 GPIO163:4; // 15:12 GPIO163 Master CPU Select Uint16 GPIO164:4; // 19:16 GPIO164 Master CPU Select Uint16 GPIO165:4; // 23:20 GPIO165 Master CPU Select Uint16 GPIO166:4; // 27:24 GPIO166 Master CPU Select Uint16 GPIO167:4; // 31:28 GPIO167 Master CPU Select }; union GPFCSEL1_REG { Uint32 all; struct GPFCSEL1_BITS bit; }; struct GPFCSEL2_BITS { // bits description Uint16 GPIO168:4; // 3:0 GPIO168 Master CPU Select Uint16 rsvd1:4; // 7:4 Reserved Uint16 rsvd2:4; // 11:8 Reserved Uint16 rsvd3:4; // 15:12 Reserved Uint16 rsvd4:4; // 19:16 Reserved Uint16 rsvd5:4; // 23:20 Reserved Uint16 rsvd6:4; // 27:24 Reserved Uint16 rsvd7:4; // 31:28 Reserved }; union GPFCSEL2_REG { Uint32 all; struct GPFCSEL2_BITS bit; }; struct GPFLOCK_BITS { // bits description Uint16 GPIO160:1; // 0 Configuration Lock bit for this pin Uint16 GPIO161:1; // 1 Configuration Lock bit for this pin Uint16 GPIO162:1; // 2 Configuration Lock bit for this pin Uint16 GPIO163:1; // 3 Configuration Lock bit for this pin Uint16 GPIO164:1; // 4 Configuration Lock bit for this pin Uint16 GPIO165:1; // 5 Configuration Lock bit for this pin Uint16 GPIO166:1; // 6 Configuration Lock bit for this pin Uint16 GPIO167:1; // 7 Configuration Lock bit for this pin Uint16 GPIO168:1; // 8 Configuration Lock bit for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFLOCK_REG { Uint32 all; struct GPFLOCK_BITS bit; }; struct GPFCR_BITS { // bits description Uint16 GPIO160:1; // 0 Configuration lock commit bit for this pin Uint16 GPIO161:1; // 1 Configuration lock commit bit for this pin Uint16 GPIO162:1; // 2 Configuration lock commit bit for this pin Uint16 GPIO163:1; // 3 Configuration lock commit bit for this pin Uint16 GPIO164:1; // 4 Configuration lock commit bit for this pin Uint16 GPIO165:1; // 5 Configuration lock commit bit for this pin Uint16 GPIO166:1; // 6 Configuration lock commit bit for this pin Uint16 GPIO167:1; // 7 Configuration lock commit bit for this pin Uint16 GPIO168:1; // 8 Configuration lock commit bit for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFCR_REG { Uint32 all; struct GPFCR_BITS bit; }; struct GPIO_CTRL_REGS { union GPACTRL_REG GPACTRL; // GPIO A Qualification Sampling Period Control (GPIO0 to 31) union GPAQSEL1_REG GPAQSEL1; // GPIO A Qualifier Select 1 Register (GPIO0 to 15) union GPAQSEL2_REG GPAQSEL2; // GPIO A Qualifier Select 2 Register (GPIO16 to 31) union GPAMUX1_REG GPAMUX1; // GPIO A Mux 1 Register (GPIO0 to 15) union GPAMUX2_REG GPAMUX2; // GPIO A Mux 2 Register (GPIO16 to 31) union GPADIR_REG GPADIR; // GPIO A Direction Register (GPIO0 to 31) union GPAPUD_REG GPAPUD; // GPIO A Pull Up Disable Register (GPIO0 to 31) Uint16 rsvd1[2]; // Reserved union GPAINV_REG GPAINV; // GPIO A Input Polarity Invert Registers (GPIO0 to 31) union GPAODR_REG GPAODR; // GPIO A Open Drain Output Register (GPIO0 to GPIO31) Uint16 rsvd2[12]; // Reserved union GPAGMUX1_REG GPAGMUX1; // GPIO A Peripheral Group Mux (GPIO0 to 15) union GPAGMUX2_REG GPAGMUX2; // GPIO A Peripheral Group Mux (GPIO16 to 31) Uint16 rsvd3[4]; // Reserved union GPACSEL1_REG GPACSEL1; // GPIO A Core Select Register (GPIO0 to 7) union GPACSEL2_REG GPACSEL2; // GPIO A Core Select Register (GPIO8 to 15) union GPACSEL3_REG GPACSEL3; // GPIO A Core Select Register (GPIO16 to 23) union GPACSEL4_REG GPACSEL4; // GPIO A Core Select Register (GPIO24 to 31) Uint16 rsvd4[12]; // Reserved union GPALOCK_REG GPALOCK; // GPIO A Lock Configuration Register (GPIO0 to 31) union GPACR_REG GPACR; // GPIO A Lock Commit Register (GPIO0 to 31) union GPBCTRL_REG GPBCTRL; // GPIO B Qualification Sampling Period Control (GPIO32 to 63) union GPBQSEL1_REG GPBQSEL1; // GPIO B Qualifier Select 1 Register (GPIO32 to 47) union GPBQSEL2_REG GPBQSEL2; // GPIO B Qualifier Select 2 Register (GPIO48 to 63) union GPBMUX1_REG GPBMUX1; // GPIO B Mux 1 Register (GPIO32 to 47) union GPBMUX2_REG GPBMUX2; // GPIO B Mux 2 Register (GPIO48 to 63) union GPBDIR_REG GPBDIR; // GPIO B Direction Register (GPIO32 to 63) union GPBPUD_REG GPBPUD; // GPIO B Pull Up Disable Register (GPIO32 to 63) Uint16 rsvd5[2]; // Reserved union GPBINV_REG GPBINV; // GPIO B Input Polarity Invert Registers (GPIO32 to 63) union GPBODR_REG GPBODR; // GPIO B Open Drain Output Register (GPIO32 to GPIO63) union GPBAMSEL_REG GPBAMSEL; // GPIO B Analog Mode Select register (GPIO32 to GPIO63) Uint16 rsvd6[10]; // Reserved union GPBGMUX1_REG GPBGMUX1; // GPIO B Peripheral Group Mux (GPIO32 to 47) union GPBGMUX2_REG GPBGMUX2; // GPIO B Peripheral Group Mux (GPIO48 to 63) Uint16 rsvd7[4]; // Reserved union GPBCSEL1_REG GPBCSEL1; // GPIO B Core Select Register (GPIO32 to 39) union GPBCSEL2_REG GPBCSEL2; // GPIO B Core Select Register (GPIO40 to 47) union GPBCSEL3_REG GPBCSEL3; // GPIO B Core Select Register (GPIO48 to 55) union GPBCSEL4_REG GPBCSEL4; // GPIO B Core Select Register (GPIO56 to 63) Uint16 rsvd8[12]; // Reserved union GPBLOCK_REG GPBLOCK; // GPIO B Lock Configuration Register (GPIO32 to 63) union GPBCR_REG GPBCR; // GPIO B Lock Commit Register (GPIO32 to 63) union GPCCTRL_REG GPCCTRL; // GPIO C Qualification Sampling Period Control (GPIO64 to 95) union GPCQSEL1_REG GPCQSEL1; // GPIO C Qualifier Select 1 Register (GPIO64 to 79) union GPCQSEL2_REG GPCQSEL2; // GPIO C Qualifier Select 2 Register (GPIO80 to 95) union GPCMUX1_REG GPCMUX1; // GPIO C Mux 1 Register (GPIO64 to 79) union GPCMUX2_REG GPCMUX2; // GPIO C Mux 2 Register (GPIO80 to 95) union GPCDIR_REG GPCDIR; // GPIO C Direction Register (GPIO64 to 95) union GPCPUD_REG GPCPUD; // GPIO C Pull Up Disable Register (GPIO64 to 95) Uint16 rsvd9[2]; // Reserved union GPCINV_REG GPCINV; // GPIO C Input Polarity Invert Registers (GPIO64 to 95) union GPCODR_REG GPCODR; // GPIO C Open Drain Output Register (GPIO64 to GPIO95) Uint16 rsvd10[12]; // Reserved union GPCGMUX1_REG GPCGMUX1; // GPIO C Peripheral Group Mux (GPIO64 to 79) union GPCGMUX2_REG GPCGMUX2; // GPIO C Peripheral Group Mux (GPIO80 to 95) Uint16 rsvd11[4]; // Reserved union GPCCSEL1_REG GPCCSEL1; // GPIO C Core Select Register (GPIO64 to 71) union GPCCSEL2_REG GPCCSEL2; // GPIO C Core Select Register (GPIO72 to 79) union GPCCSEL3_REG GPCCSEL3; // GPIO C Core Select Register (GPIO80 to 87) union GPCCSEL4_REG GPCCSEL4; // GPIO C Core Select Register (GPIO88 to 95) Uint16 rsvd12[12]; // Reserved union GPCLOCK_REG GPCLOCK; // GPIO C Lock Configuration Register (GPIO64 to 95) union GPCCR_REG GPCCR; // GPIO C Lock Commit Register (GPIO64 to 95) union GPDCTRL_REG GPDCTRL; // GPIO D Qualification Sampling Period Control (GPIO96 to 127) union GPDQSEL1_REG GPDQSEL1; // GPIO D Qualifier Select 1 Register (GPIO96 to 111) union GPDQSEL2_REG GPDQSEL2; // GPIO D Qualifier Select 2 Register (GPIO112 to 127) union GPDMUX1_REG GPDMUX1; // GPIO D Mux 1 Register (GPIO96 to 111) union GPDMUX2_REG GPDMUX2; // GPIO D Mux 2 Register (GPIO112 to 127) union GPDDIR_REG GPDDIR; // GPIO D Direction Register (GPIO96 to 127) union GPDPUD_REG GPDPUD; // GPIO D Pull Up Disable Register (GPIO96 to 127) Uint16 rsvd13[2]; // Reserved union GPDINV_REG GPDINV; // GPIO D Input Polarity Invert Registers (GPIO96 to 127) union GPDODR_REG GPDODR; // GPIO D Open Drain Output Register (GPIO96 to GPIO127) Uint16 rsvd14[12]; // Reserved union GPDGMUX1_REG GPDGMUX1; // GPIO D Peripheral Group Mux (GPIO96 to 111) union GPDGMUX2_REG GPDGMUX2; // GPIO D Peripheral Group Mux (GPIO112 to 127) Uint16 rsvd15[4]; // Reserved union GPDCSEL1_REG GPDCSEL1; // GPIO D Core Select Register (GPIO96 to 103) union GPDCSEL2_REG GPDCSEL2; // GPIO D Core Select Register (GPIO104 to 111) union GPDCSEL3_REG GPDCSEL3; // GPIO D Core Select Register (GPIO112 to 119) union GPDCSEL4_REG GPDCSEL4; // GPIO D Core Select Register (GPIO120 to 127) Uint16 rsvd16[12]; // Reserved union GPDLOCK_REG GPDLOCK; // GPIO D Lock Configuration Register (GPIO96 to 127) union GPDCR_REG GPDCR; // GPIO D Lock Commit Register (GPIO96 to 127) union GPECTRL_REG GPECTRL; // GPIO E Qualification Sampling Period Control (GPIO128 to 159) union GPEQSEL1_REG GPEQSEL1; // GPIO E Qualifier Select 1 Register (GPIO128 to 143) union GPEQSEL2_REG GPEQSEL2; // GPIO E Qualifier Select 2 Register (GPIO144 to 159) union GPEMUX1_REG GPEMUX1; // GPIO E Mux 1 Register (GPIO128 to 143) union GPEMUX2_REG GPEMUX2; // GPIO E Mux 2 Register (GPIO144 to 159) union GPEDIR_REG GPEDIR; // GPIO E Direction Register (GPIO128 to 159) union GPEPUD_REG GPEPUD; // GPIO E Pull Up Disable Register (GPIO128 to 159) Uint16 rsvd17[2]; // Reserved union GPEINV_REG GPEINV; // GPIO E Input Polarity Invert Registers (GPIO128 to 159) union GPEODR_REG GPEODR; // GPIO E Open Drain Output Register (GPIO128 to GPIO159) Uint16 rsvd18[12]; // Reserved union GPEGMUX1_REG GPEGMUX1; // GPIO E Peripheral Group Mux (GPIO128 to 143) union GPEGMUX2_REG GPEGMUX2; // GPIO E Peripheral Group Mux (GPIO144 to 159) Uint16 rsvd19[4]; // Reserved union GPECSEL1_REG GPECSEL1; // GPIO E Core Select Register (GPIO128 to 135) union GPECSEL2_REG GPECSEL2; // GPIO E Core Select Register (GPIO136 to 143) union GPECSEL3_REG GPECSEL3; // GPIO E Core Select Register (GPIO144 to 151) union GPECSEL4_REG GPECSEL4; // GPIO E Core Select Register (GPIO152 to 159) Uint16 rsvd20[12]; // Reserved union GPELOCK_REG GPELOCK; // GPIO E Lock Configuration Register (GPIO128 to 159) union GPECR_REG GPECR; // GPIO E Lock Commit Register (GPIO128 to 159) union GPFCTRL_REG GPFCTRL; // GPIO F Qualification Sampling Period Control (GPIO160 to 168) union GPFQSEL1_REG GPFQSEL1; // GPIO F Qualifier Select 1 Register (GPIO160 to 168) Uint16 rsvd21[2]; // Reserved union GPFMUX1_REG GPFMUX1; // GPIO F Mux 1 Register (GPIO160 to 168) Uint16 rsvd22[2]; // Reserved union GPFDIR_REG GPFDIR; // GPIO F Direction Register (GPIO160 to 168) union GPFPUD_REG GPFPUD; // GPIO F Pull Up Disable Register (GPIO160 to 168) Uint16 rsvd23[2]; // Reserved union GPFINV_REG GPFINV; // GPIO F Input Polarity Invert Registers (GPIO160 to 168) union GPFODR_REG GPFODR; // GPIO F Open Drain Output Register (GPIO160 to GPIO168) Uint16 rsvd24[12]; // Reserved union GPFGMUX1_REG GPFGMUX1; // GPIO F Peripheral Group Mux (GPIO160 to 168) Uint16 rsvd25[6]; // Reserved union GPFCSEL1_REG GPFCSEL1; // GPIO F Core Select Register (GPIO160 to 167) union GPFCSEL2_REG GPFCSEL2; // GPIO F Core Select Register (GPIO168) Uint16 rsvd26[16]; // Reserved union GPFLOCK_REG GPFLOCK; // GPIO F Lock Configuration Register (GPIO160 to 168) union GPFCR_REG GPFCR; // GPIO F Lock Commit Register (GPIO160 to 168) }; struct GPADAT_BITS { // bits description Uint16 GPIO0:1; // 0 Data Register for this pin Uint16 GPIO1:1; // 1 Data Register for this pin Uint16 GPIO2:1; // 2 Data Register for this pin Uint16 GPIO3:1; // 3 Data Register for this pin Uint16 GPIO4:1; // 4 Data Register for this pin Uint16 GPIO5:1; // 5 Data Register for this pin Uint16 GPIO6:1; // 6 Data Register for this pin Uint16 GPIO7:1; // 7 Data Register for this pin Uint16 GPIO8:1; // 8 Data Register for this pin Uint16 GPIO9:1; // 9 Data Register for this pin Uint16 GPIO10:1; // 10 Data Register for this pin Uint16 GPIO11:1; // 11 Data Register for this pin Uint16 GPIO12:1; // 12 Data Register for this pin Uint16 GPIO13:1; // 13 Data Register for this pin Uint16 GPIO14:1; // 14 Data Register for this pin Uint16 GPIO15:1; // 15 Data Register for this pin Uint16 GPIO16:1; // 16 Data Register for this pin Uint16 GPIO17:1; // 17 Data Register for this pin Uint16 GPIO18:1; // 18 Data Register for this pin Uint16 GPIO19:1; // 19 Data Register for this pin Uint16 GPIO20:1; // 20 Data Register for this pin Uint16 GPIO21:1; // 21 Data Register for this pin Uint16 GPIO22:1; // 22 Data Register for this pin Uint16 GPIO23:1; // 23 Data Register for this pin Uint16 GPIO24:1; // 24 Data Register for this pin Uint16 GPIO25:1; // 25 Data Register for this pin Uint16 GPIO26:1; // 26 Data Register for this pin Uint16 GPIO27:1; // 27 Data Register for this pin Uint16 GPIO28:1; // 28 Data Register for this pin Uint16 GPIO29:1; // 29 Data Register for this pin Uint16 GPIO30:1; // 30 Data Register for this pin Uint16 GPIO31:1; // 31 Data Register for this pin }; union GPADAT_REG { Uint32 all; struct GPADAT_BITS bit; }; struct GPASET_BITS { // bits description Uint16 GPIO0:1; // 0 Output Set bit for this pin Uint16 GPIO1:1; // 1 Output Set bit for this pin Uint16 GPIO2:1; // 2 Output Set bit for this pin Uint16 GPIO3:1; // 3 Output Set bit for this pin Uint16 GPIO4:1; // 4 Output Set bit for this pin Uint16 GPIO5:1; // 5 Output Set bit for this pin Uint16 GPIO6:1; // 6 Output Set bit for this pin Uint16 GPIO7:1; // 7 Output Set bit for this pin Uint16 GPIO8:1; // 8 Output Set bit for this pin Uint16 GPIO9:1; // 9 Output Set bit for this pin Uint16 GPIO10:1; // 10 Output Set bit for this pin Uint16 GPIO11:1; // 11 Output Set bit for this pin Uint16 GPIO12:1; // 12 Output Set bit for this pin Uint16 GPIO13:1; // 13 Output Set bit for this pin Uint16 GPIO14:1; // 14 Output Set bit for this pin Uint16 GPIO15:1; // 15 Output Set bit for this pin Uint16 GPIO16:1; // 16 Output Set bit for this pin Uint16 GPIO17:1; // 17 Output Set bit for this pin Uint16 GPIO18:1; // 18 Output Set bit for this pin Uint16 GPIO19:1; // 19 Output Set bit for this pin Uint16 GPIO20:1; // 20 Output Set bit for this pin Uint16 GPIO21:1; // 21 Output Set bit for this pin Uint16 GPIO22:1; // 22 Output Set bit for this pin Uint16 GPIO23:1; // 23 Output Set bit for this pin Uint16 GPIO24:1; // 24 Output Set bit for this pin Uint16 GPIO25:1; // 25 Output Set bit for this pin Uint16 GPIO26:1; // 26 Output Set bit for this pin Uint16 GPIO27:1; // 27 Output Set bit for this pin Uint16 GPIO28:1; // 28 Output Set bit for this pin Uint16 GPIO29:1; // 29 Output Set bit for this pin Uint16 GPIO30:1; // 30 Output Set bit for this pin Uint16 GPIO31:1; // 31 Output Set bit for this pin }; union GPASET_REG { Uint32 all; struct GPASET_BITS bit; }; struct GPACLEAR_BITS { // bits description Uint16 GPIO0:1; // 0 Output Clear bit for this pin Uint16 GPIO1:1; // 1 Output Clear bit for this pin Uint16 GPIO2:1; // 2 Output Clear bit for this pin Uint16 GPIO3:1; // 3 Output Clear bit for this pin Uint16 GPIO4:1; // 4 Output Clear bit for this pin Uint16 GPIO5:1; // 5 Output Clear bit for this pin Uint16 GPIO6:1; // 6 Output Clear bit for this pin Uint16 GPIO7:1; // 7 Output Clear bit for this pin Uint16 GPIO8:1; // 8 Output Clear bit for this pin Uint16 GPIO9:1; // 9 Output Clear bit for this pin Uint16 GPIO10:1; // 10 Output Clear bit for this pin Uint16 GPIO11:1; // 11 Output Clear bit for this pin Uint16 GPIO12:1; // 12 Output Clear bit for this pin Uint16 GPIO13:1; // 13 Output Clear bit for this pin Uint16 GPIO14:1; // 14 Output Clear bit for this pin Uint16 GPIO15:1; // 15 Output Clear bit for this pin Uint16 GPIO16:1; // 16 Output Clear bit for this pin Uint16 GPIO17:1; // 17 Output Clear bit for this pin Uint16 GPIO18:1; // 18 Output Clear bit for this pin Uint16 GPIO19:1; // 19 Output Clear bit for this pin Uint16 GPIO20:1; // 20 Output Clear bit for this pin Uint16 GPIO21:1; // 21 Output Clear bit for this pin Uint16 GPIO22:1; // 22 Output Clear bit for this pin Uint16 GPIO23:1; // 23 Output Clear bit for this pin Uint16 GPIO24:1; // 24 Output Clear bit for this pin Uint16 GPIO25:1; // 25 Output Clear bit for this pin Uint16 GPIO26:1; // 26 Output Clear bit for this pin Uint16 GPIO27:1; // 27 Output Clear bit for this pin Uint16 GPIO28:1; // 28 Output Clear bit for this pin Uint16 GPIO29:1; // 29 Output Clear bit for this pin Uint16 GPIO30:1; // 30 Output Clear bit for this pin Uint16 GPIO31:1; // 31 Output Clear bit for this pin }; union GPACLEAR_REG { Uint32 all; struct GPACLEAR_BITS bit; }; struct GPATOGGLE_BITS { // bits description Uint16 GPIO0:1; // 0 Output Toggle bit for this pin Uint16 GPIO1:1; // 1 Output Toggle bit for this pin Uint16 GPIO2:1; // 2 Output Toggle bit for this pin Uint16 GPIO3:1; // 3 Output Toggle bit for this pin Uint16 GPIO4:1; // 4 Output Toggle bit for this pin Uint16 GPIO5:1; // 5 Output Toggle bit for this pin Uint16 GPIO6:1; // 6 Output Toggle bit for this pin Uint16 GPIO7:1; // 7 Output Toggle bit for this pin Uint16 GPIO8:1; // 8 Output Toggle bit for this pin Uint16 GPIO9:1; // 9 Output Toggle bit for this pin Uint16 GPIO10:1; // 10 Output Toggle bit for this pin Uint16 GPIO11:1; // 11 Output Toggle bit for this pin Uint16 GPIO12:1; // 12 Output Toggle bit for this pin Uint16 GPIO13:1; // 13 Output Toggle bit for this pin Uint16 GPIO14:1; // 14 Output Toggle bit for this pin Uint16 GPIO15:1; // 15 Output Toggle bit for this pin Uint16 GPIO16:1; // 16 Output Toggle bit for this pin Uint16 GPIO17:1; // 17 Output Toggle bit for this pin Uint16 GPIO18:1; // 18 Output Toggle bit for this pin Uint16 GPIO19:1; // 19 Output Toggle bit for this pin Uint16 GPIO20:1; // 20 Output Toggle bit for this pin Uint16 GPIO21:1; // 21 Output Toggle bit for this pin Uint16 GPIO22:1; // 22 Output Toggle bit for this pin Uint16 GPIO23:1; // 23 Output Toggle bit for this pin Uint16 GPIO24:1; // 24 Output Toggle bit for this pin Uint16 GPIO25:1; // 25 Output Toggle bit for this pin Uint16 GPIO26:1; // 26 Output Toggle bit for this pin Uint16 GPIO27:1; // 27 Output Toggle bit for this pin Uint16 GPIO28:1; // 28 Output Toggle bit for this pin Uint16 GPIO29:1; // 29 Output Toggle bit for this pin Uint16 GPIO30:1; // 30 Output Toggle bit for this pin Uint16 GPIO31:1; // 31 Output Toggle bit for this pin }; union GPATOGGLE_REG { Uint32 all; struct GPATOGGLE_BITS bit; }; struct GPBDAT_BITS { // bits description Uint16 GPIO32:1; // 0 Data Register for this pin Uint16 GPIO33:1; // 1 Data Register for this pin Uint16 GPIO34:1; // 2 Data Register for this pin Uint16 GPIO35:1; // 3 Data Register for this pin Uint16 GPIO36:1; // 4 Data Register for this pin Uint16 GPIO37:1; // 5 Data Register for this pin Uint16 GPIO38:1; // 6 Data Register for this pin Uint16 GPIO39:1; // 7 Data Register for this pin Uint16 GPIO40:1; // 8 Data Register for this pin Uint16 GPIO41:1; // 9 Data Register for this pin Uint16 GPIO42:1; // 10 Data Register for this pin Uint16 GPIO43:1; // 11 Data Register for this pin Uint16 GPIO44:1; // 12 Data Register for this pin Uint16 GPIO45:1; // 13 Data Register for this pin Uint16 GPIO46:1; // 14 Data Register for this pin Uint16 GPIO47:1; // 15 Data Register for this pin Uint16 GPIO48:1; // 16 Data Register for this pin Uint16 GPIO49:1; // 17 Data Register for this pin Uint16 GPIO50:1; // 18 Data Register for this pin Uint16 GPIO51:1; // 19 Data Register for this pin Uint16 GPIO52:1; // 20 Data Register for this pin Uint16 GPIO53:1; // 21 Data Register for this pin Uint16 GPIO54:1; // 22 Data Register for this pin Uint16 GPIO55:1; // 23 Data Register for this pin Uint16 GPIO56:1; // 24 Data Register for this pin Uint16 GPIO57:1; // 25 Data Register for this pin Uint16 GPIO58:1; // 26 Data Register for this pin Uint16 GPIO59:1; // 27 Data Register for this pin Uint16 GPIO60:1; // 28 Data Register for this pin Uint16 GPIO61:1; // 29 Data Register for this pin Uint16 GPIO62:1; // 30 Data Register for this pin Uint16 GPIO63:1; // 31 Data Register for this pin }; union GPBDAT_REG { Uint32 all; struct GPBDAT_BITS bit; }; struct GPBSET_BITS { // bits description Uint16 GPIO32:1; // 0 Output Set bit for this pin Uint16 GPIO33:1; // 1 Output Set bit for this pin Uint16 GPIO34:1; // 2 Output Set bit for this pin Uint16 GPIO35:1; // 3 Output Set bit for this pin Uint16 GPIO36:1; // 4 Output Set bit for this pin Uint16 GPIO37:1; // 5 Output Set bit for this pin Uint16 GPIO38:1; // 6 Output Set bit for this pin Uint16 GPIO39:1; // 7 Output Set bit for this pin Uint16 GPIO40:1; // 8 Output Set bit for this pin Uint16 GPIO41:1; // 9 Output Set bit for this pin Uint16 GPIO42:1; // 10 Output Set bit for this pin Uint16 GPIO43:1; // 11 Output Set bit for this pin Uint16 GPIO44:1; // 12 Output Set bit for this pin Uint16 GPIO45:1; // 13 Output Set bit for this pin Uint16 GPIO46:1; // 14 Output Set bit for this pin Uint16 GPIO47:1; // 15 Output Set bit for this pin Uint16 GPIO48:1; // 16 Output Set bit for this pin Uint16 GPIO49:1; // 17 Output Set bit for this pin Uint16 GPIO50:1; // 18 Output Set bit for this pin Uint16 GPIO51:1; // 19 Output Set bit for this pin Uint16 GPIO52:1; // 20 Output Set bit for this pin Uint16 GPIO53:1; // 21 Output Set bit for this pin Uint16 GPIO54:1; // 22 Output Set bit for this pin Uint16 GPIO55:1; // 23 Output Set bit for this pin Uint16 GPIO56:1; // 24 Output Set bit for this pin Uint16 GPIO57:1; // 25 Output Set bit for this pin Uint16 GPIO58:1; // 26 Output Set bit for this pin Uint16 GPIO59:1; // 27 Output Set bit for this pin Uint16 GPIO60:1; // 28 Output Set bit for this pin Uint16 GPIO61:1; // 29 Output Set bit for this pin Uint16 GPIO62:1; // 30 Output Set bit for this pin Uint16 GPIO63:1; // 31 Output Set bit for this pin }; union GPBSET_REG { Uint32 all; struct GPBSET_BITS bit; }; struct GPBCLEAR_BITS { // bits description Uint16 GPIO32:1; // 0 Output Clear bit for this pin Uint16 GPIO33:1; // 1 Output Clear bit for this pin Uint16 GPIO34:1; // 2 Output Clear bit for this pin Uint16 GPIO35:1; // 3 Output Clear bit for this pin Uint16 GPIO36:1; // 4 Output Clear bit for this pin Uint16 GPIO37:1; // 5 Output Clear bit for this pin Uint16 GPIO38:1; // 6 Output Clear bit for this pin Uint16 GPIO39:1; // 7 Output Clear bit for this pin Uint16 GPIO40:1; // 8 Output Clear bit for this pin Uint16 GPIO41:1; // 9 Output Clear bit for this pin Uint16 GPIO42:1; // 10 Output Clear bit for this pin Uint16 GPIO43:1; // 11 Output Clear bit for this pin Uint16 GPIO44:1; // 12 Output Clear bit for this pin Uint16 GPIO45:1; // 13 Output Clear bit for this pin Uint16 GPIO46:1; // 14 Output Clear bit for this pin Uint16 GPIO47:1; // 15 Output Clear bit for this pin Uint16 GPIO48:1; // 16 Output Clear bit for this pin Uint16 GPIO49:1; // 17 Output Clear bit for this pin Uint16 GPIO50:1; // 18 Output Clear bit for this pin Uint16 GPIO51:1; // 19 Output Clear bit for this pin Uint16 GPIO52:1; // 20 Output Clear bit for this pin Uint16 GPIO53:1; // 21 Output Clear bit for this pin Uint16 GPIO54:1; // 22 Output Clear bit for this pin Uint16 GPIO55:1; // 23 Output Clear bit for this pin Uint16 GPIO56:1; // 24 Output Clear bit for this pin Uint16 GPIO57:1; // 25 Output Clear bit for this pin Uint16 GPIO58:1; // 26 Output Clear bit for this pin Uint16 GPIO59:1; // 27 Output Clear bit for this pin Uint16 GPIO60:1; // 28 Output Clear bit for this pin Uint16 GPIO61:1; // 29 Output Clear bit for this pin Uint16 GPIO62:1; // 30 Output Clear bit for this pin Uint16 GPIO63:1; // 31 Output Clear bit for this pin }; union GPBCLEAR_REG { Uint32 all; struct GPBCLEAR_BITS bit; }; struct GPBTOGGLE_BITS { // bits description Uint16 GPIO32:1; // 0 Output Toggle bit for this pin Uint16 GPIO33:1; // 1 Output Toggle bit for this pin Uint16 GPIO34:1; // 2 Output Toggle bit for this pin Uint16 GPIO35:1; // 3 Output Toggle bit for this pin Uint16 GPIO36:1; // 4 Output Toggle bit for this pin Uint16 GPIO37:1; // 5 Output Toggle bit for this pin Uint16 GPIO38:1; // 6 Output Toggle bit for this pin Uint16 GPIO39:1; // 7 Output Toggle bit for this pin Uint16 GPIO40:1; // 8 Output Toggle bit for this pin Uint16 GPIO41:1; // 9 Output Toggle bit for this pin Uint16 GPIO42:1; // 10 Output Toggle bit for this pin Uint16 GPIO43:1; // 11 Output Toggle bit for this pin Uint16 GPIO44:1; // 12 Output Toggle bit for this pin Uint16 GPIO45:1; // 13 Output Toggle bit for this pin Uint16 GPIO46:1; // 14 Output Toggle bit for this pin Uint16 GPIO47:1; // 15 Output Toggle bit for this pin Uint16 GPIO48:1; // 16 Output Toggle bit for this pin Uint16 GPIO49:1; // 17 Output Toggle bit for this pin Uint16 GPIO50:1; // 18 Output Toggle bit for this pin Uint16 GPIO51:1; // 19 Output Toggle bit for this pin Uint16 GPIO52:1; // 20 Output Toggle bit for this pin Uint16 GPIO53:1; // 21 Output Toggle bit for this pin Uint16 GPIO54:1; // 22 Output Toggle bit for this pin Uint16 GPIO55:1; // 23 Output Toggle bit for this pin Uint16 GPIO56:1; // 24 Output Toggle bit for this pin Uint16 GPIO57:1; // 25 Output Toggle bit for this pin Uint16 GPIO58:1; // 26 Output Toggle bit for this pin Uint16 GPIO59:1; // 27 Output Toggle bit for this pin Uint16 GPIO60:1; // 28 Output Toggle bit for this pin Uint16 GPIO61:1; // 29 Output Toggle bit for this pin Uint16 GPIO62:1; // 30 Output Toggle bit for this pin Uint16 GPIO63:1; // 31 Output Toggle bit for this pin }; union GPBTOGGLE_REG { Uint32 all; struct GPBTOGGLE_BITS bit; }; struct GPCDAT_BITS { // bits description Uint16 GPIO64:1; // 0 Data Register for this pin Uint16 GPIO65:1; // 1 Data Register for this pin Uint16 GPIO66:1; // 2 Data Register for this pin Uint16 GPIO67:1; // 3 Data Register for this pin Uint16 GPIO68:1; // 4 Data Register for this pin Uint16 GPIO69:1; // 5 Data Register for this pin Uint16 GPIO70:1; // 6 Data Register for this pin Uint16 GPIO71:1; // 7 Data Register for this pin Uint16 GPIO72:1; // 8 Data Register for this pin Uint16 GPIO73:1; // 9 Data Register for this pin Uint16 GPIO74:1; // 10 Data Register for this pin Uint16 GPIO75:1; // 11 Data Register for this pin Uint16 GPIO76:1; // 12 Data Register for this pin Uint16 GPIO77:1; // 13 Data Register for this pin Uint16 GPIO78:1; // 14 Data Register for this pin Uint16 GPIO79:1; // 15 Data Register for this pin Uint16 GPIO80:1; // 16 Data Register for this pin Uint16 GPIO81:1; // 17 Data Register for this pin Uint16 GPIO82:1; // 18 Data Register for this pin Uint16 GPIO83:1; // 19 Data Register for this pin Uint16 GPIO84:1; // 20 Data Register for this pin Uint16 GPIO85:1; // 21 Data Register for this pin Uint16 GPIO86:1; // 22 Data Register for this pin Uint16 GPIO87:1; // 23 Data Register for this pin Uint16 GPIO88:1; // 24 Data Register for this pin Uint16 GPIO89:1; // 25 Data Register for this pin Uint16 GPIO90:1; // 26 Data Register for this pin Uint16 GPIO91:1; // 27 Data Register for this pin Uint16 GPIO92:1; // 28 Data Register for this pin Uint16 GPIO93:1; // 29 Data Register for this pin Uint16 GPIO94:1; // 30 Data Register for this pin Uint16 GPIO95:1; // 31 Data Register for this pin }; union GPCDAT_REG { Uint32 all; struct GPCDAT_BITS bit; }; struct GPCSET_BITS { // bits description Uint16 GPIO64:1; // 0 Output Set bit for this pin Uint16 GPIO65:1; // 1 Output Set bit for this pin Uint16 GPIO66:1; // 2 Output Set bit for this pin Uint16 GPIO67:1; // 3 Output Set bit for this pin Uint16 GPIO68:1; // 4 Output Set bit for this pin Uint16 GPIO69:1; // 5 Output Set bit for this pin Uint16 GPIO70:1; // 6 Output Set bit for this pin Uint16 GPIO71:1; // 7 Output Set bit for this pin Uint16 GPIO72:1; // 8 Output Set bit for this pin Uint16 GPIO73:1; // 9 Output Set bit for this pin Uint16 GPIO74:1; // 10 Output Set bit for this pin Uint16 GPIO75:1; // 11 Output Set bit for this pin Uint16 GPIO76:1; // 12 Output Set bit for this pin Uint16 GPIO77:1; // 13 Output Set bit for this pin Uint16 GPIO78:1; // 14 Output Set bit for this pin Uint16 GPIO79:1; // 15 Output Set bit for this pin Uint16 GPIO80:1; // 16 Output Set bit for this pin Uint16 GPIO81:1; // 17 Output Set bit for this pin Uint16 GPIO82:1; // 18 Output Set bit for this pin Uint16 GPIO83:1; // 19 Output Set bit for this pin Uint16 GPIO84:1; // 20 Output Set bit for this pin Uint16 GPIO85:1; // 21 Output Set bit for this pin Uint16 GPIO86:1; // 22 Output Set bit for this pin Uint16 GPIO87:1; // 23 Output Set bit for this pin Uint16 GPIO88:1; // 24 Output Set bit for this pin Uint16 GPIO89:1; // 25 Output Set bit for this pin Uint16 GPIO90:1; // 26 Output Set bit for this pin Uint16 GPIO91:1; // 27 Output Set bit for this pin Uint16 GPIO92:1; // 28 Output Set bit for this pin Uint16 GPIO93:1; // 29 Output Set bit for this pin Uint16 GPIO94:1; // 30 Output Set bit for this pin Uint16 GPIO95:1; // 31 Output Set bit for this pin }; union GPCSET_REG { Uint32 all; struct GPCSET_BITS bit; }; struct GPCCLEAR_BITS { // bits description Uint16 GPIO64:1; // 0 Output Clear bit for this pin Uint16 GPIO65:1; // 1 Output Clear bit for this pin Uint16 GPIO66:1; // 2 Output Clear bit for this pin Uint16 GPIO67:1; // 3 Output Clear bit for this pin Uint16 GPIO68:1; // 4 Output Clear bit for this pin Uint16 GPIO69:1; // 5 Output Clear bit for this pin Uint16 GPIO70:1; // 6 Output Clear bit for this pin Uint16 GPIO71:1; // 7 Output Clear bit for this pin Uint16 GPIO72:1; // 8 Output Clear bit for this pin Uint16 GPIO73:1; // 9 Output Clear bit for this pin Uint16 GPIO74:1; // 10 Output Clear bit for this pin Uint16 GPIO75:1; // 11 Output Clear bit for this pin Uint16 GPIO76:1; // 12 Output Clear bit for this pin Uint16 GPIO77:1; // 13 Output Clear bit for this pin Uint16 GPIO78:1; // 14 Output Clear bit for this pin Uint16 GPIO79:1; // 15 Output Clear bit for this pin Uint16 GPIO80:1; // 16 Output Clear bit for this pin Uint16 GPIO81:1; // 17 Output Clear bit for this pin Uint16 GPIO82:1; // 18 Output Clear bit for this pin Uint16 GPIO83:1; // 19 Output Clear bit for this pin Uint16 GPIO84:1; // 20 Output Clear bit for this pin Uint16 GPIO85:1; // 21 Output Clear bit for this pin Uint16 GPIO86:1; // 22 Output Clear bit for this pin Uint16 GPIO87:1; // 23 Output Clear bit for this pin Uint16 GPIO88:1; // 24 Output Clear bit for this pin Uint16 GPIO89:1; // 25 Output Clear bit for this pin Uint16 GPIO90:1; // 26 Output Clear bit for this pin Uint16 GPIO91:1; // 27 Output Clear bit for this pin Uint16 GPIO92:1; // 28 Output Clear bit for this pin Uint16 GPIO93:1; // 29 Output Clear bit for this pin Uint16 GPIO94:1; // 30 Output Clear bit for this pin Uint16 GPIO95:1; // 31 Output Clear bit for this pin }; union GPCCLEAR_REG { Uint32 all; struct GPCCLEAR_BITS bit; }; struct GPCTOGGLE_BITS { // bits description Uint16 GPIO64:1; // 0 Output Toggle bit for this pin Uint16 GPIO65:1; // 1 Output Toggle bit for this pin Uint16 GPIO66:1; // 2 Output Toggle bit for this pin Uint16 GPIO67:1; // 3 Output Toggle bit for this pin Uint16 GPIO68:1; // 4 Output Toggle bit for this pin Uint16 GPIO69:1; // 5 Output Toggle bit for this pin Uint16 GPIO70:1; // 6 Output Toggle bit for this pin Uint16 GPIO71:1; // 7 Output Toggle bit for this pin Uint16 GPIO72:1; // 8 Output Toggle bit for this pin Uint16 GPIO73:1; // 9 Output Toggle bit for this pin Uint16 GPIO74:1; // 10 Output Toggle bit for this pin Uint16 GPIO75:1; // 11 Output Toggle bit for this pin Uint16 GPIO76:1; // 12 Output Toggle bit for this pin Uint16 GPIO77:1; // 13 Output Toggle bit for this pin Uint16 GPIO78:1; // 14 Output Toggle bit for this pin Uint16 GPIO79:1; // 15 Output Toggle bit for this pin Uint16 GPIO80:1; // 16 Output Toggle bit for this pin Uint16 GPIO81:1; // 17 Output Toggle bit for this pin Uint16 GPIO82:1; // 18 Output Toggle bit for this pin Uint16 GPIO83:1; // 19 Output Toggle bit for this pin Uint16 GPIO84:1; // 20 Output Toggle bit for this pin Uint16 GPIO85:1; // 21 Output Toggle bit for this pin Uint16 GPIO86:1; // 22 Output Toggle bit for this pin Uint16 GPIO87:1; // 23 Output Toggle bit for this pin Uint16 GPIO88:1; // 24 Output Toggle bit for this pin Uint16 GPIO89:1; // 25 Output Toggle bit for this pin Uint16 GPIO90:1; // 26 Output Toggle bit for this pin Uint16 GPIO91:1; // 27 Output Toggle bit for this pin Uint16 GPIO92:1; // 28 Output Toggle bit for this pin Uint16 GPIO93:1; // 29 Output Toggle bit for this pin Uint16 GPIO94:1; // 30 Output Toggle bit for this pin Uint16 GPIO95:1; // 31 Output Toggle bit for this pin }; union GPCTOGGLE_REG { Uint32 all; struct GPCTOGGLE_BITS bit; }; struct GPDDAT_BITS { // bits description Uint16 GPIO96:1; // 0 Data Register for this pin Uint16 GPIO97:1; // 1 Data Register for this pin Uint16 GPIO98:1; // 2 Data Register for this pin Uint16 GPIO99:1; // 3 Data Register for this pin Uint16 GPIO100:1; // 4 Data Register for this pin Uint16 GPIO101:1; // 5 Data Register for this pin Uint16 GPIO102:1; // 6 Data Register for this pin Uint16 GPIO103:1; // 7 Data Register for this pin Uint16 GPIO104:1; // 8 Data Register for this pin Uint16 GPIO105:1; // 9 Data Register for this pin Uint16 GPIO106:1; // 10 Data Register for this pin Uint16 GPIO107:1; // 11 Data Register for this pin Uint16 GPIO108:1; // 12 Data Register for this pin Uint16 GPIO109:1; // 13 Data Register for this pin Uint16 GPIO110:1; // 14 Data Register for this pin Uint16 GPIO111:1; // 15 Data Register for this pin Uint16 GPIO112:1; // 16 Data Register for this pin Uint16 GPIO113:1; // 17 Data Register for this pin Uint16 GPIO114:1; // 18 Data Register for this pin Uint16 GPIO115:1; // 19 Data Register for this pin Uint16 GPIO116:1; // 20 Data Register for this pin Uint16 GPIO117:1; // 21 Data Register for this pin Uint16 GPIO118:1; // 22 Data Register for this pin Uint16 GPIO119:1; // 23 Data Register for this pin Uint16 GPIO120:1; // 24 Data Register for this pin Uint16 GPIO121:1; // 25 Data Register for this pin Uint16 GPIO122:1; // 26 Data Register for this pin Uint16 GPIO123:1; // 27 Data Register for this pin Uint16 GPIO124:1; // 28 Data Register for this pin Uint16 GPIO125:1; // 29 Data Register for this pin Uint16 GPIO126:1; // 30 Data Register for this pin Uint16 GPIO127:1; // 31 Data Register for this pin }; union GPDDAT_REG { Uint32 all; struct GPDDAT_BITS bit; }; struct GPDSET_BITS { // bits description Uint16 GPIO96:1; // 0 Output Set bit for this pin Uint16 GPIO97:1; // 1 Output Set bit for this pin Uint16 GPIO98:1; // 2 Output Set bit for this pin Uint16 GPIO99:1; // 3 Output Set bit for this pin Uint16 GPIO100:1; // 4 Output Set bit for this pin Uint16 GPIO101:1; // 5 Output Set bit for this pin Uint16 GPIO102:1; // 6 Output Set bit for this pin Uint16 GPIO103:1; // 7 Output Set bit for this pin Uint16 GPIO104:1; // 8 Output Set bit for this pin Uint16 GPIO105:1; // 9 Output Set bit for this pin Uint16 GPIO106:1; // 10 Output Set bit for this pin Uint16 GPIO107:1; // 11 Output Set bit for this pin Uint16 GPIO108:1; // 12 Output Set bit for this pin Uint16 GPIO109:1; // 13 Output Set bit for this pin Uint16 GPIO110:1; // 14 Output Set bit for this pin Uint16 GPIO111:1; // 15 Output Set bit for this pin Uint16 GPIO112:1; // 16 Output Set bit for this pin Uint16 GPIO113:1; // 17 Output Set bit for this pin Uint16 GPIO114:1; // 18 Output Set bit for this pin Uint16 GPIO115:1; // 19 Output Set bit for this pin Uint16 GPIO116:1; // 20 Output Set bit for this pin Uint16 GPIO117:1; // 21 Output Set bit for this pin Uint16 GPIO118:1; // 22 Output Set bit for this pin Uint16 GPIO119:1; // 23 Output Set bit for this pin Uint16 GPIO120:1; // 24 Output Set bit for this pin Uint16 GPIO121:1; // 25 Output Set bit for this pin Uint16 GPIO122:1; // 26 Output Set bit for this pin Uint16 GPIO123:1; // 27 Output Set bit for this pin Uint16 GPIO124:1; // 28 Output Set bit for this pin Uint16 GPIO125:1; // 29 Output Set bit for this pin Uint16 GPIO126:1; // 30 Output Set bit for this pin Uint16 GPIO127:1; // 31 Output Set bit for this pin }; union GPDSET_REG { Uint32 all; struct GPDSET_BITS bit; }; struct GPDCLEAR_BITS { // bits description Uint16 GPIO96:1; // 0 Output Clear bit for this pin Uint16 GPIO97:1; // 1 Output Clear bit for this pin Uint16 GPIO98:1; // 2 Output Clear bit for this pin Uint16 GPIO99:1; // 3 Output Clear bit for this pin Uint16 GPIO100:1; // 4 Output Clear bit for this pin Uint16 GPIO101:1; // 5 Output Clear bit for this pin Uint16 GPIO102:1; // 6 Output Clear bit for this pin Uint16 GPIO103:1; // 7 Output Clear bit for this pin Uint16 GPIO104:1; // 8 Output Clear bit for this pin Uint16 GPIO105:1; // 9 Output Clear bit for this pin Uint16 GPIO106:1; // 10 Output Clear bit for this pin Uint16 GPIO107:1; // 11 Output Clear bit for this pin Uint16 GPIO108:1; // 12 Output Clear bit for this pin Uint16 GPIO109:1; // 13 Output Clear bit for this pin Uint16 GPIO110:1; // 14 Output Clear bit for this pin Uint16 GPIO111:1; // 15 Output Clear bit for this pin Uint16 GPIO112:1; // 16 Output Clear bit for this pin Uint16 GPIO113:1; // 17 Output Clear bit for this pin Uint16 GPIO114:1; // 18 Output Clear bit for this pin Uint16 GPIO115:1; // 19 Output Clear bit for this pin Uint16 GPIO116:1; // 20 Output Clear bit for this pin Uint16 GPIO117:1; // 21 Output Clear bit for this pin Uint16 GPIO118:1; // 22 Output Clear bit for this pin Uint16 GPIO119:1; // 23 Output Clear bit for this pin Uint16 GPIO120:1; // 24 Output Clear bit for this pin Uint16 GPIO121:1; // 25 Output Clear bit for this pin Uint16 GPIO122:1; // 26 Output Clear bit for this pin Uint16 GPIO123:1; // 27 Output Clear bit for this pin Uint16 GPIO124:1; // 28 Output Clear bit for this pin Uint16 GPIO125:1; // 29 Output Clear bit for this pin Uint16 GPIO126:1; // 30 Output Clear bit for this pin Uint16 GPIO127:1; // 31 Output Clear bit for this pin }; union GPDCLEAR_REG { Uint32 all; struct GPDCLEAR_BITS bit; }; struct GPDTOGGLE_BITS { // bits description Uint16 GPIO96:1; // 0 Output Toggle bit for this pin Uint16 GPIO97:1; // 1 Output Toggle bit for this pin Uint16 GPIO98:1; // 2 Output Toggle bit for this pin Uint16 GPIO99:1; // 3 Output Toggle bit for this pin Uint16 GPIO100:1; // 4 Output Toggle bit for this pin Uint16 GPIO101:1; // 5 Output Toggle bit for this pin Uint16 GPIO102:1; // 6 Output Toggle bit for this pin Uint16 GPIO103:1; // 7 Output Toggle bit for this pin Uint16 GPIO104:1; // 8 Output Toggle bit for this pin Uint16 GPIO105:1; // 9 Output Toggle bit for this pin Uint16 GPIO106:1; // 10 Output Toggle bit for this pin Uint16 GPIO107:1; // 11 Output Toggle bit for this pin Uint16 GPIO108:1; // 12 Output Toggle bit for this pin Uint16 GPIO109:1; // 13 Output Toggle bit for this pin Uint16 GPIO110:1; // 14 Output Toggle bit for this pin Uint16 GPIO111:1; // 15 Output Toggle bit for this pin Uint16 GPIO112:1; // 16 Output Toggle bit for this pin Uint16 GPIO113:1; // 17 Output Toggle bit for this pin Uint16 GPIO114:1; // 18 Output Toggle bit for this pin Uint16 GPIO115:1; // 19 Output Toggle bit for this pin Uint16 GPIO116:1; // 20 Output Toggle bit for this pin Uint16 GPIO117:1; // 21 Output Toggle bit for this pin Uint16 GPIO118:1; // 22 Output Toggle bit for this pin Uint16 GPIO119:1; // 23 Output Toggle bit for this pin Uint16 GPIO120:1; // 24 Output Toggle bit for this pin Uint16 GPIO121:1; // 25 Output Toggle bit for this pin Uint16 GPIO122:1; // 26 Output Toggle bit for this pin Uint16 GPIO123:1; // 27 Output Toggle bit for this pin Uint16 GPIO124:1; // 28 Output Toggle bit for this pin Uint16 GPIO125:1; // 29 Output Toggle bit for this pin Uint16 GPIO126:1; // 30 Output Toggle bit for this pin Uint16 GPIO127:1; // 31 Output Toggle bit for this pin }; union GPDTOGGLE_REG { Uint32 all; struct GPDTOGGLE_BITS bit; }; struct GPEDAT_BITS { // bits description Uint16 GPIO128:1; // 0 Data Register for this pin Uint16 GPIO129:1; // 1 Data Register for this pin Uint16 GPIO130:1; // 2 Data Register for this pin Uint16 GPIO131:1; // 3 Data Register for this pin Uint16 GPIO132:1; // 4 Data Register for this pin Uint16 GPIO133:1; // 5 Data Register for this pin Uint16 GPIO134:1; // 6 Data Register for this pin Uint16 GPIO135:1; // 7 Data Register for this pin Uint16 GPIO136:1; // 8 Data Register for this pin Uint16 GPIO137:1; // 9 Data Register for this pin Uint16 GPIO138:1; // 10 Data Register for this pin Uint16 GPIO139:1; // 11 Data Register for this pin Uint16 GPIO140:1; // 12 Data Register for this pin Uint16 GPIO141:1; // 13 Data Register for this pin Uint16 GPIO142:1; // 14 Data Register for this pin Uint16 GPIO143:1; // 15 Data Register for this pin Uint16 GPIO144:1; // 16 Data Register for this pin Uint16 GPIO145:1; // 17 Data Register for this pin Uint16 GPIO146:1; // 18 Data Register for this pin Uint16 GPIO147:1; // 19 Data Register for this pin Uint16 GPIO148:1; // 20 Data Register for this pin Uint16 GPIO149:1; // 21 Data Register for this pin Uint16 GPIO150:1; // 22 Data Register for this pin Uint16 GPIO151:1; // 23 Data Register for this pin Uint16 GPIO152:1; // 24 Data Register for this pin Uint16 GPIO153:1; // 25 Data Register for this pin Uint16 GPIO154:1; // 26 Data Register for this pin Uint16 GPIO155:1; // 27 Data Register for this pin Uint16 GPIO156:1; // 28 Data Register for this pin Uint16 GPIO157:1; // 29 Data Register for this pin Uint16 GPIO158:1; // 30 Data Register for this pin Uint16 GPIO159:1; // 31 Data Register for this pin }; union GPEDAT_REG { Uint32 all; struct GPEDAT_BITS bit; }; struct GPESET_BITS { // bits description Uint16 GPIO128:1; // 0 Output Set bit for this pin Uint16 GPIO129:1; // 1 Output Set bit for this pin Uint16 GPIO130:1; // 2 Output Set bit for this pin Uint16 GPIO131:1; // 3 Output Set bit for this pin Uint16 GPIO132:1; // 4 Output Set bit for this pin Uint16 GPIO133:1; // 5 Output Set bit for this pin Uint16 GPIO134:1; // 6 Output Set bit for this pin Uint16 GPIO135:1; // 7 Output Set bit for this pin Uint16 GPIO136:1; // 8 Output Set bit for this pin Uint16 GPIO137:1; // 9 Output Set bit for this pin Uint16 GPIO138:1; // 10 Output Set bit for this pin Uint16 GPIO139:1; // 11 Output Set bit for this pin Uint16 GPIO140:1; // 12 Output Set bit for this pin Uint16 GPIO141:1; // 13 Output Set bit for this pin Uint16 GPIO142:1; // 14 Output Set bit for this pin Uint16 GPIO143:1; // 15 Output Set bit for this pin Uint16 GPIO144:1; // 16 Output Set bit for this pin Uint16 GPIO145:1; // 17 Output Set bit for this pin Uint16 GPIO146:1; // 18 Output Set bit for this pin Uint16 GPIO147:1; // 19 Output Set bit for this pin Uint16 GPIO148:1; // 20 Output Set bit for this pin Uint16 GPIO149:1; // 21 Output Set bit for this pin Uint16 GPIO150:1; // 22 Output Set bit for this pin Uint16 GPIO151:1; // 23 Output Set bit for this pin Uint16 GPIO152:1; // 24 Output Set bit for this pin Uint16 GPIO153:1; // 25 Output Set bit for this pin Uint16 GPIO154:1; // 26 Output Set bit for this pin Uint16 GPIO155:1; // 27 Output Set bit for this pin Uint16 GPIO156:1; // 28 Output Set bit for this pin Uint16 GPIO157:1; // 29 Output Set bit for this pin Uint16 GPIO158:1; // 30 Output Set bit for this pin Uint16 GPIO159:1; // 31 Output Set bit for this pin }; union GPESET_REG { Uint32 all; struct GPESET_BITS bit; }; struct GPECLEAR_BITS { // bits description Uint16 GPIO128:1; // 0 Output Clear bit for this pin Uint16 GPIO129:1; // 1 Output Clear bit for this pin Uint16 GPIO130:1; // 2 Output Clear bit for this pin Uint16 GPIO131:1; // 3 Output Clear bit for this pin Uint16 GPIO132:1; // 4 Output Clear bit for this pin Uint16 GPIO133:1; // 5 Output Clear bit for this pin Uint16 GPIO134:1; // 6 Output Clear bit for this pin Uint16 GPIO135:1; // 7 Output Clear bit for this pin Uint16 GPIO136:1; // 8 Output Clear bit for this pin Uint16 GPIO137:1; // 9 Output Clear bit for this pin Uint16 GPIO138:1; // 10 Output Clear bit for this pin Uint16 GPIO139:1; // 11 Output Clear bit for this pin Uint16 GPIO140:1; // 12 Output Clear bit for this pin Uint16 GPIO141:1; // 13 Output Clear bit for this pin Uint16 GPIO142:1; // 14 Output Clear bit for this pin Uint16 GPIO143:1; // 15 Output Clear bit for this pin Uint16 GPIO144:1; // 16 Output Clear bit for this pin Uint16 GPIO145:1; // 17 Output Clear bit for this pin Uint16 GPIO146:1; // 18 Output Clear bit for this pin Uint16 GPIO147:1; // 19 Output Clear bit for this pin Uint16 GPIO148:1; // 20 Output Clear bit for this pin Uint16 GPIO149:1; // 21 Output Clear bit for this pin Uint16 GPIO150:1; // 22 Output Clear bit for this pin Uint16 GPIO151:1; // 23 Output Clear bit for this pin Uint16 GPIO152:1; // 24 Output Clear bit for this pin Uint16 GPIO153:1; // 25 Output Clear bit for this pin Uint16 GPIO154:1; // 26 Output Clear bit for this pin Uint16 GPIO155:1; // 27 Output Clear bit for this pin Uint16 GPIO156:1; // 28 Output Clear bit for this pin Uint16 GPIO157:1; // 29 Output Clear bit for this pin Uint16 GPIO158:1; // 30 Output Clear bit for this pin Uint16 GPIO159:1; // 31 Output Clear bit for this pin }; union GPECLEAR_REG { Uint32 all; struct GPECLEAR_BITS bit; }; struct GPETOGGLE_BITS { // bits description Uint16 GPIO128:1; // 0 Output Toggle bit for this pin Uint16 GPIO129:1; // 1 Output Toggle bit for this pin Uint16 GPIO130:1; // 2 Output Toggle bit for this pin Uint16 GPIO131:1; // 3 Output Toggle bit for this pin Uint16 GPIO132:1; // 4 Output Toggle bit for this pin Uint16 GPIO133:1; // 5 Output Toggle bit for this pin Uint16 GPIO134:1; // 6 Output Toggle bit for this pin Uint16 GPIO135:1; // 7 Output Toggle bit for this pin Uint16 GPIO136:1; // 8 Output Toggle bit for this pin Uint16 GPIO137:1; // 9 Output Toggle bit for this pin Uint16 GPIO138:1; // 10 Output Toggle bit for this pin Uint16 GPIO139:1; // 11 Output Toggle bit for this pin Uint16 GPIO140:1; // 12 Output Toggle bit for this pin Uint16 GPIO141:1; // 13 Output Toggle bit for this pin Uint16 GPIO142:1; // 14 Output Toggle bit for this pin Uint16 GPIO143:1; // 15 Output Toggle bit for this pin Uint16 GPIO144:1; // 16 Output Toggle bit for this pin Uint16 GPIO145:1; // 17 Output Toggle bit for this pin Uint16 GPIO146:1; // 18 Output Toggle bit for this pin Uint16 GPIO147:1; // 19 Output Toggle bit for this pin Uint16 GPIO148:1; // 20 Output Toggle bit for this pin Uint16 GPIO149:1; // 21 Output Toggle bit for this pin Uint16 GPIO150:1; // 22 Output Toggle bit for this pin Uint16 GPIO151:1; // 23 Output Toggle bit for this pin Uint16 GPIO152:1; // 24 Output Toggle bit for this pin Uint16 GPIO153:1; // 25 Output Toggle bit for this pin Uint16 GPIO154:1; // 26 Output Toggle bit for this pin Uint16 GPIO155:1; // 27 Output Toggle bit for this pin Uint16 GPIO156:1; // 28 Output Toggle bit for this pin Uint16 GPIO157:1; // 29 Output Toggle bit for this pin Uint16 GPIO158:1; // 30 Output Toggle bit for this pin Uint16 GPIO159:1; // 31 Output Toggle bit for this pin }; union GPETOGGLE_REG { Uint32 all; struct GPETOGGLE_BITS bit; }; struct GPFDAT_BITS { // bits description Uint16 GPIO160:1; // 0 Data Register for this pin Uint16 GPIO161:1; // 1 Data Register for this pin Uint16 GPIO162:1; // 2 Data Register for this pin Uint16 GPIO163:1; // 3 Data Register for this pin Uint16 GPIO164:1; // 4 Data Register for this pin Uint16 GPIO165:1; // 5 Data Register for this pin Uint16 GPIO166:1; // 6 Data Register for this pin Uint16 GPIO167:1; // 7 Data Register for this pin Uint16 GPIO168:1; // 8 Data Register for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFDAT_REG { Uint32 all; struct GPFDAT_BITS bit; }; struct GPFSET_BITS { // bits description Uint16 GPIO160:1; // 0 Output Set bit for this pin Uint16 GPIO161:1; // 1 Output Set bit for this pin Uint16 GPIO162:1; // 2 Output Set bit for this pin Uint16 GPIO163:1; // 3 Output Set bit for this pin Uint16 GPIO164:1; // 4 Output Set bit for this pin Uint16 GPIO165:1; // 5 Output Set bit for this pin Uint16 GPIO166:1; // 6 Output Set bit for this pin Uint16 GPIO167:1; // 7 Output Set bit for this pin Uint16 GPIO168:1; // 8 Output Set bit for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFSET_REG { Uint32 all; struct GPFSET_BITS bit; }; struct GPFCLEAR_BITS { // bits description Uint16 GPIO160:1; // 0 Output Clear bit for this pin Uint16 GPIO161:1; // 1 Output Clear bit for this pin Uint16 GPIO162:1; // 2 Output Clear bit for this pin Uint16 GPIO163:1; // 3 Output Clear bit for this pin Uint16 GPIO164:1; // 4 Output Clear bit for this pin Uint16 GPIO165:1; // 5 Output Clear bit for this pin Uint16 GPIO166:1; // 6 Output Clear bit for this pin Uint16 GPIO167:1; // 7 Output Clear bit for this pin Uint16 GPIO168:1; // 8 Output Clear bit for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFCLEAR_REG { Uint32 all; struct GPFCLEAR_BITS bit; }; struct GPFTOGGLE_BITS { // bits description Uint16 GPIO160:1; // 0 Output Toggle bit for this pin Uint16 GPIO161:1; // 1 Output Toggle bit for this pin Uint16 GPIO162:1; // 2 Output Toggle bit for this pin Uint16 GPIO163:1; // 3 Output Toggle bit for this pin Uint16 GPIO164:1; // 4 Output Toggle bit for this pin Uint16 GPIO165:1; // 5 Output Toggle bit for this pin Uint16 GPIO166:1; // 6 Output Toggle bit for this pin Uint16 GPIO167:1; // 7 Output Toggle bit for this pin Uint16 GPIO168:1; // 8 Output Toggle bit for this pin Uint16 rsvd1:1; // 9 Reserved Uint16 rsvd2:1; // 10 Reserved Uint16 rsvd3:1; // 11 Reserved Uint16 rsvd4:1; // 12 Reserved Uint16 rsvd5:1; // 13 Reserved Uint16 rsvd6:1; // 14 Reserved Uint16 rsvd7:1; // 15 Reserved Uint16 rsvd8:1; // 16 Reserved Uint16 rsvd9:1; // 17 Reserved Uint16 rsvd10:1; // 18 Reserved Uint16 rsvd11:1; // 19 Reserved Uint16 rsvd12:1; // 20 Reserved Uint16 rsvd13:1; // 21 Reserved Uint16 rsvd14:1; // 22 Reserved Uint16 rsvd15:1; // 23 Reserved Uint16 rsvd16:1; // 24 Reserved Uint16 rsvd17:1; // 25 Reserved Uint16 rsvd18:1; // 26 Reserved Uint16 rsvd19:1; // 27 Reserved Uint16 rsvd20:1; // 28 Reserved Uint16 rsvd21:1; // 29 Reserved Uint16 rsvd22:1; // 30 Reserved Uint16 rsvd23:1; // 31 Reserved }; union GPFTOGGLE_REG { Uint32 all; struct GPFTOGGLE_BITS bit; }; struct GPIO_DATA_REGS { union GPADAT_REG GPADAT; // GPIO A Data Register (GPIO0 to 31) union GPASET_REG GPASET; // GPIO A Data Set Register (GPIO0 to 31) union GPACLEAR_REG GPACLEAR; // GPIO A Data Clear Register (GPIO0 to 31) union GPATOGGLE_REG GPATOGGLE; // GPIO A Data Toggle Register (GPIO0 to 31) union GPBDAT_REG GPBDAT; // GPIO B Data Register (GPIO32 to 63) union GPBSET_REG GPBSET; // GPIO B Data Set Register (GPIO32 to 63) union GPBCLEAR_REG GPBCLEAR; // GPIO B Data Clear Register (GPIO32 to 63) union GPBTOGGLE_REG GPBTOGGLE; // GPIO B Data Toggle Register (GPIO32 to 63) union GPCDAT_REG GPCDAT; // GPIO C Data Register (GPIO64 to 95) union GPCSET_REG GPCSET; // GPIO C Data Set Register (GPIO64 to 95) union GPCCLEAR_REG GPCCLEAR; // GPIO C Data Clear Register (GPIO64 to 95) union GPCTOGGLE_REG GPCTOGGLE; // GPIO C Data Toggle Register (GPIO64 to 95) union GPDDAT_REG GPDDAT; // GPIO D Data Register (GPIO96 to 127) union GPDSET_REG GPDSET; // GPIO D Data Set Register (GPIO96 to 127) union GPDCLEAR_REG GPDCLEAR; // GPIO D Data Clear Register (GPIO96 to 127) union GPDTOGGLE_REG GPDTOGGLE; // GPIO D Data Toggle Register (GPIO96 to 127) union GPEDAT_REG GPEDAT; // GPIO E Data Register (GPIO128 to 159) union GPESET_REG GPESET; // GPIO E Data Set Register (GPIO128 to 159) union GPECLEAR_REG GPECLEAR; // GPIO E Data Clear Register (GPIO128 to 159) union GPETOGGLE_REG GPETOGGLE; // GPIO E Data Toggle Register (GPIO128 to 159) union GPFDAT_REG GPFDAT; // GPIO F Data Register (GPIO160 to 168) union GPFSET_REG GPFSET; // GPIO F Data Set Register (GPIO160 to 168) union GPFCLEAR_REG GPFCLEAR; // GPIO F Data Clear Register (GPIO160 to 168) union GPFTOGGLE_REG GPFTOGGLE; // GPIO F Data Toggle Register (GPIO160 to 168) }; struct GPIO_DATA_READ_REGS { Uint32 GPADAT_R; // GPIO A Data Read Register Uint32 GPBDAT_R; // GPIO B Data Read Register Uint32 GPCDAT_R; // GPIO C Data Read Register Uint32 GPDDAT_R; // GPIO D Data Read Register Uint32 GPEDAT_R; // GPIO E Data Read Register Uint32 GPFDAT_R; // GPIO F Data Read Register }; //--------------------------------------------------------------------------- // GPIO External References & Function Declarations: // #ifdef CPU1 extern volatile struct GPIO_CTRL_REGS GpioCtrlRegs; extern volatile struct GPIO_DATA_REGS GpioDataRegs; extern volatile struct GPIO_DATA_READ_REGS GpioDataReadRegs; #endif #ifdef CPU2 extern volatile struct GPIO_DATA_REGS GpioDataRegs; extern volatile struct GPIO_DATA_READ_REGS GpioDataReadRegs; #endif #ifdef __cplusplus } #endif /* extern "C" */ #endif //=========================================================================== // End of file. //===========================================================================
哦，对了，想请教一下，我在.c和device.h中修改了引脚的定义。编译后，报错，
出错的原因，应该是由于底层的引脚配置没有进行修改吧

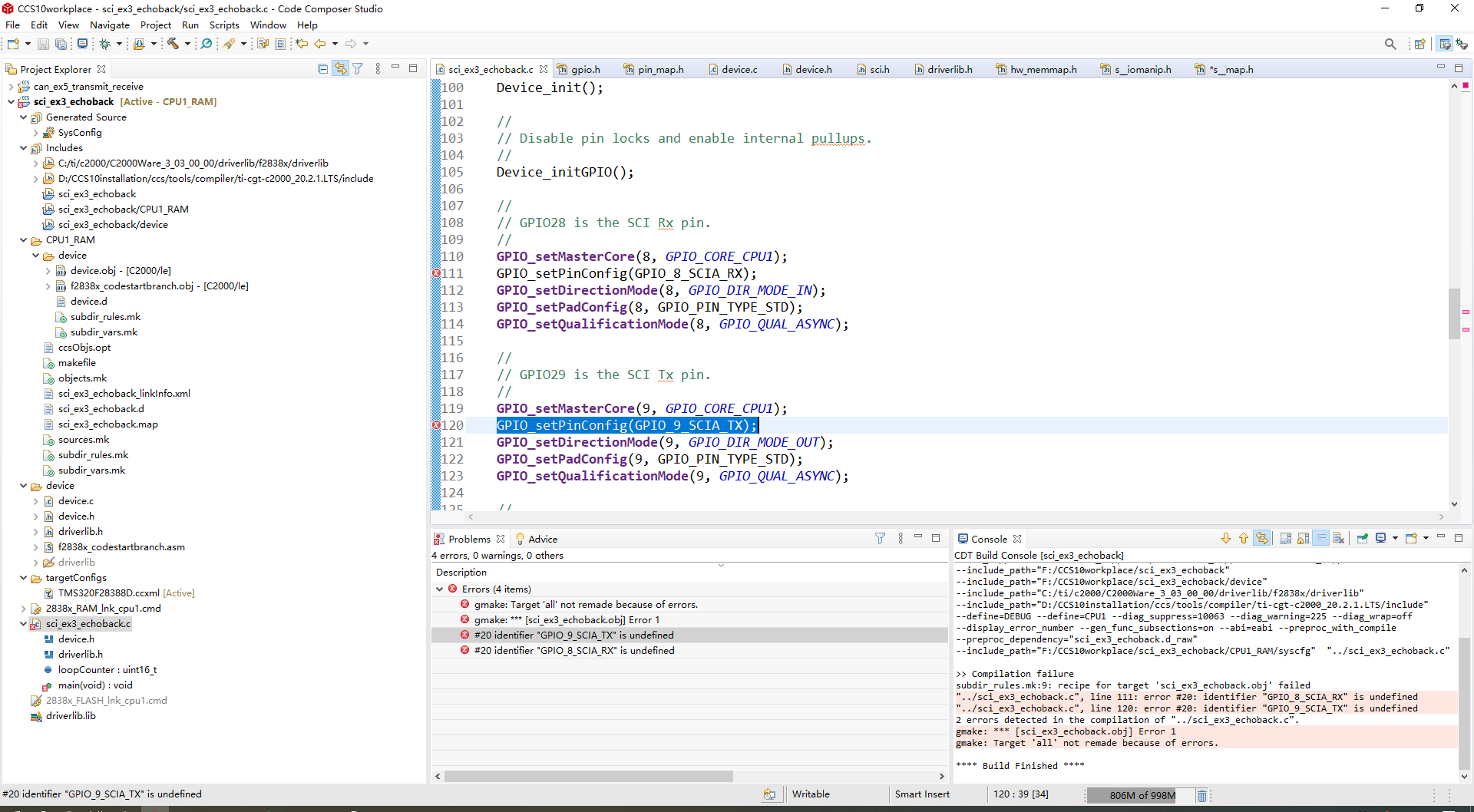

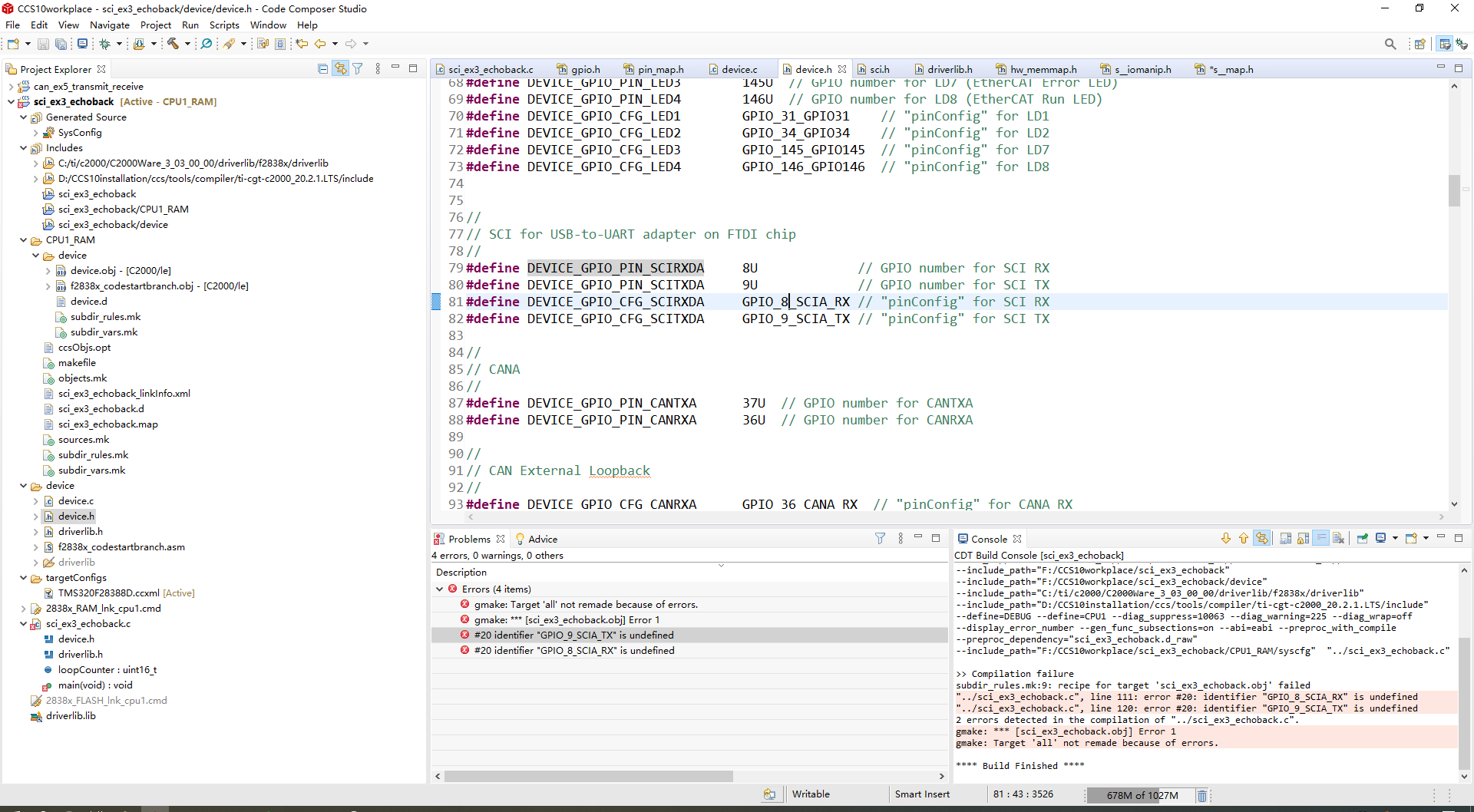

下图分别是在主函数和device.h中修改的位置截图
只改这两个地方，还不够，好像还有一个地方，也就是我要找的那个地方
特来请教
谢谢
应该是这个
//########################################################################### // // FILE: pin_map.h // // TITLE: Definitions of pin mux info for gpio.c. // //########################################################################### // $TI Release: F2838x Support Library v3.03.00.00 $ // $Release Date: Sun Oct 4 16:00:36 IST 2020 $ // $Copyright: // Copyright (C) 2020 Texas Instruments Incorporated - http://www.ti.com/ // // Redistribution and use in source and binary forms, with or without // modification, are permitted provided that the following conditions // are met: // // Redistributions of source code must retain the above copyright // notice, this list of conditions and the following disclaimer. // // Redistributions in binary form must reproduce the above copyright // notice, this list of conditions and the following disclaimer in the // documentation and/or other materials provided with the // distribution. // // Neither the name of Texas Instruments Incorporated nor the names of // its contributors may be used to endorse or promote products derived // from this software without specific prior written permission. // // THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS // "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT // LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR // A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT // OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, // SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT // LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, // DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY // THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT // (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE // OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. // $ //########################################################################### #ifndef __PIN_MAP_H__ #define __PIN_MAP_H__ //***************************************************************************** // 0x00000003 = MUX register value // 0x0000000C = GMUX register value // 0x0000FF00 = Shift amount within mux registers // 0xFFFF0000 = Offset of MUX register //***************************************************************************** //***************************************************************************** // Latest pinmuxing MACROS - Recommended for new users //***************************************************************************** #define GPIO_0_GPIO0 0x00060000U #define GPIO_0_EPWM1A 0x00060001U #define GPIO_0_I2CA_SDA 0x00060006U #define GPIO_0_CM_I2CA_SDA 0x00060009U #define GPIO_0_ESC_GPI0 0x0006000AU #define GPIO_0_FSITXA_D0 0x0006000DU #define GPIO_1_GPIO1 0x00060200U #define GPIO_1_EPWM1B 0x00060201U #define GPIO_1_MFSRB 0x00060203U #define GPIO_1_I2CA_SCL 0x00060206U #define GPIO_1_CM_I2CA_SCL 0x00060209U #define GPIO_1_ESC_GPI1 0x0006020AU #define GPIO_1_FSITXA_D1 0x0006020DU #define GPIO_2_GPIO2 0x00060400U #define GPIO_2_EPWM2A 0x00060401U #define GPIO_2_OUTPUTXBAR1 0x00060405U #define GPIO_2_I2CB_SDA 0x00060406U #define GPIO_2_ESC_GPI2 0x0006040AU #define GPIO_2_FSITXA_CLK 0x0006040DU #define GPIO_3_GPIO3 0x00060600U #define GPIO_3_EPWM2B 0x00060601U #define GPIO_3_OUTPUTXBAR2 0x00060602U #define GPIO_3_MCLKRB 0x00060603U #define GPIO_3_I2CB_SCL 0x00060606U #define GPIO_3_ESC_GPI3 0x0006060AU #define GPIO_3_FSIRXA_D0 0x0006060DU #define GPIO_4_GPIO4 0x00060800U #define GPIO_4_EPWM3A 0x00060801U #define GPIO_4_OUTPUTXBAR3 0x00060805U #define GPIO_4_CANA_TX 0x00060806U #define GPIO_4_MCAN_TX 0x00060809U #define GPIO_4_ESC_GPI4 0x0006080AU #define GPIO_4_FSIRXA_D1 0x0006080DU #define GPIO_5_GPIO5 0x00060A00U #define GPIO_5_EPWM3B 0x00060A01U #define GPIO_5_MFSRA 0x00060A02U #define GPIO_5_OUTPUTXBAR3 0x00060A03U #define GPIO_5_CANA_RX 0x00060A06U #define GPIO_5_MCAN_RX 0x00060A09U #define GPIO_5_ESC_GPI5 0x00060A0AU #define GPIO_5_FSIRXA_CLK 0x00060A0DU #define GPIO_6_GPIO6 0x00060C00U #define GPIO_6_EPWM4A 0x00060C01U #define GPIO_6_OUTPUTXBAR4 0x00060C02U #define GPIO_6_EXTSYNCOUT 0x00060C03U #define GPIO_6_EQEP3_A 0x00060C05U #define GPIO_6_CANB_TX 0x00060C06U #define GPIO_6_ESC_GPI6 0x00060C0AU #define GPIO_6_FSITXB_D0 0x00060C0DU #define GPIO_7_GPIO7 0x00060E00U #define GPIO_7_EPWM4B 0x00060E01U #define GPIO_7_MCLKRA 0x00060E02U #define GPIO_7_OUTPUTXBAR5 0x00060E03U #define GPIO_7_EQEP3_B 0x00060E05U #define GPIO_7_CANB_RX 0x00060E06U #define GPIO_7_ESC_GPI7 0x00060E0AU #define GPIO_7_FSITXB_D1 0x00060E0DU #define GPIO_8_GPIO8 0x00061000U #define GPIO_8_EPWM5A 0x00061001U #define GPIO_8_CANB_TX 0x00061002U #define GPIO_8_ADCSOCAO 0x00061003U #define GPIO_8_EQEP3_STROBE 0x00061005U #define GPIO_8_SCIA_TX 0x00061006U #define GPIO_8_MCAN_TX 0x00061009U #define GPIO_8_ESC_GPO0 0x0006100AU #define GPIO_8_FSITXB_CLK 0x0006100DU #define GPIO_8_FSITXA_D1 0x0006100EU #define GPIO_8_FSIRXA_D0 0x0006100FU #define GPIO_9_GPIO9 0x00061200U #define GPIO_9_EPWM5B 0x00061201U #define GPIO_9_SCIB_TX 0x00061202U #define GPIO_9_OUTPUTXBAR6 0x00061203U #define GPIO_9_EQEP3_INDEX 0x00061205U #define GPIO_9_SCIA_RX 0x00061206U #define GPIO_9_ESC_GPO1 0x0006120AU #define GPIO_9_FSIRXB_D0 0x0006120DU #define GPIO_9_FSITXA_D0 0x0006120EU #define GPIO_9_FSIRXA_CLK 0x0006120FU #define GPIO_10_GPIO10 0x00061400U #define GPIO_10_EPWM6A 0x00061401U #define GPIO_10_CANB_RX 0x00061402U #define GPIO_10_ADCSOCBO 0x00061403U #define GPIO_10_EQEP1_A 0x00061405U #define GPIO_10_SCIB_TX 0x00061406U #define GPIO_10_MCAN_RX 0x00061409U #define GPIO_10_ESC_GPO2 0x0006140AU #define GPIO_10_FSIRXB_D1 0x0006140DU #define GPIO_10_FSITXA_CLK 0x0006140EU #define GPIO_10_FSIRXA_D1 0x0006140FU #define GPIO_11_GPIO11 0x00061600U #define GPIO_11_EPWM6B 0x00061601U #define GPIO_11_SCIB_RX 0x00061602U #define GPIO_11_OUTPUTXBAR7 0x00061603U #define GPIO_11_EQEP1_B 0x00061605U #define GPIO_11_ESC_GPO3 0x0006160AU #define GPIO_11_FSIRXB_CLK 0x0006160DU #define GPIO_11_FSIRXA_D1 0x0006160EU #define GPIO_12_GPIO12 0x00061800U #define GPIO_12_EPWM7A 0x00061801U #define GPIO_12_CANB_TX 0x00061802U #define GPIO_12_MDXB 0x00061803U #define GPIO_12_EQEP1_STROBE 0x00061805U #define GPIO_12_SCIC_TX 0x00061806U #define GPIO_12_ESC_GPO4 0x0006180AU #define GPIO_12_FSIRXC_D0 0x0006180DU #define GPIO_12_FSIRXA_D0 0x0006180EU #define GPIO_13_GPIO13 0x00061A00U #define GPIO_13_EPWM7B 0x00061A01U #define GPIO_13_CANB_RX 0x00061A02U #define GPIO_13_MDRB 0x00061A03U #define GPIO_13_EQEP1_INDEX 0x00061A05U #define GPIO_13_SCIC_RX 0x00061A06U #define GPIO_13_ESC_GPO5 0x00061A0AU #define GPIO_13_FSIRXC_D1 0x00061A0DU #define GPIO_13_FSIRXA_CLK 0x00061A0EU #define GPIO_14_GPIO14 0x00061C00U #define GPIO_14_EPWM8A 0x00061C01U #define GPIO_14_SCIB_TX 0x00061C02U #define GPIO_14_MCLKXB 0x00061C03U #define GPIO_14_OUTPUTXBAR3 0x00061C06U #define GPIO_14_ESC_GPO6 0x00061C0AU #define GPIO_14_FSIRXC_CLK 0x00061C0DU #define GPIO_15_GPIO15 0x00061E00U #define GPIO_15_EPWM8B 0x00061E01U #define GPIO_15_SCIB_RX 0x00061E02U #define GPIO_15_MFSXB 0x00061E03U #define GPIO_15_OUTPUTXBAR4 0x00061E06U #define GPIO_15_ESC_GPO7 0x00061E0AU #define GPIO_15_FSIRXD_D0 0x00061E0DU #define GPIO_16_GPIO16 0x00080000U #define GPIO_16_SPIA_SIMO 0x00080001U #define GPIO_16_CANB_TX 0x00080002U #define GPIO_16_OUTPUTXBAR7 0x00080003U #define GPIO_16_EPWM9A 0x00080005U #define GPIO_16_SD1_D1 0x00080007U #define GPIO_16_SSIA_TX 0x0008000BU #define GPIO_16_FSIRXD_D1 0x0008000DU #define GPIO_17_GPIO17 0x00080200U #define GPIO_17_SPIA_SOMI 0x00080201U #define GPIO_17_CANB_RX 0x00080202U #define GPIO_17_OUTPUTXBAR8 0x00080203U #define GPIO_17_EPWM9B 0x00080205U #define GPIO_17_SD1_C1 0x00080207U #define GPIO_17_SSIA_RX 0x0008020BU #define GPIO_17_FSIRXD_CLK 0x0008020DU #define GPIO_18_GPIO18 0x00080400U #define GPIO_18_SPIA_CLK 0x00080401U #define GPIO_18_SCIB_TX 0x00080402U #define GPIO_18_CANA_RX 0x00080403U #define GPIO_18_EPWM10A 0x00080405U #define GPIO_18_SD1_D2 0x00080407U #define GPIO_18_MCAN_RX 0x00080409U #define GPIO_18_EMIF1_CS2N 0x0008040AU #define GPIO_18_SSIA_CLK 0x0008040BU #define GPIO_18_FSIRXE_D0 0x0008040DU #define GPIO_19_GPIO19 0x00080600U #define GPIO_19_SPIA_STEN 0x00080601U #define GPIO_19_SCIB_RX 0x00080602U #define GPIO_19_CANA_TX 0x00080603U #define GPIO_19_EPWM10B 0x00080605U #define GPIO_19_SD1_C2 0x00080607U #define GPIO_19_MCAN_TX 0x00080609U #define GPIO_19_EMIF1_CS3N 0x0008060AU #define GPIO_19_SSIA_FSS 0x0008060BU #define GPIO_19_FSIRXE_D1 0x0008060DU #define GPIO_20_GPIO20 0x00080800U #define GPIO_20_EQEP1_A 0x00080801U #define GPIO_20_MDXA 0x00080802U #define GPIO_20_CANB_TX 0x00080803U #define GPIO_20_EPWM11A 0x00080805U #define GPIO_20_SD1_D3 0x00080807U #define GPIO_20_EMIF1_BA0 0x0008080AU #define GPIO_20_TRACE_DATA0 0x0008080BU #define GPIO_20_FSIRXE_CLK 0x0008080DU #define GPIO_20_SPIC_SIMO 0x0008080EU #define GPIO_21_GPIO21 0x00080A00U #define GPIO_21_EQEP1_B 0x00080A01U #define GPIO_21_MDRA 0x00080A02U #define GPIO_21_CANB_RX 0x00080A03U #define GPIO_21_EPWM11B 0x00080A05U #define GPIO_21_SD1_C3 0x00080A07U #define GPIO_21_EMIF1_BA1 0x00080A0AU #define GPIO_21_TRACE_DATA1 0x00080A0BU #define GPIO_21_FSIRXF_D0 0x00080A0DU #define GPIO_21_SPIC_SOMI 0x00080A0EU #define GPIO_22_GPIO22 0x00080C00U #define GPIO_22_EQEP1_STROBE 0x00080C01U #define GPIO_22_MCLKXA 0x00080C02U #define GPIO_22_SCIB_TX 0x00080C03U #define GPIO_22_EPWM12A 0x00080C05U #define GPIO_22_SPIB_CLK 0x00080C06U #define GPIO_22_SD1_D4 0x00080C07U #define GPIO_22_MCAN_TX 0x00080C09U #define GPIO_22_EMIF1_RAS 0x00080C0AU #define GPIO_22_TRACE_DATA2 0x00080C0BU #define GPIO_22_FSIRXF_D1 0x00080C0DU #define GPIO_22_SPIC_CLK 0x00080C0EU #define GPIO_23_GPIO23 0x00080E00U #define GPIO_23_EQEP1_INDEX 0x00080E01U #define GPIO_23_MFSXA 0x00080E02U #define GPIO_23_SCIB_RX 0x00080E03U #define GPIO_23_EPWM12B 0x00080E05U #define GPIO_23_SPIB_STEN 0x00080E06U #define GPIO_23_SD1_C4 0x00080E07U #define GPIO_23_MCAN_RX 0x00080E09U #define GPIO_23_EMIF1_CAS 0x00080E0AU #define GPIO_23_TRACE_DATA3 0x00080E0BU #define GPIO_23_FSIRXF_CLK 0x00080E0DU #define GPIO_23_SPIC_STEN 0x00080E0EU #define GPIO_24_GPIO24 0x00081000U #define GPIO_24_OUTPUTXBAR1 0x00081001U #define GPIO_24_EQEP2_A 0x00081002U #define GPIO_24_MDXB 0x00081003U #define GPIO_24_SPIB_SIMO 0x00081006U #define GPIO_24_SD2_D1 0x00081007U #define GPIO_24_PMBUSA_SCL 0x00081009U #define GPIO_24_EMIF1_DQM0 0x0008100AU #define GPIO_24_TRACE_CLK 0x0008100BU #define GPIO_24_EPWM13A 0x0008100DU #define GPIO_24_FSIRXG_D0 0x0008100FU #define GPIO_25_GPIO25 0x00081200U #define GPIO_25_OUTPUTXBAR2 0x00081201U #define GPIO_25_EQEP2_B 0x00081202U #define GPIO_25_MDRB 0x00081203U #define GPIO_25_SPIB_SOMI 0x00081206U #define GPIO_25_SD2_C1 0x00081207U #define GPIO_25_PMBUSA_SDA 0x00081209U #define GPIO_25_EMIF1_DQM1 0x0008120AU #define GPIO_25_TRACE_SWO 0x0008120BU #define GPIO_25_EPWM13B 0x0008120DU #define GPIO_25_FSITXA_D1 0x0008120EU #define GPIO_25_FSIRXG_D1 0x0008120FU #define GPIO_26_GPIO26 0x00081400U #define GPIO_26_OUTPUTXBAR3 0x00081401U #define GPIO_26_EQEP2_INDEX 0x00081402U #define GPIO_26_MCLKXB 0x00081403U #define GPIO_26_SPIB_CLK 0x00081406U #define GPIO_26_SD2_D2 0x00081407U #define GPIO_26_PMBUSA_ALERT 0x00081409U #define GPIO_26_EMIF1_DQM2 0x0008140AU #define GPIO_26_ESC_MDIO_CLK 0x0008140BU #define GPIO_26_EPWM14A 0x0008140DU #define GPIO_26_FSITXA_D0 0x0008140EU #define GPIO_26_FSIRXG_CLK 0x0008140FU #define GPIO_27_GPIO27 0x00081600U #define GPIO_27_OUTPUTXBAR4 0x00081601U #define GPIO_27_EQEP2_STROBE 0x00081602U #define GPIO_27_MFSXB 0x00081603U #define GPIO_27_SPIB_STEN 0x00081606U #define GPIO_27_SD2_C2 0x00081607U #define GPIO_27_PMBUSA_CTL 0x00081609U #define GPIO_27_EMIF1_DQM3 0x0008160AU #define GPIO_27_ESC_MDIO_DATA 0x0008160BU #define GPIO_27_EPWM14B 0x0008160DU #define GPIO_27_FSITXA_CLK 0x0008160EU #define GPIO_27_FSIRXH_D0 0x0008160FU #define GPIO_28_GPIO28 0x00081800U #define GPIO_28_SCIA_RX 0x00081801U #define GPIO_28_EMIF1_CS4N 0x00081802U #define GPIO_28_OUTPUTXBAR5 0x00081805U #define GPIO_28_EQEP3_A 0x00081806U #define GPIO_28_SD2_D3 0x00081807U #define GPIO_28_EMIF1_CS2N 0x00081809U #define GPIO_28_EPWM15A 0x0008180DU #define GPIO_28_FSIRXH_D1 0x0008180FU #define GPIO_29_GPIO29 0x00081A00U #define GPIO_29_SCIA_TX 0x00081A01U #define GPIO_29_EMIF1_SDCKE 0x00081A02U #define GPIO_29_OUTPUTXBAR6 0x00081A05U #define GPIO_29_EQEP3_B 0x00081A06U #define GPIO_29_SD2_C3 0x00081A07U #define GPIO_29_EMIF1_CS3N 0x00081A09U #define GPIO_29_ESC_LATCH0 0x00081A0AU #define GPIO_29_ESC_I2C_SDA 0x00081A0BU #define GPIO_29_EPWM15B 0x00081A0DU #define GPIO_29_ESC_SYNC0 0x00081A0EU #define GPIO_29_FSIRXH_CLK 0x00081A0FU #define GPIO_30_GPIO30 0x00081C00U #define GPIO_30_CANA_RX 0x00081C01U #define GPIO_30_EMIF1_CLK 0x00081C02U #define GPIO_30_MCAN_RX 0x00081C03U #define GPIO_30_OUTPUTXBAR7 0x00081C05U #define GPIO_30_EQEP3_STROBE 0x00081C06U #define GPIO_30_SD2_D4 0x00081C07U #define GPIO_30_EMIF1_CS4N 0x00081C09U #define GPIO_30_ESC_LATCH1 0x00081C0AU #define GPIO_30_ESC_I2C_SCL 0x00081C0BU #define GPIO_30_EPWM16A 0x00081C0DU #define GPIO_30_ESC_SYNC1 0x00081C0EU #define GPIO_30_SPID_SIMO 0x00081C0FU #define GPIO_31_GPIO31 0x00081E00U #define GPIO_31_CANA_TX 0x00081E01U #define GPIO_31_EMIF1_WEN 0x00081E02U #define GPIO_31_MCAN_TX 0x00081E03U #define GPIO_31_OUTPUTXBAR8 0x00081E05U #define GPIO_31_EQEP3_INDEX 0x00081E06U #define GPIO_31_SD2_C4 0x00081E07U #define GPIO_31_EMIF1_RNW 0x00081E09U #define GPIO_31_I2CA_SDA 0x00081E0AU #define GPIO_31_CM_I2CA_SDA 0x00081E0BU #define GPIO_31_EPWM16B 0x00081E0DU #define GPIO_31_SPID_SOMI 0x00081E0FU #define GPIO_32_GPIO32 0x00460000U #define GPIO_32_I2CA_SDA 0x00460001U #define GPIO_32_EMIF1_CS0N 0x00460002U #define GPIO_32_SPIA_SIMO 0x00460003U #define GPIO_32_CLB_OUTPUTXBAR1 0x00460007U #define GPIO_32_EMIF1_OEN 0x00460009U #define GPIO_32_I2CA_SCL 0x0046000AU #define GPIO_32_CM_I2CA_SCL 0x0046000BU #define GPIO_32_SPID_CLK 0x0046000FU #define GPIO_33_GPIO33 0x00460200U #define GPIO_33_I2CA_SCL 0x00460201U #define GPIO_33_EMIF1_RNW 0x00460202U #define GPIO_33_SPIA_SOMI 0x00460203U #define GPIO_33_CLB_OUTPUTXBAR2 0x00460207U #define GPIO_33_EMIF1_BA0 0x00460209U #define GPIO_33_SPID_STEN 0x0046020FU #define GPIO_34_GPIO34 0x00460400U #define GPIO_34_OUTPUTXBAR1 0x00460401U #define GPIO_34_EMIF1_CS2N 0x00460402U #define GPIO_34_SPIA_CLK 0x00460403U #define GPIO_34_I2CB_SDA 0x00460406U #define GPIO_34_CLB_OUTPUTXBAR3 0x00460407U #define GPIO_34_EMIF1_BA1 0x00460409U #define GPIO_34_ESC_LATCH0 0x0046040AU #define GPIO_34_ENET_MII_CRS 0x0046040BU #define GPIO_34_SCIA_TX 0x0046040DU #define GPIO_34_ESC_SYNC0 0x0046040EU #define GPIO_35_GPIO35 0x00460600U #define GPIO_35_SCIA_RX 0x00460601U #define GPIO_35_EMIF1_CS3N 0x00460602U #define GPIO_35_SPIA_STEN 0x00460603U #define GPIO_35_I2CB_SCL 0x00460606U #define GPIO_35_CLB_OUTPUTXBAR4 0x00460607U #define GPIO_35_EMIF1_A0 0x00460609U #define GPIO_35_ESC_LATCH1 0x0046060AU #define GPIO_35_ENET_MII_COL 0x0046060BU #define GPIO_35_ESC_SYNC1 0x0046060EU #define GPIO_36_GPIO36 0x00460800U #define GPIO_36_SCIA_TX 0x00460801U #define GPIO_36_EMIF1_WAIT 0x00460802U #define GPIO_36_CANA_RX 0x00460806U #define GPIO_36_CLB_OUTPUTXBAR5 0x00460807U #define GPIO_36_EMIF1_A1 0x00460809U #define GPIO_36_MCAN_RX 0x0046080AU #define GPIO_36_SD1_D1 0x0046080DU #define GPIO_37_GPIO37 0x00460A00U #define GPIO_37_OUTPUTXBAR2 0x00460A01U #define GPIO_37_EMIF1_OEN 0x00460A02U #define GPIO_37_CANA_TX 0x00460A06U #define GPIO_37_CLB_OUTPUTXBAR6 0x00460A07U #define GPIO_37_EMIF1_A2 0x00460A09U #define GPIO_37_MCAN_TX 0x00460A0AU #define GPIO_37_SD1_D2 0x00460A0DU #define GPIO_38_GPIO38 0x00460C00U #define GPIO_38_EMIF1_A0 0x00460C02U #define GPIO_38_SCIC_TX 0x00460C05U #define GPIO_38_CANB_TX 0x00460C06U #define GPIO_38_CLB_OUTPUTXBAR7 0x00460C07U #define GPIO_38_EMIF1_A3 0x00460C09U #define GPIO_38_ENET_MII_RX_DV 0x00460C0AU #define GPIO_38_ENET_MII_CRS 0x00460C0BU #define GPIO_38_SD1_D3 0x00460C0DU #define GPIO_39_GPIO39 0x00460E00U #define GPIO_39_EMIF1_A1 0x00460E02U #define GPIO_39_SCIC_RX 0x00460E05U #define GPIO_39_CANB_RX 0x00460E06U #define GPIO_39_CLB_OUTPUTXBAR8 0x00460E07U #define GPIO_39_EMIF1_A4 0x00460E09U #define GPIO_39_ENET_MII_RX_ERR 0x00460E0AU #define GPIO_39_ENET_MII_COL 0x00460E0BU #define GPIO_39_SD1_D4 0x00460E0DU #define GPIO_40_GPIO40 0x00461000U #define GPIO_40_EMIF1_A2 0x00461002U #define GPIO_40_I2CB_SDA 0x00461006U #define GPIO_40_ENET_MII_CRS 0x0046100BU #define GPIO_40_ESC_I2C_SDA 0x0046100EU #define GPIO_41_GPIO41 0x00461200U #define GPIO_41_EMIF1_A3 0x00461202U #define GPIO_41_I2CB_SCL 0x00461206U #define GPIO_41_ENET_REVMII_MDIO_RST 0x0046120AU #define GPIO_41_ENET_MII_COL 0x0046120BU #define GPIO_41_ESC_I2C_SCL 0x0046120EU #define GPIO_42_GPIO42 0x00461400U #define GPIO_42_I2CA_SDA 0x00461406U #define GPIO_42_ENET_MDIO_CLK 0x0046140AU #define GPIO_42_UARTA_TX 0x0046140BU #define GPIO_42_SCIA_TX 0x0046140FU #define GPIO_43_GPIO43 0x00461600U #define GPIO_43_I2CA_SCL 0x00461606U #define GPIO_43_ENET_MDIO_DATA 0x0046160AU #define GPIO_43_UARTA_RX 0x0046160BU #define GPIO_43_SCIA_RX 0x0046160FU #define GPIO_44_GPIO44 0x00461800U #define GPIO_44_EMIF1_A4 0x00461802U #define GPIO_44_ENET_MII_TX_CLK 0x0046180BU #define GPIO_44_ESC_TX1_CLK 0x0046180EU #define GPIO_45_GPIO45 0x00461A00U #define GPIO_45_EMIF1_A5 0x00461A02U #define GPIO_45_ENET_MII_TX_EN 0x00461A0BU #define GPIO_45_ESC_TX1_ENA 0x00461A0EU #define GPIO_46_GPIO46 0x00461C00U #define GPIO_46_EMIF1_A6 0x00461C02U #define GPIO_46_SCID_RX 0x00461C06U #define GPIO_46_ENET_MII_TX_ERR 0x00461C0BU #define GPIO_46_ESC_MDIO_CLK 0x00461C0EU #define GPIO_47_GPIO47 0x00461E00U #define GPIO_47_EMIF1_A7 0x00461E02U #define GPIO_47_SCID_TX 0x00461E06U #define GPIO_47_ENET_PPS0 0x00461E0BU #define GPIO_47_ESC_MDIO_DATA 0x00461E0EU #define GPIO_48_GPIO48 0x00480000U #define GPIO_48_OUTPUTXBAR3 0x00480001U #define GPIO_48_EMIF1_A8 0x00480002U #define GPIO_48_SCIA_TX 0x00480006U #define GPIO_48_SD1_D1 0x00480007U #define GPIO_48_ENET_PPS1 0x0048000BU #define GPIO_48_ESC_PHY_CLK 0x0048000EU #define GPIO_49_GPIO49 0x00480200U #define GPIO_49_OUTPUTXBAR4 0x00480201U #define GPIO_49_EMIF1_A9 0x00480202U #define GPIO_49_SCIA_RX 0x00480206U #define GPIO_49_SD1_C1 0x00480207U #define GPIO_49_EMIF1_A5 0x00480209U #define GPIO_49_ENET_MII_RX_CLK 0x0048020BU #define GPIO_49_SD2_D1 0x0048020DU #define GPIO_49_FSITXA_D0 0x0048020EU #define GPIO_50_GPIO50 0x00480400U #define GPIO_50_EQEP1_A 0x00480401U #define GPIO_50_EMIF1_A10 0x00480402U #define GPIO_50_SPIC_SIMO 0x00480406U #define GPIO_50_SD1_D2 0x00480407U #define GPIO_50_EMIF1_A6 0x00480409U #define GPIO_50_ENET_MII_RX_DV 0x0048040BU #define GPIO_50_SD2_D2 0x0048040DU #define GPIO_50_FSITXA_D1 0x0048040EU #define GPIO_51_GPIO51 0x00480600U #define GPIO_51_EQEP1_B 0x00480601U #define GPIO_51_EMIF1_A11 0x00480602U #define GPIO_51_SPIC_SOMI 0x00480606U #define GPIO_51_SD1_C2 0x00480607U #define GPIO_51_EMIF1_A7 0x00480609U #define GPIO_51_ENET_MII_RX_ERR 0x0048060BU #define GPIO_51_SD2_D3 0x0048060DU #define GPIO_51_FSITXA_CLK 0x0048060EU #define GPIO_52_GPIO52 0x00480800U #define GPIO_52_EQEP1_STROBE 0x00480801U #define GPIO_52_EMIF1_A12 0x00480802U #define GPIO_52_SPIC_CLK 0x00480806U #define GPIO_52_SD1_D3 0x00480807U #define GPIO_52_EMIF1_A8 0x00480809U #define GPIO_52_ENET_MII_RX_DATA0 0x0048080BU #define GPIO_52_SD2_D4 0x0048080DU #define GPIO_52_FSIRXA_D0 0x0048080EU #define GPIO_53_GPIO53 0x00480A00U #define GPIO_53_EQEP1_INDEX 0x00480A01U #define GPIO_53_EMIF1_D31 0x00480A02U #define GPIO_53_EMIF2_D15 0x00480A03U #define GPIO_53_SPIC_STEN 0x00480A06U #define GPIO_53_SD1_C3 0x00480A07U #define GPIO_53_EMIF1_A9 0x00480A09U #define GPIO_53_ENET_MII_RX_DATA1 0x00480A0BU #define GPIO_53_SD1_C1 0x00480A0DU #define GPIO_53_FSIRXA_D1 0x00480A0EU #define GPIO_54_GPIO54 0x00480C00U #define GPIO_54_SPIA_SIMO 0x00480C01U #define GPIO_54_EMIF1_D30 0x00480C02U #define GPIO_54_EMIF2_D14 0x00480C03U #define GPIO_54_EQEP2_A 0x00480C05U #define GPIO_54_SCIB_TX 0x00480C06U #define GPIO_54_SD1_D4 0x00480C07U #define GPIO_54_EMIF1_A10 0x00480C09U #define GPIO_54_ENET_MII_RX_DATA2 0x00480C0BU #define GPIO_54_SD1_C2 0x00480C0DU #define GPIO_54_FSIRXA_CLK 0x00480C0EU #define GPIO_54_SSIA_TX 0x00480C0FU #define GPIO_55_GPIO55 0x00480E00U #define GPIO_55_SPIA_SOMI 0x00480E01U #define GPIO_55_EMIF1_D29 0x00480E02U #define GPIO_55_EMIF2_D13 0x00480E03U #define GPIO_55_EQEP2_B 0x00480E05U #define GPIO_55_SCIB_RX 0x00480E06U #define GPIO_55_SD1_C4 0x00480E07U #define GPIO_55_EMIF1_D0 0x00480E09U #define GPIO_55_ENET_MII_RX_DATA3 0x00480E0BU #define GPIO_55_SD1_C3 0x00480E0DU #define GPIO_55_FSITXB_D0 0x00480E0EU #define GPIO_55_SSIA_RX 0x00480E0FU #define GPIO_56_GPIO56 0x00481000U #define GPIO_56_SPIA_CLK 0x00481001U #define GPIO_56_EMIF1_D28 0x00481002U #define GPIO_56_EMIF2_D12 0x00481003U #define GPIO_56_EQEP2_STROBE 0x00481005U #define GPIO_56_SCIC_TX 0x00481006U #define GPIO_56_SD2_D1 0x00481007U #define GPIO_56_EMIF1_D1 0x00481009U #define GPIO_56_I2CA_SDA 0x0048100AU #define GPIO_56_ENET_MII_TX_EN 0x0048100BU #define GPIO_56_SD1_C4 0x0048100DU #define GPIO_56_FSITXB_CLK 0x0048100EU #define GPIO_56_SSIA_CLK 0x0048100FU #define GPIO_57_GPIO57 0x00481200U #define GPIO_57_SPIA_STEN 0x00481201U #define GPIO_57_EMIF1_D27 0x00481202U #define GPIO_57_EMIF2_D11 0x00481203U #define GPIO_57_EQEP2_INDEX 0x00481205U #define GPIO_57_SCIC_RX 0x00481206U #define GPIO_57_SD2_C1 0x00481207U #define GPIO_57_EMIF1_D2 0x00481209U #define GPIO_57_I2CA_SCL 0x0048120AU #define GPIO_57_ENET_MII_TX_ERR 0x0048120BU #define GPIO_57_FSITXB_D1 0x0048120EU #define GPIO_57_SSIA_FSS 0x0048120FU #define GPIO_58_GPIO58 0x00481400U #define GPIO_58_MCLKRA 0x00481401U #define GPIO_58_EMIF1_D26 0x00481402U #define GPIO_58_EMIF2_D10 0x00481403U #define GPIO_58_OUTPUTXBAR1 0x00481405U #define GPIO_58_SPIB_CLK 0x00481406U #define GPIO_58_SD2_D2 0x00481407U #define GPIO_58_EMIF1_D3 0x00481409U #define GPIO_58_ESC_LED_LINK0_ACTIVE 0x0048140AU #define GPIO_58_ENET_MII_TX_CLK 0x0048140BU #define GPIO_58_SD2_C2 0x0048140DU #define GPIO_58_FSIRXB_D0 0x0048140EU #define GPIO_58_SPIA_SIMO 0x0048140FU #define GPIO_59_GPIO59 0x00481600U #define GPIO_59_MFSRA 0x00481601U #define GPIO_59_EMIF1_D25 0x00481602U #define GPIO_59_EMIF2_D9 0x00481603U #define GPIO_59_OUTPUTXBAR2 0x00481605U #define GPIO_59_SPIB_STEN 0x00481606U #define GPIO_59_SD2_C2 0x00481607U #define GPIO_59_EMIF1_D4 0x00481609U #define GPIO_59_ESC_LED_LINK1_ACTIVE 0x0048160AU #define GPIO_59_ENET_MII_TX_DATA0 0x0048160BU #define GPIO_59_SD2_C3 0x0048160DU #define GPIO_59_FSIRXB_D1 0x0048160EU #define GPIO_59_SPIA_SOMI 0x0048160FU #define GPIO_60_GPIO60 0x00481800U #define GPIO_60_MCLKRB 0x00481801U #define GPIO_60_EMIF1_D24 0x00481802U #define GPIO_60_EMIF2_D8 0x00481803U #define GPIO_60_OUTPUTXBAR3 0x00481805U #define GPIO_60_SPIB_SIMO 0x00481806U #define GPIO_60_SD2_D3 0x00481807U #define GPIO_60_EMIF1_D5 0x00481809U #define GPIO_60_ESC_LED_ERR 0x0048180AU #define GPIO_60_ENET_MII_TX_DATA1 0x0048180BU #define GPIO_60_SD2_C4 0x0048180DU #define GPIO_60_FSIRXB_CLK 0x0048180EU #define GPIO_60_SPIA_CLK 0x0048180FU #define GPIO_61_GPIO61 0x00481A00U #define GPIO_61_MFSRB 0x00481A01U #define GPIO_61_EMIF1_D23 0x00481A02U #define GPIO_61_EMIF2_D7 0x00481A03U #define GPIO_61_OUTPUTXBAR4 0x00481A05U #define GPIO_61_SPIB_SOMI 0x00481A06U #define GPIO_61_SD2_C3 0x00481A07U #define GPIO_61_EMIF1_D6 0x00481A09U #define GPIO_61_ESC_LED_RUN 0x00481A0AU #define GPIO_61_ENET_MII_TX_DATA2 0x00481A0BU #define GPIO_61_CANA_RX 0x00481A0EU #define GPIO_61_SPIA_STEN 0x00481A0FU #define GPIO_62_GPIO62 0x00481C00U #define GPIO_62_SCIC_RX 0x00481C01U #define GPIO_62_EMIF1_D22 0x00481C02U #define GPIO_62_EMIF2_D6 0x00481C03U #define GPIO_62_EQEP3_A 0x00481C05U #define GPIO_62_CANA_RX 0x00481C06U #define GPIO_62_SD2_D4 0x00481C07U #define GPIO_62_EMIF1_D7 0x00481C09U #define GPIO_62_ESC_LED_STATE_RUN 0x00481C0AU #define GPIO_62_ENET_MII_TX_DATA3 0x00481C0BU #define GPIO_62_CANA_TX 0x00481C0EU #define GPIO_63_GPIO63 0x00481E00U #define GPIO_63_SCIC_TX 0x00481E01U #define GPIO_63_EMIF1_D21 0x00481E02U #define GPIO_63_EMIF2_D5 0x00481E03U #define GPIO_63_EQEP3_B 0x00481E05U #define GPIO_63_CANA_TX 0x00481E06U #define GPIO_63_SD2_C4 0x00481E07U #define GPIO_63_SSIA_TX 0x00481E09U #define GPIO_63_ENET_MII_RX_DATA0 0x00481E0BU #define GPIO_63_SD1_D1 0x00481E0DU #define GPIO_63_ESC_RX1_DATA0 0x00481E0EU #define GPIO_63_SPIB_SIMO 0x00481E0FU #define GPIO_64_GPIO64 0x00860000U #define GPIO_64_EMIF1_D20 0x00860002U #define GPIO_64_EMIF2_D4 0x00860003U #define GPIO_64_EQEP3_STROBE 0x00860005U #define GPIO_64_SCIA_RX 0x00860006U #define GPIO_64_SSIA_RX 0x00860009U #define GPIO_64_ENET_MII_RX_DV 0x0086000AU #define GPIO_64_ENET_MII_RX_DATA1 0x0086000BU #define GPIO_64_SD1_C1 0x0086000DU #define GPIO_64_ESC_RX1_DATA1 0x0086000EU #define GPIO_64_SPIB_SOMI 0x0086000FU #define GPIO_65_GPIO65 0x00860200U #define GPIO_65_EMIF1_D19 0x00860202U #define GPIO_65_EMIF2_D3 0x00860203U #define GPIO_65_EQEP3_INDEX 0x00860205U #define GPIO_65_SCIA_TX 0x00860206U #define GPIO_65_SSIA_CLK 0x00860209U #define GPIO_65_ENET_MII_RX_ERR 0x0086020AU #define GPIO_65_ENET_MII_RX_DATA2 0x0086020BU #define GPIO_65_SD1_D2 0x0086020DU #define GPIO_65_ESC_RX1_DATA2 0x0086020EU #define GPIO_65_SPIB_CLK 0x0086020FU #define GPIO_66_GPIO66 0x00860400U #define GPIO_66_EMIF1_D18 0x00860402U #define GPIO_66_EMIF2_D2 0x00860403U #define GPIO_66_I2CB_SDA 0x00860406U #define GPIO_66_SSIA_FSS 0x00860409U #define GPIO_66_ENET_MII_RX_DATA0 0x0086040AU #define GPIO_66_ENET_MII_RX_DATA3 0x0086040BU #define GPIO_66_SD1_C2 0x0086040DU #define GPIO_66_ESC_RX1_DATA3 0x0086040EU #define GPIO_66_SPIB_STEN 0x0086040FU #define GPIO_67_GPIO67 0x00860600U #define GPIO_67_EMIF1_D17 0x00860602U #define GPIO_67_EMIF2_D1 0x00860603U #define GPIO_67_ENET_MII_RX_CLK 0x0086060AU #define GPIO_67_ENET_REVMII_MDIO_RST 0x0086060BU #define GPIO_67_SD1_D3 0x0086060DU #define GPIO_68_GPIO68 0x00860800U #define GPIO_68_EMIF1_D16 0x00860802U #define GPIO_68_EMIF2_D0 0x00860803U #define GPIO_68_ENET_MII_INTR 0x0086080BU #define GPIO_68_SD1_C3 0x0086080DU #define GPIO_68_ESC_PHY1_LINKSTATUS 0x0086080EU #define GPIO_69_GPIO69 0x00860A00U #define GPIO_69_EMIF1_D15 0x00860A02U #define GPIO_69_I2CB_SCL 0x00860A06U #define GPIO_69_ENET_MII_TX_EN 0x00860A0AU #define GPIO_69_ENET_MII_RX_CLK 0x00860A0BU #define GPIO_69_SD1_D4 0x00860A0DU #define GPIO_69_ESC_RX1_CLK 0x00860A0EU #define GPIO_69_SPIC_SIMO 0x00860A0FU #define GPIO_70_GPIO70 0x00860C00U #define GPIO_70_EMIF1_D14 0x00860C02U #define GPIO_70_CANA_RX 0x00860C05U #define GPIO_70_SCIB_TX 0x00860C06U #define GPIO_70_MCAN_RX 0x00860C09U #define GPIO_70_ENET_MII_RX_DV 0x00860C0BU #define GPIO_70_SD1_C4 0x00860C0DU #define GPIO_70_ESC_RX1_DV 0x00860C0EU #define GPIO_70_SPIC_SOMI 0x00860C0FU #define GPIO_71_GPIO71 0x00860E00U #define GPIO_71_EMIF1_D13 0x00860E02U #define GPIO_71_CANA_TX 0x00860E05U #define GPIO_71_SCIB_RX 0x00860E06U #define GPIO_71_MCAN_TX 0x00860E09U #define GPIO_71_ENET_MII_RX_DATA0 0x00860E0AU #define GPIO_71_ENET_MII_RX_ERR 0x00860E0BU #define GPIO_71_ESC_RX1_ERR 0x00860E0EU #define GPIO_71_SPIC_CLK 0x00860E0FU #define GPIO_72_GPIO72 0x00861000U #define GPIO_72_EMIF1_D12 0x00861002U #define GPIO_72_CANB_TX 0x00861005U #define GPIO_72_SCIC_TX 0x00861006U #define GPIO_72_ENET_MII_RX_DATA1 0x0086100AU #define GPIO_72_ENET_MII_TX_DATA3 0x0086100BU #define GPIO_72_ESC_TX1_DATA3 0x0086100EU #define GPIO_72_SPIC_STEN 0x0086100FU #define GPIO_73_GPIO73 0x00861200U #define GPIO_73_EMIF1_D11 0x00861202U #define GPIO_73_XCLKOUT 0x00861203U #define GPIO_73_CANB_RX 0x00861205U #define GPIO_73_SCIC_RX 0x00861206U #define GPIO_73_ENET_RMII_CLK 0x0086120AU #define GPIO_73_ENET_MII_TX_DATA2 0x0086120BU #define GPIO_73_SD2_D2 0x0086120DU #define GPIO_73_ESC_TX1_DATA2 0x0086120EU #define GPIO_74_GPIO74 0x00861400U #define GPIO_74_EMIF1_D10 0x00861402U #define GPIO_74_MCAN_TX 0x00861409U #define GPIO_74_ENET_MII_TX_DATA1 0x0086140BU #define GPIO_74_SD2_C2 0x0086140DU #define GPIO_74_ESC_TX1_DATA1 0x0086140EU #define GPIO_75_GPIO75 0x00861600U #define GPIO_75_EMIF1_D9 0x00861602U #define GPIO_75_MCAN_RX 0x00861609U #define GPIO_75_ENET_MII_TX_DATA0 0x0086160BU #define GPIO_75_SD2_D3 0x0086160DU #define GPIO_75_ESC_TX1_DATA0 0x0086160EU #define GPIO_76_GPIO76 0x00861800U #define GPIO_76_EMIF1_D8 0x00861802U #define GPIO_76_SCID_TX 0x00861806U #define GPIO_76_ENET_MII_RX_ERR 0x0086180AU #define GPIO_76_SD2_C3 0x0086180DU #define GPIO_76_ESC_PHY_RESETN 0x0086180EU #define GPIO_77_GPIO77 0x00861A00U #define GPIO_77_EMIF1_D7 0x00861A02U #define GPIO_77_SCID_RX 0x00861A06U #define GPIO_77_SD2_D4 0x00861A0DU #define GPIO_77_ESC_RX0_CLK 0x00861A0EU #define GPIO_78_GPIO78 0x00861C00U #define GPIO_78_EMIF1_D6 0x00861C02U #define GPIO_78_EQEP2_A 0x00861C06U #define GPIO_78_SD2_C4 0x00861C0DU #define GPIO_78_ESC_RX0_DV 0x00861C0EU #define GPIO_79_GPIO79 0x00861E00U #define GPIO_79_EMIF1_D5 0x00861E02U #define GPIO_79_EQEP2_B 0x00861E06U #define GPIO_79_SD2_D1 0x00861E0DU #define GPIO_79_ESC_RX0_ERR 0x00861E0EU #define GPIO_80_GPIO80 0x00880000U #define GPIO_80_EMIF1_D4 0x00880002U #define GPIO_80_EQEP2_STROBE 0x00880006U #define GPIO_80_SD2_C1 0x0088000DU #define GPIO_80_ESC_RX0_DATA0 0x0088000EU #define GPIO_81_GPIO81 0x00880200U #define GPIO_81_EMIF1_D3 0x00880202U #define GPIO_81_EQEP2_INDEX 0x00880206U #define GPIO_81_ESC_RX0_DATA1 0x0088020EU #define GPIO_82_GPIO82 0x00880400U #define GPIO_82_EMIF1_D2 0x00880402U #define GPIO_82_ESC_RX0_DATA2 0x0088040EU #define GPIO_83_GPIO83 0x00880600U #define GPIO_83_EMIF1_D1 0x00880602U #define GPIO_83_ESC_RX0_DATA3 0x0088060EU #define GPIO_84_GPIO84 0x00880800U #define GPIO_84_SCIA_TX 0x00880805U #define GPIO_84_MDXB 0x00880806U #define GPIO_84_UARTA_TX 0x0088080BU #define GPIO_84_ESC_TX0_ENA 0x0088080EU #define GPIO_84_MDXA 0x0088080FU #define GPIO_85_GPIO85 0x00880A00U #define GPIO_85_EMIF1_D0 0x00880A02U #define GPIO_85_SCIA_RX 0x00880A05U #define GPIO_85_MDRB 0x00880A06U #define GPIO_85_UARTA_RX 0x00880A0BU #define GPIO_85_ESC_TX0_CLK 0x00880A0EU #define GPIO_85_MDRA 0x00880A0FU #define GPIO_86_GPIO86 0x00880C00U #define GPIO_86_EMIF1_A13 0x00880C02U #define GPIO_86_EMIF1_CAS 0x00880C03U #define GPIO_86_SCIB_TX 0x00880C05U #define GPIO_86_MCLKXB 0x00880C06U #define GPIO_86_ESC_PHY0_LINKSTATUS 0x00880C0EU #define GPIO_86_MCLKXA 0x00880C0FU #define GPIO_87_GPIO87 0x00880E00U #define GPIO_87_EMIF1_A14 0x00880E02U #define GPIO_87_EMIF1_RAS 0x00880E03U #define GPIO_87_SCIB_RX 0x00880E05U #define GPIO_87_MFSXB 0x00880E06U #define GPIO_87_EMIF1_DQM3 0x00880E09U #define GPIO_87_ESC_TX0_DATA0 0x00880E0EU #define GPIO_87_MFSXA 0x00880E0FU #define GPIO_88_GPIO88 0x00881000U #define GPIO_88_EMIF1_A15 0x00881002U #define GPIO_88_EMIF1_DQM0 0x00881003U #define GPIO_88_EMIF1_DQM1 0x00881009U #define GPIO_88_ESC_TX0_DATA1 0x0088100EU #define GPIO_89_GPIO89 0x00881200U #define GPIO_89_EMIF1_A16 0x00881202U #define GPIO_89_EMIF1_DQM1 0x00881203U #define GPIO_89_SCIC_TX 0x00881206U #define GPIO_89_EMIF1_CAS 0x00881209U #define GPIO_89_ESC_TX0_DATA2 0x0088120EU #define GPIO_90_GPIO90 0x00881400U #define GPIO_90_EMIF1_A17 0x00881402U #define GPIO_90_EMIF1_DQM2 0x00881403U #define GPIO_90_SCIC_RX 0x00881406U #define GPIO_90_EMIF1_RAS 0x00881409U #define GPIO_90_ESC_TX0_DATA3 0x0088140EU #define GPIO_91_GPIO91 0x00881600U #define GPIO_91_EMIF1_A18 0x00881602U #define GPIO_91_EMIF1_DQM3 0x00881603U #define GPIO_91_I2CA_SDA 0x00881606U #define GPIO_91_EMIF1_DQM2 0x00881609U #define GPIO_91_PMBUSA_SCL 0x0088160AU #define GPIO_91_SSIA_TX 0x0088160BU #define GPIO_91_FSIRXF_D0 0x0088160DU #define GPIO_91_CLB_OUTPUTXBAR1 0x0088160EU #define GPIO_91_SPID_SIMO 0x0088160FU #define GPIO_92_GPIO92 0x00881800U #define GPIO_92_EMIF1_A19 0x00881802U #define GPIO_92_EMIF1_BA1 0x00881803U #define GPIO_92_I2CA_SCL 0x00881806U #define GPIO_92_EMIF1_DQM0 0x00881809U #define GPIO_92_PMBUSA_SDA 0x0088180AU #define GPIO_92_SSIA_RX 0x0088180BU #define GPIO_92_FSIRXF_D1 0x0088180DU #define GPIO_92_CLB_OUTPUTXBAR2 0x0088180EU #define GPIO_92_SPID_SOMI 0x0088180FU #define GPIO_93_GPIO93 0x00881A00U #define GPIO_93_EMIF1_BA0 0x00881A03U #define GPIO_93_SCID_TX 0x00881A06U #define GPIO_93_PMBUSA_ALERT 0x00881A0AU #define GPIO_93_SSIA_CLK 0x00881A0BU #define GPIO_93_FSIRXF_CLK 0x00881A0DU #define GPIO_93_CLB_OUTPUTXBAR3 0x00881A0EU #define GPIO_93_SPID_CLK 0x00881A0FU #define GPIO_94_GPIO94 0x00881C00U #define GPIO_94_SCID_RX 0x00881C06U #define GPIO_94_EMIF1_BA1 0x00881C09U #define GPIO_94_PMBUSA_CTL 0x00881C0AU #define GPIO_94_SSIA_FSS 0x00881C0BU #define GPIO_94_FSIRXG_D0 0x00881C0DU #define GPIO_94_CLB_OUTPUTXBAR4 0x00881C0EU #define GPIO_94_SPID_STEN 0x00881C0FU #define GPIO_95_GPIO95 0x00881E00U #define GPIO_95_EMIF2_A12 0x00881E03U #define GPIO_95_FSIRXG_D1 0x00881E0DU #define GPIO_95_CLB_OUTPUTXBAR5 0x00881E0EU #define GPIO_96_GPIO96 0x00C60000U #define GPIO_96_EMIF2_DQM1 0x00C60003U #define GPIO_96_EQEP1_A 0x00C60005U #define GPIO_96_FSIRXG_CLK 0x00C6000DU #define GPIO_96_CLB_OUTPUTXBAR6 0x00C6000EU #define GPIO_97_GPIO97 0x00C60200U #define GPIO_97_EMIF2_DQM0 0x00C60203U #define GPIO_97_EQEP1_B 0x00C60205U #define GPIO_97_FSIRXH_D0 0x00C6020DU #define GPIO_97_CLB_OUTPUTXBAR7 0x00C6020EU #define GPIO_98_GPIO98 0x00C60400U #define GPIO_98_EMIF2_A0 0x00C60403U #define GPIO_98_EQEP1_STROBE 0x00C60405U #define GPIO_98_FSIRXH_D1 0x00C6040DU #define GPIO_98_CLB_OUTPUTXBAR8 0x00C6040EU #define GPIO_99_GPIO99 0x00C60600U #define GPIO_99_EMIF2_A1 0x00C60603U #define GPIO_99_EQEP1_INDEX 0x00C60605U #define GPIO_99_FSIRXH_CLK 0x00C6060DU #define GPIO_100_GPIO100 0x00C60800U #define GPIO_100_EMIF2_A2 0x00C60803U #define GPIO_100_EQEP2_A 0x00C60805U #define GPIO_100_SPIC_SIMO 0x00C60806U #define GPIO_100_ESC_GPI0 0x00C6080AU #define GPIO_100_FSITXA_D0 0x00C6080DU #define GPIO_101_GPIO101 0x00C60A00U #define GPIO_101_EMIF2_A3 0x00C60A03U #define GPIO_101_EQEP2_B 0x00C60A05U #define GPIO_101_SPIC_SOMI 0x00C60A06U #define GPIO_101_ESC_GPI1 0x00C60A0AU #define GPIO_101_FSITXA_D1 0x00C60A0DU #define GPIO_102_GPIO102 0x00C60C00U #define GPIO_102_EMIF2_A4 0x00C60C03U #define GPIO_102_EQEP2_STROBE 0x00C60C05U #define GPIO_102_SPIC_CLK 0x00C60C06U #define GPIO_102_ESC_GPI2 0x00C60C0AU #define GPIO_102_FSITXA_CLK 0x00C60C0DU #define GPIO_103_GPIO103 0x00C60E00U #define GPIO_103_EMIF2_A5 0x00C60E03U #define GPIO_103_EQEP2_INDEX 0x00C60E05U #define GPIO_103_SPIC_STEN 0x00C60E06U #define GPIO_103_ESC_GPI3 0x00C60E0AU #define GPIO_103_FSIRXA_D0 0x00C60E0DU #define GPIO_104_GPIO104 0x00C61000U #define GPIO_104_I2CA_SDA 0x00C61001U #define GPIO_104_EMIF2_A6 0x00C61003U #define GPIO_104_EQEP3_A 0x00C61005U #define GPIO_104_SCID_TX 0x00C61006U #define GPIO_104_ESC_GPI4 0x00C6100AU #define GPIO_104_CM_I2CA_SDA 0x00C6100BU #define GPIO_104_FSIRXA_D1 0x00C6100DU #define GPIO_105_GPIO105 0x00C61200U #define GPIO_105_I2CA_SCL 0x00C61201U #define GPIO_105_EMIF2_A7 0x00C61203U #define GPIO_105_EQEP3_B 0x00C61205U #define GPIO_105_SCID_RX 0x00C61206U #define GPIO_105_ESC_GPI5 0x00C6120AU #define GPIO_105_CM_I2CA_SCL 0x00C6120BU #define GPIO_105_FSIRXA_CLK 0x00C6120DU #define GPIO_105_ENET_MDIO_CLK 0x00C6120EU #define GPIO_106_GPIO106 0x00C61400U #define GPIO_106_EMIF2_A8 0x00C61403U #define GPIO_106_EQEP3_STROBE 0x00C61405U #define GPIO_106_SCIC_TX 0x00C61406U #define GPIO_106_ESC_GPI6 0x00C6140AU #define GPIO_106_FSITXB_D0 0x00C6140DU #define GPIO_106_ENET_MDIO_DATA 0x00C6140EU #define GPIO_107_GPIO107 0x00C61600U #define GPIO_107_EMIF2_A9 0x00C61603U #define GPIO_107_EQEP3_INDEX 0x00C61605U #define GPIO_107_SCIC_RX 0x00C61606U #define GPIO_107_ESC_GPI7 0x00C6160AU #define GPIO_107_FSITXB_D1 0x00C6160DU #define GPIO_107_ENET_REVMII_MDIO_RST 0x00C6160EU #define GPIO_108_GPIO108 0x00C61800U #define GPIO_108_EMIF2_A10 0x00C61803U #define GPIO_108_ESC_GPI8 0x00C6180AU #define GPIO_108_FSITXB_CLK 0x00C6180DU #define GPIO_108_ENET_MII_INTR 0x00C6180EU #define GPIO_109_GPIO109 0x00C61A00U #define GPIO_109_EMIF2_A11 0x00C61A03U #define GPIO_109_ESC_GPI9 0x00C61A0AU #define GPIO_109_ENET_MII_CRS 0x00C61A0EU #define GPIO_110_GPIO110 0x00C61C00U #define GPIO_110_EMIF2_WAIT 0x00C61C03U #define GPIO_110_ESC_GPI10 0x00C61C0AU #define GPIO_110_FSIRXB_D0 0x00C61C0DU #define GPIO_110_ENET_MII_COL 0x00C61C0EU #define GPIO_111_GPIO111 0x00C61E00U #define GPIO_111_EMIF2_BA0 0x00C61E03U #define GPIO_111_ESC_GPI11 0x00C61E0AU #define GPIO_111_FSIRXB_D1 0x00C61E0DU #define GPIO_111_ENET_MII_RX_CLK 0x00C61E0EU #define GPIO_112_GPIO112 0x00C80000U #define GPIO_112_EMIF2_BA1 0x00C80003U #define GPIO_112_ESC_GPI12 0x00C8000AU #define GPIO_112_FSIRXB_CLK 0x00C8000DU #define GPIO_112_ENET_MII_RX_DV 0x00C8000EU #define GPIO_113_GPIO113 0x00C80200U #define GPIO_113_EMIF2_CAS 0x00C80203U #define GPIO_113_ESC_GPI13 0x00C8020AU #define GPIO_113_ENET_MII_RX_ERR 0x00C8020EU #define GPIO_114_GPIO114 0x00C80400U #define GPIO_114_EMIF2_RAS 0x00C80403U #define GPIO_114_ESC_GPI14 0x00C8040AU #define GPIO_114_ENET_MII_RX_DATA0 0x00C8040EU #define GPIO_115_GPIO115 0x00C80600U #define GPIO_115_EMIF2_CS0N 0x00C80603U #define GPIO_115_OUTPUTXBAR5 0x00C80605U #define GPIO_115_ESC_GPI15 0x00C8060AU #define GPIO_115_FSIRXC_D0 0x00C8060DU #define GPIO_115_ENET_MII_RX_DATA1 0x00C8060EU #define GPIO_116_GPIO116 0x00C80800U #define GPIO_116_EMIF2_CS2N 0x00C80803U #define GPIO_116_OUTPUTXBAR6 0x00C80805U #define GPIO_116_ESC_GPI16 0x00C8080AU #define GPIO_116_FSIRXC_D1 0x00C8080DU #define GPIO_116_ENET_MII_RX_DATA2 0x00C8080EU #define GPIO_117_GPIO117 0x00C80A00U #define GPIO_117_EMIF2_SDCKE 0x00C80A03U #define GPIO_117_ESC_GPI17 0x00C80A0AU #define GPIO_117_FSIRXC_CLK 0x00C80A0DU #define GPIO_117_ENET_MII_RX_DATA3 0x00C80A0EU #define GPIO_118_GPIO118 0x00C80C00U #define GPIO_118_EMIF2_CLK 0x00C80C03U #define GPIO_118_ESC_GPI18 0x00C80C0AU #define GPIO_118_FSIRXD_D0 0x00C80C0DU #define GPIO_118_ENET_MII_TX_EN 0x00C80C0EU #define GPIO_119_GPIO119 0x00C80E00U #define GPIO_119_EMIF2_RNW 0x00C80E03U #define GPIO_119_ESC_GPI19 0x00C80E0AU #define GPIO_119_FSIRXD_D1 0x00C80E0DU #define GPIO_119_ENET_MII_TX_ERR 0x00C80E0EU #define GPIO_120_GPIO120 0x00C81000U #define GPIO_120_EMIF2_WEN 0x00C81003U #define GPIO_120_ESC_GPI20 0x00C8100AU #define GPIO_120_FSIRXD_CLK 0x00C8100DU #define GPIO_120_ENET_MII_TX_CLK 0x00C8100EU #define GPIO_121_GPIO121 0x00C81200U #define GPIO_121_EMIF2_OEN 0x00C81203U #define GPIO_121_ESC_GPI21 0x00C8120AU #define GPIO_121_FSIRXE_D0 0x00C8120DU #define GPIO_121_ENET_MII_TX_DATA0 0x00C8120EU #define GPIO_122_GPIO122 0x00C81400U #define GPIO_122_EMIF2_D15 0x00C81403U #define GPIO_122_SPIC_SIMO 0x00C81406U #define GPIO_122_SD1_D1 0x00C81407U #define GPIO_122_ESC_GPI22 0x00C8140AU #define GPIO_122_ENET_MII_TX_DATA1 0x00C8140EU #define GPIO_123_GPIO123 0x00C81600U #define GPIO_123_EMIF2_D14 0x00C81603U #define GPIO_123_SPIC_SOMI 0x00C81606U #define GPIO_123_SD1_C1 0x00C81607U #define GPIO_123_ESC_GPI23 0x00C8160AU #define GPIO_123_ENET_MII_TX_DATA2 0x00C8160EU #define GPIO_124_GPIO124 0x00C81800U #define GPIO_124_EMIF2_D13 0x00C81803U #define GPIO_124_SPIC_CLK 0x00C81806U #define GPIO_124_SD1_D2 0x00C81807U #define GPIO_124_ESC_GPI24 0x00C8180AU #define GPIO_124_ENET_MII_TX_DATA3 0x00C8180EU #define GPIO_125_GPIO125 0x00C81A00U #define GPIO_125_EMIF2_D12 0x00C81A03U #define GPIO_125_SPIC_STEN 0x00C81A06U #define GPIO_125_SD1_C2 0x00C81A07U #define GPIO_125_ESC_GPI25 0x00C81A0AU #define GPIO_125_FSIRXE_D1 0x00C81A0DU #define GPIO_125_ESC_LATCH0 0x00C81A0EU #define GPIO_126_GPIO126 0x00C81C00U #define GPIO_126_EMIF2_D11 0x00C81C03U #define GPIO_126_SD1_D3 0x00C81C07U #define GPIO_126_ESC_GPI26 0x00C81C0AU #define GPIO_126_FSIRXE_CLK 0x00C81C0DU #define GPIO_126_ESC_LATCH1 0x00C81C0EU #define GPIO_127_GPIO127 0x00C81E00U #define GPIO_127_EMIF2_D10 0x00C81E03U #define GPIO_127_SD1_C3 0x00C81E07U #define GPIO_127_ESC_GPI27 0x00C81E0AU #define GPIO_127_ESC_SYNC0 0x00C81E0EU #define GPIO_128_GPIO128 0x01060000U #define GPIO_128_EMIF2_D9 0x01060003U #define GPIO_128_SD1_D4 0x01060007U #define GPIO_128_ESC_GPI28 0x0106000AU #define GPIO_128_ESC_SYNC1 0x0106000EU #define GPIO_129_GPIO129 0x01060200U #define GPIO_129_EMIF2_D8 0x01060203U #define GPIO_129_SD1_C4 0x01060207U #define GPIO_129_ESC_GPI29 0x0106020AU #define GPIO_129_ESC_TX1_ENA 0x0106020EU #define GPIO_130_GPIO130 0x01060400U #define GPIO_130_EMIF2_D7 0x01060403U #define GPIO_130_SD2_D1 0x01060407U #define GPIO_130_ESC_GPI30 0x0106040AU #define GPIO_130_ESC_TX1_CLK 0x0106040EU #define GPIO_131_GPIO131 0x01060600U #define GPIO_131_EMIF2_D6 0x01060603U #define GPIO_131_SD2_C1 0x01060607U #define GPIO_131_ESC_GPI31 0x0106060AU #define GPIO_131_ESC_TX1_DATA0 0x0106060EU #define GPIO_132_GPIO132 0x01060800U #define GPIO_132_EMIF2_D5 0x01060803U #define GPIO_132_SD2_D2 0x01060807U #define GPIO_132_ESC_GPO0 0x0106080AU #define GPIO_132_ESC_TX1_DATA1 0x0106080EU #define GPIO_133_GPIO133 0x01060A00U #define GPIO_133_SD2_C2 0x01060A07U #define GPIO_134_GPIO134 0x01060C00U #define GPIO_134_EMIF2_D4 0x01060C03U #define GPIO_134_SD2_D3 0x01060C07U #define GPIO_134_ESC_GPO1 0x01060C0AU #define GPIO_134_ESC_TX1_DATA2 0x01060C0EU #define GPIO_135_GPIO135 0x01060E00U #define GPIO_135_EMIF2_D3 0x01060E03U #define GPIO_135_SCIA_TX 0x01060E06U #define GPIO_135_SD2_C3 0x01060E07U #define GPIO_135_ESC_GPO2 0x01060E0AU #define GPIO_135_ESC_TX1_DATA3 0x01060E0EU #define GPIO_136_GPIO136 0x01061000U #define GPIO_136_EMIF2_D2 0x01061003U #define GPIO_136_SCIA_RX 0x01061006U #define GPIO_136_SD2_D4 0x01061007U #define GPIO_136_ESC_GPO3 0x0106100AU #define GPIO_136_ESC_RX1_DV 0x0106100EU #define GPIO_137_GPIO137 0x01061200U #define GPIO_137_EPWM13A 0x01061201U #define GPIO_137_EMIF2_D1 0x01061203U #define GPIO_137_SCIB_TX 0x01061206U #define GPIO_137_SD2_C4 0x01061207U #define GPIO_137_ESC_GPO4 0x0106120AU #define GPIO_137_ESC_RX1_CLK 0x0106120EU #define GPIO_138_GPIO138 0x01061400U #define GPIO_138_EPWM13B 0x01061401U #define GPIO_138_EMIF2_D0 0x01061403U #define GPIO_138_SCIB_RX 0x01061406U #define GPIO_138_ESC_GPO5 0x0106140AU #define GPIO_138_ESC_RX1_ERR 0x0106140EU #define GPIO_139_GPIO139 0x01061600U #define GPIO_139_EPWM14A 0x01061601U #define GPIO_139_SCIC_RX 0x01061606U #define GPIO_139_ESC_GPO6 0x0106160AU #define GPIO_139_ESC_RX1_DATA0 0x0106160EU #define GPIO_140_GPIO140 0x01061800U #define GPIO_140_EPWM14B 0x01061801U #define GPIO_140_SCIC_TX 0x01061806U #define GPIO_140_ESC_GPO7 0x0106180AU #define GPIO_140_ESC_RX1_DATA1 0x0106180EU #define GPIO_141_GPIO141 0x01061A00U #define GPIO_141_EPWM15A 0x01061A01U #define GPIO_141_SCID_RX 0x01061A06U #define GPIO_141_ESC_GPO8 0x01061A0AU #define GPIO_141_ESC_RX1_DATA2 0x01061A0EU #define GPIO_142_GPIO142 0x01061C00U #define GPIO_142_EPWM15B 0x01061C01U #define GPIO_142_SCID_TX 0x01061C06U #define GPIO_142_ESC_GPO9 0x01061C0AU #define GPIO_142_ESC_RX1_DATA3 0x01061C0EU #define GPIO_143_GPIO143 0x01061E00U #define GPIO_143_EPWM16A 0x01061E01U #define GPIO_143_ESC_GPO10 0x01061E0AU #define GPIO_143_ESC_LED_LINK0_ACTIVE 0x01061E0EU #define GPIO_144_GPIO144 0x01080000U #define GPIO_144_EPWM16B 0x01080001U #define GPIO_144_ESC_GPO11 0x0108000AU #define GPIO_144_ESC_LED_LINK1_ACTIVE 0x0108000EU #define GPIO_145_GPIO145 0x01080200U #define GPIO_145_EPWM1A 0x01080201U #define GPIO_145_ESC_GPO12 0x0108020AU #define GPIO_145_ESC_LED_ERR 0x0108020EU #define GPIO_146_GPIO146 0x01080400U #define GPIO_146_EPWM1B 0x01080401U #define GPIO_146_ESC_GPO13 0x0108040AU #define GPIO_146_ESC_LED_RUN 0x0108040EU #define GPIO_147_GPIO147 0x01080600U #define GPIO_147_EPWM2A 0x01080601U #define GPIO_147_ESC_GPO14 0x0108060AU #define GPIO_147_ESC_LED_STATE_RUN 0x0108060EU #define GPIO_148_GPIO148 0x01080800U #define GPIO_148_EPWM2B 0x01080801U #define GPIO_148_ESC_GPO15 0x0108080AU #define GPIO_148_ESC_PHY0_LINKSTATUS 0x0108080EU #define GPIO_149_GPIO149 0x01080A00U #define GPIO_149_EPWM3A 0x01080A01U #define GPIO_149_ESC_GPO16 0x01080A0AU #define GPIO_149_ESC_PHY1_LINKSTATUS 0x01080A0EU #define GPIO_150_GPIO150 0x01080C00U #define GPIO_150_EPWM3B 0x01080C01U #define GPIO_150_ESC_GPO17 0x01080C0AU #define GPIO_150_ESC_I2C_SDA 0x01080C0EU #define GPIO_151_GPIO151 0x01080E00U #define GPIO_151_EPWM4A 0x01080E01U #define GPIO_151_ESC_GPO18 0x01080E0AU #define GPIO_151_ESC_I2C_SCL 0x01080E0EU #define GPIO_152_GPIO152 0x01081000U #define GPIO_152_EPWM4B 0x01081001U #define GPIO_152_ESC_GPO19 0x0108100AU #define GPIO_152_ESC_MDIO_CLK 0x0108100EU #define GPIO_153_GPIO153 0x01081200U #define GPIO_153_EPWM5A 0x01081201U #define GPIO_153_ESC_GPO20 0x0108120AU #define GPIO_153_ESC_MDIO_DATA 0x0108120EU #define GPIO_154_GPIO154 0x01081400U #define GPIO_154_EPWM5B 0x01081401U #define GPIO_154_ESC_GPO21 0x0108140AU #define GPIO_154_ESC_PHY_CLK 0x0108140EU #define GPIO_155_GPIO155 0x01081600U #define GPIO_155_EPWM6A 0x01081601U #define GPIO_155_ESC_GPO22 0x0108160AU #define GPIO_155_ESC_PHY_RESETN 0x0108160EU #define GPIO_156_GPIO156 0x01081800U #define GPIO_156_EPWM6B 0x01081801U #define GPIO_156_ESC_GPO23 0x0108180AU #define GPIO_156_ESC_TX0_ENA 0x0108180EU #define GPIO_157_GPIO157 0x01081A00U #define GPIO_157_EPWM7A 0x01081A01U #define GPIO_157_ESC_GPO24 0x01081A0AU #define GPIO_157_ESC_TX0_CLK 0x01081A0EU #define GPIO_158_GPIO158 0x01081C00U #define GPIO_158_EPWM7B 0x01081C01U #define GPIO_158_ESC_GPO25 0x01081C0AU #define GPIO_158_ESC_TX0_DATA0 0x01081C0EU #define GPIO_159_GPIO159 0x01081E00U #define GPIO_159_EPWM8A 0x01081E01U #define GPIO_159_ESC_GPO26 0x01081E0AU #define GPIO_159_ESC_TX0_DATA1 0x01081E0EU #define GPIO_160_GPIO160 0x01460000U #define GPIO_160_EPWM8B 0x01460001U #define GPIO_160_ESC_GPO27 0x0146000AU #define GPIO_160_ESC_TX0_DATA2 0x0146000EU #define GPIO_161_GPIO161 0x01460200U #define GPIO_161_EPWM9A 0x01460201U #define GPIO_161_ESC_GPO28 0x0146020AU #define GPIO_161_ESC_TX0_DATA3 0x0146020EU #define GPIO_162_GPIO162 0x01460400U #define GPIO_162_EPWM9B 0x01460401U #define GPIO_162_ESC_GPO29 0x0146040AU #define GPIO_162_ESC_RX0_DV 0x0146040EU #define GPIO_163_GPIO163 0x01460600U #define GPIO_163_EPWM10A 0x01460601U #define GPIO_163_ESC_GPO30 0x0146060AU #define GPIO_163_ESC_RX0_CLK 0x0146060EU #define GPIO_164_GPIO164 0x01460800U #define GPIO_164_EPWM10B 0x01460801U #define GPIO_164_ESC_GPO31 0x0146080AU #define GPIO_164_ESC_RX0_ERR 0x0146080EU #define GPIO_165_GPIO165 0x01460A00U #define GPIO_165_EPWM11A 0x01460A01U #define GPIO_165_MDXA 0x01460A0AU #define GPIO_165_ESC_RX0_DATA0 0x01460A0EU #define GPIO_166_GPIO166 0x01460C00U #define GPIO_166_EPWM11B 0x01460C01U #define GPIO_166_MDRA 0x01460C0AU #define GPIO_166_ESC_RX0_DATA1 0x01460C0EU #define GPIO_167_GPIO167 0x01460E00U #define GPIO_167_EPWM12A 0x01460E01U #define GPIO_167_MCLKXA 0x01460E0AU #define GPIO_167_ESC_RX0_DATA2 0x01460E0EU #define GPIO_168_GPIO168 0x01461000U #define GPIO_168_EPWM12B 0x01461001U #define GPIO_168_MFSXA 0x0146100AU #define GPIO_168_ESC_RX0_DATA3 0x0146100EU #endif // PIN_MAP_H
user6355257 说：就像帖子一开始，例程中定义引脚GPIO8的功能是SCIATX,我是否可以将GPIO8定义为SCIARX, 然后进行编程使用。
GPIO8的多路复用引脚中没有我这种想法的定义。
功能的话，您需要查看数据手册，看该引脚是否有您需要的功能。没有的话，就不能实现功能
