TMS320F28069F: 初始上电CLA某段代码不运行，手动复位后运行正常

Gang Liu

Prodigy 20 points

Part Number: TMS320F28069F
Other Parts Discussed in Thread: C2000WARE

求助TI支持团队，

最近在用TMS320F28069F做一个电源，CLA部分进行AD采集计算、运行3个PI控制器、输出PWM这3个操作。

调试发现奇怪现象：

1. 连接仿真器下载程序后，CLA代码能正常运行；

2. 断开仿真器重新上电后，CLA部分PI控制代码不能正常运行，输出结果不正确，只是部分代码不正常运行，因为AD采集量是正常刷新的；

3. 手动按下复位按钮进行复位后，CLA代码又能正常运行了，输出结果也是正常的；

4. 上电前就按住复位按钮，上电后再松开，CLA部分PI控制代码不能正常运行，再按下复位按钮，CLA代码又可以运行。

总结一下就是，初始上电CLA部分代码不运行，手动复位后又可以正常运行；而且不是全部CLA代码不运行，只是那一小段，因为数据采集是正常刷新的。

CLA由PWM2触发，中断触发周期是10us，测量了CLA代码执行时间约5.6us，代码是能够执行的完的。

CLA程序是仿照例程修改的，不过我的程序是下载到flash的，而例程都是下载到内存中，不知道是不是这里出现了问题。

这个问题困扰我几天了，想了各种办法也没有解决。

大家有没有遇到类似情况的，应该怎么解决？

或者我应该检查哪个部分，有什么检查思路或者参考例程吗？

以下是部分相关代码：

CLA初始化部分（没用CLA执行完中断，所以屏蔽掉了PIE部分）

void ClaInit(void)
{

#ifdef FLASH
	//Copy over the CLA code(if running in standalone mode from FLASH)
	memcpy(&Cla1funcsRunStart, &Cla1funcsLoadStart, (Uint32)&Cla1funcsLoadSize);
	//Copy over the CLA math tables(if running in standalone mode from FLASH and using the CLAMath Library)
	memcpy(&Cla1mathTablesRunStart, &Cla1mathTablesLoadStart, (Uint32)&Cla1mathTablesLoadSize);
#endif //FLASH

	EALLOW;
	// Assign user defined ISR to the PIE vector table
	PieVectTable.CLA1_INT1  = &cla1_task1_isr;
	PieVectTable.CLA1_INT2  = &cla1_task2_isr;
	PieVectTable.CLA1_INT3  = &cla1_task3_isr;
	PieVectTable.CLA1_INT4  = &cla1_task4_isr;
	PieVectTable.CLA1_INT5  = &cla1_task5_isr;
	PieVectTable.CLA1_INT6  = &cla1_task6_isr;
	PieVectTable.CLA1_INT7  = &cla1_task7_isr;
	PieVectTable.CLA1_INT8  = &cla1_task8_isr;

	// Compute all CLA task vectors
    Cla1Regs.MVECT1 = (Uint16)((Uint32)&Cla1Task1 -(Uint32)&Cla1Prog_Start);
    Cla1Regs.MVECT2 = (Uint16)((Uint32)&Cla1Task2 -(Uint32)&Cla1Prog_Start);
    Cla1Regs.MVECT3 = (Uint16)((Uint32)&Cla1Task3 -(Uint32)&Cla1Prog_Start);
    Cla1Regs.MVECT4 = (Uint16)((Uint32)&Cla1Task4 -(Uint32)&Cla1Prog_Start);
    Cla1Regs.MVECT5 = (Uint16)((Uint32)&Cla1Task5 -(Uint32)&Cla1Prog_Start);
    Cla1Regs.MVECT6 = (Uint16)((Uint32)&Cla1Task6 -(Uint32)&Cla1Prog_Start);
    Cla1Regs.MVECT7 = (Uint16)((Uint32)&Cla1Task7 -(Uint32)&Cla1Prog_Start);
    Cla1Regs.MVECT8 = (Uint16)((Uint32)&Cla1Task8 -(Uint32)&Cla1Prog_Start);

    // Mapping CLA tasks
	Cla1Regs.MPISRCSEL1.bit.PERINT1SEL 	= CLA_INT1_NONE;
    Cla1Regs.MPISRCSEL1.bit.PERINT2SEL 	= CLA_INT2_EPWM2INT;//CLA_INT2_NONE;
    Cla1Regs.MPISRCSEL1.bit.PERINT3SEL 	= CLA_INT3_NONE;
    Cla1Regs.MPISRCSEL1.bit.PERINT4SEL 	= CLA_INT4_NONE;
    Cla1Regs.MPISRCSEL1.bit.PERINT5SEL 	= CLA_INT5_NONE;
    Cla1Regs.MPISRCSEL1.bit.PERINT6SEL 	= CLA_INT6_NONE;
    Cla1Regs.MPISRCSEL1.bit.PERINT7SEL 	= CLA_INT7_NONE;
    Cla1Regs.MPISRCSEL1.bit.PERINT8SEL 	= CLA_INT8_NONE;

    Cla1Regs.MIER.bit.INT1 		 		= CLA_INT_ENABLE;
    Cla1Regs.MIER.bit.INT2 		 		= CLA_INT_ENABLE;

    Cla1Regs.MCTL.bit.IACKE = CLA_IACK_ENABLE;

	// Switch the CLA program space to the CLA and enable software forcing
	// Also switch over CLA data ram 0,1 and 2
	// CAUTION: The RAMxCPUE bits can only be enabled by writing to the register
	// and not the individual bit field. Furthermore, the status of these bitfields
	// is not reflected in either the watch or register views - they always read as
	// zeros. This is a known bug and the user is advised to test CPU accessibilty
	// first before proceeding
    Cla1Regs.MMEMCFG.all = CLA_PROG_ENABLE|CLARAM0_ENABLE|CLARAM1_ENABLE|CLARAM2_ENABLE|CLA_RAM1CPUE;

    // Enable CLA interrupts at the group and subgroup levels
//	PieCtrlRegs.PIEIER11.bit.INTx2 = 1;
//	IER |= (M_INT11 );

	EDIS;
}

shared_data.c

//Task 2 (C) Variables
#pragma DATA_SECTION(xInput,"CpuToCla1MsgRAM");
long xInput;
#pragma DATA_SECTION(xResult,"Cla1ToCpuMsgRAM");
long xResult;
#pragma DATA_SECTION(DutyBuck_CLA,"CpuToCla1MsgRAM")
volatile float32 DutyBuck_CLA;
#pragma DATA_SECTION(DutyBoost_CLA,"Cla1DataRam1")
volatile float32 DutyBoost_CLA;
#pragma DATA_SECTION(DutyBoost_CLA2CPU,"Cla1ToCpuMsgRAM");
volatile float32 DutyBoost_CLA2CPU;
#pragma DATA_SECTION(Ipv_Read_CLA,"Cla1DataRam1")
#pragma DATA_SECTION(Vpv_Read_CLA,"Cla1DataRam1")
#pragma DATA_SECTION(Iout_Read_CLA,"Cla1DataRam1")
#pragma DATA_SECTION(Vout_Read_CLA,"Cla1DataRam1")
volatile float32 Ipv_Read_CLA,Vpv_Read_CLA,Iout_Read_CLA,Vout_Read_CLA;
#pragma DATA_SECTION(Vpv_Ref_CLA,"CpuToCla1MsgRAM")
volatile float32 Vpv_Ref_CLA;
#pragma DATA_SECTION(Vout_Ref_CLA,"CpuToCla1MsgRAM")
volatile float32 Vout_Ref_CLA;
#pragma DATA_SECTION(Iout_Ref_DC_CLA,"Cla1DataRam1")
#pragma DATA_SECTION(Iout_Ref_CL_CLA,"Cla1DataRam1")
#pragma DATA_SECTION(Iout_Ref_MPPT_CLA,"Cla1DataRam1")
volatile float32 Iout_Ref_DC_CLA,Iout_Ref_CL_CLA,Iout_Ref_MPPT_CLA;
#pragma DATA_SECTION(MATH_EMAVG_CLA_Ipv, "Cla1ToCpuMsgRAM")
MATH_EMAVG_CLA MATH_EMAVG_CLA_Ipv;
#pragma DATA_SECTION(MATH_EMAVG_CLA_Vpv, "Cla1ToCpuMsgRAM")
MATH_EMAVG_CLA MATH_EMAVG_CLA_Vpv;
#pragma DATA_SECTION(MATH_EMAVG_CLA_Iout, "Cla1ToCpuMsgRAM")
MATH_EMAVG_CLA MATH_EMAVG_CLA_Iout;
#pragma DATA_SECTION(MATH_EMAVG_CLA_Vout, "Cla1ToCpuMsgRAM")
MATH_EMAVG_CLA MATH_EMAVG_CLA_Vout;
#pragma DATA_SECTION(CNTL_PI_CLA_Vpv, "Cla1DataRam1")
volatile CNTL_PI_CLA CNTL_PI_CLA_Vpv;
#pragma DATA_SECTION(CNTL_PI_CLA_Vout, "Cla1DataRam1")
volatile CNTL_PI_CLA CNTL_PI_CLA_Vout;
#pragma DATA_SECTION(CNTL_PI_CLA_Iout, "Cla1DataRam1")
volatile CNTL_PI_CLA CNTL_PI_CLA_Iout;
#pragma DATA_SECTION(Vout_Ref_CLA2CPU,"Cla1ToCpuMsgRAM");
volatile float32 Vout_Ref_CLA2CPU;
#pragma DATA_SECTION(Vout_Read_CLA2CPU,"Cla1ToCpuMsgRAM");
volatile float32 Vout_Read_CLA2CPU;
#pragma DATA_SECTION(Iout_Ref_DC_CLA2CPU,"Cla1ToCpuMsgRAM");
volatile float32 Iout_Ref_DC_CLA2CPU;

shared.h

//Task 2 (C) Variables
extern Uint16 G_WorkStatNow;
extern long xInput;
extern long xResult;
extern volatile float32 DutyBuck_CLA;
extern volatile float32 DutyBoost_CLA;
extern volatile float32 DutyBoost_CLA2CPU;
extern volatile float32 Ipv_Read_CLA,Vpv_Read_CLA,Iout_Read_CLA,Vout_Read_CLA;
extern volatile float32 Vpv_Ref_CLA;
extern volatile float32 Vout_Ref_CLA;
extern volatile float32 Iout_Ref_DC_CLA,Iout_Ref_CL_CLA,Iout_Ref_MPPT_CLA;
extern MATH_EMAVG_CLA MATH_EMAVG_CLA_Ipv;
extern MATH_EMAVG_CLA MATH_EMAVG_CLA_Vpv;
extern MATH_EMAVG_CLA MATH_EMAVG_CLA_Iout;
extern MATH_EMAVG_CLA MATH_EMAVG_CLA_Vout;
extern volatile CNTL_PI_CLA CNTL_PI_CLA_Vpv;
extern volatile CNTL_PI_CLA CNTL_PI_CLA_Vout;
extern volatile CNTL_PI_CLA CNTL_PI_CLA_Iout;
extern volatile float32 Vout_Ref_CLA2CPU;
extern volatile float32 Vout_Read_CLA2CPU;
extern volatile float32 Iout_Ref_DC_CLA2CPU;

cla.cla 感觉运行不正常的是CNTL_PI_CLA_MACRO()函数

__interrupt void Cla1Task2 ( void )
{
	Uint32 M_PeriodBuck,M_PeriodBoost;

//	xResult=xInput;
	Ipv_Read_CLA = (1-0.0384615)*Ipv_Read_CLA + 0.0384615*(Ipv_FB2)*0.000244140625;
	Iout_Read_CLA = (1-0.3858695)*Iout_Read_CLA + 0.3858695*(Iout_FB2)*0.000244140625;//10kHz Low Pass
	Vout_Read_CLA = (1-0.3858695)*Vout_Read_CLA + 0.3858695*(Vout_FB2)*0.000244140625;//10kHz Low Pass
	Vpv_Read_CLA = (1-0.0384615)*Vpv_Read_CLA + 0.0384615*(Vpv_FB2)*0.000244140625;
	if(Iout_Read_CLA<0){Iout_Read_CLA=0;}
	if		(Iout_Read_CLA<0.025)	{EPwm2Regs.DBCTL.bit.OUT_MODE = DBA_ENABLE;}//Disable PWM out of EPWM2B,EPwm2Regs.DBCTL.bit.IN_MODE = DBA_RED_DBB_FED;
	else if	(Iout_Read_CLA>0.05)	{EPwm2Regs.DBCTL.bit.OUT_MODE = DB_FULL_ENABLE;}//Enable PWM out of EPWM2B,EPwm2Regs.DBCTL.bit.IN_MODE = DBA_ALL;

	//输入电压环PI
	CNTL_PI_CLA_Vpv.Ref = Vpv_Ref_CLA;
	CNTL_PI_CLA_Vpv.Fbk = Vpv_Read_CLA;
	CNTL_PI_CLA_MACRO(CNTL_PI_CLA_Vpv);
	Iout_Ref_MPPT_CLA = CNTL_PI_CLA_Vpv.Out;

	//输出电压环PI
	CNTL_PI_CLA_Vout.Ref = Vout_Ref_CLA;
	CNTL_PI_CLA_Vout.Fbk = Vout_Read_CLA;
	CNTL_PI_CLA_MACRO(CNTL_PI_CLA_Vout);
	Iout_Ref_DC_CLA = CNTL_PI_CLA_Vout.Out;

	Iout_Ref_CL_CLA = (Iout_Ref_MPPT_CLA<Iout_Ref_DC_CLA)?Iout_Ref_MPPT_CLA:Iout_Ref_DC_CLA;

	//输出电流环PI
	CNTL_PI_CLA_Iout.Ref = Iout_Ref_CL_CLA;//
	CNTL_PI_CLA_Iout.Fbk = Iout_Read_CLA;
	CNTL_PI_CLA_MACRO(CNTL_PI_CLA_Iout);

	if((G_WorkStatNow==StartUpStat))//||)
	{
		DutyBoost_CLA = 0;//
	}
	else if((G_WorkStatNow==OnStat))
	{
		DutyBoost_CLA = CNTL_PI_CLA_Iout.Out;//
	}
	else{DutyBoost_CLA=0;}

	M_PeriodBuck = EPwm1Regs.TBPRD * DutyBuck_CLA;
	EPwm1Regs.CMPA.half.CMPA = M_PeriodBuck;
	M_PeriodBoost = EPwm2Regs.TBPRD * DutyBoost_CLA;
	EPwm2Regs.CMPA.half.CMPA = M_PeriodBoost;

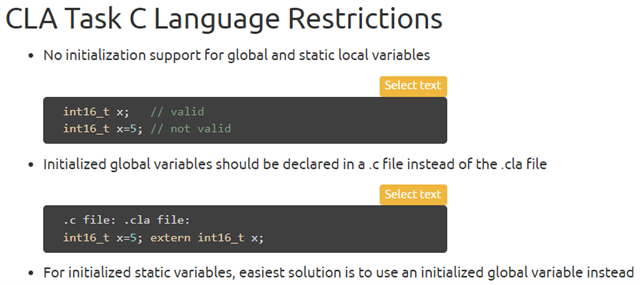

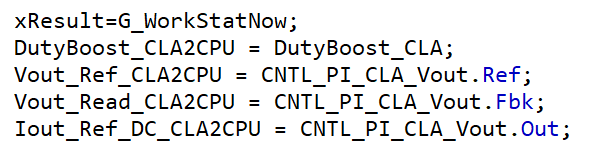

	xResult=G_WorkStatNow;
	DutyBoost_CLA2CPU = DutyBoost_CLA;
	Vout_Ref_CLA2CPU = CNTL_PI_CLA_Vout.Ref;
	Vout_Read_CLA2CPU = CNTL_PI_CLA_Vout.Fbk;
	Iout_Ref_DC_CLA2CPU = CNTL_PI_CLA_Vout.Out;

	MATH_EMAVG_CLA_Ipv.In = (Ipv_Read_CLA);
	MATH_EMAVG_CLA_MACRO(MATH_EMAVG_CLA_Ipv);
	MATH_EMAVG_CLA_Vpv.In = (Vpv_Read_CLA);
	MATH_EMAVG_CLA_MACRO(MATH_EMAVG_CLA_Vpv);
	MATH_EMAVG_CLA_Iout.In = (Iout_Read_CLA);
	MATH_EMAVG_CLA_MACRO(MATH_EMAVG_CLA_Iout);
	MATH_EMAVG_CLA_Vout.In = (Vout_Read_CLA);
	MATH_EMAVG_CLA_MACRO(MATH_EMAVG_CLA_Vout);

}

.cmd

_Cla1Prog_Start = _Cla1funcsRunStart;
-heap 0x400
-stack 0x400
// Define a size for the CLA scratchpad area that will be used
// by the CLA compiler for local symbols and temps
// Also force references to the special symbols that mark the
// scratchpad are.
CLA_SCRATCHPAD_SIZE = 0x100;
--undef_sym=__cla_scratchpad_end
--undef_sym=__cla_scratchpad_start
MEMORY
{
PAGE 0 :   /* Program Memory */
           /* Memory (RAM/FLASH/OTP) blocks can be moved to PAGE1 for data allocation */
   //RAML0       : origin = 0x008000, length = 0x000800     /* on-chip RAM block L0 */
   //RAML1       : origin = 0x008800, length = 0x000400     /* on-chip RAM block L1 */
   RAMM0       : origin = 0x000050, length = 0x0003B0
   RAMM1       : origin = 0x000400, length = 0x000400     /* on-chip RAM block M1 */
   RAML3       : origin = 0x009000, length = 0x001000	  /* on-chip RAM block L3 */
   OTP         : origin = 0x3D7800, length = 0x000400     /* on-chip OTP */

   FLASHH      : origin = 0x3D8000, length = 0x004000     /* on-chip FLASH */
   FLASHG      : origin = 0x3DC000, length = 0x004000     /* on-chip FLASH */
   FLASHF      : origin = 0x3E0000, length = 0x004000     /* on-chip FLASH */
   FLASHE      : origin = 0x3E4000, length = 0x004000     /* on-chip FLASH */
   FLASHD      : origin = 0x3E8000, length = 0x004000     /* on-chip FLASH */
   FLASHC      : origin = 0x3EC000, length = 0x004000     /* on-chip FLASH */
   FLASHA      : origin = 0x3F4000, length = 0x003F80     /* on-chip FLASH */
   CSM_RSVD    : origin = 0x3F7F80, length = 0x000076     /* Part of FLASHA.  Program with all 0x0000 when CSM is in use. */
   BEGIN       : origin = 0x3F7FF6, length = 0x000002     /* Part of FLASHA.  Used for "boot to Flash" bootloader mode. */
   CSM_PWL_P0  : origin = 0x3F7FF8, length = 0x000008     /* Part of FLASHA.  CSM password locations in FLASHA */

   FPUTABLES   : origin = 0x3FD860, length = 0x0006A0	  /* FPU Tables in Boot ROM */
   IQTABLES    : origin = 0x3FDF00, length = 0x000B50     /* IQ Math Tables in Boot ROM */
   IQTABLES2   : origin = 0x3FEA50, length = 0x00008C     /* IQ Math Tables in Boot ROM */
   IQTABLES3   : origin = 0x3FEADC, length = 0x0000AA	  /* IQ Math Tables in Boot ROM */

   ROM         : origin = 0x3FF3B0, length = 0x000C10     /* Boot ROM */
   RESET       : origin = 0x3FFFC0, length = 0x000002     /* part of boot ROM  */
   VECTORS     : origin = 0x3FFFC2, length = 0x00003E     /* part of boot ROM  */

PAGE 1 :   /* Data Memory */
           /* Memory (RAM/FLASH/OTP) blocks can be moved to PAGE0 for program allocation */
           /* Registers remain on PAGE1                                                  */

   BOOT_RSVD   : origin = 0x000000, length = 0x000050     /* Part of M0, BOOT rom will use this for stack */
   CLARAM0     : origin = 0x008800, length = 0x000400
   CLARAM1     : origin = 0x008C00, length = 0x000400
   CLARAM2     : origin = 0x008000, length = 0x000800
   RAML4       : origin = 0x00A000, length = 0x002000     /* on-chip RAM block L4 */
   RAML5_L8    : origin = 0x00C000, length = 0x008000
   USB_RAM     : origin = 0x040000, length = 0x000800     /* USB RAM		  */
   FLASHB      : origin = 0x3F0000, length = 0x004000     /* on-chip FLASH */
   CLA_CPU_MSGRAM  : origin = 0x001480, length = 0x000080 /* CLA-R/W, CPU-R message RAM */
   CPU_CLA_MSGRAM  : origin = 0x001500, length = 0x000080 /* CPU-R/W, CLA-R message RAM */
}

SECTIONS
{

   /* Allocate program areas: */
   .cinit              : > FLASHA,     PAGE = 0
   .pinit              : > FLASHA,     PAGE = 0
   .text               : > FLASHA,     PAGE = 0
   codestart           : > BEGIN,      PAGE = 0
   ramfuncs            : LOAD = FLASHD,
                         RUN = RAMM0 | RAMM1,
                         LOAD_START(_RamfuncsLoadStart),
                         LOAD_END(_RamfuncsLoadEnd),
                         RUN_START(_RamfuncsRunStart),
						 LOAD_SIZE(_RamfuncsLoadSize),
                         PAGE = 0
                         {
      						--library=SFRA_F_Lib.lib<SFRA_F_INJECT.obj>
   							--library=SFRA_F_Lib.lib<SFRA_F_COLLECT.obj>
	                       }

   SFRA_F_Data		: > RAML5_L8, ALIGN = 64, PAGE = 1//Add @190305 for SFRA support

   csmpasswds          : > CSM_PWL_P0, PAGE = 0
   csm_rsvd            : > CSM_RSVD,   PAGE = 0

   /* Allocate uninitalized data sections: */
   .stack              : > RAML4,      PAGE = 1
   .ebss               : > RAML4,      PAGE = 1
   .esysmem            : > RAML4,      PAGE = 1

   /* Initalized sections to go in Flash */
   /* For SDFlash to program these, they must be allocated to page 0 */
   .econst             : > FLASHA,     PAGE = 0
   .switch             : > FLASHA,     PAGE = 0

   .scratchpad      : > CLARAM0,   PAGE = 1
   .bss_cla		    : > CLARAM0,   PAGE = 1
   .const_cla	    : > CLARAM0,   PAGE = 1

   /* Allocate IQ math areas: */
   IQmath              : > FLASHA,     PAGE = 0            /* Math Code */
   IQmathTables        : > IQTABLES,   PAGE = 0, TYPE = NOLOAD

   /* Allocate FPU math areas: */
   FPUmathTables       : > FPUTABLES,  PAGE = 0, TYPE = NOLOAD

   /*CLA specifi sections */
   Cla1Prog			: LOAD = FLASHD,
					  RUN = RAML3,
                     LOAD_START(_Cla1funcsLoadStart),
                     LOAD_SIZE(_Cla1funcsLoadSize),
                     LOAD_END(_Cla1funcsLoadEnd),
                     RUN_START(_Cla1funcsRunStart),
                     RUN_SIZE(_Cla1funcsRunSize),
                     RUN_END(_Cla1funcsRunEnd),
                     PAGE = 0, ALIGN(4)

   Cla1ToCpuMsgRAM  : > CLA_CPU_MSGRAM,   PAGE = 1
   CpuToCla1MsgRAM  : > CPU_CLA_MSGRAM,  PAGE = 1
   Cla1DataRam0		: > CLARAM0,		  PAGE = 1
   Cla1DataRam1		: > CLARAM1,		  PAGE = 1
   Cla1DataRam2		: > CLARAM2,		  PAGE = 1

   CLA1mathTables	: > CLARAM1,
                      LOAD_START(_Cla1mathTablesLoadStart),
                      LOAD_END(_Cla1mathTablesLoadEnd),
                      LOAD_SIZE(_Cla1mathTablesLoadSize),
                      RUN_START(_Cla1mathTablesRunStart),
                      PAGE = 1
	// Must be allocated to memory the CLA has write access to
   CLAscratch       :
                     { *.obj(CLAscratch)
                     . += CLA_SCRATCHPAD_SIZE;
                     *.obj(CLAscratch_end) } > CLARAM0,//RAML3,//
					 PAGE = 1

   /* .reset is a standard section used by the compiler.  It contains the */
   /* the address of the start of _c_int00 for C Code.   /*
   /* When using the boot ROM this section and the CPU vector */
   /* table is not needed.  Thus the default type is set here to  */
   /* DSECT  */
   .reset              : > RESET,      PAGE = 0, TYPE = DSECT
   vectors             : > VECTORS,    PAGE = 0, TYPE = DSECT

	DLOG	 		   : >	RAML5_L8,	   PAGE = 1//Add @190305
   	SINTBL			   : > FLASHB, 	   PAGE = 1//Add @190305
}

2 年多前

0 Yale Li 李耀先 2 年多前

TI__Guru 65745 points

Gang Liu 说：
1. 连接仿真器下载程序后，CLA代码能正常运行；

2. 断开仿真器重新上电后，CLA部分PI控制代码不能正常运行，输出结果不正确，只是部分代码不正常运行，因为AD采集量是正常刷新的；

3. 手动按下复位按钮进行复位后，CLA代码又能正常运行了，输出结果也是正常的；

4. 上电前就按住复位按钮，上电后再松开，CLA部分PI控制代码不能正常运行，再按下复位按钮，CLA代码又可以运行。

这些都是通过仿真器观察的吧？

0 Gang Liu 2 年多前回复 Yale Li 李耀先

Prodigy 20 points

1是通过仿真器观察的

2 3 4是通过串口通讯观察相关变量值判断的，均未连接仿真器

0 Yale Li 李耀先 2 年多前回复 Gang Liu

TI__Guru 65745 points

我建议在你认为没有运行的地方加入翻转IO的操作，进一步确认一下这里是没有运行还是因为一些别的因素导致问题

0 Gang Liu 2 年多前回复 Yale Li 李耀先

Prodigy 20 points

我之前的表述可能不准确，确切的说法是运行结果不正确，本来应该一直刷新的变量始终是0，手动复位以后变量刷新恢复正常。

通过一些变量赋值操作，观察变量的变化，发现程序应该是逐条运行了的，但是结果不对。

结果不正确的地方大多进行了乘法运算。

我总感觉不是.cla代码的问题，而是有其他地方的配置不正确，但是又找不到问题所在。

0 Yale Li 李耀先 2 年多前回复 Gang Liu

TI__Guru 65745 points

串口通讯监控这一部分具体是怎么实现的？

0 Gang Liu 2 年多前回复 Yale Li 李耀先

Prodigy 20 points

通过在.cla中加入变量赋值，在.c中把变量从串口发出去，如下图所示

串口程序经验证没问题

除了变量刷新不正确外，PWM输出也不正确，所以问题定位到了cla程序执行

0 Yale Li 李耀先 2 年多前回复 Gang Liu

TI__Guru 65745 points

好的，我看一下

0 Gang Liu 2 年多前回复 Yale Li 李耀先

Prodigy 20 points

今天进行了一些硬件测试，测量了电源上电波形、复位波形等等，未发现异常情况。

尝试将CLA代码移至CPU执行，发现了一个新的现象：初始上电PWM模块信号无输出。

还是同上面提到的一样，初始上电不正常，手动按下复位按键复位后即可恢复正常，输出也正常。

继续通过变量监控的方式发现，CMPA寄存器回读值与写入值相符，但无PWM信号输出。

问题越搞越多，十分头大。

麻烦帮忙分析一下，多谢。

PWM初始化代码如下：

//--------------------------------------------------------------------------------------
// Configure PWM1&2 for 200Khz switching Frequency
//--------------------------------------------------------------------------------------
void PwmInit(void)
{
	// Configure PWM1 for 200Khz switching Frequency for 90Mhz device： 90000/450=200
	PWM_1chHiResUpDwnCnt_CNF(1,450,1,0);// n = 		Target ePWM module, 1,2,...16.  e.g. if n=2, then target is ePWM2
										// period = PWM period in Sysclks
										// mode =	Master/Slave mode, e.g. mode=1 for master, mode=0 for slave
										// phase =	phase offset from upstream master in Sysclks, applicable only if mode=0, i.e. slave
	EPwm1Regs.AQSFRC.bit.RLDCSF		= 3; // boot-strap refresh is implemented using Software Force, configure to Load Immediately any software force compare action
	EPwm1Regs.DBCTL.bit.IN_MODE		= DBA_ALL;		// PWMA is the source for both rising edge and falling edge
	EPwm1Regs.DBCTL.bit.POLSEL		= DB_ACTV_HIC;	// PWMB is inverted of PWMA
	EPwm1Regs.DBCTL.bit.OUT_MODE	= DB_FULL_ENABLE;
	EPwm1Regs.DBFED					= DB_FALLING_EDGE_DELAY;
	EPwm1Regs.DBRED					= DB_RISING_EDGE_DELAY;

	EALLOW;
	EPwm1Regs.HRCNFG.bit.AUTOCONV	= 1;		// Enable auto-conversion logic
//	EPwm1Regs.HRPCTL.bit.HRPE	 	= 0;		// Turn off high-resolution period control.
	EDIS;

	// Configure PWM2 for 200Khz switching Frequency for 90Mhz Device
	PWM_1chHiResUpDwnCnt_CNF(2, 450,0,120);
	EPwm2Regs.AQSFRC.bit.RLDCSF		= 3; 			// Load Immediately any software force compare action
	EPwm2Regs.DBCTL.bit.IN_MODE		= DBA_ALL;		// PWMA is the source for both rising edge and falling edge
	EPwm2Regs.DBCTL.bit.POLSEL		= DB_ACTV_HIC; 	// PWMB is inverted of PWMA
	EPwm2Regs.DBCTL.bit.OUT_MODE	= DB_FULL_ENABLE;
	EPwm2Regs.DBFED					= DB_FALLING_EDGE_DELAY;
	EPwm2Regs.DBRED					= DB_RISING_EDGE_DELAY;

    EALLOW;
    EPwm2Regs.HRCNFG.bit.AUTOCONV	= 1;		// Enable auto-conversion logic
//  EPwm2Regs.HRPCTL.bit.HRPE	 	= 0;		// Turn off high-resolution period control.
    EDIS;
}

0 Gang Liu 2 年多前回复 Gang Liu

Prodigy 20 points

PWM_1chHiResUpDwnCnt_CNF函数调用的是controlSUIT中的

void PWM_1chHiResUpDwnCnt_CNF(int16 n, int16 period, int16 mode, int16 phase) {
	// Time Base SubModule Registers
	(*ePWM[n]).TBCTL.bit.PRDLD = TB_IMMEDIATE; // set Immediate load
	(*ePWM[n]).TBPRD = period >> 1; // PWM frequency = 1 / period
	(*ePWM[n]).TBPHS.half.TBPHS = 0;
	(*ePWM[n]).TBCTR = 0;
	(*ePWM[n]).TBCTL.bit.CTRMODE = TB_COUNT_UPDOWN;
	(*ePWM[n]).TBCTL.bit.HSPCLKDIV = TB_DIV1;
	(*ePWM[n]).TBCTL.bit.CLKDIV = TB_DIV1;

	if (mode == 1) {		// config as a Master
		(*ePWM[n]).TBCTL.bit.PHSEN = TB_DISABLE;
		(*ePWM[n]).TBCTL.bit.SYNCOSEL = TB_CTR_ZERO; // sync "down-stream"
	}
	if (mode == 0) {		// config as a Slave (Note: Phase+2 value used to compensate for logic delay)
		(*ePWM[n]).TBCTL.bit.PHSEN = TB_ENABLE;
		(*ePWM[n]).TBCTL.bit.SYNCOSEL = TB_SYNC_IN;

		if ((0 <= phase) && (phase <= 2)) {
			(*ePWM[n]).TBPHS.half.TBPHS = (2 - phase);
			(*ePWM[n]).TBCTL.bit.PHSDIR = TB_UP; // set to count up after sync
		}
		else if ((2 < phase) && (phase <= period / 2)) {
			(*ePWM[n]).TBPHS.half.TBPHS = (phase - 2);
			(*ePWM[n]).TBCTL.bit.PHSDIR = TB_DOWN; // set to count down after sync
		}
		else if ((period / 2 < phase) && (phase <= period)) {
			(*ePWM[n]).TBPHS.half.TBPHS = (period - phase + 2);
			(*ePWM[n]).TBCTL.bit.PHSDIR = TB_UP; // set to count up after sync
		}
	}
	// Counter Compare Submodule Registers
	(*ePWM[n]).CMPA.half.CMPA = 0; // set duty 0% initially
	(*ePWM[n]).CMPB = 0; // set duty 0% initially
	(*ePWM[n]).CMPCTL.bit.SHDWAMODE = CC_SHADOW;
	(*ePWM[n]).CMPCTL.bit.LOADAMODE = CC_CTR_PRD;

	// Action Qualifier SubModule Registers
	(*ePWM[n]).AQCTLA.bit.CAD = AQ_SET;
	(*ePWM[n]).AQCTLA.bit.CAU = AQ_CLEAR;

	(*ePWM[n]).AQCTLB.bit.ZRO = AQ_NO_ACTION;
	(*ePWM[n]).AQCTLB.bit.CAU = AQ_NO_ACTION;
	(*ePWM[n]).AQCTLB.bit.PRD = AQ_NO_ACTION;

	//	Enable HiRes option
	EALLOW;
	(*ePWM[n]).HRCNFG.all = 0x0;
	(*ePWM[n]).HRCNFG.bit.EDGMODE = HR_FEP;
	(*ePWM[n]).HRCNFG.bit.CTLMODE = HR_CMP;
	(*ePWM[n]).HRCNFG.bit.HRLOAD = HR_CTR_PRD;
	//(*ePWM[n]).HRCNFG.bit.HRLOAD = HR_CTR_ZERO;

	//  ePWM Type 1 can auto convert the value in CMPAHR,
	//  TBPHSHR or TBPRDHR to a scaled micro-edge dealy
	//  value.

#if defined(DSP2803x_DEVICE_H) || defined(DSP2802x_DEVICE_H)
	(*ePWM[n]).HRCNFG.bit.AUTOCONV = 1;
#endif

	EDIS;
}
