DRV8163S-Q1EVM: DRV8163SQVAKRQ1 ASIL-B functional safety application in the SPI version.

xiaoshan lu

Part Number: DRV8163S-Q1EVM
Other Parts Discussed in Thread: DRV8163-Q1

Hi,

I need to use 2x DRV8163S for BDC motor driving. The SPI version offers rich fault diagnosis functions. My questions are:

What is the functional safety level of the DRV8163S? Does it meet ASIL-B?

I am implementing a full-bridge DRV8163S using 2x half-bridge DRV8163S. My functional safety goal is to achieve ASIL-B level for fault/unintended motor drive. Can I meet my ASIL-B level requirement using SPI (internal fault diagnosis mechanism)? This means without adding an additional FET short-circuit fault diagnosis mechanism, only implementing FET fault diagnosis through the chip's internal FET short-circuit fault diagnosis mechanism and reading the data via SPI.

Best regards,

Xiaoshan Lu

7 天前

0 Vivian Gao 6 天前

TI__Mastermind 43290 points

We can achieve ASIL-D when two DRV8163-Q1 are used to drive a load. To request and download the FS documents regarding this configuration, please use this link: https://www.ti.com/drr/opn/DRV8163-Q1-FS

0 xiaoshan lu 6 天前回复 Vivian Gao

Prodigy 10 points

Hi,

Thank you very much for your quick reply.

I have already requested permissions for the FS documents.

I would like to confirm again, as you mentioned, when two DRV8163-Q1s are used, can ASIL-D be achieved without additional FET fault diagnosis circuitry? I mean, it is only necessary to use the fault diagnosis mechanism inside the DRV8163-Q1, which is configured and reads the fault status via SPI.

Note: Our functional safety goal is the unintended triggering of the BDC motor function as ASIL-B.

I look forward to your reply. Thank you in advance.

Best regards,

Xiaoshan Lu

0 xiaoshan lu 6 天前回复 xiaoshan lu

Prodigy 10 points

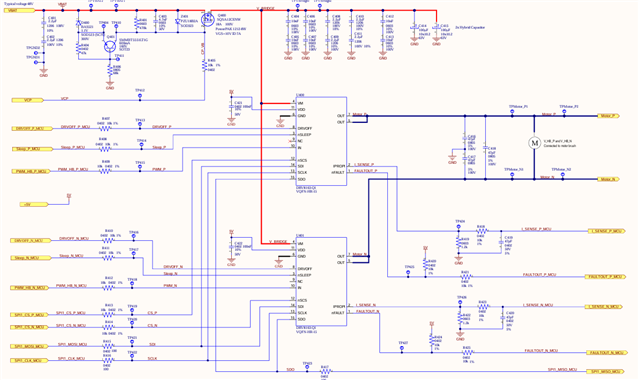

Here is some supplementary material for your review. We used two DRV8163-Q1 (SPI version) FETs. for H-Bridge. diagnosis of the H-Bridge MOSFETs(Short circuit) relies on the internal fault diagnosis mechanism of the DRV8163-Q1, aiming to achieve at least ASIL-B functional safety. Please confirm this, does it meet the requirements?. Thank you!

0 Vivian Gao 1 天前回复 xiaoshan lu

TI__Mastermind 43290 points

I believe the concept we have for ASIL-D does not relay on any external fault diagnostics only what the DRV8163's provide but I will double check this. And for the review, I will aim to provide my notes/comments this week

0 xiaoshan lu 1 天前回复 Vivian Gao

Prodigy 10 points

Hi Vilian,

Thank you very much.

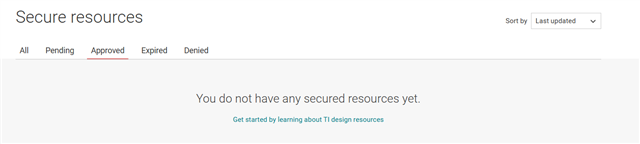

In addition, I have applied for FS document permissions, but several days have passed and it seems that it has not been approved yet.

Awaiting your further reply.

Best regards,

0 Vivian Gao 18 小时前回复 xiaoshan lu

TI__Mastermind 43290 points

This is correct, ASIL-D can be achieved without additional FAULT diagnosis with two DRV8163-Q1's driving a half bridge without additional FET fault diagnostics. the safety manual goes into more detail, but this relies on using the OLP feature on both devices to mitigate single point failure.
