• DS125DF111: 如何将使用sigcon配置的寄存器参数导出

    Part Number: DS125DF111

    在使用sigcon配置完器件后,在EEPROM配置界面点击update slot from device后,导出HEX文件。将HEX文件写入外部EEPROM并将器件配置为SMBus slave mode,重新上下电后发现器件加载的配置与原本设计的配置不同,应该如何正确导出HEX文件?

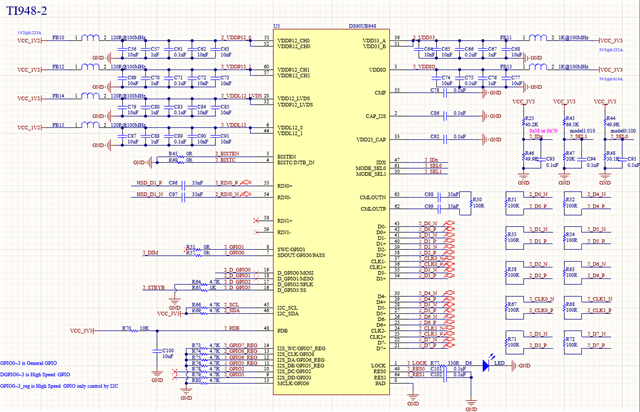

  • DS90UB948-Q1: 不显示图像

    Part Number: DS90UB948-Q1

    您好!

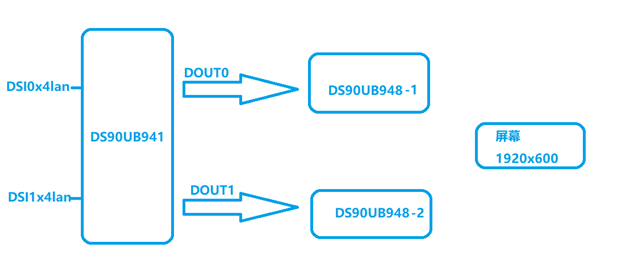

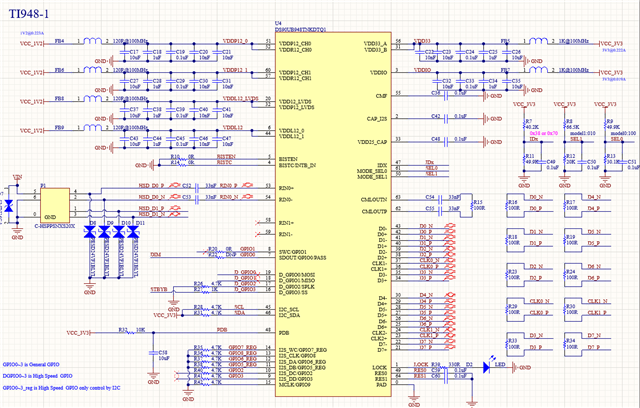

    我们的设计方案如下,出现问题是屏幕接在948-1口就可以正常点亮,接在948-2就电不亮且在948-2口一直在显示红、蓝和白的颜色跳变,请帮忙看看是什么问题?

    测试过把DSI0和DSI1交换,还是948-2无法正常显示DSI的输出图像,只显示红、蓝和白的跳变;

  • DS90UH983-Q1: 超级帧等问题咨询

    Part Number: DS90UH983-Q1
    Other Parts Discussed in Thread: ALP, USB2ANY

    Dear TI

    目前我们采用UH983一拖二接两个UB948的方案,

    其中Port0的分辨率为1920×480,Port1的分辨率为1280×720,我们想咨询一下这种情况超级帧应该怎么配置?可以允许Port0的宽比Port1小吗?

    我们采用ALP_98XPROFILE_UPDATE_v03.zip对ALP进行更新,但是打开UH…

  • DS90UB941AS-Q1: DS90UB941AS-Q1

    Part Number: DS90UB941AS-Q1
    Other Parts Discussed in Thread: LMK3H0102

    背景:

    有12.9寸屏:PCLK 136Mhz,DE屏

    15寸屏: PCLK 178Mhz ,sync HV屏

    高通SOC 8155输出DSI,DS90UB941AS-Q1匹配948芯片,15寸屏使用refer clk显示出现水波纹。(外部时钟是LMK3H0102)

    941的外部时钟jitter要求0.28UI的要求:88pS。外部时钟的jitter max…

  • SN65LVDS93B-Q1: 图纸审查

    Part Number: SN65LVDS93B-Q1

    TI专家们好:

           附件是RGB 24位转LVDS的图纸,请帮忙审查一下。

          其中有个问题需要咨询,规格书参考设计RGB信号需要4.7K上拉,但是我在论坛查找相关说明,似乎不需要上拉,这个具体怎么确定?

          另外图纸问题帮忙审核下。Dashboard_V1.pdf

  • TCA9546A: 0x00寄存器读取出来的数值异常?

    Part Number: TCA9546A

    您好!

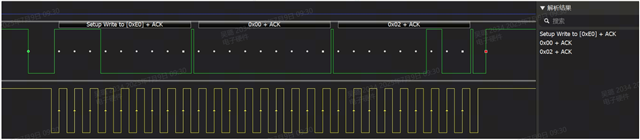

    使用的TCA9546APWR芯片,在使用时想要查看开关切换到通道几了 ,去读取0x00返回的还是00不正常,我切换通道使用却又都是正常,且我写入0x00寄存器也正常,这是为什么?

  • 接口论坛

    Part Number: DP83TC812S-Q1

    I found the MDI  design requirement in the schematic checklist for DP83TC812S

    1.termination resistor is recommended as  1kohm , 0.75W           -> in the open alliance the power rate  is 0.4W ,  I want to know which test requires the…

  • TLIN1028-Q1: LIN SBC can`t wake up from sleep mode by power on

    Part Number: TLIN1028-Q1

    steps for reproduce the failure:

    1,configure the system into sleep mode

    2,reduce power supply to 0

    3,power supply increase again above UVsup

    4,the LDO ramping up is not observed as marked in state machine , RST is also keep low…

  • DS90UB988-Q1: IIC does not forward

    Part Number: DS90UB988-Q1

    When conducting communication tests, there is a chance that 988 will not forward IIC messages. When we separately connect the IIC tool to 988 and the MCU, the tool can send messages to the MCU. Therefore, it is determined that…

  • DS90UB941AS-Q1: External Reference Clock Mode

    Part Number: DS90UB941AS-Q1
    Other Parts Discussed in Thread: LMK3H0102-Q1, , LMK3H0102

    We want to try to use External Reference Clock Mode mode to light up the display on the DS90UB941 (the Ref Clk clock source comes from OUTPUT0 of the LMK3H0102-Q1 chip…

  • DS90UH983-Q1: CR和EQ训练概率性失败

    Part Number: DS90UH983-Q1

    您好:

        我们正在调试983的链路训练功能,发现CR训练有很大概率的训练失败,导致EQ也会训练失败。请问这个会是什么原因导致的呢?这个有什么办法解决和规避吗?我们使用的是8.1Gbps   4-lane工作模式。

  • TUSB2046B: 使用48MHz晶体是否可以在VCC上电之前就有信号

    Part Number: TUSB2046B

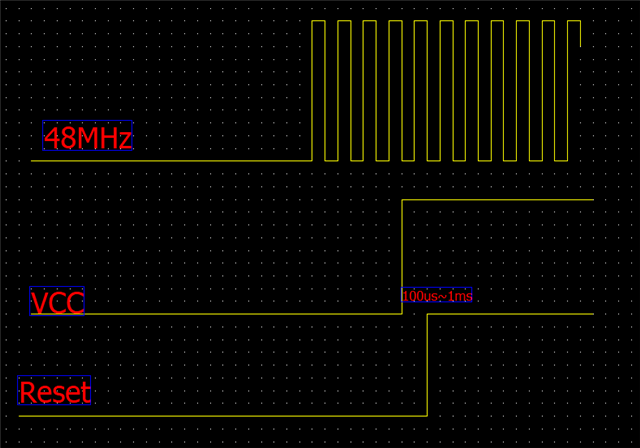

    Dear TI: 请帮忙确认TUSB2046BI这颗HUB IC是否可以接收如下上电时序?

  • TUSB4041PAPEVM: Hub drop and reconnect automatically

    Part Number: TUSB4041PAPEVM

    The usb 2.0 hub design is follow TUSB4041PAPEVM Schematic. And use the external eeprom for PID/VID setting. The eeprom bin file is showed as picture.

    In our application, the Host is the Mac mini (mac OS system). The hub is…

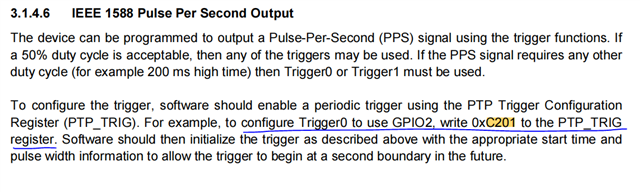

  • DP83640: PPS无输出

    Part Number: DP83640

    参考《National Semiconductor Ethernet PHYTER Software Development Guide》文档,首先通过写DP83640 0x13寄存器的值为0x5 选中page5,然后再写0x14寄存器的值为0xC201,配置完成后,使用示波器测量GPIO2管脚无PPS输出。

    请教下各位老师,除上述寄存器配置外,还需要配置其他寄存器吗?

    PS:目前通过通过写DP83640 0x1C寄存器的值为0x0,CLK_OUT管脚是有25MHz频率输出的…

  • TUSB2046B: 串联电阻和晶体的选择问题

    Part Number: TUSB2046B

    1:根据这份文件Application Report SLLA314,USB信号线TI建议串联阻抗匹配电阻,请问TUSB2046BI这颗HUB的内阻多大?需要串联多大阻值的电阻?谢谢!

    2:请问晶体的频率是否只能选择6MHz这个频率?我们的空间有限,6MHz的晶体体积过大。其他比如8MHz、12MHz是否可以?

  • DP83640: 与AM5718的PRU2网络接口问题

    Part Number: DP83640
    Other Parts Discussed in Thread: AM5718,

    各位老师,我现在使用AM5718的PRU2 MII接口与DP83640连接实现100M网通信,目前通过网线连接到PC机,PC机显示LINK 100M,但AM5718端没有显示LINK成功。

    已排查电源、strap pin、时钟、复位均正常,AM5718通过MDIO访问DP83640的REG #0,能正常访问并读写控制;但是访问REG 1#时读出来的值是0x79C9,第8位应该是0…

  • TFP410: HDMI to RGB 4K@60HZ

    Part Number: TFP410
    Other Parts Discussed in Thread: TFP401

    Hello, may I ask if TI has an HDMI to RGB converter similar to TFP401 that supports it 4K@60HZ Is it a chip for image input. The manual states that TFP401 only supports 1080p and WUXGA at 60…

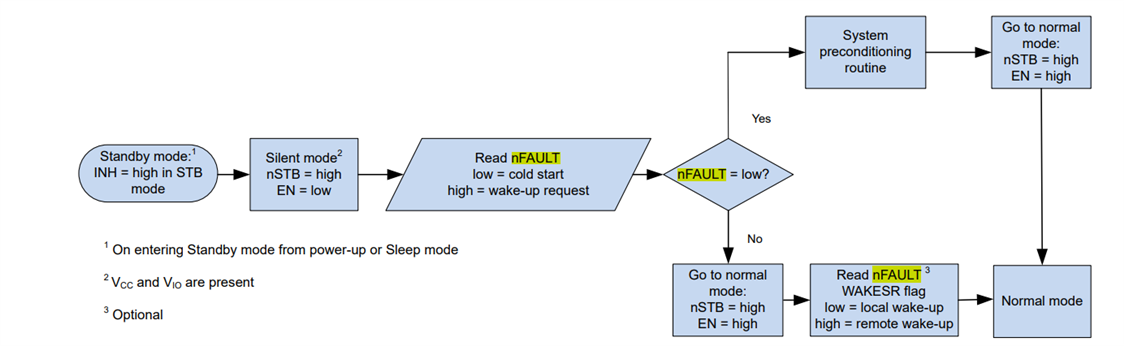

  • TCAN1043A-Q1: 启动和远端唤醒问题

    Part Number: TCAN1043A-Q1

    在TCAN1043A-Q1启动时必须按照图上的步骤,先拉高nSTB从standby模式进入Silent模式吗?直接将nSTB和EN同时拉高使之进入正常模式不行吗?

    在远端唤醒时,为什么要先进入Silent模式再去读取nFAULT,那么如果我在Standby模式下,我怎么知道发生了远端唤醒,然后将nSTB拉高进入Silent模式。

  • SN65C3222E:PWR通讯异常

    Part Number: SN65C3222E
    Other Parts Discussed in Thread: MAX3222,

    你好,有几个问题需要您解答

    1、SN65C3222EPWR是否可以替代MAX3222

    2、实际使用此芯片时,波特率设置为921600,通信大概半小时后,开始出现错误码,请问有可能是什么原因

  • XIO2001EVM: PCB design files

    Part Number: XIO2001EVM

    Hi:

    Can you please provide the PCB design files for the XIO2001EVM reference design? We are targeting the ZWS169 package.

    Thanks.

  • TCAN2845-Q1: If I unuesd VEXCC, I only use VCC1, how should the VEXCC pin be handled

    Part Number: TCAN2845-Q1

    Hi team:

         If my design does not require the use of VEXCC and only needs VCC1 and VCC2, how should the VEXMON, VEXCTRL, and VEXCC pins be handled? In the schematic design, can they be left floating? If left floating, what issues…

  • TUSB211A: How long PCB routing can be supported after TUSB211A?

    Part Number: TUSB211A

    Our design will add the TUSB211A at 20 inch after USB Host,however,we want to know how long PCB routing can be supported after TUSB211A ? Assuming the use of FR4 PCB material。

    Alternatively,how long PCB routing do you suggest addi…

  • LMK05318B: 搭配intel i210 SDP引脚实现PTP时钟时,LOPL_DPLL无法清除,此时时钟频率是否有效?

    Part Number: LMK05318B

    我目前正在尝试通过intel i210来同步一台Aes67音频设备输出的PTP时钟,i210输出的参考时钟再通过LMK05318B过滤/倍频后输出I2S时钟给下游设备。

    i210由一台x86 linux pc控制,通过linux的ptp4l同步外部时钟,testptp程序来控制i210的sdp引脚输出2Khz的方波信号作为LMK05318B的参考时钟,LMK05318B的XO晶振是12.288M的TCXO

    测试用的PCB是我自己绘制的,目前测试所使用的寄存器配置如下…

  • TCAN1146-Q1: 为什么需要发送多个can 唤醒数据包?

    Part Number: TCAN1146-Q1

    您好:

      测试tcan1146的选择唤醒功能时,写入0x81到0x10地址进入休眠模式,之后需要发送多次唤醒数据才

    可以让INH电平变化(变成待机模式),请问这个测试结果是否正确? 如果是正确的,那需要发送多次

    唤醒数据的原因是什么? 能否只发送一个数据包使tcan1146从休眠唤醒?

    谢谢!

    TRANSLATE with x
    English
    Arabic Hebrew Polish Bulgarian Hindi P…
  • DS320PR1601: 搭配Broadcom PEX89104可行,能否给我一份DS320PR1601RSCEVM的EEPROM的镜像文件。

    Part Number: DS320PR1601

    1.我想用DS320PR1601搭配Broadcom PEX89104,是否合适?

    2.能否给我一份DS320PR1601RSCEVM的EEPROM的镜像文件。

    TRANSLATE with x
    English
    Arabic Hebrew Polish Bulgarian Hindi Portuguese Catalan Hmong Daw Romanian Chinese Simplified Hungaria…
1 2 3 4 5 »
